CN210072515U - A computer memory stick plug-in device - Google Patents

Abstract

The utility model belongs to the technical field of computers, in particular to a computer memory module plug-in device, comprising an installation block, a groove is formed on the installation block, and a plurality of wirings are symmetrically fixed on the inner walls of both sides of the groove. A shrapnel, an installation groove is formed on the inner wall of the groove, a threaded rod is rotatably installed in the installation groove, a cavity is opened on the installation block, a motor is fixedly installed in the cavity, and one end of the threaded rod is installed It extends into the cavity and is fixedly connected with the output shaft of the motor. The threaded rod is threadedly installed with a slider, and the slider is slidably connected to the inner wall of the installation slot. A support rod is fixedly installed on the slider, and the support rod A brush is fixedly installed thereon, and a through hole is opened on one inner wall of the groove. The utility model has the advantages of simple operation, strong practicability, good dustproof effect, and at the same time, it is convenient to remove dust, and can effectively prevent dust from affecting the normal use of the computer.

Description

A computer memory stick plug-in device

technical field

The utility model relates to the technical field of computers, in particular to a computer memory stick plug-in device.

Background technique

Computer, commonly known as computer, is an electronic computing machine used for high-speed computing. It is a modern intelligent electronic device that can run according to the program and process massive data automatically and at high speed. It is composed of hardware and software. The hardware includes memory sticks. In the prior art, the memory sticks are installed in the plug-in device.

However, in the prior art, when the plug-in device is used for a long time, a lot of dust will adhere to the wiring shrapnel in the plug-in device, resulting in poor installation and contact of the memory module, which affects the normal use of the computer. Therefore, a computer memory module plug-in is proposed. connection device.

SUMMARY OF THE INVENTION

The purpose of the utility model is to propose a computer memory stick plug-in device in order to solve the shortcomings existing in the prior art.

In order to achieve the above purpose, the utility model adopts the following technical scheme: a computer memory stick plug-in device, comprising a mounting block, the mounting block is provided with a groove, and the inner walls on both sides of the groove are symmetrically fixed and installed There are a plurality of wiring shrapnel, an installation groove is opened on the inner wall of the groove, a threaded rod is rotatably installed in the installation groove, a cavity is opened on the installation block, a motor is fixedly installed in the cavity, and the motor is fixed in the cavity. One end of the threaded rod extends into the cavity and is fixedly connected with the output shaft of the motor. A slider is threadedly mounted on the threaded rod, and the slider is slidably connected to the inner wall of the installation slot, and a support rod is fixedly installed on the slider. A brush is fixedly installed on the support rod, a through hole is opened on one inner wall of the groove, a cooling fan is fixedly installed outside the through hole, and the air outlet of the cooling fan is communicated with the through hole. A filter element is fixedly installed on the cooling fan.

Preferably, a plurality of heat dissipation holes are symmetrically opened on both inner walls of the groove.

Preferably, a rotating groove is formed on the inner wall of the installation groove on the side away from the motor, a first bearing is fixedly sleeved on the threaded rod, and the outer ring of the first bearing is fixedly connected to the inner wall of the rotating groove.

Preferably, a rotating hole is opened on the inner wall of the side of the installation slot close to the motor, a second bearing is fixedly sleeved on the threaded rod, and the outer ring of the second bearing is fixedly connected to the inner wall of the rotating hole.

Preferably, the slider is provided with a threaded hole, and the inner wall of the threaded hole is threadedly connected with the threaded rod.

Preferably, a limit slot is formed on the inner wall of the installation slot, a limit block is fixedly installed on the slider, and the limit block is slidably connected to the inner wall of the limit slot.

Compared with the prior art, the beneficial effects of the present invention are as follows: first, the device cooperates with the installation groove, the wiring spring, the threaded rod, the motor, the slider, the support rod, the brush, the cooling fan, the filter element and the fan heat hole. , When in use, the memory module can be dissipated through the cooling fan and the fan heat hole. The filter element can effectively prevent dust from entering during heat dissipation. When the dust is attached to the wiring shrapnel in the groove, start the motor, and the motor drives the threaded rod to rotate. The rod drives the slider to move in the installation slot, the slider drives the support rod to move, and the support rod drives the brush to move.

The utility model has the advantages of simple operation, strong practicability, good dustproof effect, and at the same time, it is convenient to remove dust, and can effectively prevent dust from affecting the normal use of the computer.

Description of drawings

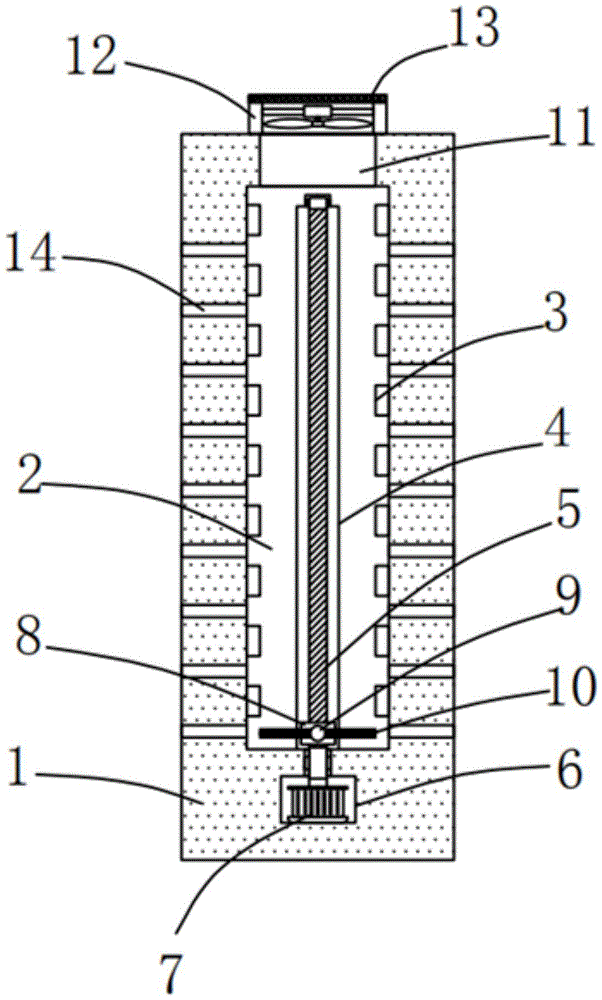

Fig. 1 is the sectional structure schematic diagram of the present utility model;

Fig. 2 is the bottom view sectional structure schematic diagram shown in Fig. 1;

In the picture: 1. Mounting block; 2. Groove; 3. Wiring shrapnel; 4. Mounting slot; 5. Threaded rod; 6. Cavity; 7. Motor; 8. Slider; 9. Support rod; 10. Groove Brush; 11, through hole; 12, cooling fan; 13, filter element; 14, cooling hole.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-2, the present utility model provides a technical solution: a computer memory module plug-in device, comprising a mounting block 1, the mounting block 1 is provided with a groove 2, and the inner walls on both sides of the groove 2 are symmetrical A plurality of wiring springs 3 are fixedly installed, a mounting slot 4 is opened on the inner wall of the groove 2, and a threaded rod 5 is rotated and installed in the mounting slot 4. A cavity 6 is opened on the mounting block 1, and a motor is fixedly installed in the cavity 6 7. One end of the threaded rod 5 extends into the cavity 6 and is fixedly connected to the output shaft of the motor 7. The threaded rod 5 is threadedly mounted with a slider 8, and the slider 8 is slidably connected to the inner wall of the installation slot 4. The slider 8 A support rod 9 is fixedly installed on the support rod 9, a brush 10 is fixedly installed on the support rod 9, a through hole 11 is opened on one side of the inner wall of the groove 2, and a cooling fan 12 is fixedly installed outside the through hole 11, and the outlet of the cooling fan 12 is provided. The tuyere is communicated with the through hole 11, and a filter element 13 is fixedly installed on the cooling fan 12;

A plurality of heat dissipation holes 14 are symmetrically opened on the inner walls of both sides of the groove 2, and a rotation groove is opened on the inner wall of the side of the installation groove 4 away from the motor 7, and the threaded rod 5 is fixedly sleeved with a first bearing. The outer ring of the threaded rod 5 is fixedly connected with the inner wall of the rotating groove, the inner wall of the side of the installation groove 4 close to the motor 7 is provided with a rotating hole, the threaded rod 5 is fixedly sleeved with a second bearing, and the outer ring of the second bearing is connected to the rotating hole. The inner wall is fixedly connected, the slider 8 is provided with a threaded hole, the inner wall of the threaded hole is threadedly connected with the threaded rod 5, the inner wall of the installation slot 4 is provided with a limit slot, and the slider 8 is fixedly installed with a limit block, the limit block and the limiter. The inner wall of the slot is slidably connected. The device is matched by the installation slot 2, the wiring spring 3, the threaded rod 5, the motor 7, the slider 8, the support rod 9, the brush 10, the cooling fan 12, the filter element 13 and the fan heat hole 14. , When in use, the memory module can be dissipated through the cooling fan 12 and the fan heat hole 14. The filter element 13 can effectively prevent dust from entering during heat dissipation. When dust is attached to the wiring shrapnel 3 in the groove 2, start the motor 7, the motor 7 Drive the threaded rod 5 to rotate, the threaded rod 5 drives the slider 8 to move in the installation slot 2, the slider 8 drives the support rod 9 to move, the support rod 9 drives the brush 10 to move, and the brush 10 can be attached to the wiring spring 3. The dust is brushed off by the cooling fan 12, and then the dust is discharged from the cooling holes 14 by the cooling fan 12. The utility model has the advantages of simple operation, strong practicability, and good dustproof effect.

Working principle: In this device, the model of cooling fan 12 is DP200A;

When in use, the memory module can be dissipated through the cooling fan 12 and the fan heat hole 14. The filter element 13 can effectively prevent dust from entering during heat dissipation. When dust is attached to the wiring spring 3 in the groove 2, start the motor 7 and the motor 7 Drive the threaded rod 5 to rotate, the threaded rod 5 drives the slider 8 to move in the installation slot 2, the slider 8 drives the support rod 9 to move, the support rod 9 drives the brush 10 to move, and the brush 10 can attach the wire attached to the wiring spring 3 to move. The dust is brushed off, and then the dust is discharged from the heat dissipation holes 14 by means of the heat dissipation fan 12 .

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. A computer memory stick plug-in device, comprising a mounting block (1), characterized in that: the mounting block (1) is provided with a groove (2), and the inner walls on both sides of the groove (2) are provided with grooves (2). A plurality of wiring springs (3) are installed symmetrically and fixedly, an installation groove (4) is opened on the inner wall of the groove (2), and a threaded rod (5) is rotatably installed in the installation groove (4). The mounting block (1) is provided with a cavity (6), a motor (7) is fixedly installed in the cavity (6), and one end of the threaded rod (5) extends into the cavity (6) and is connected with the motor The output shaft of (7) is fixedly connected, a slider (8) is threadedly mounted on the threaded rod (5), and the slider (8) is slidably connected to the inner wall of the installation groove (4). The slider (8) A support rod (9) is fixedly installed on the support rod (9), a brush (10) is fixedly installed on the support rod (9), and a through hole (11) is opened on one inner wall of the groove (2). A cooling fan (12) is fixedly installed outside the hole (11), and the air outlet of the cooling fan (12) is communicated with the through hole (11), and a filter element (13) is fixedly mounted on the cooling fan (12). 2 . The device for inserting a computer memory module according to claim 1 , wherein a plurality of cooling holes ( 14 ) are symmetrically opened on both inner walls of the groove ( 2 ). 3 . 3. A computer memory module plug-in device according to claim 1, characterized in that: a rotation groove is formed on the inner wall of the side of the installation groove (4) away from the motor (7), and the threaded rod ( 5) The upper fixed sleeve is provided with a first bearing, and the outer ring of the first bearing is fixedly connected with the inner wall of the rotating groove. 4. A computer memory module plug-in device according to claim 1, characterized in that: a rotation hole is opened on the inner wall of the side of the installation groove (4) close to the motor (7), and the threaded rod ( 5) The upper fixed sleeve is provided with a second bearing, and the outer ring of the second bearing is fixedly connected with the inner wall of the rotating hole. 5 . The device for inserting a computer memory module according to claim 1 , wherein a threaded hole is formed on the slider ( 8 ), and the inner wall of the threaded hole is threadedly connected with the threaded rod ( 5 ). 6 . 6. A computer memory module plug-in device according to claim 1, characterized in that: a limit slot is defined on the inner wall of the installation slot (4), and a limit block is fixedly installed on the slider (8). , the limit block is slidably connected with the inner wall of the limit slot.
