CN210071606U - Water seepage detection device for supervision - Google Patents

Abstract

The utility model relates to the technical field of water seepage detection, and discloses a water seepage detection device for supervision. The support column is fixedly connected, and the support column is slidably connected to the outer wall of the earth borrow bucket. The lower part of the left and right side walls of the earth borrow bucket is provided with a cavity. The upper part of the cavity is slidably connected to the slider. The lower part of the sliding block is hinged with a connecting rod, the lower end of the connecting rod is hinged with a rotating rod, and the screw rod is threadedly connected to the side wall of the borrow bucket. The utility model can be used in a soil water seepage detection device, a soil separation mechanism is formed by arranging a rotating rod and a rotating shaft, and the soil inside the borrow bucket is separated from the ground soil through the mechanism, so that the soil inside the borrow bucket is completely taken out. Then the soil borrowing bucket is placed on the upper part of the support seat for water seepage detection.

Description

A water seepage detection device for supervision

technical field

The utility model relates to the technical field of water seepage detection, in particular to a water seepage detection device for supervision.

Background technique

Project supervision means that a supervisory unit with relevant qualifications is entrusted by Party A to represent Party A in the construction of Party B's projects in accordance with the state-approved project construction documents, laws and regulations related to project construction, project construction supervision contracts and other project construction contracts. A professional service activity for construction and implementation monitoring.

In engineering construction, the amount of water seepage in the soil affects the design and material selection of the entire building structure, so the amount of water seepage in the soil needs to be detected by professional devices.

Chinese Patent (Notice No.: CN207623196U) discloses a soil seepage detection device, which includes a cylinder body and a water collecting device installed at the bottom of the cylinder body, and the cylinder body is provided with a ring hand. When the device collects different types of soil, it will not damage the original vegetation and soil structure. After the collection is completed, there is no need to bring the soil back to the laboratory for water seepage testing, so as to avoid affecting the test due to the damage of the soil structure during transfer and transportation. Accuracy, to achieve field in-situ test of soil water seepage, but the barrel in this device is only a cylindrical structure. When the soil structure is damaged, the detection results are inaccurate.

Utility model content

The utility model provides a water seepage detection device for supervision, which solves the problems raised in the above background technology.

To achieve the above object, the utility model provides the following technical solutions:

A water seepage detection device for supervision includes a fixed platform, a middle part of the fixed platform is fixedly connected to a support base, the upper part of the support base is detachably connected to a soil borrowing bucket, the left and right sides of the upper surface of the fixed platform are fixedly connected to support columns, and the support columns are slidably connected to borrow soil. The outer wall of the bucket, the lower part of the left and right side walls of the soil extraction bucket is provided with a cavity, the upper part of the cavity is slidably connected to the slider, the upper part of the slider is rotated to connect a screw rod, the upper end of the screw rod is fixed with a connecting knob, the lower part of the slider is hinged with a connecting rod, and the lower end of the connecting rod is connected with a connecting rod. The rotating rod is hinged, the screw rod is threadedly connected to the side wall of the soil borrowing bucket, the rotating rod is rotatably connected to the side wall of the soil borrowing bucket through the rotating shaft, the upper part of the support seat is provided with a fixing groove, and the middle part of the fixing groove is provided with a water permeable net.

As a preferred technical solution of the present invention, the top of the cavity is fixedly connected to the spring, and the lower end of the spring is fixedly connected to the slider.

As a preferred technical solution of the present invention, a through hole is provided inside the bottom of the cavity.

As a preferred technical solution of the present invention, a downward pressing slope is provided on the outer side of the bottom of the earth borrow bucket.

As a preferred technical solution of the present invention, the top of the earth borrow bucket is provided with a handle.

As a preferred technical solution of the present utility model, the internal dimension of the fixing groove is the same as the external dimension of the downward pressing slope.

As a preferred technical solution of the present invention, the left side of the lower part of the fixing platform is fixedly connected to a fixing rod, and the end of the fixing rod is fixedly connected to a beaker.

The utility model has the following benefits:

The utility model can be used in a soil water seepage detection device, a soil separation mechanism is formed by arranging a rotating rod and a rotating shaft, and the soil inside the borrow bucket is separated from the ground soil through the mechanism, so that the soil inside the borrow bucket is completely taken out. Then the soil borrowing bucket is placed on the upper part of the support seat for water seepage detection.

Description of drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort.

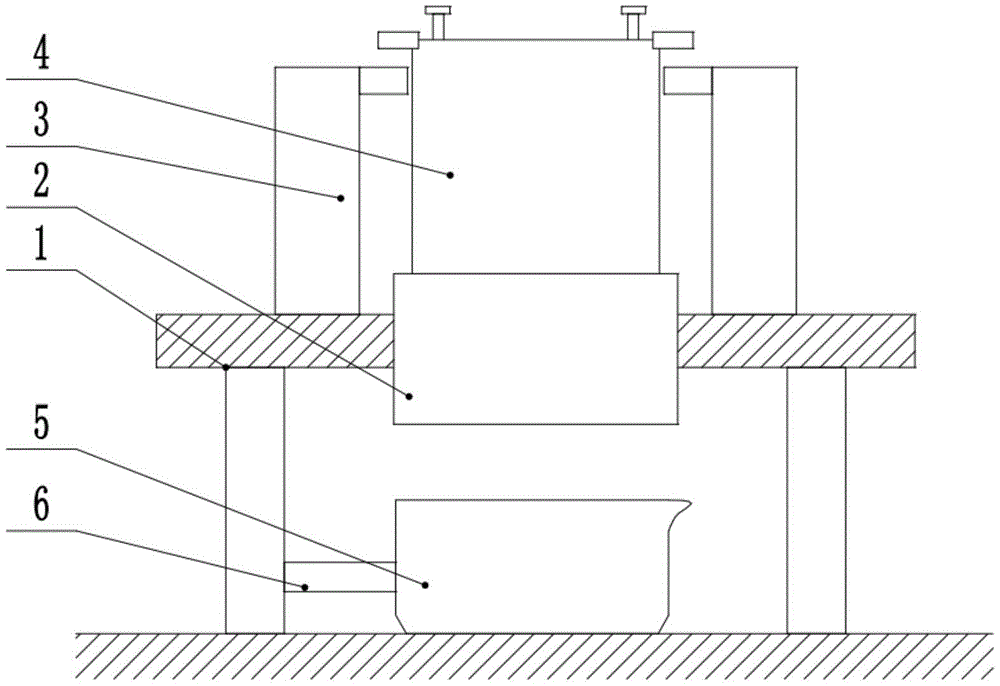

FIG. 1 is a schematic structural diagram of a water seepage detection device for supervision.

Figure 2 is a perspective view of a soil borrow bucket in a water seepage detection device for supervision.

Figure 3 is a cross-sectional view of a soil borrow bucket in a water seepage detection device for supervision.

Fig. 4 is a partial enlarged view of A in a water seepage detection device for supervision.

Fig. 5 is a schematic diagram of a soil extraction bucket in a water seepage detection device for supervision when soil is extracted.

FIG. 6 is a perspective view of a support seat in a water seepage detection device for supervision.

Fig. 7 is a cross-sectional view of a support seat in a water seepage detection device for supervision.

In the figure: 1. Fixing table; 2. Support seat; 3. Supporting column; 4. Borrowing bucket; 5. Beaker; 6. Fixing rod; 7. Fixing groove; 8. Permeable net; 9. Knob; 10. Handle; 11, cavity; 12, screw rod; 13, spring; 14, slider; 15, connecting rod; 16, rotating rod; 17, rotating shaft; 18, pressing down slope; 19, through hole.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Example 1

Please refer to Fig. 1-7, a water seepage detection device for supervision, including a fixed table 1, the middle of the fixed table 1 is fixedly connected to a support base 2, and the upper part of the support base 2 is detachably connected to a borrow bucket 4. The upper surface of the fixed table 1 is left and right The two sides are fixedly connected to the support column 3, and the support column 3 is slidably connected to the outer wall of the soil borrowing bucket 4. The lower part of the left and right side walls of the soil borrowing bucket 4 is provided with a cavity 11, the upper part of the cavity 11 is slidably connected to the slider 14, and the top of the cavity 11 is fixed Connecting spring 13, the lower end of the spring 13 is fixedly connected to the slider 14, the upper part of the slider 14 is connected to the screw rod 12 by rotation, the upper end of the screw rod 12 is fixed with the connecting knob 9, the lower part of the slider 14 is hinged with the connecting rod 15, and the lower end of the connecting rod 15 is hinged with the rotating rod 16. A through hole 19 is provided on the inner side of the bottom of the cavity 11, and the lower end of the rotating rod 16 can be rotated into the interior of the soil borrowing bucket 4 through the through hole 19; The side walls of the soil bucket 4 are rotatably connected, the upper part of the support base 2 is provided with a fixing groove 7, the middle part of the fixing groove 7 is provided with a water permeable net 8, and the outer side of the bottom of the soil extraction bucket 4 is provided with a downward pressing slope 18, which is provided with a downward pressing slope 18 , so that when the earth borrow bucket 4 is pressed into the soil, the operator only needs to provide a lower pressure, which is convenient for the operator to use; the internal size of the fixing groove 7 is the same as the external size of the downward pressing slope 18 Therefore, the earth borrowing bucket 4 can be directly placed on the upper part of the support base 2, and the earth borrowing bucket 4 and the supporting base 2 can be fixed by the cooperation of the fixing groove 7 with the same size and the downward pressing slope 18. The top of the earth borrowing bucket 4 is provided with There are handle 10.

Embodiment 2

Referring to FIG. 1 , other contents of this embodiment are the same as those of the first embodiment, except that the lower left side of the fixing table 1 is fixedly connected to the fixing rod 6 , and the end of the fixing rod 6 is fixedly connected to the beaker 5 . When the volume of leaked water needs to be measured in some detection tests, a beaker 5 can be arranged below the support base 2, and the water dripping from the support base 2 can be received through the beaker 5, so that the leaked water can be measured through the beaker 5. volume of water.

During the implementation of the present utility model, first place the earth borrowing bucket 4 on the ground where soil needs to be borrowed, and press the earth borrowing bucket 4 by the handle 10. After reaching the required depth, turn the knobs 9 on both sides of the soil extraction bucket 4, and the knobs 9 drive the screw rod 12 to rotate, so that the screw rod 12 moves down, the screw rod 12 pushes the slider 14 to slide down, and the slider 14 pushes the connecting rod 15 moves downward, thereby pushing the rotating rod 16 to rotate along the rotating shaft 17 through the connecting rod 15, so that the lower part of the rotating rod 16 rotates upward, and rotates to the inside of the borrow bucket 4 through the through hole 19. When the rotating rod 16 rotates to the horizontal position When the turning knob 9 is stopped, the earth borrowing bucket 4 is rotated by the handle 10, and the earth borrowing bucket 4 drives the rotating rod 16 to rotate, so that the soil inside the earth borrowing bucket 4 is separated from the ground through the two rotating rods 16. Pull up the earth borrowing bucket 4, place the earth borrowing bucket 4 on the upper part of the support base 2, add an appropriate amount of water inside the earth borrowing bucket 4, the water seeps in the soil inside the earth borrowing bucket 4, and finally drips into the beaker 5 In this way, the entire water seepage detection process is completed; the present utility model can be used in the soil water seepage detection device, by setting the rotating rod 16 and the rotating shaft 17 to form a soil separation mechanism, through which the soil inside the borrow bucket 4 is separated from the ground soil, Therefore, the soil inside the borrow bucket 4 is completely taken out, and then the earth borrow bucket 4 is placed on the upper part of the support base 2 for water seepage detection.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (7)

1. The utility model provides a manage and use infiltration detection device, includes fixed station (1), fixed station (1) middle part fixed connection supporting seat (2), and connection bucket (4) of fetching earth can be dismantled on supporting seat (2) upper portion, fixed station (1) upper surface left and right sides fixed connection support post (3), support post (3) sliding connection bucket (4) outer wall of fetching earth, its characterized in that, lateral wall lower part is equipped with cavity (11) about bucket (4) of fetching earth, cavity (11) upper portion sliding connection slider (14), slider (14) upper portion rotates connecting screw rod (12), lead screw (12) upper end fixed connection knob (9), slider (14) lower part hinge connecting rod (15), connecting rod (15) lower extreme hinge dwang (16), lead screw rod (12) threaded connection bucket (4) lateral wall of fetching earth, dwang (16) are connected with bucket (4) lateral wall through pivot (17) and rotation, the upper part of the supporting seat (2) is provided with a fixed groove (7), and the middle part of the fixed groove (7) is provided with a water permeable net (8).

2. The seepage detection device for prison according to claim 1, wherein the top of the cavity (11) is fixedly connected with a spring (13), and the lower end of the spring (13) is fixedly connected with a sliding block (14).

3. A water seepage monitoring device according to claim 1 or 2 wherein the cavity (11) is provided with a through hole (19) on the inside of the bottom thereof.

4. The seepage inspection device for prison according to claim 1, wherein the outer side of the bottom of the soil sampling barrel (4) is provided with a downward-pressing inclined surface (18).

5. The seepage control device for prison according to claim 1 or 4, wherein the top of the soil sampling barrel (4) is provided with a handle (10).

6. The seepage control apparatus for prison according to claim 4, wherein the inner dimension of said fixing groove (7) is the same as the outer dimension of said pressing slope (18).

7. The seepage detection device for prison management as claimed in claim 1, wherein the left side of the lower part of the fixed platform (1) is fixedly connected with a fixed rod (6), and the end part of the fixed rod (6) is fixedly connected with a beaker (5).
