Abstract

The utility model discloses an aluminum corrugated composite panel curtain wall, which comprises: embedded parts, a column connecting corner, a curtain wall column, a curtain wall beam, an aluminum plate connecting corner, an aluminum corrugated composite board, an anti-corrosion pad and a foam strip; the curtain wall The column is connected with the column connection corner code; the curtain wall beam is installed between the two adjacent curtain wall columns; the aluminum corrugated composite board is connected to the corner code by rivets; the upper and lower aluminum plates of the aluminum corrugated composite board are connected The corners are connected to the curtain wall beams at the corresponding positions by tapping steel nails; the left and right aluminum plate connection corners of the aluminum corrugated composite board are connected to the curtain wall columns at the corresponding positions by tapping steel nails; the foam strips are arranged on the adjacent aluminum Between the corrugated composite boards, a weather-resistant sealant layer is arranged on the outside. The aluminum corrugated composite board adopted by the aluminum corrugated composite board curtain wall of the utility model has the advantages of light weight, high strength, large size of the board surface, and small amount of supporting keels, which can effectively reduce the cost and has good economy.

Description

A kind of aluminum corrugated composite panel curtain wall

technical field

The utility model belongs to the technical field of building curtain wall construction, in particular to an aluminum corrugated composite board curtain wall.

Background technique

Curtain wall is the outer wall of the building, and it is a lightweight wall with decorative effect commonly used in modern large and high-rise buildings. The curtain wall is composed of panels and a supporting structure system, which can have a certain displacement ability relative to the main structure or a certain deformation ability itself, and does not undertake the role of the main structure. a system).

With the rapid development of my country's national economy and the continuous improvement of people's living standards, as well as the improvement of the architect's design concept "human nature in architecture", buildings are developing more and more in the direction of high-rise, high-end and multi-functional. Therefore, building curtain wall products must also develop in the direction of high technology and multi-function, in order to adapt to people's increasing awareness of environmental protection and energy saving, and meet the market's demand for building curtain wall functions. The existing curtain wall structure mostly adopts honeycomb panel material. Due to the large weight of the material itself, more support keels need to be used, and the construction cost is high and the economy is poor.

Utility model content

The purpose of this utility model is to provide an aluminum corrugated composite panel curtain wall.

The technical solution of the utility model to solve the above-mentioned technical problems is as follows: an aluminum corrugated composite panel curtain wall, which comprises: embedded parts, a column connecting corner, a curtain wall column, a curtain wall beam, an aluminum plate connecting corner, an aluminum corrugated composite board, Anti-corrosion mats and foam strips; the embedded parts are pre-buried in the wall structure of the building; the column connecting corners are fixedly connected with the embedded parts; the curtain wall columns are connected with the column connecting corners through bolts; the The curtain wall beam is installed between two adjacent curtain wall columns; the first end of the curtain wall beam is welded and connected with the curtain wall column at the corresponding position; the second end of the curtain wall beam is connected with the curtain wall column at the corresponding position through the adapter; The aluminum corrugated composite board is a rectangular structure, and the aluminum corrugated composite board is connected by rivets around the aluminum board to connect the corner code; The upper and lower aluminum plate connection corners of the corrugated composite board are connected to the curtain wall beams at the corresponding positions through tapping steel nails; the aluminum plate connecting corners on the left and right sides of the aluminum corrugated composite board are connected to the corresponding curtain wall columns by tapping steel nails. ; the anti-corrosion pad is arranged between the aluminum plate connecting corner yard and the curtain wall column, and/or the anti-corrosion pad is arranged between the aluminum plate connecting corner yard and the curtain wall beam; the foam strip is arranged on the adjacent aluminum corrugated composite board In between, place a layer of weather-resistant sealant on the outside of the foam strip.

In the above-mentioned aluminum corrugated composite panel curtain wall of the utility model, further, at least two strip holes parallel to each other are arranged on the column connecting corner code, and bolts connect the curtain wall column and the column connecting angle through the strip holes. code.

In the above-mentioned aluminum corrugated composite panel curtain wall of the utility model, further, the aluminum corrugated composite panel includes an aluminum front panel, a corrugated core panel and an aluminum back panel; the cross section of the corrugated core panel is a corrugated structure.

The above-mentioned aluminum corrugated composite panel curtain wall of the utility model further comprises a jumper wire; the jumper wire is arranged in the gap between the upper and lower adjacent curtain wall columns, and one end of the jumper wire is connected to the upper curtain wall The other end is connected to the lower curtain wall column.

The above-mentioned aluminum corrugated composite panel curtain wall of the present utility model further comprises an interlayer fireproof belt, the outer part of the interlayer fireproof belt is a galvanized iron plate with a thickness of 1.5 mm or more, and the inside is a fireproof rock wool; the interlayer fireproof belt It is arranged between uprights spaced up and down from each other.

The aluminum corrugated composite board adopted by the aluminum corrugated composite board curtain wall of the utility model has the advantages of light weight, high strength, large board surface size, and low consumption of supporting keels, which can effectively reduce the cost and has good economy.

Description of drawings

The advantages of the above-mentioned and/or other aspects of the present invention will become clearer and easier to understand from the detailed description in conjunction with the following drawings, which are only schematic and do not limit the present invention, wherein:

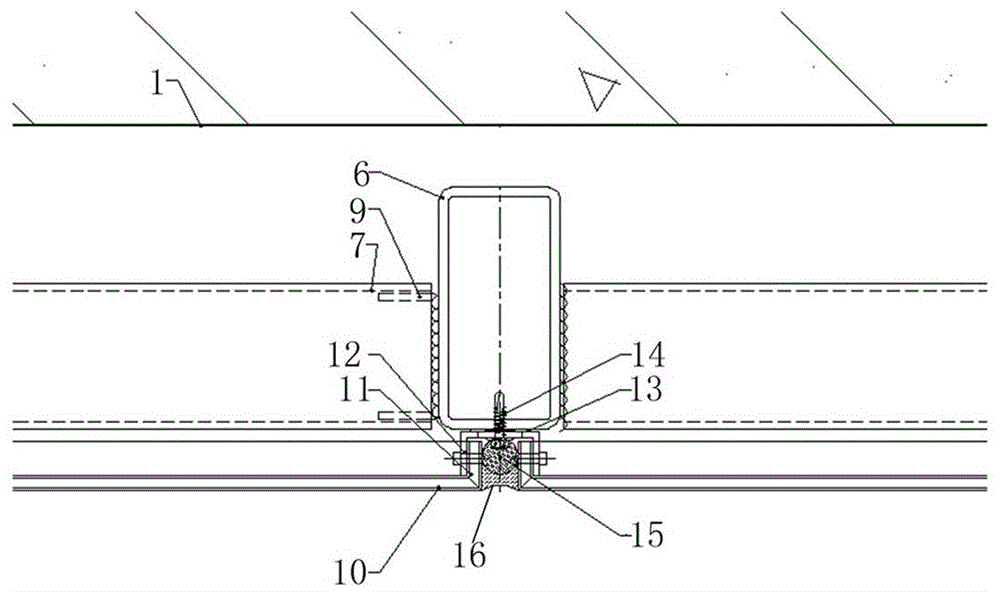

Fig. 1 is the schematic diagram of the horizontal installation node of the aluminum corrugated composite panel curtain wall of an embodiment;

2 is a schematic diagram of a vertical installation node of an aluminum corrugated composite panel curtain wall according to an embodiment;

FIG. 3 is a schematic diagram of the installation of the embedded part, the column connecting corner code and the jumper wire according to an embodiment;

FIG. 4 is a schematic diagram of the connection between the aluminum plate connecting corner code and the aluminum corrugated composite plate according to an embodiment.

In the accompanying drawings, the list of components represented by each number is as follows:

1. Building wall structure, 2. Embedded parts, 3. Column connection corner, 4. Steel backing plate, 5. Bolt, 6. Curtain wall column, 7. Curtain wall beam, 8. Jumper wire, 9. Adapter, 10, aluminum corrugated composite board, 11, aluminum plate connecting corner code, 12, pull rivet, 13, anti-corrosion pad, 14, tapping steel nail, 15, foam strip, 16, weather-resistant sealant layer.

Detailed ways

Hereinafter, embodiments of the aluminum corrugated composite panel curtain wall of the present invention will be described with reference to the accompanying drawings.

The embodiments described herein are specific embodiments of the present invention, and are used to illustrate the concept of the present invention. They are all illustrative and exemplary, and should not be construed as limiting the embodiments of the present invention and the scope of the present invention. limit. In addition to the embodiments described herein, those skilled in the art can also adopt other obvious technical solutions based on the contents disclosed in the claims and the description of the present application, and these technical solutions include any obvious technical solutions to the embodiments described herein. Alternative and modified technical solutions.

The accompanying drawings in this specification are schematic diagrams, which assist in explaining the concept of the present invention, and schematically show the shapes of various parts and their mutual relationships. Please note that in order to clearly represent the structures of the various components of the embodiments of the present invention, the drawings are not drawn on the same scale. The same reference numerals are used to denote the same parts.

Figures 1 to 4 show an aluminum corrugated composite panel curtain wall according to an embodiment of the present invention, which includes: a pre-embedded part 2, a column connecting corner 3, a curtain wall column 6, a curtain wall beam 7, an aluminum plate connecting corner 11. Aluminum corrugated composite board 10, anti-corrosion pad 13 and foam strip 15;

As shown in Figure 3, the embedded part 2 is embedded in the wall structure 1 of the building; the embedded part shown in Figure 3 is a π-shaped structure, and the embedded part includes two embedded ribs inserted into the wall, The number of embedded bars can be adjusted according to the fixing needs, and setting a larger number of embedded bars can improve the stability of the embedded parts.

The column connecting corner 3 is fixedly connected with the embedded part 2; preferably, the column connecting corner 3 and the embedded part 2 are fixedly connected by welding;

The curtain wall column 6 is connected with the column connecting corner 3 through bolts 5; as shown in Figure 3, a steel backing plate 4 is arranged between the curtain wall column 6 and the column connecting corner 3; in a preferred aluminum corrugated composite panel curtain wall implementation In the example, at least two bar-shaped holes parallel to each other are provided on the column connecting corner 3, and the bolts 5 connect the curtain wall column 6 and the column connecting corner 3 through the bar holes. The strip hole can be used to adjust the installation position of the curtain wall column to ensure the verticality of the curtain wall keel and the flatness of the facade.

The curtain wall beam 7 is installed between two adjacent curtain wall columns 6; the first end of the curtain wall beam 7 is connected by welding with the curtain wall column 6 at the corresponding position; the second end of the curtain wall beam 7 is connected with the corresponding position through the adapter 9. The curtain wall column 6 is connected; the adapter 9 is connected with the curtain wall column 6 by welding, and the second end of the curtain wall beam 7 is inserted into the adapter 9; Reduce the amount of activity to avoid damage to the curtain wall when used in different seasons.

The aluminum corrugated composite board 10 has a rectangular structure. As shown in FIG. 4 , the aluminum corrugated composite board 10 is connected to the corners 11 by rivets 12 around the aluminum board; 11 are connected to the curtain wall beam 7 at the corresponding position by tapping steel nails 14; the aluminum plate connecting corners 11 on the left and right sides of the aluminum corrugated composite board 10 are connected to the curtain wall column 6 at the corresponding position by tapping steel nails 14;

The anti-corrosion pad 13 is arranged between the aluminum plate connecting corner 11 and the curtain wall column 6, and at the same time the anti-corrosion pad 13 is arranged between the aluminum plate connecting corner 11 and the curtain wall beam 7; the use of the anti-corrosion pad can avoid the connection between the corner and the curtain wall column or curtain wall beam. Oxidation corrosion occurs between them, resulting in corrosion adhesion.

The foam strips 15 are arranged between adjacent aluminum corrugated composite boards 10 , and a weather-resistant sealant layer 16 is arranged outside the foam strips 15 . The foam strip can block the heat transfer inside and outside at the set position, and the weather-resistant sealant layer plays the dual role of protecting the foam strip and sealing.

The aluminum corrugated composite board used in the aluminum corrugated composite board curtain wall of the above-mentioned embodiment of the present utility model has the advantages of light weight, high strength, large size of the board surface, and small amount of supporting keel, which can effectively reduce the cost and has good economy. .

In a further preferred embodiment of the aluminum corrugated composite board curtain wall, the corrugated composite board is an aluminum corrugated composite board, and the aluminum corrugated composite board includes an aluminum face plate, a corrugated core board and an aluminum backboard; the cross section of the corrugated core board is a corrugated structure. . The cross section of the corrugated core board is used as a corrugated structure to realize the blocking of cold or heat, environmental protection and energy saving. Since the raw materials are all aluminum materials, all can be recycled.

In a further preferred embodiment of the aluminum corrugated composite panel curtain wall, a jumper wire 8 is also included; the jumper wire 8 is arranged at the gap position between the upper and lower adjacent curtain wall columns 6, and one end of the jumper wire 8 is connected to the upper curtain wall Column 6, the other end is connected to the curtain wall column 6 at the lower position. The curtain wall column at the top of the building is conductively connected to the air-termination device of the main structure of the building; the aluminum corrugated composite board is thin, and the aluminum corrugated composite board on the top is not suitable for the air-termination device. Therefore, the purpose of the invention of the present invention also includes providing lightning protection safety for buildings with curtain walls.

In a further preferred embodiment of the aluminum corrugated composite panel curtain wall, an interlayer fireproof belt is also included. The outside of the interlayer fireproof belt is a galvanized iron plate with a thickness of 1.5 mm or more, and the interior is fireproof rock wool; spaced between the uprights.

The technical features disclosed above are not limited to the disclosed combination with other features, and those skilled in the art can also perform other combinations between the technical features according to the purpose of the utility model, which is subject to the realization of the purpose of the present utility model.

Claims (5)

1. An aluminum corrugated composite board curtain wall is characterized by comprising: the curtain wall comprises embedded parts, upright post connecting angle codes, curtain wall upright posts, curtain wall cross beams, aluminum plate connecting angle codes, aluminum corrugated composite boards, anticorrosion pads and foam strips; the embedded part is embedded in a wall structure of a building; the upright post connecting angle bracket is fixedly connected with the embedded part; the curtain wall upright post is connected with the upright post connecting corner brace through a bolt; the curtain wall cross beam is arranged between two adjacent curtain wall stand columns; the first end of the curtain wall cross beam is welded with the curtain wall upright column at the corresponding position; the second end part of the curtain wall cross beam is connected with the curtain wall upright post at the corresponding position through the adapter piece; the adapter is welded with the curtain wall upright post, and the second end part of the curtain wall cross beam is inserted into the adapter; the aluminum corrugated composite board is of a rectangular structure, and the periphery of the aluminum corrugated composite board is connected with the aluminum plate through the pull rivets to connect the corner connectors; the aluminum plate connecting angle connectors at the upper part and the lower part of the aluminum corrugated composite plate are connected with curtain wall cross beams at corresponding positions through tapping steel nails; the aluminum plate connecting angle codes on the left side and the right side of the aluminum corrugated composite plate are connected with curtain wall stand columns at corresponding positions through tapping steel nails; the anti-corrosion pad is arranged between the aluminum plate connecting angle brace and the curtain wall upright post, and/or the anti-corrosion pad is arranged between the aluminum plate connecting angle brace and the curtain wall cross beam; the foam strips are arranged between the adjacent aluminum corrugated composite boards, and the weather-proof sealant layer is arranged outside the foam strips.

2. The aluminum corrugated composite panel curtain wall as claimed in claim 1, wherein the column connecting corner brace is provided with at least two strip holes parallel to each other, and a bolt connects the curtain wall column and the column connecting corner brace through the strip holes.

3. The aluminum corrugated composite panel curtain wall as claimed in claim 1, wherein the aluminum corrugated composite panel comprises an aluminum face sheet, a corrugated core sheet and an aluminum back sheet; the cross section of the corrugated core board is of a corrugated structure.

4. The aluminum corrugated composite panel curtain wall as claimed in claim 1, further comprising a jumper wire; the bridging conductor sets up clearance position between upper and lower adjacent curtain stand, the curtain stand of upper position is connected to bridging conductor one end, and the curtain stand of lower position is connected to the other end.

5. The aluminum corrugated composite panel curtain wall according to claim 1, further comprising an interlayer fire-proof belt, wherein the interlayer fire-proof belt is provided with an outer portion of galvanized iron plate with a thickness of 1.5mm or more and an inner portion of fireproof rock wool; the interlayer fireproof belt is arranged between the vertical columns which are spaced from each other up and down.
