The utility model belongs to the technical field of shipment machine, especially be a three section flexible become width of cloth belt shipment machine, including ship bracket, fixed arm and conveyor belt, the junction of ship bracket and fixed arm is installed and is turned to the drum shaft, the inside of fixed arm one end is installed first section flexible arm, the inside of first section flexible arm one end is installed second section flexible arm, the upper surface of fixed arm has become width of cloth pull rod through the bolt fastening, the inside of ship bracket has the cable wire lifting machine through the bolt fastening; first section flexible arm passes through flexible drive arrangement and removes in the inside of fixed arm, and the flexible arm of second section passes through flexible drive arrangement and removes in the inside of first section flexible arm, has increased the flexible convenience of adjusting of shipment machine, and the one end of fixed arm is passed through the steering drum axle and is connected with ship bracket simultaneously, and the output shaft of cable wire lifting machine passes through the wire rope simultaneously and becomes the pulley connection of width of cloth pull rod upper end, the regulation of the fixed arm lifting angle of being convenient for.
Description
Technical Field
The utility model belongs to the technical field of the shipment machine, concretely relates to flexible variable amplitude belt formula shipment machine of three section.
Background
The ship loader is a large bulk cargo machine used in bulk cargo wharf loading. The general ship loader comprises an arm support belt conveyor, a transition belt conveyor, a telescopic chute, a tail car, a walking device, a portal frame, a tower frame, a pitching device, a rotating device and the like, and when a cargo ship is filled or unloaded in the using process of the traditional ship loader, the adjusting time of a material transmission arm is prolonged, meanwhile, the moving position of the cargo ship is fixed, the positions of workers to be moved are required to be added at different loading and unloading positions, and the labor intensity of the workers is improved.
SUMMERY OF THE UTILITY MODEL
For solving the above-mentioned problem that exists among the prior art, the utility model provides a flexible variable amplitude belt formula shipment machine of three section has the cargo ship and fills or the material transmission arm shrink when having unloaded, has avoided the adjustment of shipment machine position, and shipment machine is through flexible simultaneously. The ship can be conveniently loaded and unloaded at different positions, and the labor intensity of workers is reduced.
In order to achieve the above object, the utility model provides a following technical scheme: a three-section telescopic variable-amplitude belt type ship loader comprises a ship bracket, a fixed arm and a conveying belt, wherein a steering drum shaft is arranged at the joint of the ship bracket and the fixed arm, a first section of telescopic arm is arranged inside one end of the fixed arm, a second section of telescopic arm is arranged inside one end of the first section of telescopic arm, the upper surface of the fixed arm is fixed with a variable amplitude pull rod through a bolt, the inside of the ship bracket is fixed with a steel cable hoist through a bolt, an output shaft of the steel cable hoist is connected with a pulley at one end of the amplitude variation pull rod through a steel cable, a telescopic driving device is arranged at the joint of the fixed arm and the first section of telescopic arm and the joint of the first section of telescopic arm and the second section of telescopic arm, the inside mounting of ship bracket has belt drive, conveyor belt passes through the surface of fixed arm, first section flexible arm and the flexible arm of second section in proper order.
As a preferred technical scheme of the utility model, belt drive includes initiative belt drive cylinder and belt drive motor, initiative belt drive cylinder and belt drive motor are all installed in the inside of fixed arm, the output shaft of belt drive motor passes through the fluted disc with initiative belt drive cylinder's transmission shaft and is connected with the chain.
As a preferred technical scheme of the utility model, flexible drive arrangement is including flexible driving motor, gear and tooth socket plate, flexible driving motor passes through the bolt to be fixed respectively in the inside of the flexible arm of first festival and the flexible arm of second festival, the one end at flexible driving motor output shaft is fixed to the gear, the tooth socket plate is fixed respectively in the inside of the flexible arm of fixed arm and first festival, just the gear meshes with the tooth socket plate.
As a preferred technical scheme of the utility model, first section driven roll is all installed at the both ends of first section flexible arm, second section driven roll is all installed at the both ends of second section flexible arm.
As an optimal technical scheme of the utility model, conveyor belt twines at the surface of steering drum axle, initiative belt drive cylinder, first section driven roll and second section driven roll.
As a preferred technical scheme of the utility model, the upper surface of the flexible arm of fixed arm, first section and second section all rotates and is connected with the cylinder, conveyor belt and cylinder contact.
As a preferred technical scheme of the utility model, fixed arm, the flexible arm of first festival and the flexible arm of second festival are tubular structure.
Compared with the prior art, the beneficial effects of the utility model are that:
1. first section flexible arm passes through flexible drive arrangement and removes in the inside of fixed arm, the flexible arm of second section passes through flexible drive arrangement and removes in the inside of first section flexible arm, the flexible convenience of adjusting of shipment machine has been increased, the one end of fixed arm is passed through the steering drum axle and is connected with ship bracket simultaneously, the output shaft of cable wire lifting machine passes through the wire rope simultaneously and becomes the pulley connection of width of cloth pull rod upper end, the regulation of the fixed arm lifting angle of being convenient for, the fixed arm simultaneously, the conveyor belt on first section flexible arm and the flexible arm surface of second section pulls through belt drive arrangement, the convenience that conveyor belt removed has been improved.
2. Flexible drive arrangement is by flexible driving motor, gear and fluted plate constitute, flexible driving motor's output shaft area gear rotates on the surface of fluted plate, gear and fluted plate meshing simultaneously, the one end of the flexible arm of first festival of being convenient for is at the inside removal of fixed arm, the one end of the flexible arm of second festival of being convenient for is at the inside removal of the flexible arm of first festival, the flexible convenience of shipment machine has been improved, simultaneously conveyor belt twines at the steering drum axle, initiative belt driving roll, first section driven roll and second section driven roll, the stability that the steering drum axle removed has been increased, the stability of shipment machine to the material transport has been increased.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

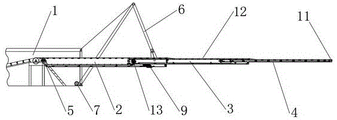

fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic view of a connecting structure of the fixed arm, the first section of telescopic arm and the second section of telescopic arm;
FIG. 3 is an enlarged schematic view of the structure at A in FIG. 2;
in the figure: 1. a boat cradle; 2. a fixed arm; 3. a first section of telescopic arm; 4. a second section of telescopic arm; 5. a steering drum shaft; 6. a variable amplitude pull rod; 7. a steel rope hoist; 8. the driving belt drives the roller; 9. a belt drive motor; 10. a first section of driven drum; 11. a second section of driven drum; 12. a conveyor belt; 13. a telescopic driving motor; 14. a gear; 15. a fluted plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Examples
Referring to fig. 1-3, the present invention provides the following technical solutions: a three-section telescopic amplitude-variable belt type ship loader comprises a ship bracket 1, a fixed arm 2 and a conveying belt 12, wherein a steering roller shaft 5 is arranged at the joint of the ship bracket 1 and the fixed arm 2, a first section of telescopic arm 3 is arranged inside one end of the fixed arm 2, a second section of telescopic arm 4 is arranged inside one end of the first section of telescopic arm 3, an amplitude-variable pull rod 6 is fixed on the upper surface of the fixed arm 2 through a bolt, a steel cable hoist 7 is fixed inside the ship bracket 1 through a bolt, an output shaft of the steel cable hoist 7 is connected with a pulley at one end of the amplitude-variable pull rod 6 through a steel cable, telescopic driving devices are arranged at the joint of the fixed arm 2 and the first section of telescopic arm 3 and the joint of the first section of telescopic arm 3 and the second section of telescopic arm 4, a belt driving device is arranged inside the ship bracket 1, the conveying belt 12 sequentially, the surfaces of the first and second telescopic arms 3 and 4.
In this embodiment, first section telescopic boom 3 removes in the inside of fixed arm 2 through flexible drive arrangement, second section telescopic boom 4 removes in the inside of first section telescopic boom 3 through flexible drive arrangement, the flexible convenience of adjusting of shipment machine has been increased, the one end of fixed arm 2 is passed through steering drum axle 5 and is connected with ship bracket 1 simultaneously, the output shaft of cable wire lifting machine 7 passes through the cable wire and is connected with the pulley that becomes the width of cloth pull rod 6 upper end simultaneously, be convenient for the regulation of 2 lifting angles of fixed arm, fixed arm 2 simultaneously, conveyor belt 12 on first section telescopic boom 3 and the 4 surperficial of second section telescopic boom pulls through belt drive arrangement, the convenience that conveyor belt 12 removed has been improved.
Specifically, belt drive device includes initiative belt drive cylinder 8 and belt drive motor 9, and initiative belt drive cylinder 8 and belt drive motor 9 are all installed in the inside of fixed arm 2, and the output shaft of belt drive motor 9 passes through the fluted disc with the transmission shaft of initiative belt drive cylinder 8 and is connected with the chain.
In this embodiment, the belt driving motor 9 and the driving belt driving roller 8 connected by the fluted disc and the chain increase the stability of the rotation of the driving belt driving roller 8.
Specifically, flexible drive arrangement is including flexible driving motor 13, gear 14 and toothed groove plate 15, flexible driving motor 13 passes through the bolt to be fixed respectively in the inside of the flexible arm of first festival 3 and the flexible arm of second festival 4, gear 14 is fixed in the one end of flexible driving motor 13 output shaft, toothed groove plate 15 is fixed respectively in the inside of fixed arm 2 and the flexible arm of first festival 3, and gear 14 meshes with toothed groove plate 15 mutually, first section driven roll 10 is all installed at the both ends of the flexible arm of first festival 3, second section driven roll 11 is all installed at the both ends of the flexible arm of second festival 4, conveyor belt 12 twines at steering drum axle 5, initiative belt driving roll 8, the surface of first section driven roll 10 and second section driven roll 11.
In this embodiment, flexible drive arrangement is by flexible driving motor 13, gear 14 and fluted plate 15 constitute, flexible driving motor 13's output shaft takes gear 14 to rotate on the surface of fluted plate 15, gear 14 and the meshing of fluted plate 15 simultaneously, the one end of the flexible arm 3 of first festival of being convenient for is at the inside removal of fixed arm 2, the one end of the flexible arm 4 of second festival of being convenient for is at the inside removal of the flexible arm 3 of first festival, the flexible convenience of shipment machine has been improved, simultaneously conveyor belt 12 twines at steering drum axle 5, initiative belt drive cylinder 8, first section driven cylinder 10 and second section driven cylinder 11, the stability that steering drum axle 5 removed has been increased, the stability of shipment machine to material transport has been increased.
Specifically, the upper surfaces of the fixed arm 2, the first section of telescopic arm 3 and the second section of telescopic arm 4 are rotatably connected with a roller, and the conveying belt 12 is in contact with the roller.
In this embodiment, the roller contact that the upper surfaces of the conveying belt 12 and the fixed arm 2, the first section of telescopic arm 3 and the second section of telescopic arm 4 are rotatably connected is adopted, so that the moving stability of the conveying belt 12 is increased.
Specifically, the fixed arm 2, the first section of telescopic arm 3 and the second section of telescopic arm 4 are all of a cylindrical structure.
In this embodiment, through fixed arm 2, the flexible arm 3 of first section and the flexible arm 4 of second section that are tube-shape structure, increased the flexible convenience of shipment machine.
In this embodiment, the steel cable hoist 7, the belt driving motor 9 and the telescopic driving motor 13 are all of an ESA-36S type manufactured by shenlong electromechanical co ltd of Dongguan.
The utility model discloses a theory of operation and use flow: when the ship loader is used, the output shaft of the steel cable hoist 7 rotates, so that the steel cable is wound outside the output shaft of the steel cable hoist 7, meanwhile, the steel cable hoist 7 conveys the steel cable wound outside the shaft to carry one end of the amplitude variation pull rod 6 to move, so that the fixed arm 2 rotates around the steering roller shaft 5 on the surface of the ship bracket 1, the angle of the ship bracket 1 is adjusted, when the ship loader needs to stretch to a proper length, the telescopic driving motor 13 is started, the gear 14 fixed on the output shaft of the telescopic driving motor 13 moves on the surface of the toothed groove plate 15, so that one end of the first telescopic arm 3 moves inside the fixed arm 2, one end of the second telescopic arm 4 moves inside the first telescopic arm 3, the second driven roller 11 installed inside the second telescopic arm 4 moves on the surface of the conveying belt 12, the first driven roller 10 installed inside the first telescopic arm 3 moves on the surface of the conveying belt 12, when materials are loaded and unloaded, the materials are placed on the upper surface of the conveying belt 12, the belt driving motor 9 drives the driving belt driving roller 8 to rotate through the fluted disc and the chain after being electrified, and at the moment, the driving belt driving roller 8 drives the materials on the surface of the conveying belt 12 to move.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (7)
1. The utility model provides a three section is flexible becomes width of cloth belt shipment machine, includes ship bracket (1), fixed arm (2) and conveyor belt (12), its characterized in that: steering drum axle (5) are installed to the junction of ship bracket (1) and fixed arm (2), the internally mounted of fixed arm (2) one end has first section flexible arm (3), the internally mounted of first section flexible arm (3) one end has second section flexible arm (4), the upper surface of fixed arm (2) is fixed with through the bolt and becomes width of cloth pull rod (6), there is cable wire lifting machine (7) inside ship bracket (1) through the bolt fastening, the output shaft of cable wire lifting machine (7) passes through the cable wire with the pulley that becomes width of cloth pull rod (6) one end and is connected, flexible drive arrangement is all installed with the junction of first section flexible arm (3) and the junction of second section flexible arm (4) to the junction of fixed arm (2) and first section flexible arm (3), the internally mounted of ship bracket (1) has belt drive arrangement, conveyor belt (12) are in proper order through fixed arm (2), The surface of the first section of telescopic arm (3) and the second section of telescopic arm (4).
2. The three-section telescopic variable-amplitude belt type ship loader as claimed in claim 1, wherein: the belt driving device comprises a driving belt driving roller (8) and a belt driving motor (9), the driving belt driving roller (8) and the belt driving motor (9) are both installed inside the fixed arm (2), and an output shaft of the belt driving motor (9) is connected with a transmission shaft of the driving belt driving roller (8) through a fluted disc and a chain.
3. The three-section telescopic variable-amplitude belt type ship loader as claimed in claim 1, wherein: the telescopic driving device comprises a telescopic driving motor (13), a gear (14) and a fluted plate (15), wherein the telescopic driving motor (13) is fixed inside a first section of telescopic arm (3) and a second section of telescopic arm (4) through bolts, the gear (14) is fixed at one end of an output shaft of the telescopic driving motor (13), the fluted plate (15) is fixed inside a fixed arm (2) and the first section of telescopic arm (3), and the gear (14) is meshed with the fluted plate (15).
4. The three-section telescopic variable-amplitude belt type ship loader as claimed in claim 2, wherein: first section driven roll (10) are all installed at the both ends of first section flexible arm (3), second section driven roll (11) are all installed at the both ends of second section flexible arm (4).
5. The three-section telescopic luffing belt type ship loader of claim 4, wherein: and the conveying belt (12) is wound on the outer surfaces of the steering roller shaft (5), the driving belt driving roller (8), the first section of driven roller (10) and the second section of driven roller (11).
6. The three-section telescopic variable-amplitude belt type ship loader as claimed in claim 1, wherein: the upper surfaces of the fixed arm (2), the first section of telescopic arm (3) and the second section of telescopic arm (4) are all rotatably connected with a roller, and the conveying belt (12) is in contact with the roller.
7. The three-section telescopic variable-amplitude belt type ship loader as claimed in claim 1, wherein: the fixed arm (2), the first section of telescopic arm (3) and the second section of telescopic arm (4) are all of a cylindrical structure.
