Abstract
The utility model discloses a spin welding frock, include: the table body comprises a bottom plate, a first fixing plate and a second fixing plate are welded on the upper surface of the bottom plate, and a bearing seat is fixed on the rear surface of the second fixing plate and the front surface of the first fixing plate through bolts; the adjusting assembly comprises a box body, opposite sides of the two bearing seats are rotatably connected with the box body, two supporting seats are welded on the lower surface of the box body, rod bodies are mounted on the opposite sides of the two supporting seats, and the adjusting assembly further comprises a hydraulic cylinder; when the welding piece is fixed, the box body can be jacked or pulled by the hydraulic cylinder output shaft, so that the box body is convenient to adjust to a proper angle, and then a worker performs welding treatment on the welding piece, and in the welding treatment process of the worker, the disc is rotated by the work of the first motor, so that the welding piece is driven to rotate, the welding piece is convenient to weld at different positions of the welding piece by the worker, the welding difficulty is reduced, and the welding efficiency is improved.
Description
Technical Field
The utility model relates to a welding frock technical field specifically is a spin welding frock.
Background
The welding tool is a set of flexible fixture for welding, fixing, compressing and positioning. The welding machine is mainly used for welding various weldable materials and welding large, medium and small materials; the three-dimensional flexible welding tool is widely applied to welding and detection systems of steel structures, various vehicle body manufacturing, rail traffic welding, bicycle and motorcycle manufacturing, engineering machinery, frames and boxes, pressure vessels, robot welding, sheet metal processing, metal furniture, equipment assembly, industrial pipelines and the like.
The prior art has the following problems:
when the welding frock is welded the cylinder welding piece, be not convenient for rotatory with the welding piece, reduce staff's welded efficiency to be not convenient for adjust a welding piece angle, increase the staff welding degree of difficulty.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a spin welding frock to when proposing the welding frock and welding the cylinder welding piece in solving above-mentioned background art, be not convenient for rotate welding piece, reduce staff welded efficiency, and be not convenient for adjust a welding angle, increase the problem of the staff welding degree of difficulty.
In order to achieve the above object, the utility model provides a following technical scheme: a spin weld frock, includes:
the table body comprises a bottom plate, a first fixing plate and a second fixing plate are welded on the upper surface of the bottom plate, and a bearing seat is fixed on the rear surface of the second fixing plate and the front surface of the first fixing plate through bolts;
the adjusting assembly comprises a box body, opposite sides of the two bearing seats are rotatably connected with the box body, two supporting seats are welded on the lower surface of the box body, rod bodies are installed on the opposite sides of the two supporting seats, the adjusting assembly further comprises a hydraulic cylinder, the bottom end of the hydraulic cylinder is fixedly connected with the bottom plate, an output shaft of the hydraulic cylinder is fixedly connected with the rod bodies, a first motor is installed inside the box body, and the hydraulic cylinder and the electrical input ends of the first motor are connected with an external power supply through wires;
the clamping assembly comprises a disc, through holes are evenly formed in the upper surface of the disc and are regularly arranged, at least three plate bodies are arranged on the upper surface of the disc, the top of each plate body is rotatably connected with a clamping plate, and an output shaft of a first motor is fixedly connected with the disc.
As further preferable in the present technical solution: the bottom welding of disc has spacing portion, spacing portion covers the top of box.
As further preferable in the present technical solution: the disc and the plate body are fixedly connected with the bolt through the through hole.
As further preferable in the present technical solution: the box body is of a hollow cylinder structure.
As further preferable in the present technical solution: the base is installed to the bottom of stage body, the top of base is close to one side of adjusting part is provided with auxiliary assembly, one side of auxiliary assembly is kept away from one side of adjusting part is provided with the workstation.
As further preferable in the present technical solution: the auxiliary assembly includes the tripod, the top welding of tripod has the support frame, the inside wall of support frame rotates connects the fixed block, the front surface mounting of support frame has the second motor, the output shaft fixed connection of second motor the fixed block, one side of fixed block is rotated and is connected two gyro wheels, the electrical property input of second motor passes through the wire with external power source and is connected.
As further preferable in the present technical solution: the top welding of workstation has guardrail and seat.
Compared with the prior art, the beneficial effects of the utility model are that: when the welding piece is fixed, the box body can be jacked or pulled by the hydraulic cylinder output shaft, so that the box body is convenient to adjust to a proper angle, and then a worker performs welding treatment on the welding piece, and in the welding treatment process of the worker, the disc is rotated by the work of the first motor, so that the welding piece is driven to rotate, the welding piece is convenient to weld at different positions of the welding piece by the worker, the welding difficulty is reduced, and the welding efficiency is improved.
Drawings

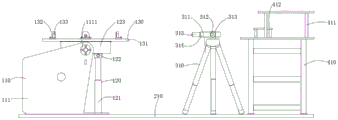

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is an internal view of the connection between the disc and the case of the present invention;
FIG. 3 is a side view of the connection between the disc and the case of the present invention;
fig. 4 is a top view of the disc of the present invention;
FIG. 5 is a side view of the fixing block and the roller of the present invention;
fig. 6 is a top view of the stage of the present invention.
In the figure: 110. a table body; 111. a first fixing plate; 112. a base plate; 113. a second fixing plate; 1111. a bearing seat; 120. an adjustment assembly; 121. a hydraulic cylinder; 122. a supporting seat; 123. a box body; 124. a first motor; 125. a rod body; 130. a clamping assembly; 131. a disc; 1311. a through hole; 132. a plate body; 133. a clamping plate; 134. a limiting part; 210. a base; 310. an auxiliary component; 311. a tripod; 312. a second motor; 313. a support frame; 314. a fixed block; 315. a roller; 410. a work table; 411. a guardrail; 412. a chair.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Examples
Referring to fig. 1-6, the present invention provides a technical solution: a spin weld frock, includes:
a table body 110 including a base plate 112, a first fixing plate 111 and a second fixing plate 113 welded to an upper surface of the base plate 112, and a bearing seat 1111 fixed by bolts to a rear surface of the second fixing plate 113 and a front surface of the first fixing plate 111;
the adjusting assembly 120 comprises a box body 123, opposite sides of the two bearing seats 1111 are rotatably connected with the box body 123, two supporting seats 122 are welded on the lower surface of the box body 123, rod bodies 125 are installed on opposite sides of the two supporting seats 122, the adjusting assembly 120 further comprises a hydraulic cylinder 121, the bottom end of the hydraulic cylinder 121 is fixedly connected with the bottom plate 112, an output shaft of the hydraulic cylinder 121 is fixedly connected with the rod bodies 125, a first motor 124 is installed inside the box body 123, and electrical input ends of the hydraulic cylinder 121 and the first motor 124 are connected with an external power supply through wires;
the clamping assembly 130 comprises a disc 131, through holes 1311 regularly arranged are uniformly formed in the upper surface of the disc 131, at least three plate bodies 132 are arranged on the upper surface of the disc 131, the top of each plate body 132 is rotatably connected with a clamping plate 133, and an output shaft of the first motor 124 is fixedly connected with the disc 131.
In this embodiment, specifically: the bottom end of the disc 131 is welded with a limiting part 134, and the limiting part 134 covers the top of the box body 123; in the rotating process of the disc 131, the limiting part 134 rotates at the top of the box body 123, so that the rotating position of the disc 131 is limited, wherein the limiting part 134 is of a hollow cylinder structure and is made of metal.
In this embodiment, specifically: the disc 131 and the plate 132 are fixedly connected with bolts through the through holes 1311; the welding part is placed on the disc 131, the plate bodies 132 slide in the through holes 1311 respectively, the clamping plate 133 is attached to the outer side wall of the welding part, and then the plate bodies 132 are fixed on the disc 131 through bolts, so that the welding part is fixed.
In this embodiment, specifically: the box body 123 is of a hollow cylinder structure; facilitating the installation of the first motor 124 inside the case 123.
In this embodiment, specifically: a base 210 is installed at the bottom of the table body 110, an auxiliary assembly 310 is arranged at one side of the top of the base 210 close to the adjusting assembly 120, and a workbench 410 is arranged at one side of the auxiliary assembly 310 far away from the adjusting assembly 120; the weldment is supported by the auxiliary assembly 310 and is facilitated for welding by a user by the table 410.
In this embodiment, specifically: the auxiliary assembly 310 comprises a tripod 311, a supporting frame 313 is welded at the top of the tripod 311, the inner side wall of the supporting frame 313 is rotatably connected with a fixed block 314, a second motor 312 is mounted on the front surface of the supporting frame 313, the output shaft of the second motor 312 is fixedly connected with the fixed block 314, one side of the fixed block 314 is rotatably connected with two rollers 315, and the electrical input end of the second motor 312 is connected with an external power supply through a wire; the two rollers 315 are supported by the tripod 311, and the welding part is supported, so that the second motor 312 can drive the fixing block 314 to rotate, and further the angles of the two rollers 315 can be changed.
In this embodiment, specifically: a guardrail 411 and a seat 412 are welded at the top of the workbench 410; the workbench 410 is arranged to facilitate the welding process of the welding parts by the user.
In this embodiment, the first motor 124 and the second motor 312 are of the type YL, the first motor 124 functions to drive the disc 131 to move, and the second motor 312 functions to drive the fixing block 314 to move.
Working principle or structural principle: before a user welds a welded part, firstly, the welded part is placed on the disc 131, the plate bodies 132 respectively slide in the through holes 1311, the clamping plate 133 is attached to the outer side wall of the welded part, then the plate bodies 132 are fixed on the disc 131 through bolts, and further the welded part is fixed, after the welded part is fixed, the angle of the welded part needs to be adjusted, a switch is controlled to enable the output shaft of the hydraulic cylinder 121 to lift up or pull the rod body 125, the output shaft rotates on the rod body 125, the box body 123 rotates in the two bearing seats 1111 at the moment, the angle of the disc 131 is changed, a part of the outer side wall of the disc 131 is attached to the two rollers 315, the work of the first motor 124 can be controlled, the angle of the fixing block 314 is adjusted, the outer side walls of the two roller 315 are attached, after the angle of the welded part is adjusted, the user can sit on the seat 412 on the workbench, during the welding process, the operation of the first motor 124 can be controlled to rotate the entire disc 131, so that the welding part rotates, which is a cylindrical structure not shown in the drawings.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a spin welding frock which characterized in that: the method comprises the following steps:
the table body (110) comprises a bottom plate (112), a first fixing plate (111) and a second fixing plate (113) are welded on the upper surface of the bottom plate (112), and a bearing seat (1111) is fixed on the rear surface of the second fixing plate (113) and the front surface of the first fixing plate (111) through bolts;
the adjusting assembly (120) comprises a box body (123), opposite sides of the two bearing seats (1111) are rotatably connected with the box body (123), two supporting seats (122) are welded on the lower surface of the box body (123), rod bodies (125) are installed on opposite sides of the two supporting seats (122), the adjusting assembly (120) further comprises a hydraulic cylinder (121), the bottom end of the hydraulic cylinder (121) is fixedly connected with the bottom plate (112), an output shaft of the hydraulic cylinder (121) is fixedly connected with the rod bodies (125), a first motor (124) is installed inside the box body (123), and electrical input ends of the hydraulic cylinder (121) and the first motor (124) are connected with an external power supply through wires;
the clamping assembly (130) comprises a disc (131), through holes (1311) which are regularly arranged are uniformly formed in the upper surface of the disc (131), at least three plate bodies (132) are arranged on the upper surface of the disc (131), the top of each plate body (132) is rotatably connected with a clamping plate (133), and an output shaft of a first motor (124) is fixedly connected with the disc (131).
2. The spin welding frock of claim 1, characterized in that: the bottom welding of disc (131) has spacing portion (134), spacing portion (134) cover the top of box (123).
3. The spin welding frock of claim 1, characterized in that: the disc (131) and the plate body (132) are fixedly connected with bolts through the through holes (1311).
4. The spin welding frock of claim 1, characterized in that: the box body (123) is of a hollow cylinder structure.
5. The spin welding frock of claim 1, characterized in that: base (210) are installed to the bottom of stage body (110), the top of base (210) is close to one side of adjusting part (120) is provided with auxiliary assembly (310), one side of auxiliary assembly (310) is kept away from one side of adjusting part (120) is provided with workstation (410).
6. The spin welding frock of claim 5, characterized in that: auxiliary assembly (310) includes tripod (311), support frame (313) have been welded at the top of tripod (311), the inside wall of support frame (313) is rotated and is connected fixed block (314), the front surface mounting of support frame (313) has second motor (312), the output shaft fixed connection of second motor (312) fixed block (314), one side of fixed block (314) is rotated and is connected two gyro wheels (315), the electric property input and the external power source of second motor (312) pass through the wire and be connected.
7. The spin welding frock of claim 6, characterized in that: the top of the workbench (410) is welded with a guardrail (411) and a seat (412).
