Abstract

The utility model relates to a revetment slope protection module device, comprising a slope bank main body, a retaining wall and a column are arranged in the slope bank main body, a plurality of longitudinal planting weirs are buried on the slope surface of the slope bank main body, and the planting weirs are The top of the trough is exposed from the slope surface, and the groove-shaped space between the adjacent planting weirs is a planting trough. The planting trough is distributed in a multi-level ladder shape. The planting trough is provided with planting soil and the surface is provided with a permeable particle layer. It is composed of hard particles laid on the planting soil. The water-permeable particle layer is provided with several planting cylinders. The bottom of the planting cylinder is open and is located in the planting soil. The top of the planting cylinder is open. The surface of the permeable particle layer is exposed, and planting soil is also arranged in the planting cylinder, and the planting soil in the planting cylinder is connected with the planting soil below it. This kind of slope protection not only ensures the strength of the bank protection, but also takes into account the ecological effect and the landscape effect.

Description

A kind of revetment slope protection module device

technical field

The utility model relates to a revetment slope protection (or called bank protection) module device, which belongs to the technical field of garden and water conservancy.

Background technique

Gardens and other water bodies should have stable and beautiful shorelines, and maintain a certain proportional relationship between the land and the water surface to prevent the water body from being affected by the collapse of the water bank. Therefore, revetments or slope protection should be built at the edge of the water body. The revetment is a retaining wall facing the water, and is a hydraulic structure that supports the land and prevents the collapse of the bank. The revetment is used to maintain the boundary between the land and the water, so that it maintains a certain proportional relationship. A revetment is a retaining wall that is facing water and is used to support the land soil behind the wall. If the water boundary is not treated with revetment, it is easy to collapse the bank wall due to the floating of the water, frost heave or wind and waves, resulting in the retreat of the land, the deformation of the shoreline, and the image of the garden landscape. The revetment can ensure that the bank slope of the water body is not eroded. Usually, the degree of scour on the bank slope of the water body depends on the size of the water surface and the level of the water level. Wind speed and compactness of the shore soil, etc. When these factors reach a certain level, such as the water bank slope without engineering treatment, the bank slope will lose its stability and cause damage. Therefore, the revetment should be designed along the shoreline to ensure that the slope of the water body is not scoured. The revetment can also enhance the landscape level of the shoreline. In addition to supporting and anti-scour, the revetment can also be handled in different forms to increase the changes of the revetment, enrich the façade level of the waterscape, and enhance the artistic effect of the landscape.

With the development of society and economy, people's living standards are improving day by day, and the yearning for a better life is not only material, but the pursuit of spiritual fields is increasing, especially the requirements for the ecological environment are getting higher and higher. Therefore, in environmental construction, people pay special attention to the diversity, safety and viewing of the ecological environment. Water is an indispensable material condition for human survival. In landscape construction, waterscape has become an important aspect to meet people's psychological and practical needs. Therefore, "there is no landscape without water, and there must be water when there is a landscape" has become the practice of creating landscapes. Water features not only add beautiful colors to our living space, but also bring people a comfortable and comfortable mood, creating a beautiful and pleasant water landscape. However, due to the differences in understanding and knowledge, the quality of different forms of waterscape landscapes is uneven, and the most important thing in the construction of waterscape landscapes is the treatment of the form and type of revetment. Only through scientific, reasonable and appropriate shoreline processing methods and methods, can a pleasant hydrophilic space landscape be created. At present, there are two main forms of revetment in garden construction: natural revetment and artificial revetment. Natural revetment is a natural gentle slope formed by turf, stones, plants, etc., various aquatic plants are planted on the water bank, and shrubs and trees are planted on the shoreline to form a hierarchical community and provide a habitat for living creatures. The ecology plays a role in restoration and maintenance, but the overall stability of this kind of revetment is relatively low, and it is greatly affected by the impact of water flow and temperature. The artificial revetment mainly uses reinforced concrete, rock, gabion, concrete, block stone, ecological brick, imitation wood pile and other materials to build the slope. Different materials can be selected according to the basic conditions of the site. Aesthetics. However, this kind of revetment satisfies people's increasing requirement to be close to nature. The surface soil layer is easily eroded by water flow, and it is difficult to intercept and maintain the soil and organic matter entrained by surface runoff.

Utility model content

In order to overcome the above-mentioned defects of the prior art, the utility model provides a revetment and slope protection module device, which can take into account the ecological effect and the landscape effect while ensuring the strength of the bank protection.

The technical scheme of the utility model is: a revetment and slope protection module device, comprising a slope bank main body, the slope bank main body is mainly composed of bank soil, and it is characterized in that a retaining wall is arranged in the slope bank main body, and the retaining wall It is located at the adjoining part of the slope top and the slope surface, and there is a certain thickness of soil layer above it. Several longitudinal planting weirs are buried on the slope surface of the main body of the slope bank. The top of the planting weirs is exposed from the slope surface, adjacent to The top height of the inner planting weir in the planting weir is lower than the top height of the outer planting weir, and the trough-shaped space between adjacent planting weirs is a planting trough, and the planting trough is distributed in a multi-level ladder shape. There is planting soil, and the surface is provided with a permeable particle layer, which is composed of hard particles laid on the planting soil. Several planting cylinders are arranged on the permeable particle layer. The top of the planting tube is open and exposed from the surface of the permeable particle layer, and planting soil is also arranged in the planting tube, and the planting soil in the planting tube is connected with the planting soil below it.

The height of the part of the planting weir below the surface of the permeable particle layer is preferably smaller than the vertical length of the plant root system in the planting groove outside of the planting weir, and greater than the thickness of the corresponding permeable particle layer.

The top of the planting weir is preferably in a zigzag shape with several notches distributed.

A plurality of uprights are preferably embedded in the main body of the slope protection, and the inner side of any one of the planting weirs is adjacent to and connected to a plurality of the uprights.

The different columns can be connected by transverse and/or longitudinal connecting beams.

The retaining wall and the adjacent columns can be connected to each other by connecting beams.

Preferably, several gabions are arranged in the toe area of the main body of the slope bank.

The gabions can be distributed in a stepped multi-level in the lateral direction, and the outermost gabions are located on the inner side of the innermost column and are in contact with the corresponding column and the main body of the bank slope.

The height of the outermost gabion is preferably not lower than the height of the main body of the bank at the part where it joins.

A layer of crushed stone layer similar to the shape of the bank slope can be arranged in the main body of the slope bank located on the inner side of the retaining wall, and one or more layers of stone blocking nets are arranged on the outer side of the crushed stone layer. It is fixedly connected to the retaining wall, and the inner side is fixedly connected to the inner column and/or the outer gabion.

Foundation piles may be arranged below the retaining wall.

The beneficial effects of the utility model are: because the built-in retaining wall is arranged, the pressure of the soil (shore soil) and groundwater on the land side and the water body pressure and impact force on the water body side can be effectively avoided, the overall stability of the bank protection can be effectively ensured, and It does not hinder the greening and landscape effect on the ground; since several columns are set as the overall frame of the revetment, and the columns and between the columns and the built-in retaining wall are connected by horizontal connecting beams arranged vertically and horizontally, a solid revetment frame is formed, and in the frame There are multi-stage gabions installed on the ground of the water body on the side of the water body, thus ensuring the integrity and stability of the revetment. Reliable support; the step-shaped planting trough is protected from the impact of the water flow under the protection of the planting weir, and the cobblestone (or crushed stone or other forms of large solids) layer set on the surface of the planting trough can effectively trap the soil in the surface runoff, etc. Particles, etc., are deposited into the cobblestone layer, and deposited on the planting soil layer of the planting tank with the descending water flow in the planting tank. The organic matter and other nutrients in it can further penetrate into the planting soil layer and continuously replenish the planting soil layer. Nutrient components are beneficial to maintain the growth of plants; since the planting trough has no bottom, the planting soil layer is integrated with the backfill soil below, which ensures the effect of ventilation and water flow, and the soil environment of plants is basically not affected by the revetment structure. Influence, compared with the prior art of setting an independent flowerpot or setting an impermeable spacer at the bottom, the plant growth environment is well maintained, the maintenance cost of the plant is obviously reduced, and the growth state of the plant is improved; A planting tube is set in the cobblestone layer, and the planting soil is set in the tube. The size and setting density are determined according to the specific planting and planting. Each planting tube can be independent of each other, or several can be connected as a whole. For example, a grid-shaped or honeycomb-shaped combined planting tube can be used; it can be based on the needs of planting. Carry out the modular design of the planting tank, process several specifications of planting cylinders and baffles in the factory, and carry out modular assembly on site according to the design requirements to facilitate construction and reduce construction costs, and ensure product quality and improve production through industrialized manufacturing. Efficiency; because the gabion is set at the bottom of the water body, and the gabion can be set in multiple stages in the horizontal direction, and can be set in a stepped shape in the vertical direction, so that the number of layers of The height of the bank layer gradually decreases toward the center of the water body. The gabion blocks the inner side of the innermost column, which is conducive to ensuring the firmness of the bank protection and reducing or avoiding the erosion of the bank protection soil layer by the water body. Except for the partial occlusion of planting weirs and stone cages, there is no physical isolation in pieces. Compared with the existing hard revetment to completely isolate the water body, it is not only conducive to eliminating the water pressure difference between the inside and outside of the revetment, reducing the The damage to the revetment caused by the pressure difference of the water body and the change of the pressure difference of the water body, and the connection and exchange between the water body and the surrounding groundwater are maintained, which is beneficial to In order to maintain a good ecological environment, it is conducive to the re-oxygenation of water in the water body, improving the overall ecological status of the water body, and reducing or avoiding the formation and deposition of sludge in the water body.

Description of drawings

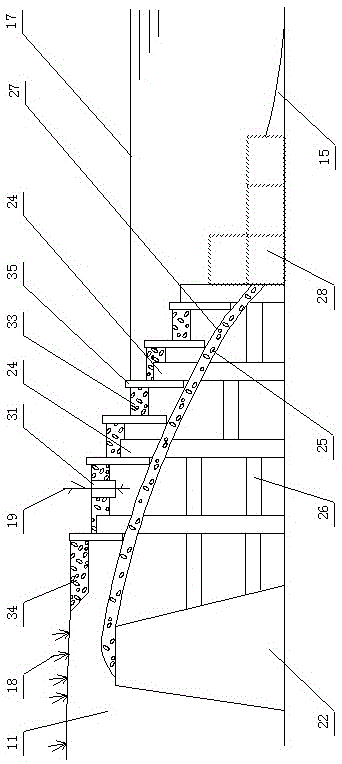

Fig. 1 is the cross-sectional structure schematic diagram of the present utility model;

Fig. 2 is another kind of sectional structure schematic diagram of the present utility model;

3 is a schematic top view of the present invention.

Detailed ways

The present utility model will be further described below in conjunction with the accompanying drawings.

As shown in Figures 1-3, the revetment and slope protection module device provided by the present utility model includes a main body 11 of a slope bank, which is mainly composed of bank soil, and is provided with a retaining wall 22, and the retaining wall is located at the top of the slope and the slope of the slope. The adjacent part of the surface has a soil layer of a certain thickness above it, a number of longitudinal planting weirs 35 are buried on the slope surface of the main body of the slope bank, the top of the planting weir is exposed from the slope surface, and the The top height of the inner planting weir is lower than the top height of the outer planting weir, and there are planting grooves between adjacent planting weirs, and the planting grooves are distributed in a multi-level stepped shape. Composed of hard particles on the surface of the planting trough, eg pebbles. The permeable particle layer is provided with a number of planting cylinders 31, the bottom of the planting cylinder is open, located in the bank soil (planting soil in the planting tank), and the top is also open, exposed from the surface of the permeable particle layer, and the top is open. The height can be the same as or slightly higher than the permeable particle layer, the planting soil is arranged in the planting tube, and the planting soil in the planting tube is connected with the shore soil (planting soil in the planting tank) below it for planting. Plant 19, the plant species is determined according to the location of the planting tank, for example, for the planting tank located below the water surface 17 for a long time, emergent plants can be planted, for those located in deeper water, emergent plants can be planted, for Planting troughs that are sometimes above water and sometimes underwater can be planted with positive wet plants, and for planting troughs that are above the water surface for a long time, the corresponding mesophytes can be planted.

The height (vertical dimension) of the planting weir should not be too large to avoid excessive isolation of the planting trough. Usually, it should be ensured that the soil under the planting weir is still suitable for the growth of plant roots, and is located below the surface of the permeable particle layer. The height is preferably less than the vertical length of the corresponding plant root system (the plant root system of the planting tank located outside it), for example, preferably not more than 1/2 or 1/3 of the vertical length of the corresponding plant root system. At the same time, the height of the planting weir is preferably greater than the thickness of the permeable particle layer, so as to effectively prevent the particulate matter in the permeable particle layer from passing below it, so that the plant root system of the planting trough can extend into the soil below other planting troughs. , The plant roots in each planting tank cross each other to ensure the integrity of the soil.

A number of notches 36 may be distributed on the top of the planting weir, for example, in a zigzag shape, and the notches may be rectangular, semicircular or triangular, etc., so that overflow water can flow out.

A number of uprights 24 are also embedded in the main body of the slope protection, and the inner side of the planting weir is connected with a plurality of (two or more) uprights, so that the stability of the position of the planting weir is ensured by the uprights and resists the external water. and soil pressure.

The planting weirs and the uprights can be fixed to each other by corresponding fixing parts, or can be connected to each other by a prefabricated plug-in or snap-connection structure, and/or fixed together by cement or the like.

The extension length of the lower end of the column should ensure the stability and reliability of the column, which can be determined according to factors such as actual needs and geographical conditions.

The different columns can be connected by horizontal and/or longitudinal connecting beams 26, usually in rows and columns to form a frame structure, and the columns support each other to improve firmness.

The retaining wall and the adjacent columns are also preferably connected to each other by connecting beams.

The connecting beams are usually arranged horizontally, and the horizontal plane may also be inclined to a certain extent, for example, in an inclined manner that is substantially parallel to the slope surface of the corresponding part.

The column can be a stone column or a wood pile that has undergone anti-corrosion treatment, and the connecting beam can be made of the same material as the column system, or steel bars and the like.

Several stone cages 28 can be set in the toe area of the main body of the slope bank. The stone cages are made of stone-blocking nets and filled with stone materials. Commercially available products can be used, and the specific specifications are based on actual needs.

The gabion can be directly placed on the bottom surface 15 of the water body, and the bottom surface of the water body can be constructed according to the design, and the rammed plain soil can also be directly used.

In the lateral direction, the gabions can be multiple, forming a multi-level distribution in the lateral direction.

The outermost gabion is located on the inner side of the innermost column, and is in contact with the corresponding column and the main body of the bank slope (bank soil), forming a support for the column and the main body of the bank slope in the corresponding direction.

When the gabions are multi-level, they can be stepped, that is, in at least some adjacent gabions, the number of layers of the outer gabions is higher than the number of layers of the inner gabions.

The height of the outermost gabion (in the case of multi-layer gabions, refers to the total height of the multi-layers) shall not be lower than the height of the main body of the slope bank where it joins.

For the revetment with higher strength requirements, the main body of the slope bank can be further strengthened, specifically, a layer of gravel layer 25 with a shape similar to the bank slope is arranged in the main body of the slope bank on the inner side of the retaining wall. The stone layer is laid with irregular crushed stone, or laid with flakes for higher strength. The laying method can be full laying (covering the entire area of the gravel layer) or non-full laying (covering only part of the gravel layer). There is no apparent overlap between the stones) or multi-layer paving (there is a noticeable overlap between the rubble). The outer side of the crushed stone layer is provided with one or more layers of stone blocking nets 27, and the crushed stone layer is too tight with the stone blocking net, the outer side of the stone blocking net is fixedly connected to the retaining wall, and the inner side is fixedly connected to the inner side. On the column and/or on the outer gabion, through the stone-blocking net column (and also through the gravel layer), it is fixedly connected to the stone-blocking net or does not need to be specially connected.

Placing multiple layers of full paving is beneficial for strength, while non-full paving allows plant roots to penetrate the gaps in the gravel layer and extend downward. The laying method can be selected according to actual needs and plant characteristics.

The planting weir can be set on the top of the crushed stone layer (and the stone blocking net), and its lower end is in contact with or adjacent to the rock blocking net or the crushed stone layer but with a slight distance. The main body of the sloping bank, retaining walls, columns and connecting beams, etc. below the stone layer, then lay a gravel layer and a stone blocking net, and then set up planting weirs, and then fill the soil between the planting weirs suitable for planting, and set up planting tubes and Water-permeable barrier.

If necessary, foundation piles 23 can be arranged under the retaining wall to improve the strength of the retaining wall.

Lawn 18 and plants can be planted on the soil at the top of the slope, and a cobblestone pool 34 can be set on the outside of the outermost planting weir. A groove is dug on the ground and filled with pebbles. The bottom and surrounding walls of the cobblestone pool can be Made of impermeable structure (eg paved in stone). Water spray settings (for example, small fountain settings) and/or underwater lights can be set in the cobblestone pool to form a small water landscape, isolate the slope top lawn from the slope protection area, and help alleviate the runoff on the slope protection area in rainy days impact.

The preferred and optional technical means disclosed in the present invention can be arbitrarily combined to form several different technical solutions, unless otherwise specified and unless one preferred or optional technical means is further defined as another technical means.

Claims (1)

1. a revetment and slope protection module device, comprising a main body of a bank, and the main body of the bank is mainly composed of bank soil, it is characterized in that a retaining wall is arranged in the main body of the bank, and the retaining wall is located at the top of the slope and the surface of the slope There is a certain thickness of soil layer above it, several longitudinal planting weirs are buried on the slope surface of the main body of the slope bank, the top of the planting weir is exposed from the slope surface, and the inner side of the adjacent planting weir is planted The top height of the weir is lower than the top height of the outer planting weir, the trough-shaped space between adjacent planting weirs is the planting trough, the planting trough is distributed in a multi-level stepped shape, the planting trough is provided with planting soil, and the surface is provided with planting soil. There is a permeable particle layer, which is composed of hard particles laid on the planting soil. Several planting cylinders are arranged on the permeable particle layer. The bottom of the planting cylinder is open and located in the planting soil, and the top of the planting cylinder is open. The mouth is exposed from the surface of the permeable particle layer, and the planting soil is also arranged in the planting tube. The planting soil in the planting tube is connected with the planting soil below it, and a number of uprights are also buried in the main body of the slope protection. , the inner side of any of the planting weirs is adjacent to and connected to a plurality of the uprights, the different uprights are connected by horizontal and/or longitudinal connecting beams, and the retaining wall is connected to the adjacent uprights. Connected to each other by connecting beams, several gabions are arranged in the slope toe area of the main body of the slope bank, and foundation piles are arranged under the retaining wall.
