Abstract

The utility model relates to a candy vertical whitening machine, comprising a frame, a lower push plate, a throwing handle, a large gear shaft, a large gear, a gear box body, a small gear shaft, an upper electric push rod, a large pulley, a material pusher Rod, upper push plate, motor base plate, V-belt, small pulley, motor, base plate, base plate spring, lower electric push rod, the motor drives the small pulley, the large pulley, the pinion shaft, the large gear shaft and two The large gears meshing with each other rotate to drive the two swinging handles to rotate oppositely. The upper push plate is installed on the upper electric push rod, the material push rod is installed on the upper push plate, and the material push rod is connected to the lower push plate. The lower push plate is sleeved on the swing handle and rotates together with the swing handle. The large gear shaft is in a hollow form. The lower electric push rod is fixed on the bottom surface of the frame and passes through the bottom plate. support. The advantage of the device is that the electric push rod is used as the power for loading and unloading, and the number of parts that need to be lifted and lowered during loading and unloading is small.

Description

A candy vertical whitening machine

technical field

The utility model relates to a whitening machine, in particular to a vertical whitening machine for candy.

Background technique

In the production process of candy, it is necessary to complete the whitening operation of the candy, that is, by repeatedly stretching the candy body, the surrounding gas is wrapped in and the original optical properties of the candy body are changed to form a white and bright candy body.

At present, on the market, the whitening machine can be divided into two categories: horizontal and vertical according to the position of the axis of rotation of the handle. The horizontal whitening machine has a simple structure, but it does not have a reclaiming mechanism, and it is inconvenient to load, time-consuming and laborious, and has low production efficiency; It includes a transmission mechanism and a power mechanism, which requires many lifting and lowering components and is heavy. Due to the heavy lifting weight, this lifting device needs to use an additional hydraulic system to achieve, which undoubtedly increases the manufacturing cost of the whitening machine, and this may cause the hydraulic oil to contaminate the food.

Based on the above problems, the utility model proposes a candy vertical whitening machine.

Utility model content

The main purpose of the present utility model is to provide a candy vertical whitening machine to solve the problems raised in the above background technology.

For realizing the above-mentioned purpose, the technical scheme that the utility model adopts is:

A candy vertical whitening machine, including a frame, a lower push plate, a swing handle, a large gear shaft, a large gear, a gear box body, a small gear shaft, an upper electric push rod, a large pulley, a material push rod, and an upward push rod. Plate, motor base plate, V-belt, small pulley, motor, base plate, base plate spring, lower electric push rod, the motor drives the small pulley, the large pulley, the pinion shaft, the large gear shaft and the two intermeshing large The gear rotates to drive the two throwing handles to rotate in opposite directions. The upper push plate is installed on the upper electric push rod, the material push rod is installed on the upper push plate, and the material push rod is connected to the lower push plate. The plate sleeve rotates on the swing handle along with the swing handle, the large gear shaft is in the form of a hollow, the lower electric push rod is fixed on the bottom surface of the frame and passes through the bottom plate, and the bottom plate is supported by four bottom plate springs.

Further, two bearings are installed in the upper push plate.

The utility model has the following beneficial effects:

1. The structure is simple, the number of parts required for lifting is small, and there is no need to lift and lower a series of parts such as motors, gears, gear boxes, and swing handles as a whole.

2. The electric push rod is used as the power source for feeding and reclaiming materials, and no hydraulic device is required, which reduces the manufacturing cost of the machine. In addition, compared with the hydraulic device, the electric push rod also has the advantages of convenient control and small space occupation rate. The advantages of low noise and so on.

Description of drawings

Figure 1 is an overall front view of a vertical candy whitening machine of the present invention.

Figure 2 is an overall left side view of a vertical candy whitening machine of the present invention.

Figure 3 is a front view of the upper push plate of a vertical candy whitening machine of the present invention.

4 is a top view of the upper push plate of a vertical candy whitening machine of the present invention.

Figure 5 is a partial schematic view of the installation of the upper push plate bearing of a vertical candy whitening machine of the present invention.

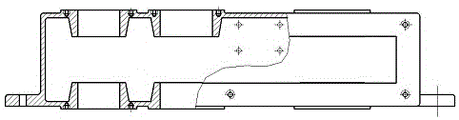

6 is a front view of a gear box of a vertical candy whitening machine of the present invention.

7 is a top view of the gear box of a vertical candy whitening machine of the present invention.

In the picture: 1. Frame, 2. Lower push plate, 3. Swing handle, 4. Large gear shaft, 5. Large gear, 6. Gear box, 7. Pinion shaft, 8. Upper electric push rod, 9 .Large pulley, 10. Material push rod, 11. Upper push plate, 12. Motor bottom plate, 13. V belt, 14. Small pulley, 15. Motor, 16. Bottom plate, 17. Bottom plate spring, 18. Lower electric putter.

Detailed ways

The utility model will be further described below in conjunction with the accompanying drawings

As shown in Figure 1-7, a candy vertical whitening machine includes a frame 1, a lower push plate 2, a swing handle 3, a large gear shaft 4, a large gear 5, a gear box 6, a pinion shaft 7, Upper electric push rod 8, large pulley 9, material push rod 10, upper push plate 11, motor base plate 12, V belt 13, small pulley 14, motor 15, base plate 16, base plate spring 17, lower electric push rod 18, The motor 15 drives the small pulley 14, the large pulley 9, the pinion shaft 7, the large gear shaft 4 and the two intermeshing large gears 5 to rotate, thereby driving the swing handle 3 to rotate in the opposite direction, so that the candy is continuously drawn, The upper push plate 11 is installed on the upper electric push rod 8 , the material push rod 10 is installed on the upper push plate 11 , and the material push rod 10 is connected to the lower push plate 2 , so that the force of the upper electric push rod 8 can be adjusted easily. Through the upper push plate 11 and the material push rod 10, it is transmitted to the lower push plate 2, and the lower push plate 2 is sleeved on the swing handle 3 and rotates together with the swing handle 3, so that during the rotation of the swing handle 3, the lower push plate 2 can In the same position as the handle 3, the large gear shaft 4 is in the form of a hollow, which is convenient for the material push rod 10 to pass through. The lower electric push rod 18 is fixed on the bottom surface of the frame 1 and passes through the bottom plate 16. The purpose is to The lower electric push rod 18 is regarded as a stationary column, so that the candy is continuously pulled between the electric push rod 18 and the swing handle 3, and the electric push rod 18 can drive the bottom plate 16 to move downward, and the bottom plate 16 is made of The four bottom plate springs 17 are supported for the purpose of supporting the candy during the drawing process and enabling the bottom plate to automatically reset after the candy is taken out.

Wherein, two bearings are installed in the upper push plate, which can make the material push rod 10 rotate together with the throwing handle 3 while connecting the upper push plate 11 and the material push rod 10 .

It should be noted that the utility model is a candy vertical whitening machine, and the work is divided into three stages, namely: a feeding stage, a drawing stage, and a reclaiming stage.

Feeding stage: As shown in Figure 1, the lower electric push rod 18 moves downward until the lower electric push rod 18 contacts the bottom plate 16 and starts to drive the bottom plate 16 to move downward, and the bottom plate 16 begins to compress the bottom plate spring 17 downward until the bottom plate 16. 16 reaches the dotted line position in FIG. 1, after reaching the predetermined position, place the candy in the center of the bottom plate 16, after placing the candy, the lower electric push rod 18 moves upward, the bottom plate 16 starts to rebound under the action of the bottom plate spring 17, and when the bottom plate When the 16 rebounds to the original position, the lower electric push rod 18 continues to move upward, thereby lifting the candy on the bottom plate 16, the candy is wrapped on the lower electric push rod 18 and the swing handle 3, and is ready to start pulling the candy.

Drawing stage: in the stage of drawing candy, the electric push rod 18 remains stationary. When starting to work, the motor 15 drives the small pulley 14 to rotate, and drives the large pulley 9 to rotate through the V-belt 13. The large pulley 9 is installed on the small pulley. On the gear shaft 7, it can be seen from FIG. 1 that the pinion shaft 7 is installed on the gear box 6, and the pinion shaft 7 is the driving shaft, which drives the two large gears 5 to rotate, thereby driving the two large gear shafts 4 to rotate. The two large gear shafts 4 are arranged side by side, so they rotate in opposite directions, and drive the two swing handles 3 to rotate in opposite directions, so that the candy wrapped on the swing handle 3 and the lower electric push rod 18 is continuously pulled. , the two large gear shafts 4 are in the form of hollow, which is convenient for the material push rod 10 to pass through, and each swing handle 3 is covered with a lower push plate 2. The purpose of putting the push plate 2 on the swing handle 3 is to ensure that the lower push plate 2 and the swing handle 3 are in the same position at every moment, the lower push plate 2 is connected to the lower end of the material push rod 10, and the upper end of the material push rod 10 is installed on the upper On the push plate 11, the structure of the upper push plate 11 can be seen from Figures 3 and 4. The two holes on the upper push plate 11 are used to install the bearing. The partial schematic diagram of the bearing installation can be seen in Figure 5. The hole in the middle of the upper push plate 11 In order to reduce the weight of the upper push plate 11, the bottom hole is used to install the upper push plate 11 on the upper electric push rod 8. The upper end of the material push rod 10 is supported by a bearing, which makes the material push rod 10 on the lower push plate 2. can rotate together under the drive.

Reclaiming stage: After the sugar body is drawn, start taking the material. As can be seen from Figure 1, when taking the material, the upper electric push rod 8 and the lower electric push rod 18 move downward together, and the upper electric push rod 8 drives the upper electric push rod 8. The push plate 11 moves downward, the upper push plate 11 drives the two material push rods 10 to move downward, and the two material push rods 10 respectively drive the two lower push plates 2 sleeved on the swing handle 3 to move downward until Reach the position of the dotted line in Fig. 1, so that the sugar body wrapped on the two swing handles 3 is peeled off from the swing handle 3, and at the same time, the lower electric push rod 18 moves downward, so that the sugar body is removed from the lower electric push rod 18. Peel up until the ball on the lower electric push rod 18 touches the bottom plate 16, and then drives the bottom plate 16 to move downward until it reaches the dotted line in Figure 1, and the sugar body finally falls on the bottom plate 16, take out the pulled sugar After the body, each part returns to its original position.

In addition, as shown in Figures 6 and 7, there are four threaded holes on the back of the gear box 6 for fixing the electric push rod 8; as shown in Figure 1, the function of the motor base plate 12 is that after working for a period of time , the V-belt 13 will be loose, resulting in a decrease in transmission efficiency. By adjusting the position of the motor base plate 12 to increase the relative distance between the small pulley 14 and the large pulley 9 on the motor 15, the V-belt 13 is tensioned and the transmission efficiency is improved. .

Claims (2)

1. A candy vertical whitening machine, comprising a frame (1), a lower push plate (2), a swing handle (3), a large gear shaft (4), a large gear (5), and a gear box body (6) , pinion shaft (7), upper electric push rod (8), large pulley (9), material push rod (10), upper push plate (11), motor base plate (12), V belt (13), small Pulley (14), motor (15), bottom plate (16), bottom plate spring (17), lower electric push rod (18), the motor (15) drives the small pulley (14) and the large pulley (9) , the pinion shaft (7), the large gear shaft (4) and the two intermeshing large gears (5) rotate to drive the swing handle (3) to rotate in the opposite direction, and it is characterized in that: the upper push plate (11) is installed on the On the upper electric push rod (8), the material push rod (10) is mounted on the upper push plate (11), the material push rod (10) is connected to the lower push plate (2), and the lower push plate (2) ) is sleeved on the swing handle (3) and rotates together with the swing handle (3). Through the base plate (16), the base plate (16) is supported by four base plate springs (17). 2 . The vertical candy whitening machine according to claim 1 , wherein two bearings are installed in the upper push plate ( 11 ). 3 .
