CN210019506U - Conformal hollow tube for nasal cavity filling - Google Patents

Abstract

The utility model discloses a conformable hollow tube for nasal cavity packing, which comprises a hollow transparent tube and a first inflatable cuff sleeved on the outside of the hollow transparent tube, and further comprises one or two independently arranged inflatable tubes One end of all inflatable cuffs is communicated with the same thin connecting tube. By inflating or filling the above-mentioned multiple inflatable cuffs with water, the multiple inflatable cuffs can respectively carry out conformal packing of the multiple nasal passages inside the nasal cavity, and the turbinate extrusion effect is small, especially suitable for single Or nasal packing after multiple turbinate preservation. The above-mentioned conformal hollow tube for nasal packing is provided with a plurality of separate cuffs according to the structure of the nasal cavity, which fully adapts to the shape of the nasal cavity and sinus. The cavity hemostasis avoids damage to the mucous membrane. At the same time, the hollow transparent tube can maintain the patient's nasal breathing, improve the comfort, and realize real-time postoperative inspection.

Description

A conformal hollow tube for nasal packing

technical field

The utility model relates to a conformable hollow tube, in particular to a conformal hollow tube used for nasal packing, belonging to the technical field of medical instruments.

Background technique

Nosebleeds are one of the common emergencies in otolaryngology, and timely hemostasis is required. After sinus surgery, hemostatic therapy is also required due to oozing blood from the surgical cavity. Due to the complex and irregular structure of the nasal cavity and paranasal sinuses, it is difficult to expose under direct vision.

At present, various packing materials used in clinic are all regular shapes, most of which are simple strips or cylinders, while the nasal cavity and sinuses have complex shapes, including upper, middle and lower turbinates and multiple nasal passages and sinus cavities formed. A gap will be left during packing, which cannot stop bleeding; and the volume of traditional gauze is too small, which requires a large number of surgical cavity packing, which is difficult to fix, there is a risk of omission, and the comfort is not good. , the nasal cavity can not be ventilated, the packing material is easy to fall off and suffocate, or it is easy to adhere to the nasal mucosa. In the case of re-bleeding after tamponade, the condition of the surgical cavity cannot be checked, and it is difficult to decide whether to choose observation or to re-hemostasis.

With the development of various types of nasal cavity and sinus surgery and transnasal and cranial base surgery, there is an urgent need for a suitable packing material that can fully adapt to the shape of the nasal cavity and paranasal sinuses under different conditions, and can maintain the ventilation function of the nasal cavity while providing hemostasis. It does not hinder the observation of the surgical cavity.

SUMMARY OF THE INVENTION

The technical problem to be solved by the present invention is to provide a conformable hollow tube for nasal packing.

To achieve the above object, the utility model adopts the following technical scheme:

According to a first aspect of the present invention, there is provided a conformable hollow tube for nasal packing, comprising a hollow transparent tube and a first inflatable cuff sleeved on the outside of the hollow transparent tube; further comprising an independent setting the second inflatable cuff and the third inflatable cuff;

One ends of the first inflatable cuff, the second inflatable cuff and the third inflatable cuff are respectively communicated with the same thin connecting tube.

Preferably, the first inflatable cuff is used for filling the lower nasal passage; the second inflatable cuff is used for filling the middle nasal passage; the third inflatable cuff is used for filling the upper nasal passage. Nasal passage and nasal roof olfactory cleft area;

The distance between the second inflatable cuff and the first inflatable cuff is equal to the distance between the lower meatus and the middle meatus; the third inflatable cuff and the first The distance between the two inflatable cuffs is equal to the distance between the olfactory cleft area of the nose top and the middle meatus.

According to a second aspect of the present invention, a conformable hollow tube for nasal packing is provided, comprising a hollow transparent tube and a first inflatable cuff sleeved on the outside of the hollow transparent tube; and an independent setting the second inflatable cuff;

One ends of the first inflatable cuff and the second inflatable cuff are respectively communicated with the same thin connecting tube.

Preferably, the first inflatable cuff is used for packing the lower meatus; the second inflatable cuff is used for packing the combined middle and upper meatus. Alternatively, preferably, the first inflatable cuff is used for packing the combined lower and middle meatus; the second inflatable cuff is used for packing the upper nasal meatus and the nose top olfactory cleft Area.

Among the above two conformable hollow tubes, preferably, the hollow transparent tube is a pressure-proof tube.

Preferably, the section of the hollow transparent tube is circular or oval.

Preferably, the first inflatable cuff is arranged in an elongated shape along the direction of the hollow transparent tube.

Preferably, all inflatable cuffs are made of silicone material, and a layer of nanomaterials is attached to the outer surface of all inflatable cuffs.

Preferably, the end of the thin connecting pipe is provided with a valve for inflation or water filling.

The conformable hollow tube for nasal packing provided by the utility model is provided with a first inflatable cuff on the outside of the hollow transparent tube, and one or two independently arranged inflatable cuffs are provided. One end of all inflatable cuffs communicates with the same thin connecting tube. By inflating or filling the above-mentioned multiple inflatable cuffs with water, the multiple inflatable cuffs can respectively carry out conformal packing of multiple nasal passages inside the nasal cavity, and the effect of squeezing multiple turbinates is small, which is especially suitable for Nasal packing after single or multiple turbinate preservation. The above-mentioned conformal hollow tube for nasal packing is provided with a plurality of separate cuffs according to the structure of the nasal cavity, which fully adapts to the shape of the nasal cavity and sinus. At the same time, the hollow transparent tube can maintain the patient's nasal breathing and improve the comfort. In addition, a rigid or soft fiberoptic endoscope can be introduced into the nasal cavity through the above-mentioned hollow transparent tube to conduct real-time inspection of the nasal cavity and paranasal sinuses, which enhances the correct judgment of the condition after surgery. Moreover, the above-mentioned conformal hollow tube for nasal packing can be easily taken out after deflating the inflatable cuff or water during taking out, reducing the pain of the patient and the possibility of secondary bleeding.

Description of drawings

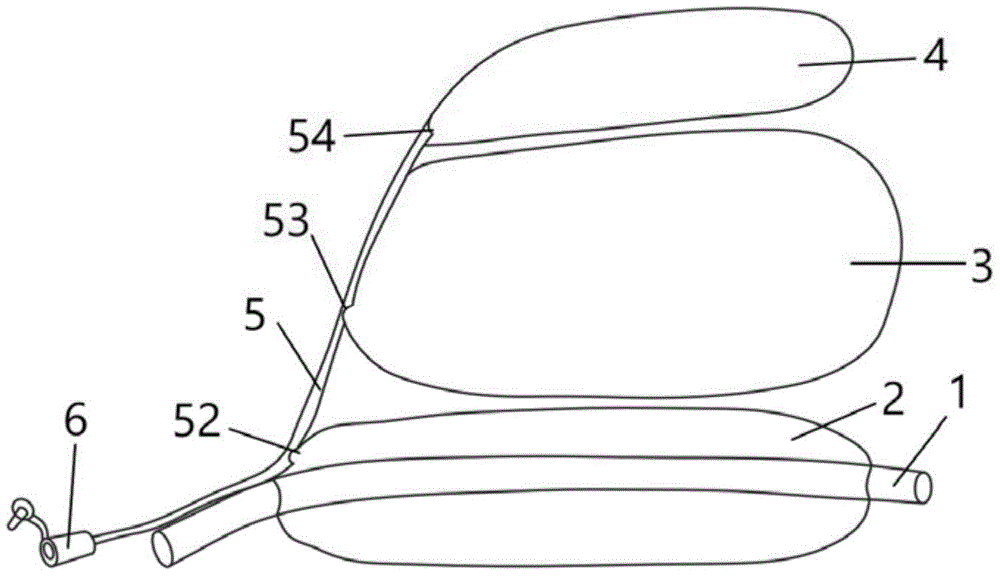

Fig. 1 is the structural representation of the conformable hollow tube for nasal packing provided by the utility model;

Fig. 2 is the state schematic diagram 1 of using the conformal hollow tube shown in Fig. 1 to pack the nasal cavity;

FIG. 3 is a schematic diagram 2 of the state of packing the nasal cavity by using the conformal hollow tube shown in FIG. 1 .

Detailed ways

The present utility model will be further described in detail below in conjunction with the accompanying drawings and specific embodiments.

The conformable hollow tube for nasal packing provided by the present invention includes a hollow transparent tube 1, a first inflatable cuff 2 is sleeved on the outside of the hollow transparent tube 1, and includes one or two independently arranged One end of all inflatable cuffs communicates with the same thin connecting tube 5 . By inflating or filling the above-mentioned multiple inflatable cuffs, the multiple inflatable cuffs can be inflated to respectively perform conformal packing on the multiple nasal passages inside the nasal cavity, and the effect of squeezing the turbinates is small, which is especially suitable for Nasal packing after single or multiple turbinate preservation.

In the first embodiment provided by the present invention, there are three inflatable cuffs (including a first inflatable cuff 2 disposed outside the hollow transparent tube 1 and a second inflatable cuff disposed independently The conformable hollow tubes of the cuff 3 and the third inflatable cuff 4) are described as examples.

As shown in FIG. 1, the conformable hollow tube for nasal packing includes a hollow transparent tube 1 and a first inflatable cuff 2 sheathed outside the hollow transparent tube 1; and also includes a second inflatable independently arranged Inflatable cuff 3 and third inflatable cuff 4; one end of first inflatable cuff 2, second inflatable cuff 3 and third inflatable cuff 4 communicate with the same thin connecting tube 5 respectively . Three holes 52 , 53 and 54 are provided on the thin connecting tube 5 , one end of the first inflatable cuff 2 , the second inflatable cuff 3 and the third inflatable cuff 4 pass through the holes 52 , 53 respectively And 54 communicates with the thin connecting pipe 5. At the end of the thin connecting pipe 5, a valve 6 for air or water is provided.

The hollow transparent tube 1 is a pressure-proof tube. Specifically, it can be a retractable threaded hose or a bendable snakeskin hose, and the anti-pressure tube can change shape with the curved nasal passage, so that it can enter and be set in the lower nasal passage for nasal ventilation and postoperative inspection.

1, 2 and 3, the hollow transparent tube 1 is worn inside the first inflatable cuff 2, and the first inflatable cuff 2 is sleeved on the cylindrical outer circumferential wall of the hollow transparent tube 1. Above, the first inflatable cuff 2 is arranged in a long strip along the direction of the hollow transparent tube 1. After the first inflatable cuff 2 is inflated or filled with water, the first inflatable cuff 2 is inflated or filled with water. The balloon 2 expands around the hollow transparent tube 1 and fills the lower nasal passage 15 . The second inflatable cuff 3 and the third inflatable cuff 4 are respectively disposed separately from the first inflatable cuff 2 . The second inflatable cuff 3 is used for filling the middle nasal passage 16 ; the third inflatable cuff 4 is used for filling the upper nasal passage and the olfactory cleft region 17 on the top of the nose. The second inflatable cuff 3 and the third inflatable cuff 4 can also be arranged in a strip shape.

As shown in FIG. 2 and FIG. 3 , the first inflatable cuff 2 , the second inflatable cuff 3 and the third inflatable cuff 4 , which are separately arranged, are respectively used for filling the lower meatus 15 and the middle meatus. 16 and the upper nasal passage and the olfactory cleft area 17 on the top of the nose have little effect on multiple turbinates. Therefore, it is especially suitable for post-operative packing of the nasal cavity in which the upper turbinate 13, the middle turbinate 12 and the lower turbinate 11 are fully preserved. Postoperative packing for nasal surgery in which partial turbinates, single turbinates, or multiple turbinates are removed is also suitable.

In the first embodiment provided by the present utility model, the cross section of the hollow transparent tube 1 can be oval, the long diameter of the oval is 2 cm in height, and the short diameter is 1 cm in height; the length of the hollow transparent tube 1 can be divided according to the applicable population For different models, for example, a hollow transparent tube with a length of 4 to 5 cm can be selected for children, and a hollow transparent tube with a length of 12 to 13 cm can be selected for adults. The cross section of the hollow transparent tube 1 may also be circular.

According to the analysis and mining of a large number of nasal cavity data dimensions, the distance between the middle meatus and the lower meatus, and the distance between the nose top olfactory cleft area and the middle meatus can be obtained. The distance between the second inflatable cuff 3 and the first inflatable cuff 2 is equal to the distance between the middle and lower meatus, and the third inflatable cuff 4 and the second inflatable cuff The distance between the sacs 3 is equal to the distance between the olfactory cleft area of the nose top and the middle meatus. Specifically, according to the specific conditions of the patients, the distance between the lower meatus, middle meatus, and nasal top olfactory cleft area of different patients can be summarized, and the conditions of the patients can be summarized into several typical categories. Conformal hollow tubes of different sizes are provided to meet the needs of different patients during surgery.

The size and shape of the first inflatable cuff 2, the second inflatable cuff 3 and the third inflatable cuff 4 are not fixed. nasal passage, to achieve compression hemostasis.

The first inflatable cuff 2 , the second inflatable cuff 3 and the third inflatable cuff 4 are all made of silicone material, and a layer of nanomaterials can be attached to the outer surface of the cuffs. The silicone material has good toughness and strength, which can support the cuff to the required size after the cuff is inflated or filled with water, and also ensures that the cuff is not broken by the gas or liquid filled. Attaching nanomaterials (such as nano-silver, etc.) to the outer surface of the cuff can increase the surface finish of the cuff and reduce the adsorption of scabs such as nasal scabs and blood scabs.

The following is a detailed description of the use of the conformal hollow tube for nasal packing in the surgical procedure.

Before being placed in the nasal cavity, all the inflatable cuffs are in a deflated state and attached to the outside of the hollow transparent tube 1, and the overall volume is small, which is convenient for being placed in the nasal cavity. In the process of filling the nasal cavity, align the first inflatable cuff 2 with the direction of the lower meatus, align the second inflatable cuff 3 with the direction of the middle meatus, and align the third inflatable cuff 4 with the direction of the middle meatus. Aim at the olfactory cleft area on the roof of the nose. After each cuff is placed in the corresponding position, the first inflatable cuff 2 , the second inflatable cuff 3 and the third inflatable cuff 4 are inflated or filled with water through the valve 6 and the thin connecting tube 5 . The first inflatable cuff 2, the second inflatable cuff 3, and the third inflatable cuff 4 are simultaneously inflated or inflated with water through the thin connecting tube 5 therebetween, compressing the corresponding parts and acting as conformal packing hemostatic effect. Among them, according to the needs of different operating cavities, the size and shape of the inflatable cuff can be made into several specifications: the specifications for nasal packing, the specifications for packing after sinusitis surgery, and the specifications for the lateral wall of the nasal cavity after resection. Padding specifications.

In the first embodiment provided by the present invention, after the filling is completed, if the surgical cavity needs to be inspected, a hard or soft optical fiber endoscope can be introduced into the hollow transparent tube 1, and the hard or soft optical fiber endoscope can be passed through the hard or soft optical fiber. Fiberoptic endoscopy to observe the nasal cavity and paranasal sinuses.

When the above-mentioned conformal hollow tube for nasal packing is taken out, deflation or water discharge is performed through the valve 6, the first inflatable cuff 2, the second inflatable cuff 3 and the third inflatable cuff are 4 The volume is reduced and can be removed from the nasal cavity smoothly, thereby reducing the patient's pain and the possibility of secondary bleeding.

In the second embodiment provided by the present invention, the conformable hollow tube used for nasal packing is the same as that in the first embodiment; it is only because the inferior turbinate 11 or the middle turbinate 12 is placed in the lower turbinate 11 or the middle turbinate 12 according to the actual situation of the patient during the operation. After the resection, the inferior and middle meatus in the inferior, middle, and parietal olfactory cleft areas are merged, or the middle meatus and the parietal olfactory cleft area are merged, resulting in only two areas in the nasal cavity; In addition to the first inflatable cuff 2 sheathed outside the hollow transparent tube 1, only one inflatable cuff (hereinafter referred to as the second inflatable cuff) is separately provided to meet the needs of different surgical types.

When the inferior turbinate is excised, the inferior meatus and the middle meatus are combined. At this time, the first inflatable cuff 2 sleeved outside the hollow transparent tube 1 is used to fill the combined two nasal meatus, and the second is inflatable. The cuff is used to fill the upper nasal passage and the olfactory cleft area of the nasal roof. The distance between the second inflatable cuff and the first inflatable cuff 2 is the same as the distance between the olfactory cleft region of the nose top and the inferior meatus.

When the middle turbinate is excised, the middle meatus and the olfactory cleft area of the top of the nose are combined. At this time, the second inflatable cuff set independently is used for packing the two combined nasal passages, and the first inflatable cuff is used for packing. lower nasal passages. The distance between the second inflatable cuff and the first inflatable cuff 2 is equal to the distance between the lower and middle meatus.

To sum up, in the conformable hollow tube for nasal packing provided by the present invention, a first inflatable cuff is sleeved on the outside of the hollow transparent tube, and one or two independently arranged inflatable cuffs are provided. Inflatable cuffs, one end of all inflatable cuffs communicates with the same thin connecting tube. By inflating or filling the above-mentioned plurality of separately arranged inflatable cuffs, the plurality of inflatable cuffs can respectively perform conformal packing on the plurality of nasal passages inside the nasal cavity, and the effect of squeezing the turbinates is small, especially It is suitable for nasal packing after single or multiple turbinate preservation.

The above-mentioned conformal hollow tube for nasal packing is provided with a plurality of separate cuffs according to the structure of the nasal cavity, which fully adapts to the complex shape of the nasal cavity and sinus, and the cuff is inflated and compressed by means of inflation pressure or flushing pressure. Hemostasis in the operative cavity and avoids damage to the mucosa. At the same time, the hollow transparent tube can maintain the patient's nasal breathing and improve the comfort. In addition, a rigid or soft fiberoptic endoscope can be introduced into the nasal cavity through the above-mentioned hollow transparent tube to conduct real-time inspection of the nasal cavity and paranasal sinuses, which enhances the correct judgment of the condition after surgery.

The conformable hollow tube for nasal packing provided by the present invention has been described in detail above. For those skilled in the art, any obvious changes made to it without departing from the essential spirit of the present utility model will constitute an infringement of the patent right of the present utility model, and will bear corresponding legal responsibilities.

Claims (10)

1. A conformal hollow tube for nasal packing, characterized in that it comprises a hollow transparent tube and a first inflatable cuff that is sleeved on the outside of the hollow transparent tube; also comprises a second inflatable cuff that is independently arranged an inflation cuff and a third inflatable cuff; One ends of the first inflatable cuff, the second inflatable cuff and the third inflatable cuff are respectively communicated with the same thin connecting tube. 2. The conformable hollow tube for nasal packing as claimed in claim 1, characterized in that: The first inflatable cuff is used for filling the lower nasal passage; the second inflatable cuff is used for filling the middle nasal passage; the third inflatable cuff is used for filling the upper nasal passage and the roof of the nose olfactory cleft region; the distance between the second inflatable cuff and the first inflatable cuff is equal to the distance between the inferior meatus and the middle meatus; the third inflatable cuff The distance from the second inflatable cuff is the same as the distance between the nasal roof olfactory cleft region and the middle meatus. 3. A conformable hollow tube for nasal packing, characterized in that it comprises a hollow transparent tube and a first inflatable cuff that is sleeved on the outside of the hollow transparent tube; and also includes a second inflatable cuff that is independently arranged inflating the cuff; One ends of the first inflatable cuff and the second inflatable cuff are respectively communicated with the same thin connecting tube. 4. The conformable hollow tube for nasal packing as claimed in claim 3, characterized in that: The first inflatable cuff is used for packing the lower meatus; the second inflatable cuff is used for packing the combined middle and upper meatus. 5. The conformable hollow tube for nasal packing as claimed in claim 3, wherein: The first inflatable cuff is used for packing the combined lower and middle meatus; the second inflatable cuff is used for packing the upper nasal passage and the olfactory cleft region of the top of the nose. 6. The conformable hollow tube for nasal packing according to claim 1 or 3, characterized in that: The hollow transparent tube is a pressure-proof tube. 7. The conformable hollow tube for nasal packing according to claim 1 or 3, characterized in that: The section of the hollow transparent tube is circular or oval. 8. The conformable hollow tube for nasal packing according to claim 1 or 3, characterized in that: The first inflatable cuff is arranged in an elongated shape along the direction of the hollow transparent tube. 9. The conformable hollow tube for nasal packing according to claim 1 or 3, characterized in that: All inflatable cuffs use silicone material and a layer of nanomaterial is attached to the outer surface of all inflatable cuffs. 10. The conformable hollow tube for nasal packing according to claim 1 or 3, characterized in that: The end of the thin connecting pipe is provided with a valve for inflating or filling water.
