CN210006351U - An intelligent sand table for construction engineering management - Google Patents

Abstract

The utility model discloses an intelligent sand table for construction engineering management. The left side of the board is provided with a first card slot, and the inside of the first card slot is inlaid with a first card plate, the right side of the limit plate is provided with a second card slot, and the side wall of the table board is connected to the side wall through bolts. The protective plate is connected, the inside of the table plate is provided with an equipment cavity, and a door handle is installed on the front side outer wall of the door plate. The utility model is provided with a card slot, a card plate and a limit plate, and the card slot and the card plate are connected by cooperation during use, so that the card plate and the limit plate can be freely disassembled and installed. To achieve the purpose of replacing the card board in time, the sand table model can be placed on the upper outer wall of the card board, and then the sand table model can be replaced in time with the progress of the construction site.

Description

An intelligent sand table for construction engineering management

technical field

The utility model relates to the technical field of construction engineering equipment, in particular to an intelligent sand table for construction engineering management.

Background technique

Construction engineering refers to the engineering entity formed through the construction of various housing buildings and their ancillary facilities and the installation of their supporting lines, pipelines, and equipment; among them, "housing construction" refers to the construction of roofs, beams, columns, walls, foundations And projects that can form internal space to meet the needs of people's production, living, learning, and public activities, and in construction projects, not only drawings, but also sand tables are needed. Using the sand table, you can observe the three-dimensional view of the entire project. Effect drawing, or three-dimensional structure drawing.

The traditional sand table used in construction projects has the following shortcomings: the problem that it cannot replace the model on the sand table regardless of the progress of the construction project, and the problem that the entire sand table needs to be replaced if the sand table model needs to be replaced. The sand table used in construction projects has the problems of insufficient viewing and poor comfort.

Utility model content

(1) Technical problems solved

In view of the deficiencies of the prior art, the utility model provides an intelligent sand table for construction engineering management, which solves the problem that the traditional sand table for construction engineering cannot replace the model on the sand table regardless of the progress of the construction project during use. If the sand table model needs to be replaced, the entire sand table needs to be replaced. At the same time, it also solves the problems of insufficient viewing and poor comfort in the traditional sand table used in construction projects.

(2) Technical solutions

In order to achieve the above purpose, the utility model provides the following technical solutions: an intelligent sand table for construction engineering management, comprising a table board, a platform groove is opened on the upper outer wall of the table board, and the center of the upper outer wall of the platform groove is inlaid A limit plate, the left side of the limit plate is provided with a first card slot, and the inside of the first card slot is inlaid with a first card plate, the right side of the limit plate is provided with a second card slot, and the first card slot is The inside of the second card slot is inlaid with a second card board, the side wall of the table board is connected with the protective plate by bolts, and the inside of the table board is provided with an equipment cavity, the front side outer wall of the equipment cavity, the front side of the table board The side outer wall is connected with the door panel through hinges, and a door handle is installed on the front side outer wall of the door panel, the right side of the door panel and the front side outer wall of the table panel are inlaid with a controller, and the bottom outer wall of the table panel is inlaid with four corners. Fixed block, and the table board is connected with the top of the table leg through the fixed block, the bottom outer wall of the table leg is provided with a non-slip pad, the bottom outer wall of the first card board is connected with the connection block through the lock bolt, and the connection block is A fixed shaft is arranged at the center of the bottom outer wall, the connecting block is connected with the top outer wall of the electric telescopic rod through the fixed shaft, the bottom outer wall of the electric telescopic rod is connected with the bottom inner wall of the equipment cavity through the base, and the upper outer wall of the table board is connected. A lampshade is installed on the lampshade, and lighting lamps are inlaid on the inner side of the lampshade and the upper outer wall of the table board.

Preferably, the specifications of the first card slot and the second card slot are the same, the inner walls of the first card slot and the second card slot are provided with cork board, and the first card slot and the second card slot pass through the cork board They are respectively matched and connected with the outer side walls of the first card board and the second card board.

Preferably, the bottom outer wall of the fixing block is provided with a groove, and the inner wall of the groove on the bottom outer wall of the fixing block is twisted with an inner thread, and the fixing block is connected to the table through the inner thread on the inner wall of the bottom groove. The external thread on the top outer wall of the leg snaps together.

Preferably, the anti-skid pad is bonded and connected to the bottom outer wall of the table leg by melting at a high temperature, and the fixed shaft is embedded in the center of the bottom outer wall of the connecting block.

Preferably, the inner wall of the groove opened on the bottom outer wall of the fixed shaft is twisted with an inner thread, and the outer wall of the telescopic end of the electric telescopic rod is twisted with an outer thread, and the telescopic fixing shaft passes through the inner thread on the inner wall of the groove It is engaged with the external thread on the outer wall of the end of the electric telescopic rod.

Preferably, the electric telescopic rod is electrically connected to the internal circuit of the controller through wires, the lighting lamp is electrically connected to the internal circuit of the controller through wires, and the lampshade is connected to the upper outer wall of the table board through bolts.

(3) Beneficial effects

The utility model provides an intelligent sand table for construction engineering management, which has the following beneficial effects:

(1) The utility model is provided with a card slot, a card plate, and a limit plate, and the card slot and the card plate are matched and connected during use, so that the card plate and the limit plate can be freely disassembled and installed, thereby achieving In use, the purpose of replacing the card board in time can be achieved, and the sand table model can be placed on the upper outer wall of the card board, and then the purpose of timely replacement of the sand table model can be achieved with the progress of the construction site.

(2) The utility model is provided with an equipment cavity, a door panel, and a door handle, and the door panel can be opened by pulling the door handle when in use, so as to carry out routine maintenance and repair work on the equipment in the equipment cavity, and at the same time, the equipment cavity can be placed in different periods. The required different sand table model elements facilitate the model replacement work, and at the same time avoid the phenomenon that the sand table model is easy to lose and inconvenient to save.

(3) The utility model is provided with an electric telescopic rod, a lighting lamp and a controller, and the controller can effectively control the working state of the lighting lamp when in use, thereby facilitating the lighting effect on the sand table model above the table, improving the viewing experience. At the same time, the electric telescopic rod can realize fixed-length telescopic work under the control of the controller, which can increase the height of a sand table model above the table board to achieve a striking effect, and also effectively improve the viewing comfort of the sand table.

Description of drawings

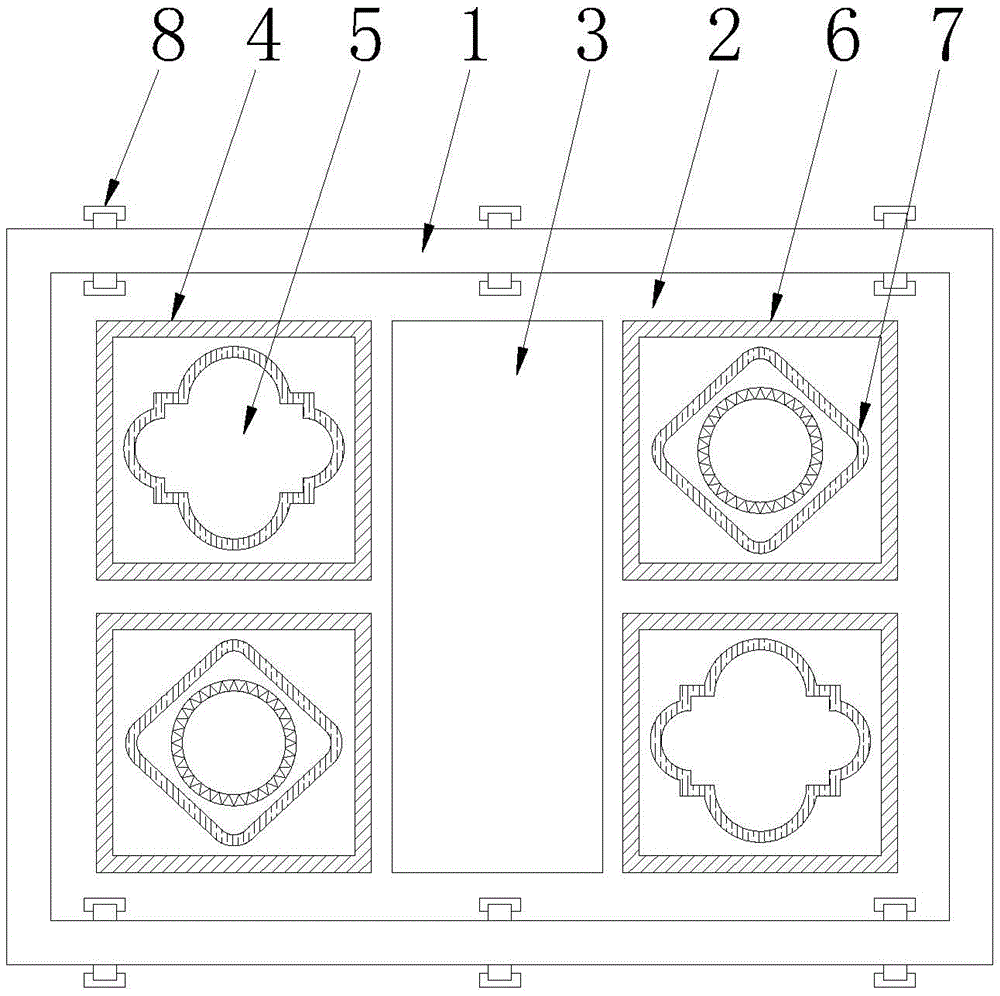

Fig. 1 is the structure top view of the utility model;

Fig. 2 is the structural side view of the utility model;

FIG. 3 is a side sectional view of the structure of the utility model.

The reference signs in the figure are: 1, table board; 2, platform slot; 3, limit plate; 4, first card slot; 5, first card board; 6, second card slot; 7, second card board ;8, bolts; 9, protective plates; 10, equipment cavity; 11, hinges; 12, door panels; 13, door handles; 14, controllers; 15, fixing blocks; 16, table legs; 17, anti-skid pads; 18, connecting block; 19, fixed shaft; 20, electric telescopic rod; 21, base; 22, lampshade; 23, lighting lamp.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

As shown in Figures 1-3, the present utility model provides a technical solution: an intelligent sand table for construction engineering management, comprising a table board 1, a platform groove 2 is opened on the upper outer wall of the table board 1, and the platform groove 2 is A limiting plate 3 is embedded in the center of the upper outer wall, a first card slot 4 is opened on the left side of the limiting plate 3, and a first card plate 5 is embedded in the inside of the first card slot 4. The first card slot 4 and the second The specifications of the card slots 6 are the same, the inner walls of the first card slot 4 and the second card slot 6 are provided with cork boards, and the first card slot 4 and the second card slot 6 are respectively connected with the first card board 5 and the first card slot 6 through the cork board. The outer side walls of the two card boards 7 are connected together, and the card slot and the card board are connected through the cooperation during use, so that the card board and the limit plate 3 can be freely disassembled and installed, so as to achieve timely replacement of the card during use. The purpose of the board, and the sand table model can be placed on the upper outer wall of the card board, and then the sand table model can be replaced in time with the progress of the construction site. The inside of the second card slot 6 is inlaid with a second card board 7, the side wall of the table board 1 is connected with the protective plate 9 by bolts 8, the inside of the table board 1 is provided with an equipment cavity 10, the front side outer wall of the equipment cavity 10, the table board The front side outer wall of 1 is connected with the door panel 12 through the hinge 11, and the door handle 13 is installed on the front side outer wall of the door panel 12, the bottom outer wall of the fixing block 15 is provided with a groove, and the bottom outer wall of the fixing block 15 has grooves There are internal threads twisted on the inner wall of the bottom groove, and the fixing block 15 is engaged with the external threads on the top outer walls of the table legs 16 through the internal threads on the inner wall of the bottom groove. The equipment in the equipment chamber 10 is subject to routine maintenance and repair work, and at the same time, different sand table model components required in different periods can be placed in the equipment chamber 10 to facilitate the model replacement work, while avoiding the sand table model being easily lost and inconvenient to save. The phenomenon occurs, the controller 14 is inlaid on the right side of the door panel 12 and the front side outer wall of the table panel 1, and the four corners of the bottom outer wall of the table panel 1 are inlaid with fixing blocks 15, and the table panel 1 passes through the fixing blocks 15 and the table legs 16. The top end is connected, the anti-skid pad 17 is glued and connected with the bottom outer wall of the table leg 16 through high temperature melting, the fixed shaft 19 is embedded in the center of the bottom outer wall of the connecting block 18, and the bottom outer wall of the table leg 16 is provided with an anti-skid pad 17. The bottom outer wall of a clamping plate 5 is connected with the connecting block 18 by a lock bolt, and a fixed shaft 19 is arranged at the center of the bottom outer wall of the connecting block 18, and the inner wall of the groove opened on the bottom outer wall of the fixed shaft 19 is twisted with internal threads. , and the outer wall of the telescopic end of the electric telescopic rod 20 is twisted with an external thread, the telescopic fixed shaft 19 is engaged with the external thread on the outer wall of the end of the electric telescopic rod 20 through the internal thread on the inner wall of the groove, and the connecting block 18 is connected by the fixed shaft 19 is connected with the top outer wall of the electric telescopic rod 20, and the bottom outer wall of the electric telescopic rod 20 is connected with the bottom inner wall of the equipment cavity 10 through the base 21. The controller 14 can effectively control the working state of the lighting lamp 23 during use, thereby facilitating the Lighting the sand table model above the table top 1 to improve the High viewing effect, and the electric telescopic rod 20 can realize fixed-length telescopic work under the control of the controller 14, thereby effectively improving the viewing comfort of the sand table. The electric telescopic rod 20 is electrically connected to the internal circuit of the controller 14 through wires. , the lighting lamp 23 is electrically connected with the internal circuit of the controller 14 through the wire, the lampshade 22 is connected with the upper outer wall of the table board 1 through the bolt 8, the lampshade 22 is installed on the upper outer wall of the table board 1, and the inner side of the lampshade 22, the table Lighting lamps 23 are embedded on the upper outer wall of the board 1 .

Working principle: During use, through the cooperative connection between the card slot and the card plate, the card plate and the limit plate 3 can be freely disassembled and installed, so as to achieve the purpose of replacing the card plate in time in use. The sand table model can be placed on the upper outer wall of the construction site, and the purpose of replacing the sand table model in time can be achieved with the progress of the construction site. When in use, the door panel 12 can be opened by pulling the door handle 13, so that the equipment in the equipment cavity 10 can be routinely maintained. At the same time, different sand table model components required in different periods can be placed in the equipment cavity 10 to facilitate the model replacement work, and at the same time, the phenomenon that the sand table model is easy to lose and inconvenient to save can be avoided. The device 14 can effectively control the working state of the lighting lamp 23, thereby facilitating the lighting effect on the sand table model above the table board 1 and improving the viewing effect. , thereby effectively improving the viewing comfort of the sand table.

To sum up, the utility model provides a card slot, a card plate and a limit plate, and the card slot and the card plate are matched and connected during use, so that the card plate and the limit plate 3 can be freely disassembled and installed. , and then achieve the purpose of replacing the card board in time in use, and the sand table model can be placed on the upper outer wall of the card board, and then the sand table model can be replaced in time with the progress of the construction site.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. An intelligent sand table for construction engineering management, comprising a table board (1), characterized in that: a platform groove (2) is provided on the upper outer wall of the table board (1), and the upper part of the platform groove (2) is provided with a platform groove (2). A limit plate (3) is embedded in the center of the outer wall, a first card slot (4) is opened on the left side of the limit plate (3), and a first card board ( 5), the right side of the limiting plate (3) is provided with a second card slot (6), and the second card slot (6) is inlaid with a second card plate (7), the table board (1) ) is connected with the protective plate (9) by bolts (8), an equipment cavity (10) is opened inside the table board (1), and the front outer wall of the equipment cavity (10), the table board (1) ) is connected with the door panel (12) through hinges (11), and a door handle (13) is installed on the front side outer wall of the door panel (12), the right side of the door panel (12), the table panel (1) A controller (14) is inlaid on the front outer wall of the table board (1), fixing blocks (15) are inlaid at the four corners of the bottom outer wall of the table board (1), and the table board (1) passes through the fixing blocks (15) and the table legs (16). ), the bottom outer wall of the table leg (16) is provided with a non-slip pad (17), and the bottom outer wall of the first clamping plate (5) is connected with the connecting block (18) through a lock bolt, and the connecting block The center of the bottom outer wall of (18) is provided with a fixed shaft (19), the connecting block (18) is connected to the top outer wall of the electric telescopic rod (20) through the fixed shaft (19), and the electric telescopic rod (20) is The bottom outer wall is connected with the bottom inner wall of the equipment cavity (10) through the base (21), a lampshade (22) is installed on the upper outer wall of the table board (1), and the inner side of the lampshade (22), the inner side of the table board (1) A lighting lamp (23) is inlaid on the upper outer wall. 2. An intelligent sand table for construction engineering management according to claim 1, characterized in that: the first card slot (4) and the second card slot (6) have the same specifications, and the first card slot (6) has the same specifications. (4) Cork boards are arranged on the inner walls of the second card slot (6), and the first card slot (4) and the second card slot (6) are respectively connected to the first card board (5) and the second card slot (6) through the cork board. The outer side walls of the card board (7) are matched and connected. 3. The intelligent sand table for construction engineering management according to claim 1, wherein a groove is provided on the bottom outer wall of the fixing block (15), and the bottom outer wall of the fixing block (15) is provided with a groove. An inner thread is twisted on the inner wall of the groove, and the fixing block (15) is engaged with the outer thread on the top outer wall of the table leg (16) through the inner thread on the inner wall of the bottom groove. 4. An intelligent sand table for construction engineering management according to claim 1, characterized in that: the anti-skid pad (17) is bonded and connected to the bottom outer wall of the table leg (16) by melting at high temperature, and the fixed The shaft (19) is embedded in the center of the bottom outer wall of the connecting block (18). 5. An intelligent sand table for construction engineering management according to claim 1, characterized in that: the inner wall of the groove opened on the bottom outer wall of the fixed shaft (19) is twisted with an inner thread, and the electric telescopic The outer wall of the telescopic end of the rod (20) is twisted with an outer thread, and the telescopic fixing shaft (19) is engaged with the outer thread on the outer wall of the end of the electric telescopic rod (20) through the inner thread on the inner wall of the groove. 6 . The intelligent sand table for construction engineering management according to claim 1 , wherein the electric telescopic rod ( 20 ) is electrically connected to the internal circuit of the controller ( 14 ) through wires, and the lighting lamp (23) Electrically connected to the internal circuit of the controller (14) through wires, and the lampshade (22) is connected to the upper outer wall of the table top (1) through bolts (8).
