The utility model discloses an kind of outdoor electricity is double dynamical wind power generation lighting device for cabinet, including the electric power cabinet body, electric power cabinet body bottom welding has the electric power cabinet base, the side of the electric power cabinet body is equipped with a plurality of electric power cabinet frames and external fluorescent tube, external fluorescent tube outside is equipped with waterproof safety cover, and be equipped with electric power cabinet in the middle of the electric power cabinet frame, electric power cabinet body top is equipped with four solar panel, and four solar panel has the cuboid fixed block through bolted weld, it has the circular port to open on the cuboid fixed block, and the welding of circular port top has the power generation facility fixed column, power generation facility fixed column top outside is equipped with solid fixed ring, and gu fixed ring inside has wind power generation facility through bolted connection, high durability and convenient use, the energy is clean, can not cause the pollution, the cost is not high, and can adapt to most of areas, can carry out pushing away uses by.
Description
Technical Field
The utility model relates to an electric power cabinet technical field specifically is kinds of outdoor electricity double dynamical wind power generation lighting device for cabinet.
Background
Along with the continuous acceleration of industrialization process, external electric power cabinet kind also increases gradually, wherein involves a great deal of fields such as synthesizing cabinet, power cabinet even communication cabinet, salvagees the in-process, and different electric power cabinets have brought the huge degree of difficulty for workman's construction, need the workman to solve illumination, trouble exploration scheduling problem by oneself under the normal condition, have brought the challenge for the search of construction and electric power cabinet.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is to overcome current defect, provide kinds of outdoor electricity for cabinet double dynamical wind power generation lighting device, convenient to use, the energy is clean, can not cause the pollution, the cost is not high, and can adapt to most of areas, can carry out the use of pushing away by a large scale, improved constructor's construction security simultaneously and reduced the searching degree of difficulty of electric power cabinet, improved work efficiency, can effectively solve the problem in the background art.
In order to achieve the purpose, the utility model provides a kind of outdoor electricity dual-power wind power generation lighting device for cabinet, including the electric power cabinet body, electric power cabinet base has been welded to electric power cabinet body bottom, the side of the electric power cabinet body is equipped with a plurality of electric power cabinet frames and external fluorescent tube, external fluorescent tube outside is equipped with waterproof safety cover, and be equipped with electric power cabinet in the middle of the electric power cabinet frame, electric power cabinet body top is equipped with four solar panel, and four solar panel have the cuboid fixed block through bolted weld, it has the circular port to open on the cuboid fixed block, and the welding of circular port top has the power generation facility fixed column, the power generation facility fixed column top outside is equipped with solid fixed ring, and gu there is wind power generation.
As the utility model discloses an preferred technical scheme, wind power generation set includes the flabellum dead lever, and the flabellum dead lever top outside is equipped with the pivot, and the welding of the pivot outside has a plurality of flabellums, and the quantity of flabellum is four at least, and flabellum dead lever top inboard is equipped with the fixed axle.
As the utility model discloses a preferred technical scheme, the power generation facility fixed column is hollow structure, and the inside fixed mounting of power generation facility fixed column has wind energy controller and generator, and the input electricity of generator connects wind energy controller and solar panel's output.
As the utility model discloses a preferred technical scheme, the cuboid fixed block is hollow structure, and inside battery and the power-off control ware of being equipped with of cuboid fixed block, and the output of generator is connected to the input electricity of battery, and the input of power-off control ware is connected to the output electricity of battery, and the input of external fluorescent tube is connected to the output electricity of power-off control ware.
As the utility model discloses an preferred technical scheme, the slope of solar panel sets up, and the solar panel shape is trapezoidal, the mutual joint of blocking of four solar panels, and solar panel passes through bolt and cuboid fixed block fixed connection.
Compared with the prior art, the utility model has the advantages of convenient use, clean energy, no pollution, low cost, and can adapt to most areas, can realize pushing for use by a large area, simultaneously improve constructor's construction safety and reduce the searching difficulty of electric power cabinet, improve work efficiency.
Drawings

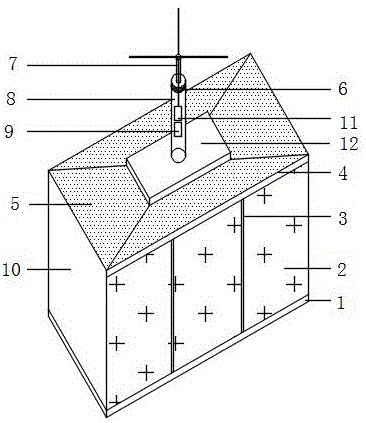

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the structure of the wind power generator of the present invention
In the figure, 1 electric cabinet base, 2 electric cabinet , 3 electric cabinet frame, 4 external lamp tube, 5 solar panel, 6 fixed ring, 7 wind power generation device, 8 power generation device fixed column, 9 wind power controller, 10 electric cabinet body, 11 generator, 12 cuboid fixed block, 71 fixed shaft, 72 fan blade fixed rod, 73 rotating shaft, 74 fan blade.
Detailed Description
The technical solution in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of , but not all embodiments.
Please refer to fig. 1-2, the utility model provides technical solutions, outdoor electricity cabinet is with dual-power wind power generation lighting device, including the electric power cabinet body 10, electric power cabinet base 1 is welded to the bottom of the electric power cabinet body 10, side of the electric power cabinet body 10 is equipped with a plurality of electric power cabinet frames 3 and external fluorescent tube 4, external fluorescent tube 4 is externally equipped with waterproof protective cover, can conveniently look for and salvage the use, and be equipped with electric power cabinet 2 in the middle of electric power cabinet frame 3, electric power cabinet body 10 top is equipped with four solar panels 5, and four solar panels 5 are welded with cuboid fixed block 12 through the bolt, cuboid fixed block 12 is hollow structure, and cuboid fixed block 12 is internally equipped with battery and power-off controller, and the input electricity of battery connects generator 11's output, the output electricity of battery connects the input of power-off controller electrically, the output electricity of power-off controller connects the input of external fluorescent tube 4, make the electric quantity unlikely to the excessive loss, open the welding on cuboid fixed block 12 has power generation device fixed column 8, power generation device fixed column 8 is the structure, and power generation device fixed pole 5 is installed fixedly, and the power generation device fixed pole 5 is connected with the fixed pole outside the fixed pole of the fixed shaft 5, and the fixed pole of the power generation device of the wind power generation device, and the fixed pole of the power generation device of the electricity, and the fixed pole of the power generation device, and the fixed pole of the fixed.
When in use: wind-force drives flabellum 74 and rotates, flabellum 74 drives pivot 73 and rotates, turn into the electric energy with mechanical energy through generator 11, and store the electric energy into the battery through wind energy controller 9, solar panel 5 passes through generator 11 and turns into the electric energy with solar energy, and store the electric energy into the battery, the power off controller is connected to the battery electricity, control external fluorescent tube 4 through the power off controller, through the control to external fluorescent tube 4, make the switch of light obtain very big assurance, constructor's construction safety nature has been improved and the searching degree of difficulty that has reduced the electric power cabinet.
The utility model discloses convenient to use, the energy is clean, can not cause the pollution, and the cost is not high, and can adapt to most of areas, can carry out pushing away use by a large scale, has improved constructor's construction security simultaneously and has reduced the searching degree of difficulty of electric power cabinet, has improved work efficiency.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
- The dual-power wind power generation lighting device for the outdoor electric cabinet comprises an electric cabinet body (10) and is characterized in that an electric cabinet base (1) is welded at the bottom of the electric cabinet body (10), a plurality of electric cabinet frames (3) and external lamp tubes (4) are arranged on sides of the electric cabinet body (10), a waterproof protective cover is arranged outside the external lamp tubes (4), an electric cabinet (2) is arranged in the middle of each electric cabinet frame (3), four solar panels (5) are arranged at the top of the electric cabinet body (10), a cuboid fixing block (12) is welded on the four solar panels (5) through bolts, a circular hole is formed in the cuboid fixing block (12), a power generation device fixing column (8) is welded above the circular hole, a fixing ring (6) is arranged on the outer side of the top of the power generation device fixing column (8), and a wind power generation device (7) is fixedly connected to the inside the fixing ring.
- 2. The double-power wind power generation lighting device for the outdoor electrical cabinet, according to claim 1, wherein the wind power generation device (7) includes a blade fixing rod (72), a rotating shaft (73) is disposed on the outer side of the top of the blade fixing rod (72), a plurality of blades (74) are welded on the outer side of the rotating shaft (73), at least four blades (74) are provided, and a fixing shaft (71) is disposed on the inner side of the top of the blade fixing rod (72).
- 3. The double-power wind power generation lighting device for the outdoor electric cabinet as claimed in claim 1, wherein the power generation device fixing column (8) is hollow, the wind energy controller (9) and the generator (11) are fixedly installed inside the power generation device fixing column (8), and the input end of the generator (11) is electrically connected with the wind energy controller (9) and the output end of the solar panel (5).
- 4. The hybrid wind power generation and illumination device for the outdoor power cabinet is characterized in that the cuboid fixed block (12) is of a hollow structure, a storage battery and a power-off controller are arranged inside the cuboid fixed block (12), the input end of the storage battery is electrically connected with the output end of the generator (11), the output end of the storage battery is electrically connected with the input end of the power-off controller, and the output end of the power-off controller is electrically connected with the input end of the external lamp tube (4).
- 5. The hybrid wind power generation and illumination device for the outdoor power cabinet is characterized in that the solar panels (5) are obliquely arranged, the solar panels (5) are trapezoidal, the four solar panels (5) are mutually clamped and connected, and the solar panels (5) are fixedly connected with the cuboid fixed block (12) through bolts.
