CN210003129U - An integral flip-up window - Google Patents

Abstract

The utility model discloses an integral overturned window in the technical field of furniture equipment, which comprises an outer frame and a window. Two sealing plates are installed on the front side wall of the outer frame through bolts. Each side wall is provided with a concave groove, the outer frame includes two vertical bars and two horizontal bars, the vertical bars and the horizontal bars are connected by bolts, and the vertical bars and the horizontal bars are perpendicular to each other, The two vertical bars and the two horizontal bars are crossed to form a square structure, the window is located in the inner cavity of the outer frame, the window includes an inner frame and glass, and the inner side wall of the inner frame is opened with a A concave groove, the glass is embedded in the inner cavity of the inner frame through the concave groove, and the left and right outer side walls of the inner frame are each installed with a rotating shaft through bolts; the setting of the integral flip-type window, the window passes through two A rotating shaft is connected with the outer frame, and the window can be rotated 360° with the outer frame, so that the dust on the window can be wiped conveniently.

Description

An integral flip-up window

technical field

The utility model relates to the technical field of furniture equipment, in particular to an integral overturned window.

Background technique

Window, in architecture, refers to the opening built on the wall or roof to allow light or air to enter the room. In fact, the original meaning of window and door refers to window and door, respectively. In modern Chinese, window refers to window and window frame only. The main structure responsible for supporting the window can be wood, metal, ceramic or plastic materials. Now most of the window frames are made of profiles, and the transparent part is attached to the window frame. It can be paper, cloth, silk or glass materials. glass material. A serious problem of the existing flip-up window is that dust will adhere to the outer glass of the window during use, but it is not convenient to clean the dust on the outer side wall of the window.

Utility model content

The purpose of the present utility model is to provide an integral reversible window, so as to solve the problem that the outer glass of the reversible window will adhere to dust when in use, but it is inconvenient to clean the dust on the outer side wall of the window proposed in the above-mentioned background art. .

In order to achieve the above purpose, the present utility model provides the following technical solutions: an integrally reversible window, comprising an outer frame and a window, two sealing plates are installed on the front side wall of the outer frame by bolts, and the inner cavity of the outer frame is provided with two sealing plates. The left and right side walls each have a concave groove, the outer frame includes two vertical bars and two horizontal bars, the vertical bars and the horizontal bars are connected by bolts, and the vertical bars and the horizontal bars They are perpendicular to each other, two vertical bars and two horizontal bars are crossed to form a square structure, the window is located in the inner cavity of the outer frame, the window includes an inner frame and glass, and the inner side of the inner frame The wall is provided with a concave groove, the glass is embedded in the inner cavity of the inner frame through the concave groove, the left and right outer side walls of the inner frame are each installed with a rotating shaft through bolts, and the rotating shaft is connected with the outer frame. The concave grooves formed on the left and right side walls of the inner cavity of the frame are matched and connected, and the window is rotatably connected with the outer frame through the rotating shaft.

Preferably, a rubber sleeve is sleeved on the outside of the rotating shaft, and the rotating shaft is connected to the vertical rod through the rubber sleeve.

Preferably, a first positioning pin is installed on the front side wall of the cross bar through a rotating shaft, and the first positioning pin is in contact with the front side wall of the window.

Preferably, a second positioning pin is installed on the rear side wall of the cross bar through a rotating shaft, and the second positioning pin is in contact with the rear side wall of the window.

Compared with the prior art, the beneficial effects of the present utility model are: the setting of the integral overturned window has a reasonable structural design, the window is connected with the outer frame through two rotating shafts, and the window can be rotated 360° with the outer frame, thereby making it convenient to use. Wipe the dust off the windows.

Description of drawings

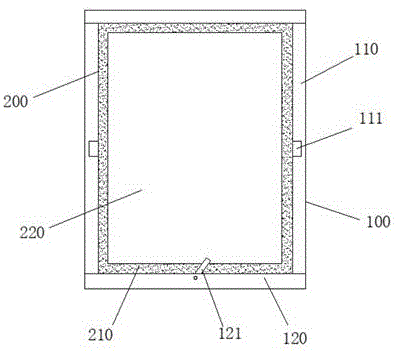

Fig. 1 is the structural representation of the utility model;

2 is a schematic diagram of the back structure of the present utility model;

Figure 3 is a schematic diagram of the internal partial structure of the utility model.

In the figure: outer frame 100, vertical rod 110, sealing plate 111, horizontal rod 120, first positioning pin 121, second positioning pin 122, window 200, inner frame 210, rotating shaft 211, rubber sleeve 212, glass 220.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

The present invention provides an integrally reversible window, which is used to turn the outside of the window into the room, and then clean the dust attached to the outer side wall of the window. Please refer to FIGS.

Please refer to FIGS. 1-3 again, two sealing plates 111 are installed on the front side wall of the outer frame 100 , four first thread grooves are opened inside the sealing plate 111 , and four first thread grooves are opened on the front side wall of the outer frame 100 . The second thread groove corresponding to the first thread groove, the four first thread grooves, the four second thread grooves and the bolts are raised to install the sealing plate 111 on the front side wall of the outer frame 100. The outer frame 100 has vertical rods 110 and horizontal The rod 120, the inner side wall of the vertical rod 110 is provided with a concave groove, the two vertical rods 110 are distributed horizontally, the two horizontal rods 120 are distributed horizontally, the vertical rods 110 and the horizontal rods 120 are distributed to form a square structure, and the outer frame 100 is used for the window. 200 installation, the material used for the vertical rod 110, the horizontal rod 120 and the sealing plate 111 is stainless steel.

1-3, the window 200 is installed in the inner cavity of the outer frame 100. The window 200 has an inner frame 210 and a glass 220. The inner side wall of the inner frame 210 has a concave groove, and the glass 220 is embedded in the concave groove. The left and right side walls of 210 are respectively installed with a rotating shaft 211 through bolts, and the two rotating shafts 211 are respectively inserted into the two concave grooves. The window 200 is rotatably connected to the outer frame 100 through the rotating shaft 211. For isolation, the material used for the inner frame 210 and the rotating shaft 211 is stainless steel, and the material used for the glass 220 is glass.

Please refer to FIG. 3 again, in order to reduce the rotation flexibility of the window 200 , the rubber sleeve 212 is sleeved on the outside of the rotating shaft 211 , the outer side wall of the rubber sleeve 212 is in contact with the inner concave groove wall of the vertical rod 110 , and the rubber sleeve 212 is used to increase the window 200 The frictional force with the outer frame 100 causes the window 200 to be fixed in one position after being opened, and the rubber cover 212 is made of rubber.

Please refer to FIG. 1 again, in order to fix the window 200, the first positioning pin 121 is installed on the front side wall of the cross bar 120, a through hole is opened in the interior of the cross bar 120, and the rotating shaft is installed in the through hole. One end of the pin 121 has a through hole, and the first positioning pin 121 is sleeved on the rotating shaft through the through hole. When the first positioning pin 121 is perpendicular to the cross bar 120, the window 200 is fixed, and the first positioning pin 121 is used for the window 200. 200 is fixed, and the material used for the first positioning pin 121 is stainless steel.

Please refer to FIG. 2 again, in order to fix the window 200, the second positioning pin 122 is installed on the rear side wall of the cross bar 120, a through hole is opened in the interior of the cross bar 120, and the rotating shaft is installed in the through hole. One end of the pin 122 has a through hole, and the second positioning pin 122 is sleeved on the rotating shaft through the through hole. When the second positioning pin 122 is perpendicular to the cross bar 120, the window 200 is fixed, and the second positioning pin 122 is used for the window 200. 200 is fixed, and the material used for the second positioning pin 122 is stainless steel.

The above-mentioned first thread grooves and second thread grooves are not limited to the specific numbers described in this embodiment, and those skilled in the art can increase or decrease the number of them as required under the premise that the device can complete the 360° rotation function of the window. .

Working principle: After the window 200 is used for a long time, a large amount of dust will adhere to the surface of the glass 220 of the outer side wall of the window 200. The first positioning pin 121 and the second positioning pin 122 are rotated 90° clockwise to contact the fixing of the window 200, so that the window 200 is fixed. The 200 can rotate 360° along the vertical rod 110 through the rotating shaft 211 to turn the outer side wall of the window 200 into the room, and the indoor personnel cleans its surface to keep the surface of the glass 220 clean.

Although the present invention has been described above with reference to the embodiments, various modifications may be made and equivalents may be substituted for parts thereof without departing from the scope of the invention. In particular, as long as there is no structural conflict, the various features in the disclosed embodiments of the present invention can be combined with each other in any way, and the description of these combinations is not exhaustive in this specification. For the sake of omitting space and saving resources. Therefore, the present invention is not limited to the specific embodiments disclosed herein, but includes all technical solutions falling within the scope of the claims.

Claims (4)

1. An integrally reversible window, characterized in that it comprises an outer frame (100) and a window (200), and two sealing plates (111) are mounted on the front side wall of the outer frame (100) by bolts, the The left and right side walls of the inner cavity of the outer frame (100) are respectively provided with a concave groove, the outer frame (100) includes two vertical bars (110) and two horizontal bars (120), the vertical bars (110) ) and the horizontal bar (120) are connected by bolts, and the vertical bar (110) and the horizontal bar (120) are perpendicular to each other, two vertical bars (110) and two horizontal bars (120) ) cross-distributed to form a square structure, the window (200) is located in the inner cavity of the outer frame (100), the window (200) includes an inner frame (210) and glass (220), the inner frame (210) The inner side wall of the inner frame (210) is provided with a concave groove, the glass (220) is embedded in the inner cavity of the inner frame (210) through the concave groove, and the left and right outer side walls of the inner frame (210) are respectively installed with bolts. A rotating shaft (211), the rotating shaft (211) is matched and connected with the concave grooves provided on the left and right side walls of the inner cavity of the outer frame (100), and the window (200) passes through the rotating shaft (211) ) is rotatably connected with the outer frame (100). 2 . The integral turning window according to claim 1 , wherein a rubber sleeve ( 212 ) is sleeved on the outside of the rotating shaft ( 211 ), and the rotating shaft ( 211 ) passes through the rubber sleeve. 3 . (212) is connected with the vertical rod (110). 3. The integral reversible window according to claim 1, wherein a first positioning pin (121) is installed on the front side wall of the cross bar (120) through a rotating shaft, and the first positioning pin (121) is in contact with the front side wall of the window (200). The integral reversible window according to claim 1, characterized in that: a second positioning pin (122) is installed on the rear side wall of the cross bar (120) through a rotating shaft, and the second positioning pin (122) is in contact with the rear sidewall of the window (200).
