Abstract

The utility model discloses a trash can for campus, which comprises a bucket cover and an outer frame. The upper end of the outer frame is provided with a bucket cover, and a handle is connected to the upper end of the bucket cover near the front side outer wall. A handle is connected to the rear end, a barrel body extending downward is sleeved on the perimeter of the outer frame, a reinforcement block is connected to the outer wall of the left perimeter of the lower end of the outer frame, and one end of the reinforcement block is connected to the barrel body. Fixed connection, a pulley is connected to the outer wall of the lower left end of the barrel body, and a rotating support device is connected to the outer wall of the front center of the barrel body. Side handles are installed on the left and right sides. When students need to dump the garbage in the trash can to the designated collection location, they can rotate the support plate around the connecting rod and tilt the trash can, and then hold the side handle with their hands to rotate the trash can around the support plate. , so that the rubbish is dumped out.

Description

A campus trash can

technical field

The utility model belongs to the technical field of trash cans, in particular to a trash can for campus.

Background technique

Trash cans, also known as waste bins or trash cans, refer to the place where garbage is placed. Most of them are made of metal or plastic. When used, put them in plastic bags. When there is too much garbage, you can tie up the bags and throw them away. "Hidden dirt" containers are also a reflection of social culture. Most trash cans have lids to prevent the odor of garbage from spreading. Some trash cans can be opened by foot. Most of the trash cans at home are placed in the kitchen to store kitchen waste , some families will have one each in the main room. Some playground trash cans are specially designed with cute characters.

The existing campus trash can technology has the following problems: when the existing campus trash can is used, the general school collects the garbage for disposal, and it is very laborious to pour out the garbage in the trash can full of garbage. Pushing the trash can directly is easy to break the trash can.

Utility model content

The purpose of this utility model is to provide a trash can for campus, so as to solve the problem of inconvenient dumping of the trash can full of garbage proposed in the above-mentioned background art.

In order to achieve the above purpose, the utility model provides the following technical solutions: a trash can for campus, comprising a bucket cover and an outer frame, the upper end of the outer frame is provided with a bucket cover, and the upper end of the bucket cover is connected to the outer wall of the front side. There is a handle, a handle is connected to the rear end of the barrel cover, a barrel body extending downward is sleeved inside the perimeter of the outer frame, and a reinforcement block is connected to the outer wall of the left perimeter of the lower end of the outer frame, so One end of the reinforcing block is fixedly connected to the barrel body, a pulley is connected to the outer wall of the lower left end of the barrel body, and a rotating support device is connected to the outer wall of the front center of the barrel body.

Preferably, the rotating support device is provided with a fixed seat, the rotating support device is fixedly connected to the barrel body through the fixed seat, there are two fixed seats in total, and the size and shape of the two fixed seats are the same, The opposite inner parts of the two fixed seats are provided with connecting rods, and the outer circumference of the connecting rods is sleeved with a downwardly extending support plate. .

Preferably, a total of two handles are provided, the size and shape of the two handles are the same, and the two handles are respectively arranged on the upper end of the bucket lid near the left and right sides.

Preferably, a total of two side handles are provided, the size and shape of the two side handles are the same, and the two side handles are respectively arranged on the left and right ends of the barrel body close to the outer wall of the lower side.

Preferably, the height of the support plate is only half of the height of the barrel.

Preferably, the height of the outer frame is the same as the height of the barrel cover, and the length and width of the outer frame are slightly larger than the length and width of the barrel cover.

Compared with the prior art, the utility model provides a trash can for campus, which has the following beneficial effects:

In the utility model, a rotating support device is installed on the front side of the trash can, and side handles are installed on the left and right sides of the bucket body. When students need to dump the garbage in the trash can to the designated collection place, the support plate can be connected around the The lever rotates while tilting the trash can, and then the trash can is rotated around the support plate with the side handle in hand, so that the trash is dumped out. In this way, the support plate is used to achieve the principle of a lever, which greatly reduces the user's effort and is very labor-saving. It also solves the damage to the trash can caused by directly pushing the trash can over when the general trash can is dumped, which is very practical;

When using this new type of trash can for campus, first push the trash can to the designated garbage collection location, open the bucket lid, rotate the support plate around the connecting rod to form a certain angle with the bucket body, and tilt the trash can to make the support The lower end of the plate is in contact with the ground, and the gravity of the trash can is shared by the support plate. Pull the side handle with one hand, hold the handle with the other hand, and lift the side handle forcefully to make the trash can rotate around the support plate. Dump it out, put the trash can horizontally after pouring, the support plate returns to the horizontal and vertical position under the action of gravity, and then close the bucket lid.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present utility model, and constitute a part of the specification, and are used to explain the present utility model together with the embodiments of the present utility model, and do not constitute a limitation to the present utility model. In the accompanying drawings:

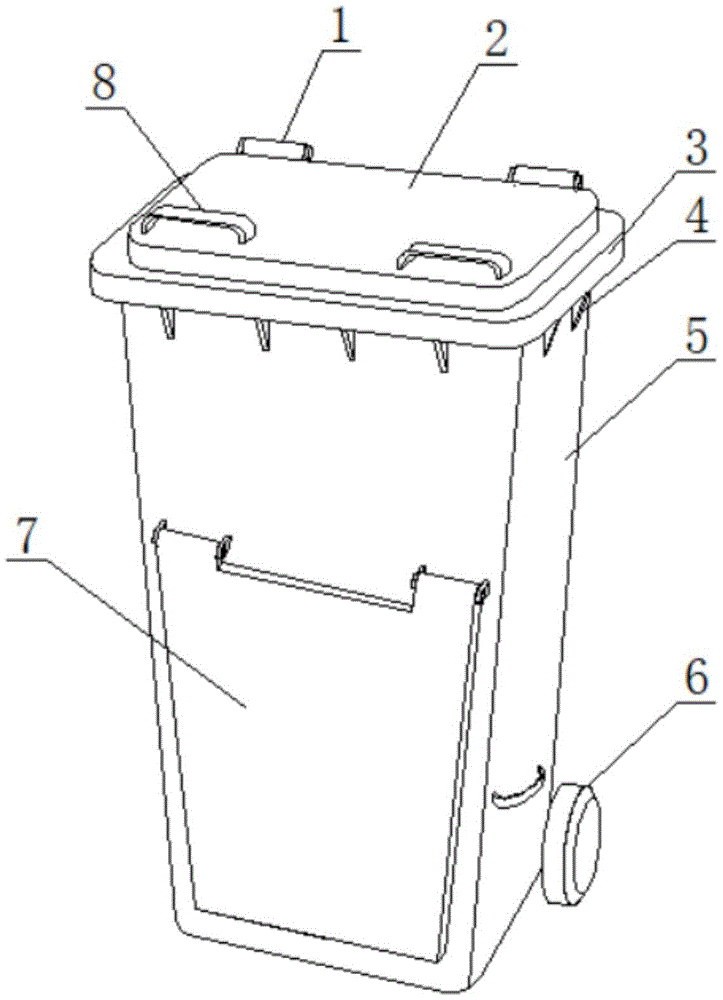

1 is a schematic diagram of the three-dimensional structure of a trash can for campuses proposed by the utility model;

Fig. 2 is a kind of front structure schematic diagram of trash can for campus proposed by the utility model;

3 is a schematic structural diagram of the rotating support device proposed by the utility model;

In the figure: 1. Handle; 2. Barrel lid; 3. Outer frame; 4. Reinforcing block; 5. Barrel body; 6. Pulley; 7. Rotating support device; 8. Handle; 9. Side handle; 10. Support plate ; 11. Fixed seat; 12. Connecting rod.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-3, the present utility model provides a technical solution: a trash can for campus, comprising a bucket cover 2 and an outer frame 3, the upper end of the outer frame 3 is provided with a bucket cover 2, and the height of the outer frame 3 is the same as that of the bucket. The height of the cover 2 is the same, and the length and width of the outer frame 3 are slightly larger than the length and width of the barrel cover 2, so that the barrel cover 2 is sleeved on the upper end of the outer frame 3, so that when the garbage is dumped into the trash can, if there is garbage When entering, it will fall on the outer frame 3 and will not fall on the ground, which is convenient for collection and processing. The upper end of the barrel cover 2 is connected with a handle 8 on the outer wall of the front side. There are two handles 8 in total, and the size and shape of the two handles 8 are the same. , the two handles 8 are respectively arranged on the upper end of the barrel cover 2 near the left and right sides, and the two handles 8 are arranged on the left and right sides of the barrel cover 2, so that the barrel cover 2 can be opened on both sides, and the rear end of the barrel cover 2 A handle 1 is connected, a barrel body 5 extending downward is sleeved on the perimeter of the outer frame 3, a reinforcement block 4 is connected to the outer wall of the left perimeter of the lower end of the outer frame 3, and one end of the reinforcement block 4 is fixed to the barrel body 5 For connection, a pulley 6 is connected to the outer wall of the lower side of the left end of the barrel body 5 , and a rotating support device 7 is connected to the outer wall of the center of the front end of the barrel body 5 .

A trash can for campus, the rotating support device 7 is provided with a fixed seat 11, the rotating support device 7 is fixedly connected to the barrel 5 through the fixed seat 11, there are two fixed seats 11 in total, and the size and shape of the two fixed seats 11 All are the same, a connecting rod 12 is provided in the opposite inner part of the two fixing bases 11, and the outer circumference of the connecting rod 12 is sleeved with a downwardly extending support plate 10, and the height of the support plate 10 is only half of the height of the barrel 5, because the support The upper end of the plate 10 is connected to the middle of the barrel 5. The length of the support plate 10 should not be too long, otherwise it will affect the normal use of the trash can. Only half of the height of the barrel 5 is just right, which will not affect the use and can also be rotated. When sharing enough gravity of the trash can, the rotating support device 7 is provided with a side handle 9 on the left end of the barrel body 5 close to the outer wall of the lower side. There are two side handles 9 in total. The side handles 9 are respectively arranged on the left and right ends of the barrel body 5 near the outer wall of the lower side. The function of the side handles 9 is similar to that of the handle 8. The side handle 9 dumps the garbage out.

The working principle and use process of the utility model: After the utility model is installed, when there is a lot of garbage in the trash can and the trash can is heavy and it is difficult to dump the garbage, the rotation of the support plate 10 makes the support plate 10 form a lever, using The lever principle makes it possible to save effort when dumping garbage. When in use, first push the garbage can to the designated garbage collection location, open the lid 2, and rotate the support plate 10 around the connecting rod 12 to form a certain gap with the barrel 5. angle, tilt the trash can according to the trend, so that the lower end of the support plate 10 is in contact with the ground, the gravity of the trash can is shared by the support plate 10, pull the side handle 9 with one hand, pull the handle 1 with the other hand, and lift the side handle forcefully 9. Make the trash can rotate around the support plate 10, and the garbage is dumped from the trash can mouth. After the dump is finished, the trash can is placed flat. The support plate 10 returns to the horizontal and vertical position under the action of gravity, and the bucket lid 2 is closed.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A trash can for campus, comprising a bucket cover (2) and an outer frame (3), characterized in that: the upper end of the outer frame (3) is provided with a bucket cover (2), and the bucket cover (2) A handle (8) is connected to the upper end of the barrel close to the outer wall of the front side, a handle (1) is connected to the rear end of the barrel cover (2), and a barrel extending downward is sleeved inside the perimeter of the outer frame (3). body (5), a reinforcement block (4) is connected to the left perimeter outer wall of the lower end of the outer frame (3), and one end of the reinforcement block (4) is fixedly connected to the barrel body (5), the barrel body A pulley (6) is connected to the lower outer wall of the left end of (5), and a rotating support device (7) is connected to the outer wall at the center of the front end of the barrel (5). 2. A campus trash can according to claim 1, characterized in that: a fixed seat (11) is provided on the rotating support device (7), and the rotating support device (7) passes through the fixed seat (11) ) and the barrel (5) are fixedly connected, there are two said fixing seats (11) in total, the size and shape of the two said fixing seats (11) are the same, and the two said fixing seats (11) are opposite to each other. A connecting rod (12) is provided inside, the outer circumference of the connecting rod (12) is sleeved with a downwardly extending support plate (10), and the rotating support device (7) is close to the lower side at the left end of the barrel (5). A side pull handle (9) is arranged on the outer wall. 3. A campus trash can according to claim 1, characterized in that: the handles (8) are provided with two in total, and the two handles (8) have the same size and shape, and the two handles (8) are the same in size and shape. The handles (8) are respectively arranged at the upper end of the barrel cover (2) near the left and right sides. 4. A campus trash can according to claim 2, characterized in that: the side handles (9) are provided with two in total, and the size and shape of the two side handles (9) are the same, and the two The side handles (9) are respectively arranged on the left and right ends of the barrel body (5) close to the outer wall of the lower side. 5 . The trash can for campus according to claim 2 , wherein the height of the support plate ( 10 ) is only half of the height of the barrel ( 5 ). 6 . 6. A campus trash can according to claim 1, characterized in that: the height of the outer frame (3) is the same as the height of the barrel cover (2), and the length and width of the outer frame (3) Slightly larger than the length and width of the lid (2).
