CN209982799U - An intelligent control system that can replace traditional light control methods and circuits - Google Patents

Abstract

The utility model mainly relates to an intelligent control system which can replace the traditional light control mode and circuit, comprising a self-reset normally closed switch, an electrical control box, a scene control switch and a scene control box. The electrical control box includes a transformer module, a charge-discharge integrated control module, a lithium battery, a high-power on-off judgment module, a WIFI communication relay control module or a ZIGBEE communication relay control module. The scene control box includes a radio frequency wireless receiving module, a scene control module for WIFI communication or a scene control module for ZIGBEE communication. The scene switch includes a self-generating module and a radio frequency wireless transmitting module. The electrical control box and the scene control box are connected with the mobile phone APP through a gateway or a router through WIFI or ZIGBEE network. The utility model greatly reduces the renovation cost of intelligent home furnishing. Compared with the prior art, the utility model has higher reliability and practicability, and is more conducive to the promotion and popularization of smart home.

Description

An intelligent control system that can replace traditional light control methods and circuits

technical field

The utility model relates to an intelligent control system which can replace the traditional lamp control mode and circuit.

Background technique

With the improvement of living standards and the reduction of technology costs, smart home products are being accepted and popularized by consumers. However, with the popularization of smart home products, there is a conflict between the smart home system technology and the traditional usage habits of consumers and the state of the existing building integrated wiring. The switch products in the existing smart home products are mainly based on zero-fire power supply, which is limited by wiring requirements and are mainly used in newly renovated buildings. Popularity of the product. There are also some smart switch products powered by a single live wire on the market. The advantage is that it can retrofit old buildings. The disadvantage is that when used in low-power lamps, the lamps will flicker. The single live wire switch adopts thyristor technology, and the technology itself is not very stable. There are also some switch products with self-generating technology on the market. Although they can replace the original switch without damage, their supporting low-power RF transceiver equipment has poor anti-interference ability. When multiple sets are used in the same environment or there are strong interference sources around, Its reception is extremely unstable. At the same time, radio frequency technology cannot perform network networking, and cannot realize a smart home system environment. There is also a common smart module product on the market, which is directly connected to the front end of lamps or electrical appliances. It can be linked with the mobile phone APP through wireless means, which can easily realize intelligent control, but it cannot perfectly cooperate with the traditional wall switch. When the wall switch is open, the The smart module product cannot work when the power is cut off.

SUMMARY OF THE INVENTION

The technical problem to be solved by the utility model is to provide an intelligent control system scheme based on the traditional single live wire wiring mode, which does not change people's usage habits, is convenient to use, has a simple structure and is easy to transform.

The technical scheme adopted by the utility model is: an intelligent control system which can replace the traditional light control mode and circuit, which comprises a self-reset normally closed switch, an electrical control box, a scene control switch and a scene control box.

In the intelligent control system that can replace traditional light control methods and circuits, the electrical control box includes a transformer module, a charge-discharge integrated control module, a lithium battery, a strong current on-off judgment module, and a WIFI communication relay. Control module or relay control module for ZIGBEE communication.

In the intelligent control system that can replace traditional light control methods and circuits, the scene control box includes a transformer module, a radio frequency wireless receiving module, a scene control module for WIFI communication or a scene control module for ZIGBEE communication.

In the intelligent control system that can replace traditional light control methods and circuits, the scene control switch includes a self-generating module and a radio frequency wireless transmitting module.

The beneficial effects of the utility model are as follows: the utility model greatly reduces the renovation cost of intelligent home furnishing. Compared with the prior art, the utility model has higher reliability and practicability, and is more conducive to the promotion and popularization of smart home.

Description of drawings

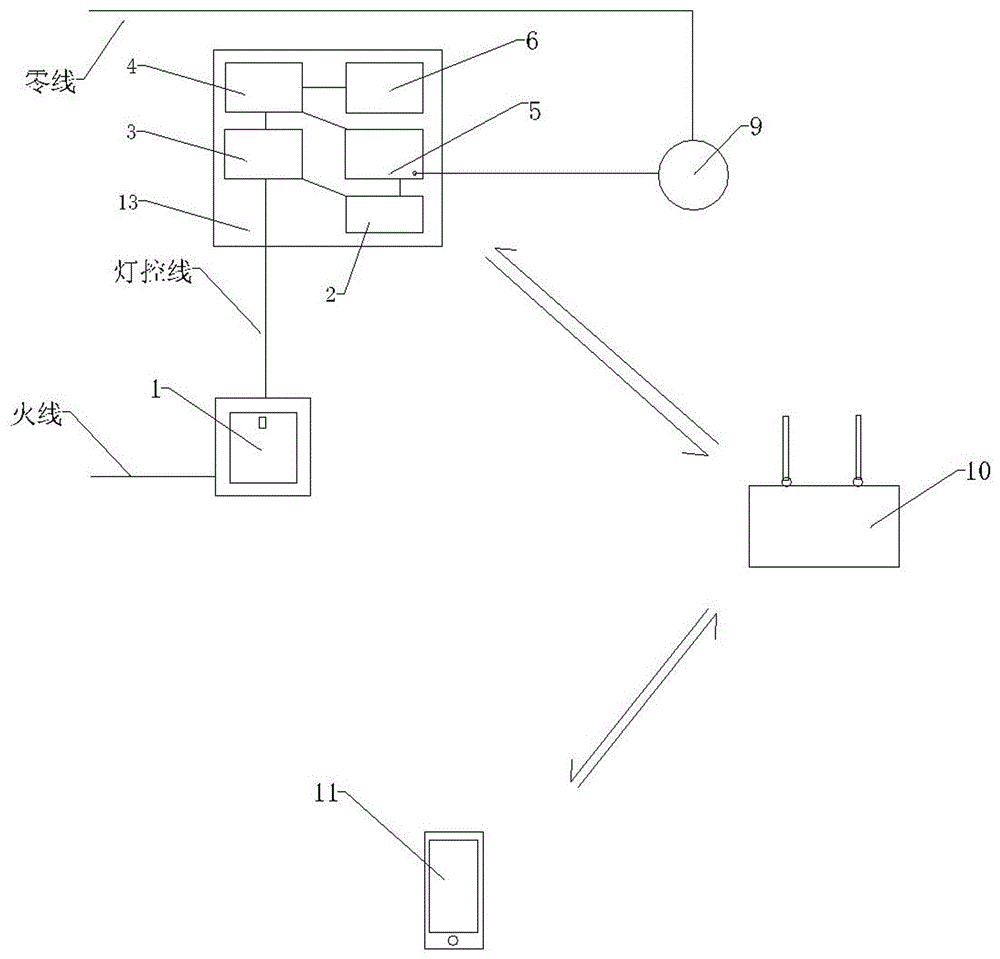

Figure 1 is a schematic diagram of a single-circuit lighting or electrical controller, and the symbols are explained: 1- self-resetting normally closed switch; 2- strong current on-off judgment module; 3- transformer module; 4- integrated charging and discharging control module; 5 -Relay control module for WIFI communication or relay control module for ZIGBEE communication; 6-Lithium battery; 9-Lighting or electrical appliances; 10-Router; 11-Mobile APP; 12-Scene control switch; 13-Electrical control box.

Figure 2 is a schematic diagram of a system composed of multiple single-channel controllers, and the labels are explained: 3-transformer module; 7-scene control box; 8-scene control module for WIFI communication or ZIGBEE communication; 10-router; 13-electrical appliance Control box; 14-self-generating module; 15-radio frequency wireless transmitting module; 16-radio frequency wireless receiving module.

Detailed ways

The advantages and features of the present invention are further described below in conjunction with the accompanying drawings.

As shown in Figure 1, without changing the original lighting or electrical circuit, the traditional switch is directly replaced with a self-resetting normally closed switch 1, and an electrical control box 13 is installed at the 9 end of the lamp or electrical appliance, and is located at the bedside or passage. The scene control switch 12 is installed at the port, and the scene control box 7 is installed at any position.

As shown in FIG. 1 , when the lamp or electrical appliance 9 is turned off, the AC strong current flows through the self-resetting normally closed switch 1 , flows through the transformer module 3 , and supplies power to the integrated charging and discharging control module 4 through the transformer to DC 5 volts At the same time, it supplies power to the strong current on-off judgment module 2, the charging and discharging integrated module 4 charges the lithium battery 6, and supplies power to the relay control module of WIFI communication or the relay control module 5 of ZIGBEE communication. At this time, the strong current from the relay control module of WIFI communication or the relay control module 5 of ZIGBEE communication to lamps or electrical appliances is in a cut-off state.

As shown in Figure 1, when it is necessary to turn on the lamps or electrical appliances 9, the self-resetting normally closed switch 1 is triggered to cut off the AC strong current of the lamp control line, the transformer module 3 is powered off, and the charge-discharge integrated control module 4 controls the lithium The battery 6 supplies power to the relay control module of WIFI communication or the relay control module 5 of ZIGBEE communication. At the same time when the self-reset normally closed switch 1 is triggered, the strong current on-off judgment module 2 sends a control signal to the relay control module of WIFI communication or the relay control module 5 of ZIGBEE communication, so that the relay control module of WIFI communication or the relay control module of ZIGBEE communication can control the The module 5 sends strong alternating current to lamps or electrical appliances. Make lamps or appliances work.

As shown in FIG. 1 , the electrical control box 13 conducts two-way communication with the router 10 through the relay control module of WIFI communication or the relay control module 5 of ZIGBEE communication, and the mobile phone APP 11 can communicate with the router 10 through the WIFI network at any time. In this way, the mobile phone APP11 can obtain the working status of the electrical control box at any time.

As shown in FIG. 2 , when there are multiple electrical control boxes 13 in the network, the scene control switch 12 is triggered, and the scene control switch 12 will send a scene control signal to the scene control box 7 to control the scene control module of WIFI communication or ZIGBEE communication 8. Send the set scene control command to each electrical control box 13 through the router 10 to realize the scene action.

Claims (10)

1. an intelligent control system that can replace traditional light control methods and lines, is characterized in that: it comprises a self-reset normally closed switch, an electrical control box, a scene control switch, a scene control box; the described electrical control box includes Transformer module, charging and discharging integrated control module, lithium battery, strong current on-off judgment module, relay control module of WIFI communication or relay control module of ZIGBEE communication, insulating shell. 2. The intelligent control system as claimed in claim 1, wherein the self-resetting normally closed switch button is a rocker button, which can be printed or engraved. 3 . The intelligent control system as claimed in claim 1 , wherein the self-reset normally closed switch rocker button and the frame are made of fluorescent materials. 4 . 4. The intelligent control system as claimed in claim 1, wherein the self-resetting normally closed switch is a standard size of an 86-type switch. 5. The intelligent control system that can replace traditional light control methods and circuits according to claim 1, characterized in that: the strong current on-off judging module in the electrical control box can perform the change of strong current on and off. Judgment, control the working state of the relay control module of WIFI communication or the relay control module of ZIGBEE communication according to the judgment result. 6. The intelligent control system according to claim 1, characterized in that: the relay control module of WIFI communication or the relay control module of ZIGBEE communication in the electrical control box can use The APP of the mobile phone or tablet computer establishes a connection with the relay control module of WIFI communication or the relay control module of ZIGBEE communication through the router and gateway, and controls the working status. 7. The intelligent control system as claimed in claim 1, wherein the scene control switch comprises a self-generating module, a radio frequency wireless transmitting module, and a standard 86 switch size. 8 . The intelligent control system according to claim 1 , which can replace traditional light control methods and circuits, wherein the scene control switch has a rocker button, which can be printed or engraved. 9 . 9 . The intelligent control system as claimed in claim 1 , wherein the scene control switch rocker button and frame are made of fluorescent materials. 10 . 10. The intelligent control system according to claim 1, characterized in that: the scene control box comprises a radio frequency wireless receiving module, a scene control module for WIFI communication or a scene control for ZIGBEE communication Module, transformer module, insulating shell.
