Abstract
本实用新型涉及一种轨道侧部摩擦驱动旋转转台。包括面板、转台、底座、中心轴、旋转驱动装置，转台设置于中心轴上部，底座设置于中心轴底部，面板设于转台上部，底座外圈设有轨道，旋转驱动装置输出轴上连接摩擦轮，摩擦轮与轨道侧部接触，摩擦轮上设有弹性压紧装置，并在拉伸弹簧的拉动下压紧在轨道侧部。本实用新型适用于大尺寸旋转转台；不需要在旋转驱动装置和摩擦轮上部施加重力，不需要限制转台上重物放置位置。
The utility model relates to a rail side friction-driven rotary turntable. It includes a panel, a turntable, a base, a central shaft, and a rotary drive device. The turntable is set on the upper part of the central shaft; , the friction wheel is in contact with the side of the track, and the friction wheel is provided with an elastic pressing device, which is pressed against the side of the track under the pulling of the tension spring. The utility model is suitable for a large-size rotary turntable; it does not need to exert gravity on the upper part of the rotary drive device and the friction wheel, and does not need to limit the placement position of heavy objects on the turntable.
Description
技术领域technical field
本实用新型涉及旋转转台技术领域，具体涉及一种轨道侧部摩擦驱动旋转转台。The utility model relates to the technical field of rotary turntables, in particular to a rail side friction-driven rotary turntable.
背景技术Background technique
旋转转台大多采用销齿驱动，转台上连接旋转电机，旋转电机驱动主动齿轮自转，主动齿轮与固定的大齿轮啮合，主动齿轮自转过程中驱动转台转动。销齿传动的旋转转台安装精度高，需要将主动齿轮与大齿轮精准啮合，并且旋转驱动过程中不得错位，不适合在展会这样要求高效率、简单安装的场合。Most of the rotary turntables are driven by pin teeth. The rotary motor is connected to the turntable. The rotary motor drives the driving gear to rotate, and the driving gear meshes with the fixed large gear. During the rotation of the driving gear, the turntable is driven to rotate. The pin-tooth-driven rotary turntable has high installation accuracy. It is necessary to precisely mesh the driving gear with the large gear, and it must not be misaligned during the rotational driving process. It is not suitable for occasions such as exhibitions that require high efficiency and simple installation.
对于摩擦驱动旋转转台，在轨道上部放置摩擦轮，只需将摩擦轮放置在轨道上，摩擦轮摩擦力下自转带动转台旋转，搭设简单，组装效率高，但是旋转驱动装置上方的面板需要释放重物，重物负载对旋转驱动装置进行向下的按压，使磨擦轮与导轨之间产生摩擦，摩擦轮自转带动转台旋转，因此轨道上部摩擦驱动旋转转台仅适用于小直径转台。对于大直径转台，由于转台尺寸大，如果在旋转驱动装置上方放置重物，则重心不在转台中心，转台旋转过程中偏心；重物如果放置在转台中心，由于转台尺寸大，则旋转驱动装置上方很难施加重力，摩擦轮与轨道之间的摩擦力小，摩擦轮将自转不起来。For the friction-driven rotary turntable, the friction wheel is placed on the upper part of the track, and only the friction wheel is placed on the track, and the rotation of the friction wheel drives the turntable to rotate under the friction force of the friction wheel. The load of heavy objects presses the rotary drive device downward, causing friction between the friction wheel and the guide rail, and the rotation of the friction wheel drives the turntable to rotate. Therefore, the friction-driven rotary turntable on the upper part of the track is only suitable for small-diameter turntables. For large-diameter turntables, due to the large size of the turntable, if a heavy object is placed above the rotary drive device, the center of gravity is not in the center of the turntable, and the turntable is eccentric during rotation; It is difficult to apply gravity, the friction between the friction wheel and the track is small, and the friction wheel will not rotate.
发明内容SUMMARY OF THE INVENTION
本实用新型的目的在于解决上述问题，提供一种轨道侧部摩擦驱动旋转转台，其适用于大尺寸旋转转台。The purpose of the present invention is to solve the above problems and provide a rail side friction-driven rotary turntable, which is suitable for a large-sized rotary turntable.
为了解决上述问题，本实用新型采用的技术方案如下：In order to solve the above problems, the technical scheme adopted by the present utility model is as follows:
一种轨道侧部摩擦驱动旋转转台，其特征在于，包括面板、转台、底座、中心轴、旋转驱动装置，转台设置于中心轴上部，底座设置于中心轴底部，面板设于转台上部，转台与中心轴之间通过旋转轴承连接，底座外圈设有轨道，转台与底座之间设有行走轮，行走轮设于转台底部，行走轮底部接触轨道，旋转驱动装置为减速电机，旋转驱动装置与转台固定销连接，旋转驱动装置输出轴上连接摩擦轮，摩擦轮与轨道侧部接触，摩擦轮上设有弹性压紧装置。A rail side friction-driven rotary turntable is characterized in that it includes a panel, a turntable, a base, a central axis, and a rotary drive device. The central shafts are connected by a rotating bearing, the outer ring of the base is provided with a track, and a traveling wheel is arranged between the turntable and the base. The turntable is connected with a fixed pin, the output shaft of the rotary drive device is connected with a friction wheel, the friction wheel is in contact with the side of the track, and an elastic pressing device is arranged on the friction wheel.
优化为，所述弹性压紧装置包括连接板、拉伸弹簧、轴销转轴，旋转驱动装置设于连接板上方，旋转驱动装置输出轴贯穿连接板，摩擦轮设于连接板底部，连接板侧板一端与转台通过轴销转轴连接，连接板侧板另一端与转台通过拉伸弹簧连接，拉伸弹簧与连接板侧板垂直设置。It is optimized that the elastic pressing device includes a connecting plate, a tension spring, and a shaft pin rotating shaft, the rotary driving device is arranged above the connecting plate, the output shaft of the rotating driving device penetrates the connecting plate, the friction wheel is arranged at the bottom of the connecting plate, and the side of the connecting plate is One end of the plate is connected with the turntable through a shaft pin and shaft, and the other end of the side plate of the connecting plate is connected with the turntable through a tension spring, and the tension spring is arranged vertically with the side plate of the connecting plate.
优化为，轨道与底座之间通过调高螺栓支撑，调高螺栓顶部连接轨道，调高螺栓的螺杆与底座通过螺纹孔连接。The optimization is that the track and the base are supported by height-adjusting bolts, the top of the height-adjusting bolt is connected to the track, and the screw rod of the height-adjusting bolt is connected to the base through threaded holes.
与现有技术相比，本实用新型有利效果为：Compared with the prior art, the beneficial effects of the present utility model are:
（1）本实用新型在弹性压紧装置的挤压下，旋转驱动装置与轨道侧部产生摩擦，不用在旋转驱动装置上方施加负载产生摩擦，适用于大尺寸旋转转台；(1) Under the extrusion of the elastic pressing device, the rotary drive device and the side of the track generate friction, and there is no need to apply a load above the rotary drive device to generate friction, which is suitable for large-size rotary turntables;
（2）本实用新型不需要在旋转驱动装置和摩擦轮上部施加重力，不需要限制转台上重物放置位置；(2) The utility model does not need to exert gravity on the upper part of the rotary drive device and the friction wheel, and does not need to limit the placement of heavy objects on the turntable;
（3）本实用新型搭建简单，适用于需要快速搭建的场所。(3) The utility model is simple to build, and is suitable for places that need to be built quickly.
附图说明Description of drawings
为了更清楚地说明本实用新型实施例或现有技术中的技术方案，下面将对实施例或现有技术描述中所需要使用的附图作简单地介绍，显而易见地，下面描述中的附图仅仅是本实用新型的一些实施例，对于本领域普通技术人员来讲，在不付出创造性劳动的后提下，还可以根据这些附图获得其他的附图。In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

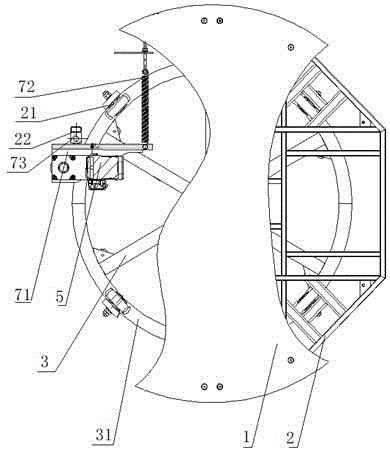

图1为一种轨道侧部摩擦驱动旋转转台俯视图；1 is a top view of a rail side friction-driven rotary turntable;
图2为一种轨道侧部摩擦驱动旋转转台剖视图；2 is a sectional view of a rail side friction-driven rotary turntable;
图3为本实用新型所述弹性压紧装置结构示意图；Fig. 3 is the structural schematic diagram of the elastic pressing device according to the utility model;
附图标记说明：面板-1、转台-2、行走轮-21、转台固定板-22、底座-3、轨道-31、中心轴-4、旋转驱动装置-5、摩擦轮-61、连接板-71、拉伸弹簧-72、轴销转轴-73、调高螺栓-8、电滑环-9。Description of reference numerals: panel-1, turntable-2, traveling wheel-21, turntable fixing plate-22, base-3, track-31, central axis-4, rotary drive device-5, friction wheel-61, connecting plate -71, tension spring-72, shaft pin shaft-73, height adjustment bolt-8, electric slip ring-9.
具体实施方式Detailed ways
下面结合附图对本实用新型的优选实施例进行详细阐述，以使本实用新型的优点和特征能更易于被本领域技术人员理解，从而对本实用新型的保护范围做出更为清楚明确的界定。The preferred embodiments of the present invention will be described in detail below in conjunction with the accompanying drawings, so that the advantages and features of the present invention can be more easily understood by those skilled in the art, and the protection scope of the present invention can be more clearly defined.
参阅说明书附图1、图2所示；一种轨道侧部摩擦驱动旋转转台，包括面板1、转台2、底座3、中心轴4、旋转驱动装置5，转台2设置于中心轴4上部，底座3设置于中心轴4底部，面板1设于转台2上部，转台2与中心轴4之间通过旋转轴承连接，底座3外圈设有轨道，转台2与底座3之间设有行走轮21，行走轮21设于转台2底部，行走轮21底部接触轨道31，旋转驱动装置5为减速电机，旋转轴承上设有电滑环9，电滑环9为减速电机供电，旋转驱动装置5与转台固定销连接，旋转驱动装置输出轴上连接摩擦轮61，摩擦轮61与轨道31侧部接触，摩擦轮61上设有弹性压紧装置。Refer to the accompanying drawings 1 and 2 of the description; a rail side friction-driven rotary turntable includes a panel 1, a turntable 2, a base 3, a central shaft 4, and a rotary drive device 5. The turntable 2 is arranged on the upper part of the central shaft 4, and the base 3 is arranged at the bottom of the central shaft 4, the panel 1 is arranged on the upper part of the turntable 2, the turntable 2 and the central shaft 4 are connected by a rotating bearing, the outer ring of the base 3 is provided with a track, and a traveling wheel 21 is arranged between the turntable 2 and the base 3, The traveling wheel 21 is arranged at the bottom of the turntable 2, the bottom of the traveling wheel 21 is in contact with the track 31, the rotary driving device 5 is a deceleration motor, and the rotary bearing is provided with an electric slip ring 9, which supplies power to the deceleration motor, and the rotary driving device 5 is connected to the turntable. The fixed pin is connected, the output shaft of the rotary drive device is connected with a friction wheel 61, the friction wheel 61 is in contact with the side of the track 31, and an elastic pressing device is provided on the friction wheel 61.
对于轨道侧部摩擦驱动旋转转台，摩擦轮与轨道的按压力度要求高，按压力度过大，摩擦轮不转动，转台不转动，按压力度过小，摩擦轮空转，将不能带动转台转动。所述弹性压紧装置包括连接板71、拉伸弹簧72、轴销转轴73，旋转驱动装置5设于连接板71上方，旋转驱动装置5外罩与连接板71通过螺栓固定连接，旋转驱动装置输出轴贯穿连接板71，旋转驱动装置输出轴与连接板通过支承轴承连接，支承轴承对旋转驱动装置输出轴起到支撑减少摩擦的作用，摩擦轮61设于连接板71底部，连接板71侧板一端与转台2通过轴销转轴73连接，连接板71侧板另一端与转台固定板22通过拉伸弹簧72连接，拉伸弹簧72与连接板71侧板垂直设置。摩擦轮61在拉伸弹簧72的拉动下绕轴销转轴73转动而压紧在轨道31侧部。For the friction-driven rotary turntable on the side of the track, the pressing force between the friction wheel and the track is required to be high. If the pressing force is too large, the friction wheel does not rotate, and the turntable does not rotate. The elastic pressing device includes a connecting plate 71, a tension spring 72, and a shaft pin shaft 73. The rotary driving device 5 is arranged above the connecting plate 71, and the outer cover of the rotary driving device 5 and the connecting plate 71 are fixedly connected by bolts. The output of the rotary driving device is The shaft penetrates through the connecting plate 71, the output shaft of the rotary drive device is connected with the connecting plate through a support bearing, and the support bearing supports the output shaft of the rotating drive device to reduce friction. The friction wheel 61 is arranged at the bottom of the connecting plate 71, and the side plate of the connecting plate 71 One end is connected with the turntable 2 through the pivot shaft 73 , the other end of the side plate of the connecting plate 71 is connected with the turntable fixing plate 22 by the tension spring 72 , and the tension spring 72 is perpendicular to the side plate of the connecting plate 71 . The friction wheel 61 rotates around the pivot shaft 73 under the pulling of the tension spring 72 and is pressed against the side of the rail 31 .
参阅说明书附图3所示，连接板前部通过轴销转轴将旋转驱动装置、摩擦轮与转台连接一起，摩擦轮侧部与轨道接触，连接板后部通过拉伸弹簧的拉伸，连接板后部被拉伸弹簧拉伸转动，摩擦轮侧部与轨道产生弹性挤压，摩擦轮在自转过程中可带动转台旋转。Referring to Figure 3 of the description, the front part of the connecting plate connects the rotary drive device, the friction wheel and the turntable through the shaft pin rotation shaft, the side part of the friction wheel is in contact with the track, the rear part of the connecting plate is stretched by the tension spring, and the rear part of the connecting plate is stretched. The part is stretched and rotated by the tension spring, the side part of the friction wheel and the track are elastically squeezed, and the friction wheel can drive the turntable to rotate during the self-rotation process.
参阅说明书附图2所示，轨道与底座3之间通过调高螺栓8支撑，调高螺栓8顶部连接轨道31，调高螺栓8的螺杆与底座3通过螺纹孔连接，多个调高螺栓在轨道底部均匀分布，调高螺栓对轨道起到调高找平作用。Referring to Figure 2 of the description, the track and the base 3 are supported by the height-adjusting bolt 8, the top of the height-adjusting bolt 8 is connected to the track 31, the screw rod of the height-adjusting bolt 8 is connected with the base 3 through threaded holes, and a plurality of height-adjusting bolts are The bottom of the track is evenly distributed, and the height-adjusting bolts play a role in adjusting the height and leveling of the track.
以上显示和描述了本实用新型的基本原理、主要特征和本实用新型的优点。本行业的技术人员应该了解，本实用新型不受上述实施例的限制，上述实施例和说明书中的描述仅为本实用新型的优选例，本实用新型并不受上述优选例的限制，在不脱离本实用新型精神和范围的前提下，本实用新型还可有各种变化和改进，这些变化和改进都落入本实用新型保护的范围内。The basic principles, main features and advantages of the present invention have been shown and described above. Those skilled in the art should understand that the present invention is not limited by the above-mentioned embodiments, and the descriptions in the above-mentioned embodiments and the specification are only preferred examples of the present utility model, and the present utility model is not limited by the above-mentioned preferred examples. Under the premise of departing from the spirit and scope of the present utility model, the present utility model can also have various changes and improvements, and these changes and improvements all fall within the protection scope of the present utility model.
尽管已经示出和描述了本实用新型的实施例，对于本领域的普通技术人员而言，可以理解在不脱离本实用新型的原理和精神的情况下可以对这些实施例进行多种变化、修改、替换和变型，本实用新型的范围由所附权利要求及其等同物限定。Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.
Claims (3)
