Abstract

The utility model discloses a combined layer plate frame, which comprises an installation frame, a plurality of layer plate supporting parts, a plurality of layer plates and a plurality of fixing buckles; The frame includes a bottom frame, a top frame and a frame rod. The frame rod is provided with an installation slot, and the frame rod is provided with a number of installation holes in the installation groove. The parts include a hook fixing section and a layer board supporting section. The hook fixing section is integrally connected with the layer board supporting section, and the hook fixing section passes through the installation hole to abut the inner wall of the frame rod, so that the layer board supporting section is relatively fixed to the inner wall of the frame rod. On the frame rod, the layer plate is supported by the layer plate supporting section; the fixing buckle is used to fix the adjacent combined layer plate frame, and the fixing buckle has two clamping arms and a connecting plate connecting the two clamping arms. One end of a clamping arm is connected with one end of the connecting plate, and the other end of the clamping arm is provided with an undercut. The combined layer plate frame of the utility model can be assembled by itself.

Description

A composite shelf

technical field

The utility model relates to the technical field of combined furniture, in particular to a self-assembled combined layer board frame.

Background technique

Usually in exhibitions, supermarkets and factories, the shelves are often used for placing items, such as placing exhibits in exhibitions, placing goods in supermarkets, and placing semi-finished products or products in factories, etc. . The assembly of the shelf and the fixing between adjacent shelfs are quickly completed on site by welding, but the shelf assembled and fixed in this way cannot be dismantled, which is likely to cause material waste.

Utility model content

The purpose of the utility model is to provide a self-assembled composite layer plate frame.

To achieve the above object, the utility model provides the following technical solutions:

A combined laminate rack, comprising a mounting rack, several laminate supporting parts, several laminates and several fixing buckles; the laminates are detachably installed into the mounting rack through the laminate supporting parts, and the mounting rack It includes a bottom frame, a top frame and a frame rod connecting the bottom frame and the top frame. The frame rod is provided with an installation slot, and the frame rod is provided with a number of installation holes at intervals in the installation groove; Installed on the frame rod, the layer board supporting member includes a hook fixing section and a layer board supporting section, the hook fixing section is integrally connected with the layer board supporting section, and the hook fixing section passes through the installation hole to reach the bracket. Hold the inner wall of the shelf rod, so that the shelf support section is relatively fixed on the shelf rod, and the shelf support section supports the shelf; the fixing buckle is used to fix the adjacent combined layer shelf, and the fixing buckle has two A clamping arm and a connecting plate connecting the two clamping arms, one end of each clamping arm is connected with one end of the connecting plate, the other end of the clamping arm is provided with an inverted buckle, and the two clamping arms of the fixing buckle are opposite to each other. The frame rods of the adjacent composite laminate racks are clamped, and the inverted buckles of the clamping arms are pressed against the installation grooves of the frame rods, so as to fix the adjacent composite laminate racks with the fixed buckles.

As a further technical solution of the present invention, the frame rod is detachably connected with the bottom frame and the top frame through bolts.

As a further technical solution of the present invention: the hook fixing section has an arc section and a clamping section, one end of the arc section is connected with the support section of the laminate; the clamping section is vertically arranged above the arc section, The clamping segment is connected with the other end of the arc segment.

As a further technical solution of the present utility model: the top surface of the support section of the laminate is provided with a fixed column, and the top surface of the support section of the laminate supports the laminate, and the fixed post is inserted into the laminate to connect the layer The board is fixed on the support section of the laminate board.

As a further technical solution of the present utility model: the arc-shaped segment is C-shaped, the inner concave surface of the arc-shaped segment faces the laminate support segment, the outer arc surface of the arc-shaped segment is provided with a connecting block, and one end of the connecting block is connected to the arc-shaped segment. The outer arc surface of the segment is connected, and the other end of the connection block is connected with the bottom surface of the support segment of the laminate.

As a further technical solution of the present invention, the connecting block is stepped, and one end of the connecting block connected with the support section of the laminate is higher than the end connecting the connecting block with the arc-shaped section.

Compared with the prior art, the beneficial effects of the present utility model are as follows: the utility model proposes a mounting frame of a combined layer plate frame, a plurality of layer plate supporting parts, a plurality of layer plates and a plurality of fixing buckles, which can be assembled by themselves, and the use is more convenient. convenient.

Description of drawings

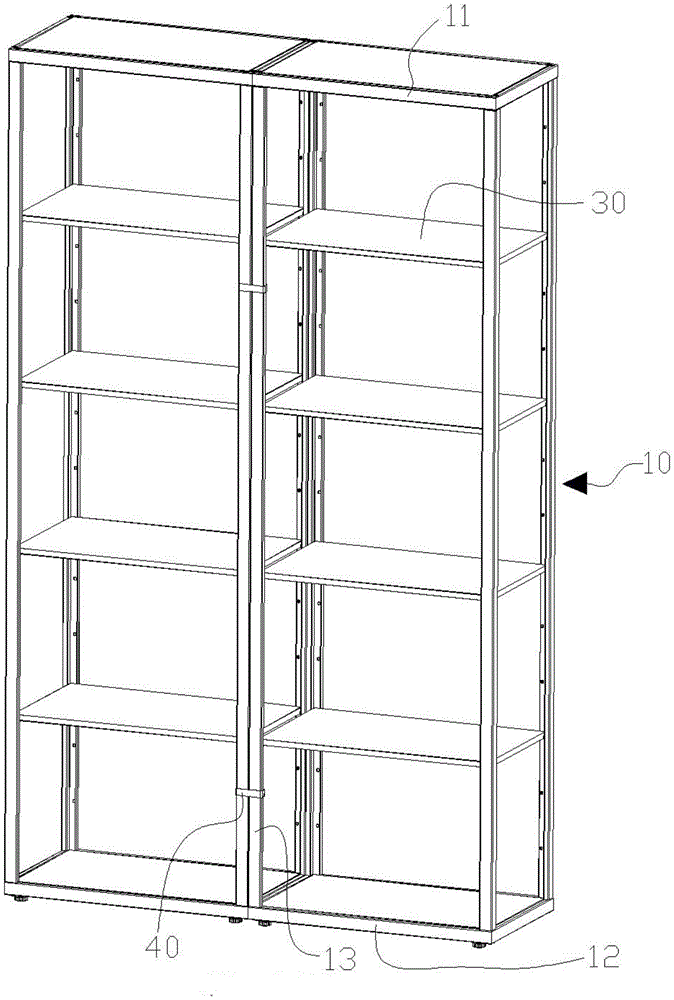

FIG. 1 is a schematic diagram of a combined laminate rack.

FIG. 2 is a schematic diagram of a laminate support member.

Fig. 3 is a state diagram of the use state of the support member of the laminate.

Figure 4 is a state diagram of the fixed buckle.

Detailed ways

The specific embodiments of the present invention will be described in detail below with reference to the accompanying drawings. It should be understood that the specific embodiments described herein are only used to illustrate and explain the present invention, and are not used to limit the protection scope of the present invention.

Please refer to FIG. 1 , FIG. 2 and FIG. 3 , a combined laminate frame includes a mounting frame 10 , several laminate support members 20 , several laminates 30 and several fixing buckles 40 . The laminate 30 is detachably installed into the mounting frame 10 through the laminate supporting member 20 , and the mounting frame 10 includes a bottom frame 11 , a top frame 12 and a frame rod 13 connecting the bottom frame 11 and the top frame 12 , The frame rod 13 is detachably connected with the bottom frame 11 and the top frame 12 by bolts. The frame rod 13 adopts an L-shaped frame rod. The frame rod 13 is provided with an installation groove 131, and the frame rod 13 is installed in the installation groove. A number of mounting holes 132 are provided at intervals in the 131 for mounting the laminate support 20; the laminate support 20 is mounted on the frame rod 13 through the mounting holes 132 to support the laminate 30; the layer The board support member 20 includes a hook fixing section 21 and a layer board supporting section 22. The hook fixing section 21 is integrally connected with the layer board supporting section 22, and the hook fixing section 21 passes through the mounting hole 132 to abut the frame The inner wall of the rod 13 makes the laminate support section 22 relatively fixed on the frame rod 13, and the laminate support section 22 supports the laminate 30, so that the laminate 30 is installed in the mounting frame 10; The fixing buckle 40 is used to fix the adjacent composite laminate racks. The fixing buckle 40 has two clamping arms 41 and a connecting plate 42 connecting the two clamping arms 41. One end of each clamping arm 41 is connected to the connecting plate One end of 42 is connected, and the other end of the clamping arm 41 is provided with an inverted buckle 43, so that when the fixing buckle 40 fixes the adjacent composite laminate rack, the two clamping arms 41 of the fixing buckle 40 relatively clamp the adjacent composite laminate. For the rack rod 13 of the rack, the inverted buckle 43 of the clamping arm 41 abuts against the mounting groove 131 of the rack rod 13 .

Further, the hook fixing section 21 has an arc section 211 and a clamping section 212, the arc section 211 is C-shaped, one end of the arc section 211 is connected to the end face of the laminate support section 22, and the arc section 211 The inner concave surface of the connecting block 213 faces the laminate supporting section 22, the outer arc surface of the arc section 211 is provided with a connecting block 213, one end of the connecting block 213 is connected with the outer arc surface of the arc section 211, and the other end of the connecting block 213 is connected to the The bottom surface of the board supporting section 22 is connected, the connecting block 213 is stepped, and one end of the connecting block 213 connected with the layer board supporting section 22 is higher than the end connecting the connecting block 213 and the arc section 211 for the hook to fix the section. 21 is installed into the frame rod 13, one end of the connecting block 213 connected to the arc-shaped section 211 enters the frame rod 13 from the installation hole 132 along with the arc-shaped section 211, and one end of the connecting block 213 connected to the layer board supporting section 22 is in contact with the frame rod 13. The retaining section 212 is vertically arranged above the arc section 211, and the retaining section 212 is connected to the other end of the arc section 211 for the hook to fix the section 21. Installed into the frame rod 13 , the holding section 212 abuts against the inner wall of the frame rod 13 .

Further, the top surface of the laminate supporting section 22 is flat, and there are fixing posts 221 thereon, so that when the laminate supporting section 22 supports the laminate 30, the fixing posts 221 are inserted into the laminate. 30 to fix the laminate 30 .

The assembling method of the combined layer plate frame of the present invention is as follows: the bottom frame 11 and the top frame 12 are connected by the frame rod 13 to complete the assembly of the installation frame 10, and several layer plate supporting parts 20 are correspondingly installed through the installation holes 132. On the rack bar 13, several layers 30 are detachably installed into the mounting rack 10 by the layer plate support member 20, and the adjacent combined layer racks are correspondingly fastened to their rack bars 13 by the fixing buckles 40, Complete the fixation between the adjacent composite deck racks.

To sum up, the mounting frame 10 of the combined laminate rack of the present invention, several laminate support members 20, several laminates 30 and several fixing buckles 40 can be assembled by themselves, which is more convenient to use.

As long as it does not violate the idea created by the present invention, any combination of various embodiments of the present invention shall be regarded as the content disclosed by the present invention; within the scope of the technical concept of the present invention, various technical solutions can be Any combination of simple modifications and different embodiments that do not violate the idea of the present invention should fall within the protection scope of the present invention.

Claims (6)

1. A combined laminate frame comprises a mounting frame (10), a plurality of laminate supporting pieces (20), a plurality of laminates (30) and a plurality of fixing buckles (40); the method is characterized in that: the laminated plate (30) is detachably mounted in the mounting frame (10) through a laminated plate supporting piece (20), the mounting frame (10) comprises a bottom frame (11), a top frame (12) and a frame rod (13) for connecting the bottom frame (11) and the top frame (12), a mounting groove (131) is formed in the frame rod (13), and a plurality of mounting holes (132) are formed in the frame rod (13) in the mounting groove (131) at intervals; the laminated plate supporting piece (20) is installed on the rack rod (13) through the installation hole (132), the laminated plate supporting piece (20) comprises a clamping hook fixing section (21) and a laminated plate supporting section (22), the clamping hook fixing section (21) and the laminated plate supporting section (22) are integrally connected, the clamping hook fixing section (21) penetrates through the installation hole (132) to support the inner wall of the rack rod (13), the laminated plate supporting section (22) is relatively fixed on the rack rod (13), and the laminated plate (30) is supported by the laminated plate supporting section (22); the fixing buckle (40) is used for fixing adjacent combined layer plate frames, the fixing buckle (40) is provided with two clamping arms (41) and a connecting plate (42) for connecting the two clamping arms (41), one end of each clamping arm (41) is connected with one end of the connecting plate (42), the other end of each clamping arm (41) is provided with an inverted buckle (43), the two clamping arms (41) of the fixing buckle (40) oppositely clamp the frame rods (13) of the adjacent combined layer plate frames, the inverted buckles (43) of the clamping arms (41) are abutted against mounting grooves (131) of the frame rods (13), and the fixing buckle (40) is used for fixing the adjacent combined layer plate frames.

2. The composite laminate rack of claim 1, wherein: the frame rod (13) is detachably connected with the bottom frame (11) and the top frame (12) through bolts.

3. The composite laminate rack of claim 1, wherein: the clamping hook fixing section (21) is provided with an arc-shaped section (211) and a clamping section (212), and one end of the arc-shaped section (211) is connected with the laminate bearing section (22); the clamping section (212) is vertically arranged above the arc-shaped section (211), and the clamping section (212) is connected with the other end of the arc-shaped section (211).

4. The composite laminate rack of claim 1, wherein: be equipped with fixed column (221) on the top surface of plywood bearing section (22), through top surface bearing plywood (30) of plywood bearing section (22), fixed column (221) are inserted and are established to in plywood (30) to be fixed in on plywood bearing section (22) with plywood (30).

5. The modular pallet assembly of claim 3 wherein: arc section (211) are the C font, and the interior concave surface of arc section (211) is equipped with connecting block (213) towards plywood bearing section (22) on the extrados of arc section (211), the extrados of the one end of connecting block (213) and arc section (211) is connected, and the other end of connecting block (213) is connected with the bottom surface of plywood bearing section (22).

6. The modular pallet assembly of claim 5 wherein: the connecting block (213) is in a step shape, and one end of the connecting block (213) connected with the laminate bearing section (22) is higher than one end of the connecting block (213) connected with the arc-shaped section (211).
