Abstract

The utility model relates to the technical field of art utensils, and discloses an art drawing frame for students which is convenient for fixing drawing paper, comprising a drawing board, a support frame is fixedly installed on the bottom of the drawing board, and a non-slip block is fixedly installed on the bottom of the support frame The upper frame of the drawing board is provided with two paper pressing clips, the lower frame of the drawing board is fixedly installed with a pen holder, and the left and right sides of the drawing board are each fixedly installed with an elastic roll. This is an art drawing stand for students who are easy to fix the drawing paper. By pulling the bar magnet, the cloth tape is extended from the elastic reel to a suitable length. The bar magnet and the magnetic material of the drawing board attract each other to fix the left and right sides of the drawing paper. Adjust the cloth The length of the belt can be adapted to different specifications of drawing paper, which solves the problem that the existing students' art drawing stand is relatively simple to design, and the drawing paper cannot be fixed well. quality issue.

Description

An art drawing stand for students that is convenient for fixing drawing paper

technical field

The utility model relates to the technical field of art utensils, in particular to an art painting stand for students which is convenient for fixing painting paper.

Background technique

A painting stand refers to a self-contained structure designed for an artist to hold a canvas or drawing board while painting. The easels used in the studio are usually fixed by four solid wooden bars on a square or rectangular base. There is an adjustable sliding slot, and its spring hooks can be segmented and support the painting; the top is fixed by a movable clip. The sketch easel is made of wood or aluminium and is small, lightweight and easy to carry, with all accessories folded into a compact volume; its design is somewhere in between sturdiness and portability.

The design of the existing art painting frame for students is relatively simple, and the painting paper cannot be well fixed, and the painting paper will swing due to the wind blowing, which will affect the quality of the painting and is not conducive to the students' art learning. Therefore, We propose an art painting frame that is easy for students to fix the drawing paper to solve such problems.

Utility model content

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the utility model provides an art drawing stand for students that is convenient for fixing drawing paper, which has the advantages of convenient use, stable drawing paper fixation, and can be applied to drawing papers of different specifications, etc. The drawing stand cannot fix the drawing paper well, which will cause the drawing paper to swing due to the wind blowing, which affects the quality of the drawing and is not conducive to the students' art learning.

(2) Technical solutions

In order to realize the above-mentioned purpose of making the drawing paper of the drawing stand stable, easy to use, and suitable for drawing paper of different specifications, the utility model provides the following technical scheme: an art drawing stand for students that is convenient for fixing drawing paper, including a drawing board, so The bottom of the drawing board is fixedly installed with a support frame, the bottom of the support frame is fixedly installed with anti-skid blocks, the upper frame of the drawing board is provided with two paper pressing clips, the lower frame of the drawing board is fixedly installed with a pen holder, and the drawing board is fixedly installed with a pen holder. An elastic reel is fixedly installed on the left and right sides of the elastic reel, the surface of the elastic reel is provided with an opening, and a connecting block is fixedly installed on the surface of the elastic reel, and the connecting block is fixedly connected with the drawing board. A central shaft is fixedly installed inside, a spiral elastic sheet is arranged inside the elastic reel, a rotating drum is rotatably connected inside the elastic reel, one end of the spiral elastic sheet is fixedly connected to the outer wall of the central shaft, and the other end is fixedly connected to the outer wall of the central shaft. The inner wall of the drum, a cloth tape is arranged between the drum and the inner wall of the elastic drum, one end of the cloth tape is fixedly connected to the outer wall of the drum, and the other end of the cloth tape extends to the outside of the elastic drum through the opening, so A bar magnet is fixedly installed at one end of the cloth tape away from the elastic reel, three limiters are fixedly installed on the surface of the elastic reel, and an arc baffle is fixedly installed on the top of the pen holder.

Preferably, a magnetic interlayer is provided inside the drawing board.

Preferably, the minimum thickness of the bar magnet is greater than the maximum width of the opening.

Preferably, the length of the cloth tape is greater than half of the distance between the left and right ends of the drawing board.

Preferably, the bottom of the platen extends laterally, and the opening of the platen is frosted design.

Preferably, the stopper includes a casing, the casing is fixedly mounted on the surface of the elastic reel, a channel is opened inside the casing, a sliding column is arranged inside the casing, and the sliding column penetrates through the channel The casing is slidably connected to the casing, a limit block is fixedly installed at one end of the sliding column close to the opening, and a push block is fixedly installed at one end of the sliding column away from the opening.

(3) Beneficial effects

Compared with the prior art, the utility model provides an art painting stand for students that is convenient for fixing drawing paper, and has the following beneficial effects:

1. This student-use art painting stand, which is easy to fix the drawing paper, extends laterally through the bottom of the paper clamp, and the opening of the paper clamp is frosted design. For the paper fixing effect, by fixing an arc baffle on the top of the pen holder, the bottom of the drawing paper is fixed between the drawing board and the arc baffle, so that the bottom of the drawing paper is also fixed and the whole is more stable.

2. The students use an art painting stand that is easy to fix the drawing paper. By pulling the bar magnet, the cloth tape is driven to extend from the elastic reel to a suitable length. The bar magnet and the magnetic material of the drawing board attract each other to fix the left and right sides of the drawing paper. Adjusting the length of the tape can adapt to different specifications of drawing paper. After the painting is completed, remove the bar magnet from the drawing board, and the spiral elastic sheet inside the elastic reel drives the drum to rotate due to the elastic force, and automatically retracts the cloth tape into the elastic reel without manual sorting, and is simple and convenient to use.

3. This student-use art drawing stand, which is easy to fix the drawing paper, is set to have the minimum thickness of the bar magnets greater than the maximum width of the opening, so as to ensure that the bar magnets will not be collected into the elastic reel, causing trouble in use.

4. This student-use art drawing stand, which is easy to fix the drawing paper, installs the stopper on the surface of the elastic reel. When the bar magnet is moved to the proper position, the push block is pushed, so that the sliding column and the push block move together. The direction of the opening moves, and the contact between the stop block and the tape produces friction, which prevents the tape from moving, so that the tape will not move during the painting process and affect the painting activity.

Description of drawings

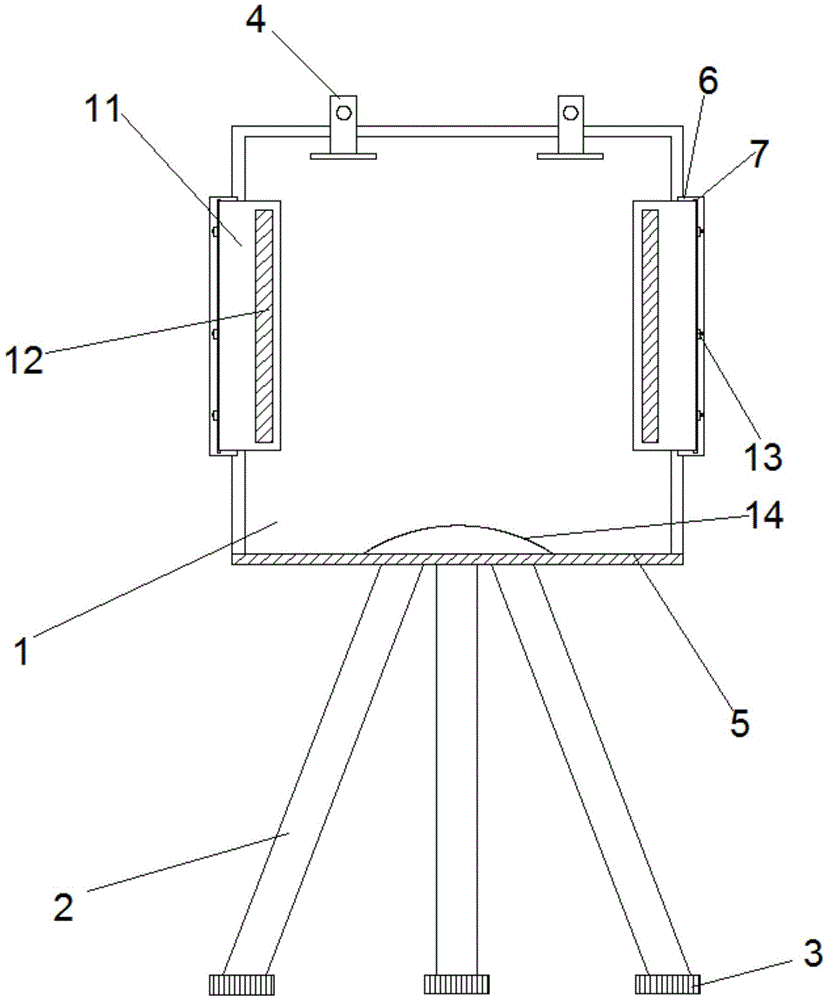

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the sectional view of the utility model elastic reel;

Fig. 3 is the structural schematic diagram of the elastic reel of the utility model;

FIG. 4 is a side sectional view of the drawing board of the utility model.

In the picture: 1. Drawing board; 2. Supporting frame; 3. Anti-skid block; 4. Paper clamp; 5. Pen holder; 6. Elastic reel; 7. Opening; 8. Center shaft; 9. Spiral elastic sheet; 10. Drum; 11, cloth tape; 12, bar magnet; 13, limiter; 14, arc baffle; 131, shell; 132, sliding column; 133, limit block; 134, push block; 601, Connection block, 101, magnetic interlayer.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figure 1-4, an art drawing frame for students that is convenient for fixing drawing paper, including a drawing board 1, a support frame 2 is fixedly installed at the bottom of the drawing board 1, a non-slip block 3 is fixedly installed at the bottom of the support frame 2, and the drawing board 1 The upper frame is provided with two paper pressing clips 4, the lower frame of the drawing board 1 is fixedly installed with a pen holder 5, the left and right sides of the drawing board 1 are fixedly installed with an elastic reel 6, and the surface of the elastic reel 6 is provided with an opening 7, elastic force. A central shaft 8 is fixedly installed inside the reel 6, a spiral elastic sheet 9 is arranged inside the elastic reel 6, a rotating drum 10 is rotatably connected inside the elastic reel 6, and one end of the spiral elastic sheet 9 is fixedly connected to the outer wall of the central shaft 8. The other end of the elastic sheet 9 is fixedly connected to the inner wall of the drum 10, a cloth tape 11 is arranged between the drum 10 and the inner wall of the elastic drum 6, one end of the cloth tape 11 is fixedly connected to the outer wall of the drum 10, and the other end of the cloth tape 11 Extending to the outside of the elastic reel 6 through the opening 7, the end of the cloth tape 11 away from the elastic reel 6 is fixedly installed with a bar magnet 12, and the cloth tape 11 is tightly wound in the elastic reel 6, and the strip is pulled when in use. The magnet 12 drives the cloth tape 11 to extend from the elastic drum 6 to a suitable length. The bar magnet 12 and the magnetic material of the drawing board 1 attract each other to fix the left and right sides of the drawing paper. Adjusting the length of the cloth tape 11 can adapt to different specifications of drawings. Paper. After the painting is completed, the bar magnet 12 is removed from the drawing board, and the spiral elastic sheet 9 inside the elastic reel 6 drives the rotating drum 10 to rotate due to the elastic force, and automatically retracts the cloth tape 11 into the elastic reel 6 without manual sorting. Simple and convenient The surface of the elastic reel 6 is fixedly installed with three limiters 13, and the top of the pen holder 5 is fixedly installed with an arc baffle 14, and the bottom of the drawing paper is fixed between the drawing board and the arc baffle, so that the The bottom of the drawing paper is also fixed and the whole is more stable.

Further, a magnetic interlayer 101 is provided inside the drawing board 1 so that the drawing board 1 and the bar magnet 12 can attract each other.

Further, the minimum thickness of the bar magnet 12 is greater than the maximum width of the opening 7 to ensure that the bar magnet will not be received into the elastic reel, causing trouble in use.

Further, the length of the cloth tape 11 is greater than half of the distance between the left and right ends of the drawing board 1, so that the cloth tape 11 has a sufficient length to adapt to different specifications of drawing paper.

Further, the bottom of the paper pressing clip 4 extends laterally, and the clip opening of the paper pressing clip 4 is frosted design, which increases the friction force and enhances the fixing effect of the drawing paper.

Further, the stopper 13 includes a casing 131, the casing 131 is fixedly mounted on the surface of the elastic reel 6, a channel is opened inside the casing 131, a sliding column 132 is arranged inside the casing 131, and the sliding column 132 penetrates through the channel The casing 131 is slidably connected to the casing 131 , a limit block 133 is fixedly installed at one end of the sliding column 132 close to the opening 7 , and a push block 134 is fixedly installed at the end of the sliding column 132 away from the opening 7 . When the bar magnet 12 is moved to an appropriate position When the push block 134 is pushed, the sliding column 132 and the push block 134 move together in the direction of the opening 7, and the limit block 133 contacts the tape 11 to generate friction, preventing the tape 11 from moving, so that the tape 11 does not move during the painting process. It will move during the painting process and affect the painting activity. When the painting is completed, the push block 134 is pulled, and the cloth tape 11 can move normally and retract into the elastic drum 6 again.

When in use, press the paper clamp 4 to fix the drawing paper from above, then pull the bar magnet 12 to drive the cloth tape to extend from the elastic roll 6 to a suitable length, the bar magnet 12 and the magnetic material 101 of the drawing board 1 attract each other Fix the left and right sides of the drawing paper, adjust the length of the cloth tape 11 to adapt to different specifications of drawing paper, push the push block 134, so that the sliding column 132 and the push block 134 move together in the direction of the opening 7, the limit block 133 and the cloth tape 11 The contact produces friction, which prevents the cloth tape 11 from moving. After the painting is completed, the push block 134 is pulled, and the cloth tape 11 can move normally again, and the bar magnet 12 is removed from the drawing board 1. The spiral elastic sheet 9 inside the elastic drum 6 is because The elastic force drives the rotating drum 10 to rotate, and the cloth tape 11 is automatically retracted into the elastic drum 6 without manual sorting, and the use is simple and convenient.

To sum up, the art drawing stand for students, which is easy to fix the drawing paper, extends laterally through the bottom of the paper pressing clip 4, and the opening of the paper pressing clip 4 is frosted design, which increases the friction force and enhances the fixing effect of the drawing paper. 5. An arc baffle 14 is fixed on the top, and the bottom of the drawing paper is fixed between the drawing board and the arc baffle, so that the bottom of the drawing paper is also fixed and the whole is more stable. By pulling the bar magnet 12, the cloth belt is driven from the elastic roll. The barrel 6 is extended to a suitable length, the bar magnet 12 and the magnetic material of the drawing board 1 attract each other to fix the left and right sides of the drawing paper, and the length of the cloth tape 11 can be adjusted to adapt to different specifications of drawing paper. After the drawing is completed, the bar magnet 12 Take it off the drawing board 1, the spiral elastic sheet 9 inside the elastic reel 6 drives the reel 10 to rotate due to the elastic force, and automatically retracts the cloth tape 11 into the elastic reel 6, without manual sorting, and the use is simple and convenient. The minimum thickness of 12 is greater than the maximum width of opening 7, which ensures that bar magnet 12 will not be received into elastic roll 6, causing trouble in use.

And by fixedly installing the limiter 13 on the surface of the elastic drum 6, when the bar magnet 12 is moved to a proper position, the push block 134 is pushed, so that the sliding column 132 and the push block 134 move together in the direction of the opening 7, limiting the The bit block 133 is in contact with the cloth tape 11 to generate friction, which prevents the cloth tape 11 from moving, so that the cloth tape 11 will not move during the painting process, which affects the painting activity. It can be retracted into the elastic drum 6 with normal movement.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus. Without further limitation, an element qualified by the phrase "comprising a..." does not preclude the presence of additional identical elements in a process, method, article or apparatus that includes the element.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. an art painting frame for students that is convenient for fixing drawing paper, comprising a drawing board (1), it is characterized in that: the bottom of the drawing board (1) is fixedly installed with a support frame (2), and the support frame (2) is An anti-skid block (3) is fixedly installed at the bottom, two paper pressing clips (4) are arranged on the upper frame of the drawing board (1), and a pen holder (5) is fixedly installed on the lower frame of the drawing board (1). An elastic reel (6) is fixedly installed on the left and right sides of (1), an opening (7) is formed on the surface of the elastic reel (6), and a connecting block is fixedly installed on the surface of the elastic reel (6). (601), the connecting block (601) is fixedly connected with the drawing board (1), the center shaft (8) is fixedly installed inside the elastic reel (6), and the spiral elastic force is arranged inside the elastic reel (6) Sheet (9), a rotating drum (10) is rotatably connected inside the elastic reel (6), one end of the spiral elastic sheet (9) is fixedly connected to the outer wall of the central shaft (8), and the spiral elastic sheet (9) is The other end is fixedly connected to the inner wall of the rotating drum (10), a cloth tape (11) is arranged between the rotating drum (10) and the inner wall of the elastic drum (6), and one end of the cloth tape (11) is fixedly connected to the rotating drum (10). The outer wall of the drum (10), the other end of the cloth tape (11) extends to the outside of the elastic drum (6) through the opening (7), and the end of the cloth tape (11) away from the elastic drum (6) is fixedly installed with a A bar magnet (12), three stoppers (13) are fixedly installed on the surface of the elastic reel (6), and an arc baffle (14) is fixedly installed on the top of the pen holder (5). 2 . The art drawing stand for students according to claim 1 , wherein a magnetic interlayer ( 101 ) is provided inside the drawing board ( 1 ). 3 . 3 . The art drawing stand for students according to claim 1 , wherein the minimum thickness of the bar magnet ( 12 ) is greater than the maximum width of the opening ( 7 ). 4 . 4 . The art drawing stand for students according to claim 1 , wherein the length of the cloth tape ( 11 ) is greater than half of the distance between the left and right ends of the drawing board ( 1 ). 5 . 5. A kind of art drawing stand for students which is convenient for fixing drawing paper according to claim 1, is characterized in that: the bottom of the paper pressing clip (4) extends laterally, and the clip opening of the paper pressing clip (4) is Matte design. 6 . The art drawing stand for students according to claim 1 , wherein the stopper ( 13 ) comprises a casing ( 131 ), and the casing ( 131 ) is fixedly installed. 7 . On the surface of the elastic drum (6), a channel is opened inside the casing (131), a sliding column (132) is arranged inside the casing (131), and the sliding column (132) penetrates the casing through the channel The body (131) is slidably connected to the housing (131), the end of the sliding column (132) close to the opening (7) is fixedly installed with a limiting block (133), and the end of the sliding column (132) away from the opening (7) A push block (134) is fixedly installed.
