Simple rehabilitation training device for lower limb hemiplegia patient
Technical Field
The embodiment of the utility model provides a relate to rehabilitation training apparatus technical field, concretely relates to simple and easy rehabilitation training device for low limbs hemiplegia patient.
Background
With this trend becoming more severe, the number of hemiplegic patients caused by various diseases in the aged population is also sharply increased, resulting in a continuous decrease in the mobility of limbs of the aged, which causes much inconvenience to their daily lives. Meanwhile, the number of patients with limb injuries is increased greatly due to the frequent occurrence of traffic accidents.
After the patients with limb movement dysfunction are treated by timely medical treatment, scientific and effective daily rehabilitation training plays an indispensable role in recovering and improving the limb movement function of the patients. The long-time correct rehabilitation training can recover the contraction and relaxation capacity of muscles, maintain the mobility of joints and prevent joint contracture, thereby obviously improving the rehabilitation condition of patients. The later-period rehabilitation therapy of the hemiplegic patient also mainly depends on the long-term one-to-one training of the patient by a medical doctor, and the requirements of strong repeatability, strong pertinence and high strength on the rehabilitation training are difficult to meet. In contrast, a limb rehabilitation device for self-treatment at home is introduced in the market.
The existing lower limb rehabilitation equipment has the following defects:
(1) the common lower limb rehabilitation equipment has a complex structure and a large volume, and needs a rehabilitation patient to actively carry out leg rehabilitation exercise, because the rehabilitation equipment cannot be guided by nursing staff in places such as home and the like, because the training method is improper, the training effect cannot be achieved, secondary injury of the patient is possibly caused, and a larger burden is brought to the family of the patient;
(2) since a human body maintains one motion for a long time in the process of leg rehabilitation, the pressure of leg muscles is easily increased.
SUMMERY OF THE UTILITY MODEL
Therefore, the embodiment of the utility model provides a simple rehabilitation training device for lower limb hemiplegia patients, which utilizes the stretching of the arm driving pulley block to drive the leg to move, and the leg moves passively, thus reducing the secondary damage to the leg of the rehabilitee caused by the irregular motion of the leg; the massage air bags which are continuously inflated and deflated are utilized to massage the lower limbs on the leg massage supporting plates, so that the motor functions of the lower limbs of a patient are gradually improved, and the problems that the secondary damage of the patient is caused by the active movement of the lower limbs and one action muscle is easy to fatigue after being maintained for a long time in the prior art are solved.
In order to achieve the above object, the embodiment of the present invention provides the following technical solutions:
a simple rehabilitation training device for lower limb hemiplegia patients comprises a leg massage supporting plate, a guide device and a pulley block, wherein the guide device comprises a guide rail and a supporting slide block which is slidably mounted on the guide rail, and the leg massage supporting plate is detachably mounted on the supporting slide block; the pulley block is selectively arranged at the top end or the bottom end of the guide rail, and a return spring is connected between one end of the guide rail provided with the pulley block and the supporting sliding block; an elastic pull rope is wound on the pulley block, one end of the elastic pull rope is connected with the supporting slide block, and a handle grip is arranged at the other end of the elastic pull rope.
The embodiment of the utility model is further characterized in that the leg massage supporting plate comprises a supporting plate body with a cavity inside, and a pressure-relieving air bag, a massage air bag connected with the pressure-relieving air bag and an air-compressing push plate for extruding the massage air bag from one side are sequentially arranged in the cavity of the supporting plate body; the inner cavity wall of the supporting plate body is provided with a slide rail, and the air compression push plate is slidably arranged on the slide rail; be provided with limit baffle on the inboard slide rail of push pedal calms the anger, the outside of push pedal calms the anger is equipped with the connection the compression spring of this tip of layer board, the push pedal calms the anger is connected with tensile rope, the end of tensile rope with the ware of shaking hands is connected.
The embodiment of the utility model provides a characterized in that still, be provided with the stopper on the elasticity stay cord between ware of shaking hands and the assembly pulley.
The embodiment of the utility model provides a characterized in that still, the top of layer board body is equipped with the board that passes through of intercommunication cavity, be provided with a plurality of massage thru holes on the board that passes through, after aerifing massage gasbag part passes the massage thru hole.
The utility model discloses the characteristic still lies in, be provided with flexible bandage on the support slider.
The embodiment of the utility model provides a have following advantage:
(1) the utility model has simple structure, small volume and convenient use at home; the arm drives the pulley block to stretch to drive the leg to move, so that not only can the strength be saved, but also the active training mode of the leg can be adjusted into a passive training mode, the secondary damage to the leg of a rehabilitee caused by the irregular motion of the leg is reduced, and the rehabilitation efficiency is improved;
(2) the utility model discloses utilize constantly to aerify the massage gasbag of gassing and massage the low limbs that are located shank massage layer board, the effectual muscle pressure that has alleviateed to make each motor function of patient's low limbs progressively improve, help the patient to be recovered early.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below. It should be apparent that the drawings in the following description are merely exemplary, and that other embodiments can be derived from the drawings provided by those of ordinary skill in the art without inventive effort.
The structure, ratio, size and the like shown in the present specification are only used for matching with the content disclosed in the specification, so as to be known and read by people familiar with the technology, and are not used for limiting the limit conditions which can be implemented by the present invention, so that the present invention has no technical essential significance, and any structure modification, ratio relationship change or size adjustment should still fall within the scope which can be covered by the technical content disclosed by the present invention without affecting the efficacy and the achievable purpose of the present invention.
Fig. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is a schematic overall structure diagram of another embodiment of the present invention;

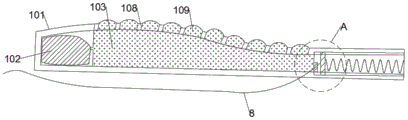

fig. 3 is a schematic view of the whole structure of the leg massage splint of the present invention;
fig. 4 is an enlarged schematic structural diagram of a in fig. 3 according to the present invention.
In the figure:
1-leg massage supporting plate; 2-a guiding device; 3, pulley block; 4-a return spring; 5-elastic pull rope; 6-a handshake; 7-a limiting block; 8-stretching the rope; 9-a telescopic strap;
101-a pallet body; 102-a pressure relief air bag; 103-massage air bag; 104-a compressed air push plate; 105-a slide rail; 106-a limit stop; 107-compression spring; 108-a transparent plate; 109-massage through holes;
201-a guide rail; 202-supporting the slide.
Detailed Description
The present invention is described in terms of specific embodiments, and other advantages and benefits of the present invention will become apparent to those skilled in the art from the following disclosure. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1 to 4, the utility model provides a simple rehabilitation training device for lower limb hemiplegia patients, which comprises a pneumatic leg massage supporting plate 1 with a leg massage function, a guiding device 2 and a pulley block 3 for saving power. The pulley block 3 can select the number and the combination mode of the pulleys according to the labor saving amount and the specific crowd.
The guide means 2 comprises a guide rail 201 and a support block 202 slidably mounted on the guide rail 201, and the leg massage support plate 1 is detachably mounted on the support block 202. Preferably, the support slider 202 is provided with a telescopic strap 9. The expansion band 9 is used to bind the leg massage splint 1 to the support slider 202. The pulley block 3 is selectively installed at the top end or the bottom end of the guide rail 201, and a return spring 4 is connected between one end of the guide rail 201 where the pulley block 3 is installed and the supporting sliding block 202. An elastic pull rope 5 is wound on the pulley block 3, one end of the elastic pull rope 5 is connected with the supporting slide block 202, and the other end of the elastic pull rope 5 is provided with a hand grip 6.
As a preferred embodiment: when the pulley block 3 is positioned at the upper end of the guide rail 201, the rehabilitation personnel stretch the elastic pull rope 5 wound on the pulley block 3 through the hand grip 6. Under the stretching action of the elastic pull rope 5, the leg massage supporting plate 1 slides in the guide rail 201 along with the supporting slide block 202. After the leg massage supporting plate 1 is lifted to a certain height, the hand grip 6 is slowly loosened, and the leg massage supporting plate 1 is lowered to the initial height under the action of the return spring 4; when the pulley block 3 is positioned at the lower end of the guide rail 201, the rehabilitation personnel stretch the elastic pull rope 5 wound on the pulley block 3 through the hand grip 6. Under the stretching action of the elastic pull rope 5, the leg massage supporting plate 1 slides in the guide rail 201 along with the supporting slide block 202. After the leg massage supporting plate 1 descends to a certain height, the hand grip 6 is slowly loosened, and the leg massage supporting plate 1 is lifted to the initial height under the action of the return spring 4; in order to prevent the loosening hand shaking device 6 from being excessive, a limiting block 7 is arranged on the elastic pull rope 5 between the hand shaking device 6 and the pulley block 3. The elastic pull rope 5 stops relaxing when the elastic pull rope is relaxed to the limiting block 7, the elastic pull rope 5 is stretched instead, and the process is repeated, so that the lower limbs on the two sides move alternately, the lower limbs perform passive movement, and the muscle atrophy is prevented. The rehabilitee can selectively mount the pulley block 3 on the top end or the bottom end of the guide rail 201 according to the personal application preference. Meanwhile, a variable frequency power device can be used for replacing the manual stretching elastic pull rope 5 so as to automatically control the motion frequency and the motion amplitude of the leg massage supporting plate 1 according to the requirement.
Since a human body maintains one motion for a long time in the process of leg rehabilitation, the pressure of leg muscles is easily increased. The pressure of the leg of the rehabilitee can be relieved by the leg massage splint 1. The leg massage splint 1 comprises a splint body 101 with a cavity inside, wherein a pressure-relieving air bag 102, a massage air bag 103 connected with the pressure-relieving air bag 102 and an air-compressing push plate 104 for compressing the massage air bag 103 from one side are sequentially arranged in the cavity of the splint body 101; the inner cavity wall of the supporting plate body 101 is provided with a slide rail 105, and the air compression push plate 104 is slidably arranged on the slide rail 105; be provided with limit baffle 106 on the slide rail 105 of push pedal 104 inboard calmly anger, calm anger push pedal 104's the outside and be equipped with the compression spring 107 of connecting the layer board body 101 tip, calm anger push pedal 104 is connected with tensile rope 8, and the end and the ware 6 of shaking hands of tensile rope 8 are connected. Preferably, a through plate 108 communicated with the cavity is arranged above the supporting plate body 101, a plurality of massage through holes 109 are arranged on the through plate 108, and the inflated massage air bag 103 partially penetrates through the massage through holes 109.
As a preferred embodiment: when the hand grip 6 pulls the stretching rope 8, the air compressing push plate 104 extrudes the massage air bag 103, so that the air in the massage air bag 103 enters the pressure-relieving air bag 102, and the massage air bag 103 is in an insufficient air flow state; when the tensile rope 8 is slowly loosened, the air pressing push plate 104 is far away from the massage air bag 103 under the action of the elastic force of the compression spring 107, so that the air in the slow pressure air bag 102 reenters the massage air bag 103, and the air quantity of the massage air bag 103 is sufficient. The massage balloon 103 is contacted with the leg of the rehabilitee through the massage through hole 109 of the penetration plate 108. The above steps are repeated, and the leg of the patient is massaged. When in use, the hand grip 6 is pulled to simultaneously stretch the stretching rope 8 and the elastic pull rope 5, thereby realizing synchronous massage and rehabilitation operation.
Although the invention has been described in detail with respect to the general description and the specific embodiments, it will be apparent to those skilled in the art that modifications and improvements can be made based on the invention. Therefore, such modifications and improvements are intended to be within the scope of the invention as claimed.

Claims (5)

1. The utility model provides a simple and easy rehabilitation training device for lower limbs hemiplegia patient which characterized in that: the leg massage device comprises a leg massage supporting plate (1), a guiding device (2) and a pulley block (3), wherein the guiding device (2) comprises a guiding rail (201) and a supporting sliding block (202) which is slidably installed on the guiding rail (201), and the leg massage supporting plate (1) is detachably installed on the supporting sliding block (202); the pulley block (3) is selectively arranged at the top end or the bottom end of the guide rail (201), and a return spring (4) is connected between one end of the guide rail (201) provided with the pulley block (3) and the supporting sliding block (202); an elastic pull rope (5) is wound on the pulley block (3), one end of the elastic pull rope (5) is connected with the supporting sliding block (202), and a handle grip (6) is arranged at the other end of the elastic pull rope (5).
2. The improvised rehabilitation training device for lower limb hemiplegia patients according to claim 1, characterized in that: the leg massage supporting plate (1) comprises a supporting plate body (101) with a cavity inside, wherein a pressure-relieving air bag (102), a massage air bag (103) connected with the pressure-relieving air bag (102) and an air-compressing push plate (104) for extruding the massage air bag (103) from one side are sequentially arranged in the cavity of the supporting plate body (101); the inner cavity wall of the supporting plate body (101) is provided with a sliding rail (105), and the air compression push plate (104) is slidably mounted on the sliding rail (105); be provided with limit baffle (106) on slide rail (105) of push pedal (104) inboard calmly, calm the anger the outside of push pedal (104) and be equipped with the connection compression spring (107) of layer board body (101) tip, calm the anger push pedal (104) and be connected with tensile rope (8), the end of tensile rope (8) with ware (6) of shaking hands are connected.
3. The improvised rehabilitation training device for lower limb hemiplegia patients according to claim 1, characterized in that: and a limiting block (7) is arranged on the elastic pull rope (5) between the handle grip (6) and the pulley block (3).
4. The improvised rehabilitation training device for lower limb hemiplegia patients according to claim 2, characterized in that: a through plate (108) communicated with the cavity is arranged above the supporting plate body (101), a plurality of massage through holes (109) are formed in the through plate (108), and the inflated massage air bag (103) partially penetrates through the massage through holes (109).
5. The improvised rehabilitation training device for lower limb hemiplegia patients according to claim 1, characterized in that: the supporting sliding block (202) is provided with a telescopic binding band (9).
