Abstract

The utility model discloses a lumbar intervertebral disc herniation traction frame, which comprises a base, a column, two axillary support plates, two iliac pressure plates, a lumbar traction mechanism and a waist massage device. The column is fixed on the base, and the two Each axillary support plate is placed on the patient's two armpits and connected with the upper end of the column through two upper clamping arms respectively; the lumbar traction mechanism is installed in the middle of the column, and the two iliac bone pressure plates are pressed on the patient's iliac bone and are respectively located on both sides of the patient, each ilium pressure plate is connected with the lumbar spine pulling mechanism through a lower clip arm, and the waist massage device is installed on the upright column and corresponds to the patient's waist. The utility model cleverly combines the traction and massage devices on the same frame, and can perform traction and massage therapy at the same time, which not only effectively improves the treatment efficiency and treatment effect of lumbar intervertebral disc herniation disease, but also reduces the treatment cost, and occupies a smaller area than Both traditional traction beds and massage beds are much smaller and are suitable for home use and various medical facilities.

Description

A lumbar disc herniation traction frame

technical field

The utility model relates to a lumbar intervertebral disc herniation traction frame capable of simultaneously performing two kinds of physical therapy, which can effectively treat the lumbar intervertebral disc herniation disease, and belongs to the technical field of medical devices.

Background technique

Lumbar intervertebral disc herniation is a common low back disease, which can be caused by many reasons, such as poor sitting and standing posture, long-term bending or heavy physical labor, long-term desk work, often looking down at mobile phones and so on. At present, the methods of treating lumbar disc herniation mainly include drug therapy, physical therapy and surgery. Because of the limitations and risks associated with drug therapy and surgery, people prefer physical therapy.

Physical therapy includes traction and massage. Traction therapy generally requires the patient to lie flat on a traction bed and perform treatment by applying stretching force to the lumbar spine and surrounding muscles. The disadvantage of this therapy is that the traction bed occupies a large area and its use site has great limitations. Tuina is a targeted massage on the lesion site, but the cost of manual massage is high and the curative effect is greatly affected by human factors, so there are certain risks. Using a massage bed for treatment can effectively reduce the cost of treatment and reduce the risk of treatment. However, due to the different heights of different patients, it is generally difficult for the waist massage device installed on the fixed position of the bed to be aligned with the patient's waist, which seriously affects the treatment effect.

Clinical experience shows that the combination therapy of traction and massage can achieve better therapeutic effects, but the existing medical devices for lumbar disc herniation have a single function and can only provide one therapy. To implement combination therapy, only traction can be used alternately. The use of bed and massage bed for treatment not only prolongs the treatment time, reduces the treatment efficiency, but also greatly reduces the efficacy. Therefore, it is very necessary to design a lumbar disc herniation medical device that can perform two kinds of physical therapy at the same time.

Utility model content

The purpose of the utility model is to provide a lumbar disc herniation traction frame capable of performing traction and massage therapy at the same time in view of the disadvantages of the prior art, so as to improve the treatment efficiency and treatment effect of lumbar intervertebral disc herniation diseases and reduce the treatment cost.

To achieve the above object, the utility model adopts the following technical solutions:

A traction frame for lumbar intervertebral disc protrusion comprises a base, a column, two axillary support plates, two iliac pressure plates, a lumbar traction mechanism and a waist massage device. The column is fixed on the base, and two axillary support plates are provided. The plates are respectively placed on the patient's two armpits and are respectively connected with the upper end of the column through two upper clamping arms; the lumbar traction mechanism is installed in the middle of the column, and the two iliac bone pressure plates are pressed on the patient's iliac bone and are respectively located in the patient. On both sides, each iliac bone pressing plate is connected with the lumbar spine pulling mechanism through a lower clamping arm, and the waist massage device is installed on the upright column and corresponds to the waist of the patient.

In the above-mentioned lumbar disc herniation traction frame, the lumbar traction mechanism includes a vertical guide rail, a lifting block, a traction motor, a traction gear and a traction rack, the vertical guide rail is fixed in the middle of the column, and the lifting block slides with the vertical guide rail. The traction motor is fixed on the column, the traction gear is fixed on the output shaft of the traction motor, the traction rack is parallel to the vertical guide rail and meshes with the traction gear, and one end of the traction rack is fixedly connected to the lifting block , the lower clamping arm connected with the two iliac bone pressing plates is connected with the lifting block.

The above-mentioned lumbar intervertebral disc protrusion traction frame, the waist massage device includes an abdominal block, a sliding bracket, a height adjustment device, a pressing gear, a pressing motor, a pressing rack, a guide sleeve, a horizontal ejector, an arc plate and Electromagnetic massager, the abdominal block is attached to the abdomen of the patient and connected to the base through a bracket, the sliding bracket is slidably connected to the vertical guide rail, and the height adjustment device is installed on the column and connected to the sliding bracket; the top The pressing motor is fixed on the sliding bracket, the top pressing gear is fixed on the output shaft of the pressing motor and meshes with the pressing rack, the guide sleeve is fixed on the sliding bracket, and the horizontal top rod sliding sleeve In the guide sleeve, one end of the horizontal ejector rod is butted with the ejection rack, and the other end is fixed with an arc-shaped plate. The electromagnetic massager is installed on the arc-shaped plate. Symmetrical arrangement.

In the above-mentioned lumbar disc protrusion traction frame, the height adjustment device includes a height adjustment motor, a height adjustment gear and a height adjustment rack, the height adjustment motor is fixed on the column; the height adjustment gear is fixed on the output shaft of the height adjustment motor The height-adjusting rack is parallel to the vertical guide rail and meshes with the height-adjusting gear, and one end of the height-adjusting rack is fixedly connected with the sliding bracket.

In the above-mentioned lumbar intervertebral disc protrusion traction frame, the base is provided with a lifting platform and a lifting cylinder, the lifting cylinder is vertically fixed on the base, and the lifting platform is fixed on the upper end of the piston rod of the lifting cylinder.

The above-mentioned lumbar intervertebral disc protrusion traction frame, the two upper clamping arms are connected with the upright column through a synchronous opening and closing mechanism, and the synchronous opening and closing mechanism comprises a bracket, an upper shaft brake, two mutually parallel upper rotating shafts and two upper synchronizing gears, so The bracket is fixed on the upright column, the two upper rotating shafts pass through the vertical through holes on the bracket and are rotatably connected with the bracket, an upper clamping arm is fixed on each upper rotating shaft, and the two upper synchronizing gears are meshed with each other and fixed respectively. On the two upper shafts, the upper shaft brake is fixed on the column and connected with one upper shaft.

The above-mentioned lumbar intervertebral disc herniation traction frame, the lower clamping arm connected with the two iliac bone pressure plates is connected with the lifting block through a synchronous tensioning and closing mechanism, and the synchronous tensioning and closing mechanism includes a lower shaft brake, two mutually parallel lower rotation shafts and two lower shafts. Synchronous gear, two lower rotating shafts pass through the vertical through holes on the lifting block and are rotatably connected with the lifting block, a lower clamping arm is fixed on each lower rotating shaft, and the two lower synchronizing gears mesh with each other and are respectively fixed on the two lower rotating shafts Above, the lower shaft brake is fixed on the lifting block and connected with a lower rotating shaft.

In the above-mentioned lumbar intervertebral disc herniation traction frame, an electromagnetic vibrator is provided on the part of the iliac bone pressure plate corresponding to the patient's iliac bone.

In the above-mentioned lumbar disc herniation traction frame, the upper shaft brake and the lower shaft brake are both electromagnetic clutch brakes.

The utility model cleverly combines the traction and massaging devices on the same frame, and can perform traction and massage therapy at the same time, which not only effectively improves the treatment efficiency and treatment effect of lumbar intervertebral disc herniation diseases, but also reduces the treatment cost, and occupies a smaller area than Both traditional traction beds and massage beds are much smaller and are suitable for home use and various medical facilities.

Description of drawings

The present utility model will be described in further detail below with reference to the accompanying drawings and specific embodiments.

Figure 1 is a schematic diagram of lumbar spine stretching;

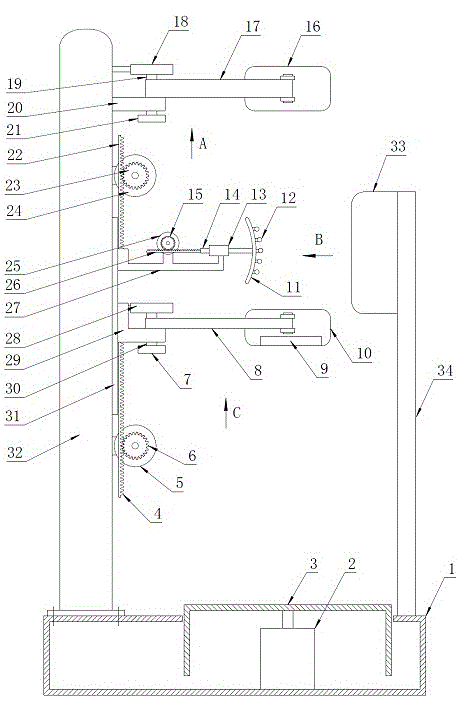

Fig. 2 is the structural representation of the present utility model;

Fig. 3 is A-direction view;

Fig. 4 is B-direction view;

FIG. 5 is a C-direction view.

The symbols in the figure are as follows: 1. Base, 2. Lifting cylinder, 3. Lifting table, 4. Traction rack, 5. Traction motor, 6. Traction gear, 7, Lower synchronizing gear, 8, Lower clamp arm, 9 , Electromagnetic vibrator, 10, Ilium pressure plate, 11, Arc plate, 12, Electromagnetic massager, 13, Guide sleeve, 14, Horizontal ejector rod, 15, Top pressure gear, 16, Axillary support plate, 17, Upper clamp arm, 18, Upper shaft brake, 19, Upper shaft, 20, Bracket, 21, Upper synchronizing gear, 22, Height adjustment rack, 23, Height adjustment gear, 24, Height adjustment motor, 25, Top pressure Machine, 26, Top pressure rack, 27, Sliding bracket, 28, Lower shaft brake, 29, Lifting block, 30, Lower shaft, 31, Vertical guide rail, 32, Upright column, 33, Abdominal block, 34, Bracket.

Detailed ways

Lumbar intervertebral disc herniation is one of the most common diseases in orthopedics, which seriously affects the quality of life of patients. The use of intervertebral disc herniation traction frame to treat mild to moderate herniation can achieve good results. Referring to Fig. 1, the traction frame for lumbar intervertebral disc herniation utilizes the traction force and the reverse traction force to act on the lumbar spine, and achieves the purpose of treating lumbar intervertebral disc herniation by pulling in the opposite direction. Lumbar traction can increase the lumbar intervertebral space, mainly the lumbar 3, 4, 5, and sacral 1 space. Studies have shown that the lumbar intervertebral space is widened by 1.5-2.5 mm after traction, and the widening of the intervertebral space can make it a negative pressure, and the tension of the posterior longitudinal ligament is conducive to the recovery of the protruding nucleus pulposus or changing its shape. relationship with nerve roots. The increase of the intervertebral space and the opening of the facet joints restore the normal shape of the intervertebral foramen, thereby releasing the compression of the nerve root. Traction can also make the lumbar spine get enough rest, reduce the stimulation of exercise, help the absorption and subsidence of tissue congestion and edema, relieve muscle spasm and reduce intervertebral pressure. The utility model adopts a vertical traction frame, which is different from the traditional horizontal traction frame in that the patient is pulled in a standing position, which is more in line with biomechanics and ergonomics.

2 to 5, the utility model includes a base 1, a lifting cylinder 2, a lifting platform 3, a traction rack 4, a traction motor 5, a traction gear 6, a lower synchronizing gear 7, a lower clamping arm 8, and an electromagnetic vibrator 9. , Ilium pressure plate 10, arc plate 11, electromagnetic massager 12, guide sleeve 13, horizontal ejector rod 14, ejection gear 15, armpit support plate 16, upper clamp arm 17, upper shaft brake 18, upper shaft 19 , bracket 20, upper synchronizing gear 21, height adjustment rack 22, height adjustment gear 23, height adjustment motor 24, top pressure motor 25, top pressure rack 26, sliding bracket 27, lower shaft brake 28, lifting block 29 , the lower shaft 30 , the vertical guide rail 31 , the column 32 , the abdominal block 33 and the bracket 34 .

The two axillary support plates 16 are used to carry the patient's body and provide upward pulling force on the lumbar spine. The axillary support plates 16 are connected to the upright column 32 through the upper clamp arm 17. The gap between the plates 16 can be adjusted by the synchronous adjustment mechanism composed of the upper shaft brake 18 , the upper rotating shaft 19 , the bracket 20 and the upper synchronizing gear 21 , and is locked by the upper shaft brake 18 after the adjustment is completed.

The two iliac bone pressure plates 10 are pressed on the patient's iliac bone to exert downward pulling force on the lumbar spine, and the pulling force is provided by the lumbar spine pulling mechanism. The lumbar traction mechanism includes a traction rack 4 , a traction motor 5 , a traction gear 6 , a lifting block 29 and a vertical guide rail 31 . The gap between the two ilium pressure plates 10 can be adjusted and locked by the synchronous adjustment mechanism composed of the lower synchronous gear 7 , the lower shaft brake 28 and the lower rotating shaft 30 .

The waist massage device is used to correct and massage the patient's lumbar spine, including arc plate 11, electromagnetic massager 12, guide sleeve 13, horizontal ejector rod 14, ejection gear 15, height-adjusting rack 22, height-adjusting gear 23 , Height adjustment motor 24, top pressure motor 25, top pressure rack 26, sliding bracket 27 and abdominal block 33. The arc-shaped plate 11 is located at the back of the patient's waist, and is provided with an electromagnetic massager 12. The massage heads of the electromagnetic massager 12 are arranged in two rows. Each row of massage heads is arranged according to the physiological curve of the human lumbar spine. On both sides of the lumbar spine, in order to adapt to different patients, the position of the massage head can be fine-tuned. When the pressing motor 25 rotates, the horizontal top rod 14 can be driven to slide along the guide sleeve 13 by the pressing gear 15 and the pressing rack 26, thereby driving the arc plate 11 and the electromagnetic massager 12 to move in the horizontal direction. The height adjustment motor 24 can drive the sliding bracket 27 to move up and down along the vertical guide rail 31 through the height adjustment gear 23 and the height adjustment rack 22 , thereby driving the electromagnetic massager 12 to move up and down. Therefore, by controlling the height-adjusting motor 24 and the pressing motor 25, the electromagnetic massager 12 can be aligned with the patient's lumbar spine. The abdominal block 33 is used to limit the waist and abdomen of the patient to prevent the large displacement of the patient from being pushed by the electromagnetic massager 12 .

The function of the lift table 3 is to lift the patient to a suitable height, and then move down after the armpit support plate 16 supports the patient, so that the patient's feet are suspended and the body is in a state of natural sagging.

The electromagnetic massager 12 is a physiotherapy device for the patient to perform treatment and health care by himself. The physiotherapy device is composed of a permanent magnet and a motor with an eccentric weight. Changing the motor speed changes the massage frequency. Therefore, it has both mechanical massage effect and pulsating magnetic field effect. The device is simple in structure, easy to adjust, convenient to use, safe and reliable. The electromagnetic vibrator 9 is a motor with an eccentric weight.

Operation steps of the present utility model:

1. Adjust the distance between the two ilium pressure plates 10 and the distance between the two axillary support plates 16 to the maximum.

2. The patient stands on the lifting platform 3, the abdomen is opposite to the abdominal block 33, the lifting cylinder 2 is activated, and the lifting platform 3 rises. When the patient's axilla is higher than the axillary support plate 16, the lifting platform 3 stops rising.

3. Move the two axillary support plates 16 into the patient's two armpits, and adjust the height and spacing of the two iliac bone pressure plates 10 at the same time, so that the two are higher than the patient's iliac bone and adhere to both sides of the patient respectively, Then, the upper shaft 19 and the lower shaft 30 are locked by the upper shaft brake 18 and the lower shaft brake 28, so that the distance between the two ilium pressure plates 10 and the distance between the two axillary support plates 16 will not change.

4. The lifting platform 3 is lowered, so that the patient's feet are suspended, and the body is hung on the two axillary support plates 16 .

5. Start the traction motor 5. The traction motor 5 drives the lifting block 29 downward through the traction gear 6 and the traction rack 4, and drives the two iliac bone pressure plates 10 to move downward, exerting a downward force on the patient's iliac bone to make the lumbar spine. withstand the appropriate stretch.

6. Activate the electromagnetic vibrator 9, so that the tensile force on the lumbar vertebra varies within a certain range, so as to enhance the therapeutic effect.

7. Start the height-adjusting motor 24 and the top-pressure motor 25, so that the electromagnetic massager 12 is aligned with the patient's lumbar vertebrae, and the electromagnetic massager 12 is started to perform massage therapy on both sides of the patient's lumbar vertebrae.

8. After reaching the set treatment time, turn off the electromagnetic massager 12 and the electromagnetic vibrator 9, the electromagnetic massager 12 retreats away from the patient's body, the lifting platform 3 rises to support the patient's feet, and the upper shaft brake 18 and the lower shaft brake 28 are unlocked , the patient leaves the lifting platform 3, and the treatment is completed.

The traction frame can be controlled by medical staff, and can also be controlled by patients through the operation panel or remote control.

Claims (9)

1. A traction frame for lumbar intervertebral disc herniation, characterized in that the structure comprises a base (1), a column (32), two axillary support plates (16), two iliac pressure plates (10), a lumbar traction mechanism and a waist massage device, the upright (32) is fixed on the base (1), the two axillary support plates (16) are respectively pressed against the two armpits of the patient and are connected to the upright via the two upper clamping arms (17) respectively (32) The upper end is connected; the lumbar traction mechanism is installed in the middle of the upright column (32), and two ilium pressure plates (10) are pressed on the patient's ilium and are located on both sides of the patient, each ilium pressure plate (10) A lower clamping arm (8) is connected with the lumbar spine pulling mechanism, and the waist massage device is mounted on the upright column (32) and corresponds to the waist of the patient. 2. The lumbar disc herniation traction frame according to claim 1, wherein the lumbar traction mechanism comprises a vertical guide rail (31), a lifting block (29), a traction motor (5), a traction gear ( 6) and the traction rack (4), the vertical guide rail (31) is fixed in the middle of the column (32), the lifting block (29) is slidably connected with the vertical guide rail (31), the traction motor (5) Fixed on the upright column (32), the traction gear (6) is fixed on the output shaft of the traction motor (5), the traction rack (4) is parallel to the vertical guide rail (31) and is connected to the traction gear (6) Meshing, one end of the traction rack (4) is fixedly connected with the lifting block (29), and the lower clamping arm (8) connected with the two ilium pressure plates (10) is connected with the lifting block (29). 3. The lumbar disc herniation traction frame according to claim 2, wherein the waist massage device comprises an abdominal block (33), a sliding bracket (27), a height adjustment device, and a pressing gear (15) , top pressure motor (25), top pressure rack (26), guide sleeve (13), horizontal top rod (14), arc plate (11) and electromagnetic massager (12), the abdominal block (33) is attached to the patient's abdomen and connected to the base (1) through a bracket (34), the sliding bracket (27) is slidably connected to the vertical guide rail (31), and the height adjustment device is installed on the upright column (32) and connected with the sliding bracket (27); the pressing motor (25) is fixed on the sliding bracket (27), and the pressing gear (15) is fixed on the output shaft of the pressing motor (25) and is connected with the sliding bracket (27). The pushing rack (26) is engaged, the guide sleeve (13) is fixed on the sliding bracket (27), the horizontal push rod (14) is slidably sleeved in the guide sleeve (13), and the horizontal push rod (14) ) is docked with the top pressing rack (26), the other end is fixed with the arc-shaped plate (11), and the electromagnetic massager (12) is installed on the arc-shaped plate (11). The massage heads are arranged symmetrically on both sides of the patient's lumbar spine. The traction frame for lumbar intervertebral disc herniation according to claim 3, wherein the height adjustment device comprises a height adjustment motor (24), a height adjustment gear (23) and a height adjustment rack (22), The height-adjusting motor (24) is fixed on the upright column (32); the height-adjusting gear (23) is fixed on the output shaft of the height-adjusting motor (24), and the height-adjusting rack (22) is parallel to the vertical guide rail (31) and mesh with the height-adjusting gear (23), and one end of the height-adjusting rack (22) is fixedly connected with the sliding bracket (27). 5. A lumbar disc herniation traction frame according to claim 4, characterized in that a lift table (3) and a lift cylinder (2) are provided on the base (1), and the lift cylinder (2) ) is vertically fixed on the base (1), and the lifting platform (3) is fixed on the upper end of the piston rod of the lifting oil cylinder (2). 6. The lumbar disc herniation traction frame according to claim 5, wherein the two upper clamping arms (17) are connected to the upright column (32) through a synchronous opening and closing mechanism, and the synchronous opening and closing mechanism comprises a bracket (20), an upper shaft brake (18), two mutually parallel upper rotating shafts (19) and two upper synchronizing gears (21), the bracket (20) is fixed on the upright column (32), the two upper rotating shafts (19) passes through the vertical through hole on the bracket (20) and is rotatably connected to the bracket (20). Each upper rotating shaft (19) is fixed with an upper clamping arm (17), two upper synchronizing gears (21) ) are meshed with each other and are respectively fixed on the two upper shafts (19), the upper shaft brakes (18) are fixed on the upright column (32) and connected with an upper shaft (19). 7. A lumbar disc herniation traction frame according to claim 6, characterized in that the lower clamping arm (8) connected with the two ilium pressure plates (10) is connected with the lifting block (29) through a synchronous tensioning and closing mechanism , the synchronous tensioning mechanism includes a lower shaft brake (28), two mutually parallel lower rotating shafts (30) and two lower synchronizing gears (7), and the two lower rotating shafts (30) pass through the lifting block (29). The vertical through-holes are connected with the lifting block (29) in rotation, a lower clamping arm (8) is fixed on each lower rotating shaft (30), and the two lower synchronizing gears (7) are meshed with each other and fixed on the two lower rotating shafts respectively. (30), the lower shaft brake (28) is fixed on the lifting block (29) and connected with a lower rotating shaft (30). 8 . The traction frame for lumbar intervertebral disc protrusion according to claim 7 , wherein an electromagnetic vibrator ( 9 ) is provided on the part of the ilium pressure plate ( 10 ) corresponding to the patient's ilium. 9 . 9 . The lumbar disc herniation traction frame according to claim 8 , wherein the upper shaft brake ( 18 ) and the lower shaft brake ( 28 ) are both electromagnetic clutch brakes. 10 .
