A file cabinet document classification and query device

technical field

The utility model relates to the field of file cabinets, in particular to a document classification and query device for a file cabinet.

Background technique

File cabinets are cabinets for placing documents, materials, etc., and are generally used in offices, archives, reference rooms, storage rooms or personal study rooms. Glass cabinets, spray matt double doors and double section file cabinets, spray matt two bucket sliding door combination cabinets, iron cabinets, etc.

When the existing file cabinet is in use, the documents required by the staff cannot be automatically pushed out, which is inconvenient for the staff to pick up and place the documents, and is not conducive to widespread use.

Therefore, it is necessary to provide a filing cabinet document classification and query device to solve the above technical problems.

Utility model content

The utility model provides a file classification and query device for a file cabinet, which solves the problem that the existing file cabinet cannot push out the documents required by the staff when it is in use.

In order to solve the above-mentioned technical problems, the document classification and query device for a file cabinet provided by the present invention comprises: a file cabinet body; , the bottom of the storage cabinet slides on the top of the partition; the push mechanism, the top of the push mechanism is fixed on the bottom of the partition.

Preferably, the push mechanism includes a push frame, a push motor, a threaded rod, a threaded block, a push rod and a limit block, the top of the push frame is fixed to the bottom of the partition plate, and one side of the push motor is fixed On one side of the inner wall of the push frame, the inner thread of the threaded block is threaded on the surface of the threaded rod, the bottom of the threaded block and the bottom of the inner wall of the push frame, and the bottom end of the push rod is fixed On the top of the threaded block, the top end of the push rod penetrates the push frame and the partition plate in sequence and extends to the top of the partition plate, and the top end of the push rod is fixedly connected to the bottom of the storage cabinet .

Preferably, the interior of the limiting block is fixed to one side of the surface of the threaded rod.

Preferably, a nameplate is fixedly connected to the surface of the partition plate, a control switch is arranged on the surface of the partition plate and located on the right side of the nameplate, and an indicator light is arranged on the surface of the control switch.

Preferably, both sides of the bottom of the filing cabinet body are fixedly connected with support legs, and a moving slot is provided on the partition.

Preferably, a query mechanism is fixedly connected to the left side of the surface of the filing cabinet body, and the query mechanism includes a query box, a liquid crystal touch screen, a processor, a hard disk, a memory module, a power module and a charging interface, and the back of the query box It is fixed on the left side of the surface of the filing cabinet body, the back of the liquid crystal touch screen is arranged on the surface of the query frame, and the processor, hard disk, memory module, power module and charging interface are all arranged on the liquid crystal touch screen superior.

Preferably, the liquid crystal touch screen, the processor, the hard disk, the memory module, the power module and the charging interface are electrically connected through wires.

Compared with the related art, the filing cabinet document classification and query device provided by the present invention has the following beneficial effects:

The utility model provides a file classification and query device for a file cabinet. When a staff inquires about the location of the file they need, they can find the corresponding storage cabinet through the information recorded on the nameplate. The staff opens the cabinet door and presses the control corresponding to the nameplate. The switch starts the push motor, the push motor works to drive the threaded rod to rotate, the threaded rod drives the threaded block to move, the threaded block drives the push rod to move, and the push rod drives the storage cabinet to move, so that the storage cabinet moves forward, so that the staff can take out the required documents. , The operation is simple and practical, which is conducive to widespread use. This device can be used on file cabinets of various styles and sizes. There are no specific requirements for the original style and size of the file cabinet. It is easy to use. Just search the required file keywords, touch screen control, no special learning is required.

Description of drawings

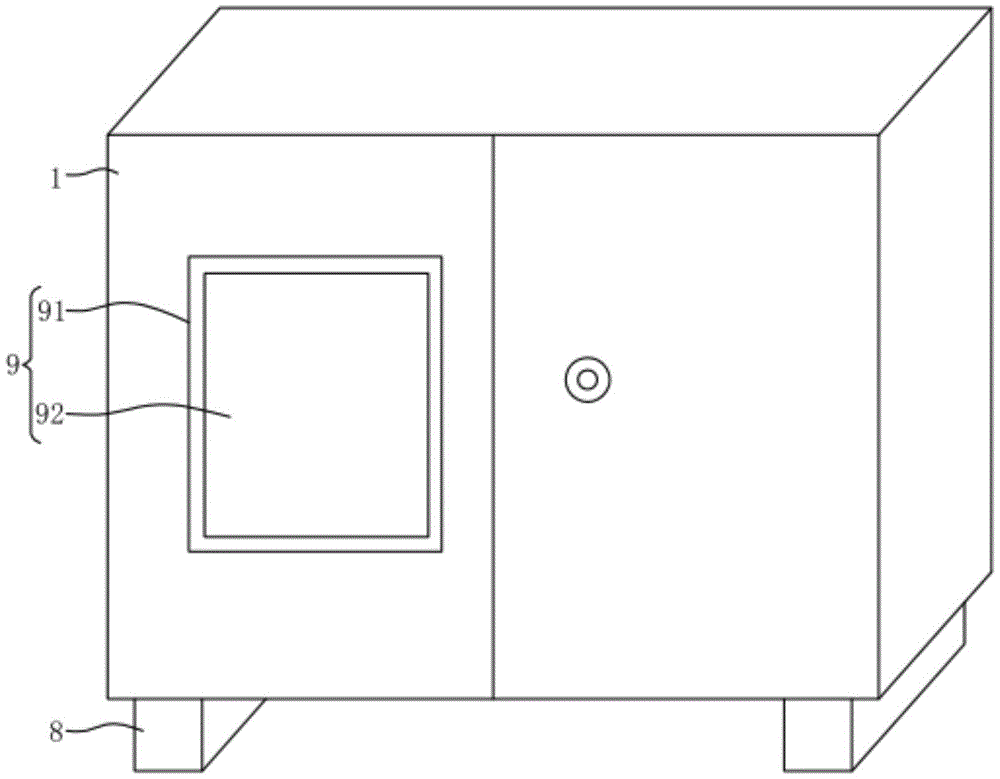

1 is a schematic structural diagram of a preferred embodiment of a file cabinet document classification and query device provided by the present invention;

Fig. 2 is the structural representation inside the filing cabinet body shown in Fig. 1;

Figure 3 is a left side view of the interior of the filing cabinet body shown in Figure 1;

Fig. 4 is the exploded structure diagram of the storage cabinet shown in Fig. 3, partition plate and push mechanism;

Fig. 5 is the structural representation of the separator shown in Fig. 1;

Schematic diagram of the internal structure of the liquid crystal touch screen shown in FIG. 6;

Fig. 7 is the principle block diagram of the utility model system;

FIG. 8 is a control circuit diagram of the push motor of the present invention.

Labels in the figure: 1. File cabinet body, 2. Clapboard, 3. Storage cabinet, 4. Pushing mechanism, 41. Pushing frame, 42. Pushing motor, 43. Threaded rod, 44. Threaded block, 45. Pushing rod, 46, limit block, 5, nameplate, 6, control switch, 7, indicator light, 8, support leg, 9, inquiry mechanism, 91, inquiry box, 92, LCD touch screen, 93, processor, 94, hard disk, 95 , memory module, 96, power module, 97, charging interface, 10, mobile slot.

Detailed ways

The present utility model will be further described below with reference to the accompanying drawings and embodiments.

Please refer to Fig. 1, Fig. 2, Fig. 3, Fig. 4, Fig. 5, Fig. 6, Fig. 7 and Fig. 8, wherein, Fig. 1 is a preferred implementation of the file cabinet document classification and query device provided by the present invention Figure 2 is a schematic structural diagram of the interior of the filing cabinet body shown in Figure 1; Figure 3 is a left side view of the interior of the filing cabinet body shown in Figure 1; Figure 4 is a storage cabinet and a partition shown in Figure 3. Figure 5 is a schematic diagram of the structure of the partition shown in Figure 1; Figure 6 is a schematic diagram of the internal structure of the liquid crystal touch screen; Figure 7 is a system principle block diagram of the present invention; Figure 8 is a schematic diagram of the present invention The control circuit diagram of the push motor. The filing cabinet document classification and query device includes: a filing cabinet body 1; a partition 2, two sides of the partition 2 are respectively fixed on both sides of the inner wall of the filing cabinet body 1, and the number of the partitions 2 is three; Storage cabinet 3, the bottom of the storage cabinet 3 slides on the top of the partition 2, the top of the storage cabinet 3 is unobstructed, and the number of storage cabinets 3 is multiple, preferably 12, which can be set according to needs; A push mechanism 4, the top of the push mechanism 4 is fixed on the bottom of the partition 2, and the number of the push mechanism 4 is consistent with the number of the storage cabinets 3.

The push mechanism 4 includes a push frame 41, a push motor 42, a threaded rod 43, a threaded block 44, a push rod 45 and a limit block 46. The top of the push frame 41 is fixed to the bottom of the partition 2, and the One side of the push motor 42 is fixed on one side of the inner wall of the push frame 41. The push motor 42 is a three-phase asynchronous AC motor and is connected to an external power source through an external power cord. The internal thread of the threaded block 44 is connected to the The surface of the threaded rod 43, the bottom of the threaded block 44 and the bottom of the inner wall of the push frame 41, the bottom end of the push rod 45 is fixed on the top of the threaded block 44, and the top of the push rod 45 is sequentially Passing through the push frame 41 and the baffle 2 and extending to the top of the baffle 2, the top of the push frame 41 is provided with an opening for use with the push rod 45, the top of the push rod 45 is connected to the storage The bottom of cabinet 3 is fixedly connected.

The interior of the limiting block 46 is fixed on one side of the surface of the threaded rod 43 , and the limiting block 46 is used to limit the movement of the threaded block 44 .

The surface of the partition 2 is fixedly connected with a nameplate 5, the number of the nameplate 5 is consistent with the number of the storage cabinet 3, the nameplate 5 is used to record the information of the storage cabinet 3, the corresponding storage cabinet 3 can be directly found, and the indicator light 7 can be matched Use, in order to open, pick and place documents, the surface of the partition 2 and the right side of the nameplate 5 are provided with a control switch 6, the control switch 6 controls the forward and reverse rotation of the push motor 42, the control switch 6 There is an indicator light 7 on the surface. The indicator light 7 corresponds to the storage cabinet 3. There are SB1 and SQ1 on the control switch 6 respectively. Press SB1 to start the KM1 contactor and the motor rotates forward. Press SQ1, then KM1 loses power, KM2 And the motor is energized and reversed.

Both sides of the bottom of the filing cabinet body 1 are fixedly connected with support legs 8 , and the partition 2 is provided with a moving slot 10 , and the moving slot 10 is used to move with the push rod 45 .

An inquiry mechanism 9 is fixedly connected to the left side of the surface of the filing cabinet body 1 , and the inquiry mechanism 9 includes an inquiry frame 91 , a liquid crystal touch screen 92 , a processor 93 , a hard disk 94 , a memory module 95 , a power supply module 96 and a charging interface 97 . , the back of the inquiry frame 91 is fixed on the left side of the surface of the file cabinet body 1, the back of the liquid crystal touch screen 92 is arranged on the surface of the inquiry frame 91, the processor 93, the hard disk 94, the memory module 95. The power supply module 96 and the charging interface 97 are all arranged on the liquid crystal touch screen 92, the processor 93 controls the switch of the indicator light 7, the power supply module 96 provides energy for the indicator light 7, and the model of the liquid crystal touch screen 92 is preferably CB-7501Z, The model of the processor 93 is preferably the ARM9 series, the hard disk 94 is preferably a solid-state hard disk, the memory module 95 is preferably 4GB, the power module 96 is preferably a lithium battery, and the charging interface 97 can be set to an Android interface, but not limited to the Android interface, the above components can be used. Adjust it yourself as needed.

The LCD touch screen 92 , the processor 93 , the hard disk 94 , the memory module 95 , the power module 96 and the charging interface 97 are electrically connected by wires, and each time a file is stored, the user can use the LCD touch screen 92 to load the device on the device. Manually create new files in the corresponding folders, the positions of the files and folders in the device correspond to the positions of the files actually stored in the file cabinet, and the LCD touch screen 92 transmits the data to the memory module 95 through the processor 93, and the hard disk 94 for storage, so that when you need to search for a file, you can directly search through the file name to find the location where the file is stored, shorten the query time, and improve work efficiency. , when a suitable file is found, the indicator light 7 on the storage cabinet 3 lights up accordingly.

The working principle of the file cabinet document classification and query device provided by the utility model is as follows:

When in use, when the staff finds the location of the files they need, they can find the corresponding storage cabinet 3 through the information recorded on the nameplate 5. The staff opens the cabinet door, and presses the control switch 6 corresponding to the nameplate 5 to start the push motor 42. The motor 42 works to drive the threaded rod 43 to rotate, the threaded rod 43 drives the threaded block 44 to move to the right, the threaded block 44 drives the push rod 45 to move to the right, and the push rod 45 drives the storage cabinet 3 to move to the right, so that the storage cabinet 3 extends out of the file cabinet Main body 1, so that the staff can take out the required documents, the operation is simple and practical, and it is conducive to widespread use;

Further preferably, when the staff finds the location of the file they need, the processor 93 controls the indicator light 7 to light up, the staff opens the cabinet door, and presses the control switch 6 corresponding to the indicator light 7 to start the push motor 42, and the push motor 42 works. Drive the threaded rod 43 to rotate, the threaded rod 43 drives the threaded block 44 to move to the right, the threaded block 44 drives the push rod 45 to move to the right, and the push rod 45 drives the storage cabinet 3 to move to the right, so that the storage cabinet 3 extends out of the file cabinet body 1 , so that the staff can take out the required documents, the operation is simple and practical, and it is conducive to widespread use.

Compared with the related art, the file cabinet document classification and query device provided by the present invention has the following beneficial effects:

When the staff finds the location of the files they need, they can find the corresponding storage cabinet 3 through the information recorded on the nameplate 5. The staff opens the cabinet door and presses the control switch 6 corresponding to the nameplate 5 to start the push motor 42, and the push motor 42 works. Drive the threaded rod 43 to rotate, the threaded rod 43 drives the threaded block 44 to move, the threaded block 44 drives the push rod 45 to move, and the push rod 45 drives the storage cabinet 3 to move, so that the storage cabinet 3 moves forward, so that the staff can take out the required documents , The operation is simple and practical, which is conducive to widespread use. This device can be used on file cabinets of various styles and sizes. There are no specific requirements for the original style and size of the file cabinet. It is easy to use. Just search the required file keywords, touch screen control, no special learning is required.

The above are only the embodiments of the present invention, and are not intended to limit the patent scope of the present invention. Any equivalent structure or equivalent process transformation made by using the contents of the description and drawings of the present invention, or directly or indirectly applied to other Relevant technical fields are similarly included in the scope of patent protection of the present invention.

Claims (7)

1. a file cabinet document classification query device, is characterized in that, comprises: File cabinet body; a partition, both sides of the partition are respectively fixed on both sides of the inner wall of the filing cabinet body; a storage cabinet, the bottom of the storage cabinet slides on the top of the partition; A push mechanism, the top of the push mechanism is fixed on the bottom of the partition. 2. The file cabinet document classification and query device according to claim 1, wherein the push mechanism comprises a push frame, a push motor, a threaded rod, a threaded block, a push rod and a limit block, and the push frame The top is fixed to the bottom of the partition plate, one side of the push motor is fixed to one side of the inner wall of the push frame, the inner thread of the threaded block is threaded on the surface of the threaded rod, and the bottom of the threaded block With the bottom of the inner wall of the push frame, the bottom end of the push rod is fixed on the top of the threaded block, and the top end of the push rod passes through the push frame and the partition plate in turn and extends to the partition plate The top of the push rod is fixedly connected with the bottom of the storage cabinet. 3 . The document classification and query device of a filing cabinet according to claim 2 , wherein the inside of the limiting block is fixed to one side of the surface of the threaded rod. 4 . 4 . The file cabinet document classification and query device according to claim 1 , wherein a nameplate is fixedly connected to the surface of the partition plate, and a control switch is provided on the surface of the partition plate and located on the right side of the nameplate. 5 . , the surface of the control switch is provided with an indicator light. 5 . The document sorting and querying device of a filing cabinet according to claim 1 , wherein the two sides of the bottom of the filing cabinet body are fixedly connected with supporting legs, and the partition plate is provided with a moving slot. 6 . 6 . The file cabinet document classification and query device according to claim 1 , wherein a query mechanism is fixedly connected to the left side of the surface of the file cabinet body, and the query mechanism includes a query frame, a liquid crystal touch screen, and a processor. 7 . , hard disk, memory module, power module and charging interface, the back of the query box is fixed on the left side of the surface of the file cabinet body, the back of the liquid crystal touch screen is arranged on the surface of the query box, the processor , hard disk, memory module, power supply module and charging interface are all arranged on the LCD touch screen. 7 . The file cabinet document classification and query device according to claim 6 , wherein the liquid crystal touch screen, the processor, the hard disk, the memory module, the power module and the charging interface are electrically connected by wires. 8 .
