Abstract

The utility model discloses a detection device for water conservancy engineering, which is convenient for observing the water level, which comprises a support horizontal plate, a laser range finder and a detection rod. A detection rod is fixed at the bottom end of the detection rod, and the outer surface of the detection rod is provided with a chute, the interior of the chute is provided with a sliding block, and the outer side of the sliding block is fixed with a floating plate, and the top of the sliding block is fixed with a pull rope, A winding reel is wound around the top end of the pulling rope, and a rotating rod is fixed inside the winding reel. The detection device for water conservancy engineering, which is easy to observe the water level, is provided with a floating plate, and the rope is set off by a rotating rod, so that the height of the floating plate can be adjusted easily, so that the floating plate can float on the water surface. The distance between the bottom surface of the supporting horizontal plate and the floating plate can be measured, and the height distance is displayed on the display screen of the laser range finder, so that the water level can be easily observed through the laser range finder.

Description

A detection device for water conservancy engineering that is easy to observe the water level

technical field

The utility model relates to the technical field of water conservancy projects, in particular to a detection device for water conservancy projects which is convenient for observing the water level.

Background technique

Water conservancy project refers to the general term for a series of activities involved in water conservancy construction. In the construction of water conservancy projects, the water level of water conservancy should be detected, so as to understand the water level in time;

The announcement number is CN207248283U and the patent name is a water level detection device for water conservancy project management. Although the existing water level gauge is generally fixed in the river bed, the surface of the water level gauge is easy to be immersed in water for a long time. The adhesion of microorganisms such as moss makes it impossible to obtain the scale of the water level clearly, and due to the design characteristics of the water level gauge, it is very inconvenient to clean up, but the detection device only obtains the water level by reading the degrees on the water level gauge. The number of the upper degree is small, which is inconvenient for the staff to watch at a certain distance. At the same time, it is necessary to watch it horizontally, otherwise there will be certain errors;

We propose a detection device for water conservancy engineering that is convenient for observing the water level.

Utility model content

The purpose of the present invention is to provide a detection device for water conservancy engineering that is convenient for observing the water level, so as to solve the problem that the conventional detection device on the market is not convenient for observing the water level, which is proposed by the above background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a detection device for water conservancy engineering that is convenient for observing the water level, comprising a support cross plate, a laser range finder and a detection rod, and a laser is installed inside the left side of the support cross plate A range finder, and a detection rod is fixed at the bottom end of the support cross plate, and a chute is provided on the outer surface of the detection rod, a sliding block is arranged inside the chute, and a floating plate is fixed on the outer side of the sliding block, and The top end of the slider is fixed with a pull rope, the top end of the pull rope is wound with a spool, and the inside of the spool is fixed with a rotating rod, and the right end of the rotating rod is internally threaded with a limit rod, and the outer side of the limit rod is A limit slot is provided, and a support transverse plate is fixed on the outer side of the limit slot.

Preferably, the chutes are equally spaced around the outer side of the detection rod, the lowest point of the chutes is higher than the lowest point of the detection rod, and the chutes and the sliders are both in a "T" shape in plan view.

Preferably, the floating plate is made of PVC plastic material, and the floating plate forms a lifting structure through a slider, a limit groove and a detection rod.

Preferably, the rotating rod has an "L" shape structure, and the connecting manner of the rotating rod and the support transverse plate is a bearing connection, and the rotating rod and the winding reel are an integrated structure.

Preferably, the diameter of the limiting groove is larger than the diameter of the limiting rod, and the limiting grooves are equally spaced around the rotating rod.

Compared with the prior art, the beneficial effects of the present utility model are: the detection device for water conservancy engineering, which is convenient for observing the water level;

(1) A floating board is provided, and the rope is paid off by the rotating rod, which is convenient to adjust the height of the floating board, so as to facilitate the floating board to float on the water surface, so that the bottom surface of the supporting horizontal board can be measured by the laser range finder. The distance to the floating board and the height distance are displayed on the display screen of the laser rangefinder. The staff can simply subtract the overall height of the detection rod from the height displayed on the laser rangefinder and add the thickness of the floating board. Therefore, it is convenient to observe the water level through the laser range finder, so as to prevent the staff from reading the scale number of the detection rod horizontally, which is convenient for the staff to operate;

(2) Fix the limit rod and the limit slot, and it is convenient to fix the position of the rotating rod after rotation through the engagement of the limit rod and the limit slot, so as to ensure the stability of the position of the floating plate. The sliding block and the chute of the T" shape structure cooperate with each other to improve the levelness of the floating plate and ensure the accuracy of the measurement.

Description of drawings

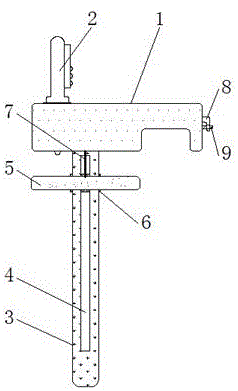

Fig. 1 is the overall side view structure schematic diagram of the utility model;

Fig. 2 is the cross-sectional structural schematic diagram of the supporting transverse plate of the present invention;

Fig. 3 is the enlarged schematic diagram of the structure at place A in Fig. 2 of the utility model;

4 is a schematic diagram of the connection structure between the limit rod and the support cross plate of the present invention;

FIG. 5 is a schematic view of the top cross-sectional structure of the connection between the floating plate and the detection rod of the present invention;

FIG. 6 is a schematic top view of the structure of the rotating rod of the present invention.

In the picture: 1. Supporting horizontal plate; 2. Laser distance meter; 3. Detection rod; 4. Chute; 5. Floating plate; 6. Slider; 7. Pull rope; 8. Rod; 9. Limit Rod; 10. Reel; 11. Limit slot.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-6 , the present utility model provides a technical solution: a water conservancy engineering detection device which is convenient for observing the water level, comprising a support horizontal plate 1 , a laser distance meter 2 , a detection rod 3 , a chute 4 , and a floating plate 5. The slider 6, the pulling rope 7, the rotating rod 8, the limit rod 9, the reel 10 and the limit slot 11, the laser range finder 2 is installed inside the left side of the support cross plate 1, and the support cross plate 1 A detection rod 3 is fixed at the bottom end of the detection rod, and a chute 4 is opened on the outer surface of the detection rod 3. A slider 6 is arranged inside the chute 4, and a floating plate 5 is fixed on the outer side of the slider 6, and the slider 6 The top end of the pull rope 7 is fixed, the top end of the pull rope 7 is wound with a spool 10, and the inside of the spool 10 is fixed with a rotating rod 8, and the right end of the rotating rod 8 is internally screwed with a limit rod 9, and the limit rod 9 A limiting slot 11 is set on the outer side of the locating slot 11, and a support cross plate 1 is fixed on the outer side of the limiting slot 11;

The chute 4 is equally spaced around the outer side of the detection rod 3, and the lowest point of the chute 4 is higher than the lowest point of the detection rod 3, and the top view of the chute 4 and the slider 6 is a "T" shape structure, and then pass through The chute 4 and the slider 6 are both in the "T" shape structure, which improves the levelness and stability of the floating plate 5;

The floating plate 5 is made of PVC plastic material, and the floating plate 5 forms a lifting structure through the slider 6, the chute 4 and the detection rod 3, so that the floating plate 5 can float well on the water surface;

The rotating rod 8 has an "L" shape structure, and the connection between the rotating rod 8 and the support cross plate 1 is a bearing connection, and the rotating rod 8 and the winding reel 10 are an integrated structure, so that the rotation of the "L" shaped structure is made. The rod 8 is well connected with the limit rod 9, which is convenient for the limit rod 9 to fix the rotation position of the rotation rod 8 later;

The diameter of the limit groove 11 is larger than the diameter of the limit rod 9, and the limit grooves 11 are equally spaced around the rotating rod 8, so that the limit grooves 11 at different positions can well perform the rotation of the limit rod 9. fixed.

Working principle: When using the detection device for water conservancy engineering, which is easy to observe the water level, first, move the entire device into the working area, and after reaching the working area, when the entire device needs to be used, as shown in Figure 1, the The bottom end of the detection rod 3 is inserted into the water area where the water level needs to be detected, so that the bottom end of the detection rod 3 is in contact with the bottom end of the water area. The plate 1 is placed horizontally, and then, the limit rod 9 is rotated outward, as shown in Figure 2-4, so that the limit rod 9 is separated from the corresponding limit groove 11, and then the rotating rod 8 Rotate, as shown in Fig. 2 and Fig. 6 when rotating, the rotating rod 8 drives the spool 10 to rotate together, so that the pull ropes 7 at both ends of the spool 10 pay off at the same time, so that the pull rope 7 drives the floating The plate 5 is lowered. As shown in Figures 1 and 5, the floating plate 5 slides down stably in the chute 4 opened on the outer side wall of the support cross plate 1 through the slider 6, thereby ensuring the stability of the floating plate 5. Sexuality and horizontality;

When the bottom surface of the floating plate 5 is in contact with the upper surface of the water area, the rotation of the rotating rod 8 is stopped. As mentioned above, in the same way, the limit rod 9 is rotated inward, so that the limit rod 9 is inserted into the corresponding limit Fix in the groove 11, as shown in FIG. 4, then fix the rotating rod 8 well, and then open the laser range finder 2, and the laser range finder 2 will reach the bottom end of the support horizontal plate 1 to the bottom. The height distance on the upper surface of the floating plate 5 is measured. Then, the staff can directly read the height value through the display screen outside the laser range finder 2, and then the height of the fixed height detection rod 3 minus the laser range finder 2 is displayed. The height value of the floating plate 5 can be added to the fixed thickness of the floating plate 5. Compared with the traditional method, which requires a horizontal head-up view of the scale line on the outer surface of the detection rod 3, this method is convenient for the staff to observe the water level and improve the accuracy. The above is the work of the whole device. The content that is not described in detail in this specification belongs to the prior art known to those skilled in the art.

Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements for some of the technical features. Within the spirit and principle of the present utility model, any modifications, equivalent replacements, improvements, etc. made shall be included within the protection scope of the present utility model.

Claims (5)

1. A detection device for water conservancy engineering that is convenient for observing the water level, comprising a supporting transverse plate (1), a laser range finder (2) and a detection rod (3), characterized in that: the left side of the supporting transverse plate (1); A laser range finder (2) is installed inside the side, and a detection rod (3) is fixed at the bottom end of the support transverse plate (1), and a chute (4) is provided on the surrounding outer surface of the detection rod (3). A sliding block (6) is provided inside the chute (4), a floating plate (5) is fixed on the outer side of the sliding block (6), and a pull rope (7) is fixed on the top of the sliding block (6). The top of the (7) is wound with a winding reel (10), and a rotating rod (8) is fixed inside the winding reel (10), and the right end of the rotating rod (8) is internally threadedly connected to the limit rod (9), so A limit groove (11) is arranged on the outer side of the limit rod (9), and a support transverse plate (1) is fixed on the outer side of the limit groove (11). 2. A detection device for water conservancy engineering according to claim 1, characterized in that: the chute (4) is equally spaced around the outer side of the detection rod (3), and the chute (4) ) is higher than the lowest point of the detection rod (3), and the top view of the chute (4) and the slider (6) is a "T" shape structure. 3 . The detection device for water conservancy engineering according to claim 1 , wherein the floating plate ( 5 ) is made of PVC plastic material, and the floating plate ( 5 ) passes through the slider ( 6 ) and the The chute (4) and the detection rod (3) constitute a lifting structure. 4 . The detection device for water conservancy engineering according to claim 1 , wherein the rotating rod ( 8 ) is in an “L” shape, and the rotating rod ( 8 ) is connected to the supporting transverse plate ( 4 . 1) The connection method is bearing connection, and the rotating rod (8) and the winding reel (10) are an integrated structure. 5 . The detection device for water conservancy engineering according to claim 1 , characterized in that: the diameter of the limit groove ( 11 ) is larger than the diameter of the limit rod ( 9 ), and the limit groove ( 11) Evenly spaced around the rotating rod (8).
