CN203674803U - Electric power transmission and distribution device used for multi-path power supply for users - Google Patents
Electric power transmission and distribution device used for multi-path power supply for users Download PDFInfo
- Publication number
- CN203674803U CN203674803U CN201320767700.4U CN201320767700U CN203674803U CN 203674803 U CN203674803 U CN 203674803U CN 201320767700 U CN201320767700 U CN 201320767700U CN 203674803 U CN203674803 U CN 203674803U
- Authority
- CN
- China
- Prior art keywords
- power supply
- power transmission
- soft
- distribution
- controller
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Remote Monitoring And Control Of Power-Distribution Networks (AREA)
Abstract
本实用新型涉及输配电设置技术领域，公开一种用于多路用户供电的电力输配电装置，包括：多路用户供电的输配电系统、主监控系统和付监控系统，所述多路用户供电的输配电系统由变压器B通过若干用户的供电软模块与用电负载相连构成，用户的供电软模块由断路器通过软熔断器与分接头连接构成；所述主监控系统由主控制器PC、应急电源UPS构成，本实用新型能够通过主控制器PC自动操作，控制若干用户的供电软模块输配电的断路器开关，通过软熔断器、分接头向多路用户用电负载输配电，并且还保留原有的手动操控；具有操作简单、安全性强的特点。
The utility model relates to the technical field of power transmission and distribution settings, and discloses a power transmission and distribution device for multi-channel user power supply, including: a power transmission and distribution system for multi-channel user power supply, a main monitoring system and a secondary monitoring system. The power transmission and distribution system powered by road users is composed of transformer B connected to electric loads through several user power supply soft modules, and the user power supply soft modules are composed of circuit breakers connected with taps through soft fuses; The utility model is composed of a controller PC and an emergency power supply UPS. The utility model can automatically operate through the main controller PC to control the circuit breaker switches of the power supply soft modules of several users for power transmission and distribution, and supply electric loads to multiple users through soft fuses and taps. Power transmission and distribution, and retains the original manual control; it has the characteristics of simple operation and strong safety.
Description
技术领域 technical field
本实用新型涉及输配电设置技术领域，尤其涉及一种用于多路用户供电的电力输配电装置。 The utility model relates to the technical field of power transmission and distribution settings, in particular to an electric power transmission and distribution device for multi-channel user power supply.
背景技术 Background technique
目前，现有的多路用户供电的电力输配电装置，需要靠多次电话通知多路用户供电的电力值班人员，进行输配电的开、关操作，其传达时间长，输配电操作繁琐，不能够满足快捷的输配电，影响电力的传输，容易存在安全差错。 At present, the existing power transmission and distribution devices powered by multi-channel users need to notify the power on-duty personnel of the multi-channel users through multiple telephone calls to perform the on and off operations of power transmission and distribution. The transmission time is long and the transmission and distribution operations It is cumbersome, cannot meet the needs of fast power transmission and distribution, affects the transmission of power, and is prone to safety errors.
发明内容 Contents of the invention
为了克服现有技术的不足，本实用新型的目的是提供一种用于多路用户供电的电力输配电装置。 In order to overcome the deficiencies of the prior art, the purpose of the utility model is to provide a power transmission and distribution device for multi-channel user power supply.
为实现上述发明目的，本实用新型采用以下技术方案： In order to realize the above-mentioned purpose of the invention, the utility model adopts the following technical solutions:
一种用于多路用户供电的电力输配电装置，包括：多路用户供电的输配电系统、主监控系统和付监控系统，所述多路用户供电的输配电系统由变压器B通过若干用户的供电软模块与用电负载相连构成，用户的供电软模块由断路器通过软熔断器与分接头连接构成；所述主监控系统由主控制器PC、应急电源UPS构成，主控制器PC的监测输入端通过采集卡与变压器B相连，主控制器PC的执行输出端通过电缆与若干用户的供电软模块的控制端相连，主控制器PC的数据端通过数据线与应急电源UPS相连，所述的应急电源UPS输入端变压器B的输出端相连，应急电源UPS的输出端通过电缆与断路器的控制端相连；所述主控制器PC的通讯端通过网线与付监控系统相连；所述付监控系统由付控制器PC、监测模块构成，付控制器PC数据端通过网线与主控制器PC数据端相连，付控制器PC监测端通过信号线与监测模块相连，监测模块的输入端分别与断路器和软熔断器相连。 A power transmission and distribution device for multi-channel user power supply, including: a multi-channel user power transmission and distribution system, a main monitoring system and a secondary monitoring system, and the multi-channel user power transmission and distribution system is passed by a transformer B Several users' power supply soft modules are connected with electric loads, and the user's power supply soft modules are composed of circuit breakers connected with taps through soft fuses; the main monitoring system is composed of main controller PC, emergency power supply UPS, main controller The monitoring input terminal of the PC is connected to the transformer B through the acquisition card, the execution output terminal of the main controller PC is connected to the control terminals of several users’ power supply soft modules through cables, and the data terminal of the main controller PC is connected to the emergency power supply UPS through the data line , the output end of the transformer B at the input end of the emergency power supply UPS is connected, and the output end of the emergency power supply UPS is connected with the control end of the circuit breaker through a cable; the communication end of the main controller PC is connected with the monitoring system through a network cable; The payment monitoring system is composed of a payment controller PC and a monitoring module. The data terminal of the payment controller PC is connected to the data terminal of the main controller PC through a network cable. The monitoring terminal of the payment controller PC is connected to the monitoring module through a signal line. The input terminal of the monitoring module Connect with circuit breaker and soft fuse respectively.
由于采用如上所述的技术方案， 本实用新型具有以下优点： Due to adopting the above-mentioned technical scheme, the utility model has the following advantages:
一种用于多路用户供电的电力输配电装置，能够通过主监控系统的主控制器PC自动操作，控制若干用户的供电软模块输配电的断路器开、关，通过软熔断器、分接头向多路用户用电负载输配电，在主控制器PC与网络，如互联网连通时，还能够对多路用户供电的用户的供电软模块输配电的断路器开、关，进行远程操控；应急电源UPS为主控制器PC和付控制器PC提供工作电源，应急电源UPS还能够通过用户的供电软模块输配电的断路器开、关，为用电负载提供应急电源；付监控系统的付控制器PC通过监测模块监测多路用户供电的用户的供电软模块输配电的断路器开、关的工作情况，并且还保留原有的手动操控；具有操作简单、安全性强的特点。 A power transmission and distribution device for multi-channel user power supply, which can be automatically operated by the main controller PC of the main monitoring system to control the opening and closing of the circuit breakers of power supply soft modules for several users, and through soft fuses, The tap transmits and distributes power to multi-channel user loads. When the main controller PC is connected to the network, such as the Internet, it can also switch on and off the circuit breaker for the power supply soft module of the user who supplies power to multiple users. Remote control; the emergency power supply UPS provides working power for the main controller PC and the auxiliary controller PC, and the emergency power supply UPS can also switch on and off the circuit breaker for power transmission and distribution through the user's power supply soft module to provide emergency power for the electrical load; The sub-controller PC of the monitoring system monitors the opening and closing of the circuit breaker of the power supply soft module of the user's power supply soft module through the monitoring module, and also retains the original manual control; it has simple operation and strong safety specialty.
附图说明 Description of drawings

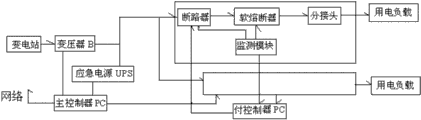

图1为电力输配电装置的电路方框图。 Figure 1 is a circuit block diagram of a power transmission and distribution device.
具体实施方式 Detailed ways
下面将结合实施例和附图对本实用新型作进一步详述， The utility model will be described in further detail below in conjunction with embodiment and accompanying drawing,
如图1所示，一种用于多路用户供电的电力输配电装置，包括：多路用户供电的输配电系统、主监控系统和付监控系统，所述多路用户供电的输配电系统由变压器B通过若干用户的供电软模块与用电负载相连构成，用户的供电软模块由断路器通过软熔断器与分接头连接构成；所述主监控系统由主控制器PC、应急电源UPS构成，主控制器PC的监测输入端通过采集卡与变压器B相连，主控制器PC的执行输出端通过电缆与若干用户的供电软模块的控制端相连，主控制器PC的数据端通过数据线与应急电源UPS相连，所述的应急电源UPS输入端变压器B的输出端相连，应急电源UPS的输出端通过电缆与断路器的控制端相连；所述主控制器PC的通讯端通过网线与付监控系统相连。所述付监控系统由付控制器PC、监测模块构成，付控制器PC数据端通过网线与主控制器PC数据端相连，付控制器PC监测端通过信号线与监测模块相连，监测模块的输入端分别与断路器和软熔断器相连。 As shown in Figure 1, a power transmission and distribution device for multi-channel user power supply includes: a power transmission and distribution system for multi-channel user power supply, a main monitoring system and an auxiliary monitoring system, and the power transmission and distribution system for multi-channel user power supply The electrical system is composed of transformer B connected to electrical loads through several user power supply soft modules, and the user power supply soft modules are composed of circuit breakers connected with taps through soft fuses; the main monitoring system is composed of main controller PC, emergency power supply It is composed of UPS, the monitoring input terminal of the main controller PC is connected to the transformer B through the acquisition card, the execution output terminal of the main controller PC is connected with the control terminals of several users’ power supply soft modules The line is connected with the emergency power supply UPS, and the output terminal of the transformer B at the input terminal of the emergency power supply UPS is connected, and the output terminal of the emergency power supply UPS is connected with the control terminal of the circuit breaker through a cable; the communication terminal of the main controller PC is connected with connected to the monitoring system. The paid monitoring system is composed of paid controller PC and monitoring module, the paid controller PC data end is connected with the main controller PC data end through a network cable, the paid controller PC monitoring end is connected with the monitoring module through a signal line, and the input of the monitoring module The terminals are respectively connected to the circuit breaker and the soft fuse.
使用时，该用于多路用户供电的电力输配电装置，能够通过主监控系统的主控制器PC自动操作，控制若干用户的供电软模块输配电的断路器开、关，通过软熔断器、分接头向多路用户用电负载输配电，在主控制器PC与网络，如互联网连通时，还能够对多路用户供电的用户的供电软模块输配电的断路器开、关，进行远程操控；应急电源UPS为主控制器PC和付控制器PC提供工作电源，应急电源UPS还能够通过用户的供电软模块输配电的断路器开、关，为用电负载提供应急电源；付监控系统的付控制器PC通过监测模块监测多路用户供电的用户的供电软模块输配电的断路器开、关的工作情况，并且还保留原有的手动操控；具有操作简单、安全性强的特点。 When in use, the power transmission and distribution device for multi-channel user power supply can be automatically operated by the main controller PC of the main monitoring system to control the opening and closing of the circuit breakers of power supply soft modules for several users, and through soft fuse When the main controller PC is connected to the network, such as the Internet, it can also open and close the circuit breaker for the power supply soft module of the user who supplies power to multiple users. , for remote control; the emergency power supply UPS provides working power for the main controller PC and the sub-controller PC, and the emergency power supply UPS can also switch on and off the circuit breaker for power transmission and distribution through the user's power supply soft module to provide emergency power for the electrical load The paid controller PC of the paid monitoring system monitors the opening and closing of the circuit breaker of the power supply soft module of the user's power supply soft module through the monitoring module, and also retains the original manual control; it has the advantages of simple operation and safety Strong features.
