Abstract
The utility model discloses a disposable oxygen dissolver. The disposable oxygen dissolver comprises a gas connecting seat, a gas filter, a tube, a puncture needle connecting seat, an inserting tube, an inserting tube sheath, a puncture needle seat, an exhaust hole, a puncture needle and a puncture needle sheath. The disposable oxygen dissolver is applicable to oxygen dissolution when an oxygenator is connected with an infusion bottle during a clinical intravenous oxygen therapy. The disposable oxygen dissolver can dissolve medical oxygen into infusion liquid to form hyperoxia liquid, dissolved oxygen can be infused into blood of a human body through intravenous infusion, and superfluous gas can be exhausted through the exhaust hole. The disposable oxygen dissolver is simple in structure and low in cost and provides a safe, effective and convenient medical instrument product special for intravenous oxygen infusion for hospital clinical applications.
Description
Technical field
This utility model belongs to disposable use medical apparatus and instruments, relates in particular to a kind of disposable use dissolving device of clinical vein oxygen therapy use.
Background technology
In clinical medicine, need to carry out dissolved oxygen infusion to some especial patient, but existing dissolving device structure is comparatively complicated, expense is very high.A kind of simple mechanism of market demand is realized dissolved oxygen infusion, reduces patient's treatment cost.
Summary of the invention
This utility model provides a kind of disposable use dissolving device that is specifically designed to oxygen transferring in vein, when described disposable use dissolving device is cured by oxygen therapy for clinical vein, common oxygenerator is connected with infusion bottle, solves clinical patient oxygen supply demand, this dissolving device is disposable, can effectively reduce cross-contamination chance, reduce dissolved oxygen venous transfusion risk, described disposable use dissolving device is simple in structure, and cost is low, safe and reliable, effective, convenient.
The present invention adopts following technical scheme:
Described disposable use dissolving device, comprises gas Connection Block 1, pneumatic filter 2, pipeline 3, puncture needle Connection Block 4, intubate 5, puncture needle needle stand 7, steam vent 10, puncture needle 8; Between gas Connection Block 1, pneumatic filter 2, puncture needle Connection Block 4, connected by pipeline 3, intubate 5 is connected on puncture needle Connection Block 4, and cannula guard 6 is placed in intubate 5, and puncture needle sheath 9 is placed on puncture needle 8, has a steam vent 10 on puncture needle needle stand 7; It is characterized in that: on puncture needle Connection Block 4, have a snap close, closely snap close is thereon for puncture needle needle stand 7.
Described intubate 5 and puncture needle 8 are respectively equipped with cannula guard 6 and puncture needle sheath 9, and before using, cannula guard (6) is placed in intubate 5, and puncture needle sheath 9 is placed on puncture needle 8.
Described disposable use dissolving device adopts medical grade plastic material to make.
The disposable use dissolving device of this utility model, with aseptic, apyrogeneity form provides, in use gas Connection Block 1 of the present utility model is accessed after oxygenerator, pull up puncture needle sheath 9, puncture needle 8 inserts infusion bottle, remove cannula guard 6, intubate 5 is inserted in infusion bottle by puncture needle 8 pin holes, puncture needle Connection Block 4 and the tight snap close of puncture needle needle stand 7, open oxygenerator switch, control the gas flow of oxygenerator oxygen source out, medical oxygen can be dissolved in time and in transfusion, form hyperoxia solution, unnecessary gas gets rid of to keep internal and external pressure balance by steam vent, then by venous transfusion, dissolved oxygen is transported in blood of human body.
This dissolving device is simple in structure, and cost is low, can effectively reduce medical expense, alleviates patient economy burden.
Accompanying drawing explanation

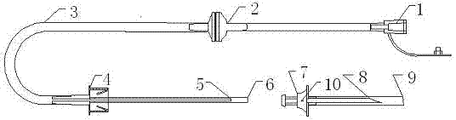

Fig. 1 is structural representation of the present utility model.
The specific embodiment
Below in conjunction with embodiment and contrast accompanying drawing the utility model is described in further detail.
The disposable use dissolving device of one as shown in Figure 1, comprise gas Connection Block 1, pneumatic filter 2, pipeline 3, puncture needle Connection Block 4, intubate 5, cannula guard 6, puncture needle needle stand 7, puncture needle 8, puncture needle sheath 9 and steam vent 10.Gas Connection Block 1, pipeline 3, pneumatic filter 2, pipeline 3, puncture needle Connection Block 4, intubate 5 connect successively, cannula guard 6 is placed in intubate 5, on puncture needle Connection Block 4, there is a snap close, can be by tight puncture needle needle stand 7 snap close thereon, on puncture needle needle stand 7, there is a steam vent 10, be convenient to unnecessary gas and discharge to keep internal and external pressure balance.
Puncture needle needle stand 7 dismounting as required, easy to use, packing, transportation.
Gas Connection Block 1, pipeline 3 and puncture needle sheath 9 are medical grade PVC material.
Puncture needle Connection Block 4 and puncture needle needle stand 7 are medical grade ABS plastic material.
Puncture needle Connection Block 4 and puncture needle needle stand 7 are medical grade ABS plastic material.
Intubate 5 is polypropylene PP material, and cannula guard 6 is medical grade polythene PE material.
When use, gas Connection Block 1 is accessed after oxygenerator, pull up puncture needle sheath 9, puncture needle 8 inserts after infusion bottle, removes cannula guard 6, intubate 5 is inserted in infusion bottle to puncture needle Connection Block 4 and the tight snap close of puncture needle needle stand 7 by puncture needle 8 pin holes.Open oxygenerator switch, control the gas flow of oxygenerator oxygen source out, medical oxygen can be dissolved in transfusion in time and form hyperoxia solution, unnecessary gas is discharged by steam vent 10, to keep internal and external pressure balance.
Claims (3)
1. disposable use dissolving device, comprises gas Connection Block (1), pneumatic filter (2), pipeline (3), puncture needle Connection Block (4), intubate (5), puncture needle needle stand (7), steam vent (10), puncture needle (8); Between described gas Connection Block (1), pneumatic filter (2), puncture needle Connection Block (4), connected by pipeline (3), it is upper that intubate (5) is connected to puncture needle Connection Block (4), has a steam vent (10) on puncture needle needle stand 7; It is characterized in that: puncture needle Connection Block has a snap close on (4), closely snap close is thereon for puncture needle needle stand (7).
2. disposable use dissolving device according to claim 1, is characterized in that described intubate (5) and puncture needle (8) are respectively equipped with cannula guard (6) and puncture needle sheath (9).
3. disposable use dissolving device according to claim 1, is characterized in that described disposable use dissolving device adopts medical grade plastic material to make.
