Abstract
The utility model relates to a medical instrument, in particular to an adjustable test blood sampling device. According to the technical scheme, the adjustable test blood sampling device comprises a base, a push rod, a front supporting rod and a rear supporting rod, wherein one end of the front supporting rod and one end of the rear supporting rod are connected to the front end and the rear end of the base through a first rotating shaft, the other end of the front supporting rod and the other end of the rear supporting rod are connected to the two ends of a tray, the middle of the front supporting rod is connected to one end of the push rod through a second rotating shaft, the other end of the push rod is matched with a sliding groove in the inner side of the base through a third rotating shaft, and the sliding groove is provided with a plurality of protruding check pieces. The adjustable test blood sampling device has the advantages that the structure is simple, using is convenient, operation is easy and convenient and time and labor are saved when test blood sampling is carried out on patients, the working difficulty of medial staff is relieved, and the comfort level of the patients is improved.
Description
Technical field
This utility model relates to a kind of medical apparatus and instruments, particularly a kind of adjustable check blood-taking device.
Background technology
At present, when test blood sampling to patient, be to allow patient arm is placed on desktop or platform mostly clinically, use again rubber tube ligation patient arm, get respectively again sterilized cotton ball, apparatus etc., arm is placed on desktop or platform and makes patient feel uncomfortable, and long-time arm rest power supports and causes limbs of patient numbness.
Summary of the invention
The purpose of this utility model is exactly in view of the foregoing defects the prior art has, and a kind of its adjustable check blood-taking device simple in structure, easy to use is provided, and has improved patient's comfort level.
Its technical scheme is: comprise base, catch bar, front support rod, back support rod, one end of front support rod and back support rod is connected to the rear and front end of base by the first rotating shaft, the other end of front support rod and back support rod is connected to the two ends of pallet, the centre of described front support rod connects one end of catch bar by the second rotating shaft, the other end of described catch bar matches with the chute of base inner side by the 3rd rotating shaft, and described chute is provided with multiple protruding gears.
In the middle of above-mentioned pallet, be provided with groove, pallet is provided with elastic webbing.
The beneficial effects of the utility model are: can realize the angle of automatic adjusting tray by promoting catch bar, realize freely stretching of arm, improve comfort level; In addition, it is simple in structure, easy to use, easy and simple to handle, time saving and energy saving when test blood sampling to patient, has alleviated medical worker's work difficulty, has improved patient's comfort level.
Accompanying drawing explanation
Accompanying drawing 1 is structural representation of the present utility model;

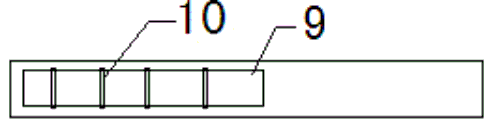

Accompanying drawing 2 is structural representations of base side chute;
Accompanying drawing 3 is structural representations of pallet;
In upper figure: base 1, catch bar 2, front support rod 3, pallet 4, back support rod 5, the first rotating shaft 6, the second rotating shaft 7, the 3rd rotating shaft 8, chute 9, protruding gear 10, elastic webbing 11.
The specific embodiment
1-3 by reference to the accompanying drawings, the utility model will be further described:
This utility model comprises base 1, catch bar 2, front support rod 3, pallet 4, back support rod 5, the first rotating shaft 6, the second rotating shaft 7, the 3rd rotating shaft 8, chute 9, one end of front support rod 3 and back support rod 5 is connected on the rear and front end of base 1 by the first rotating shaft 6, the other end of front support rod 3 and back support rod 5 is connected on the two ends of pallet 4, the centre of described front support rod 3 connects one end of catch bar 2 by the second rotating shaft 7, the other end of described catch bar 2 matches with the chute 9 of base 1 inner side by the 3rd rotating shaft 8, described chute 9 is provided with multiple protruding gears 10, can realize the angle of automatic adjusting tray by promoting catch bar, realize freely stretching of arm, improve comfort level.
Wherein, in the middle of pallet 4, be provided with groove, pallet 4 is provided with elastic webbing 11, elastic webbing is set and facilitates arm to fix.
Of the present utility model simple in structure, easy to use, easy and simple to handle, time saving and energy saving when test blood sampling to patient, alleviate medical worker's work difficulty, improve patient's comfort level.
Claims (2)
1. an adjustable check blood-taking device, it is characterized in that: comprise base (1), catch bar (2), front support rod (3), pallet (4), back support rod (5), the first rotating shaft (6), the second rotating shaft (7), the 3rd rotating shaft (8), chute (9), one end of front support rod (3) and back support rod (5) is connected on the rear and front end of base (1) by the first rotating shaft (6), the other end of front support rod (3) and back support rod (5) is connected on the two ends of pallet (4), the centre of described front support rod (3) connects one end of catch bar (2) by the second rotating shaft (7), the other end of described catch bar (2) matches with the chute (9) of base (1) inner side by the 3rd rotating shaft (8), described chute (9) is provided with multiple protruding gears (10).
2. adjustable check blood-taking device according to claim 1, is characterized in that: in the middle of described pallet (4), be provided with groove, pallet (4) is provided with elastic webbing (11).
