A full-automatic box pasting machine with a pressing mechanism comprises a machine frame. A conveying belt is arranged on the machine frame. A limiting thin piece is arranged above the conveying belt. Turning belts are arranged on the left side of the conveying belt and the right side of the conveying belt respectively. The upper surface of each turning belt is turned inward from the outer side edge, horizontally arranged on the conveying belt, of the turning belt by 180 degrees to the position over the conveying belt. The outlet of the conveying belt is connected with a supporting conveying belt and a pressing conveying belt, wherein the supporting conveying belt and the pressing conveying belt are matched in the vertical direction. A row of supporting rollers are connected to the supporting conveying belt. A row of heating pressing rollers are arranged above the supporting rollers. Transmission belts are arranged outside the supporting rollers and the pressing rollers respectively. A set of guide pressing wheels are arranged above the inlet ends of the supporting rollers. The guide pressing wheels are matched with the turning belts in a transmission mode. A stack of pre-pressed box paperboards are placed on a paper feed mechanism, the box paperboards are preprocessed step by step through the device, the box paperboards are rapidly and linearly conveyed on the conveying belt, a series of processing steps, namely, the left fold line and right fold line pressing step, the gluing step and the turning and bonding step, are conducted on the pre-pressed box paperboards in a full-automatic mode in the conveying process, and work efficiency is quite high.
Description
Technical field
The utility model relates to carton process equipment, especially a kind of full-automatic paste box machine with laminating mechanism.
Background technology
At present in the process equipment for carton, mainly comprise carton is carried out to backfin trace, gluing, be then folded into carton structure by craft, and each equipment needs manual operation, making like this carton needs hand labor amount larger, and production efficiency is also low.And carton after gluing, upset are folding is bonding unstable, easily comes unstuck, and causes carton structure insecure.
Utility model content
The utility model will solve the shortcoming of above-mentioned prior art, and a kind of full-automatic paste box machine with laminating mechanism is provided, and to the further pressing of the carton of machine-shaping, then pass through hot pressing, makes it bonding firmly stable, and full-automation completes.
The utility model solves the technical scheme that its technical problem adopts: this full-automatic paste box machine with laminating mechanism, comprise frame, frame is provided with conveyer belt, conveyer belt top is provided with spacing thin slice, the left and right sides of conveyer belt is respectively equipped with upset belt, the upper surface of upset belt overturns 180 ° to conveyer belt to the inside by the outer side edges that is horizontally set on conveyer belt, frame entrance point is provided with level and is arranged on the belt pulley in conveyer belt outside, upset belt one end is enclosed within on this belt pulley, the belt edge of frame import department is provided with by level and curves vertical belt guide plate, upset belt lower surface is fitted on belt guide plate, be provided with at upset belt guide plate rear the vertically locating wheel of location of upset belt, on locating wheel, have the locating slot of clamping upset belt, the rear of locating wheel is provided with one group of spaced taper cone pulley, conical surface top on taper cone pulley is pressed in the outer surface of upset belt, the rear of taper cone pulley is provided with upset belt level is pressed in to the horizontal pinch roller directly over conveyer belt, the top of horizontal pinch roller is provided with belt reversing wheel, conveyer belt outlet connects the support belt and the pressing conveyer belt that are equipped with up and down, and support belt connects row's backing roll, and backing roll top is provided with the pressure roller of row's heating, backing roll and pressure roller are respectively equipped with conveyer belt outward, are provided with one group of guiding pinch roller above the entrance point of backing roll, and guiding pinch roller is transmission with upset belt and coordinates.
The effect that the utility model is useful is: the utility model only need be placed on the box paper of a folded pre-molding on paper advance mechanism, on equipment, box paper substep is processed, box paper transmits fast with straight line on conveyer belt, in the process transmitting, also automatically complete box paper left and right flanging backfin trace, gluing a series of processing of flip bonding moulding to pre-molding, operating efficiency is very high.
Accompanying drawing explanation

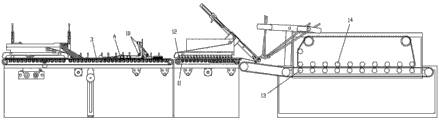

Fig. 1 is structural representation of the present utility model;
The enlarged diagram of A part in Fig. 2 Fig. 1;
Fig. 3 is to the box paper folding structural representation that overturns in the utility model;
Fig. 4 is the enlarged diagram of B part in Fig. 3;
Fig. 5 is the top view of Fig. 3;
Fig. 6 is the principle schematic to the upset of box paper in Fig. 5.
Description of reference numerals: frame 1, cross slide way 1-1, conveyer belt 2, spacing thin slice 3, upset belt 4, belt pulley 5, belt guide plate 6, locating wheel 7, locating slot 7-1, taper cone pulley 8, horizontal pinch roller 9, belt reversing wheel 10, support belt 11, pressing conveyer belt 12, backing roll 13, pressure roller 14, conveyer belt 15, guiding pinch roller 16.
The specific embodiment
Below in conjunction with accompanying drawing, the utility model is described in further detail:
With reference to accompanying drawing: this full-automatic paste box machine with laminating mechanism, comprise frame 1, frame 1 is provided with conveyer belt 2, conveyer belt 2 tops are provided with spacing thin slice 3, the left and right sides of conveyer belt 2 is respectively equipped with upset belt 4, the upper surface of upset belt 4 overturns 180 ° to conveyer belt 2 to the inside by the outer side edges that is horizontally set on conveyer belt 2, frame 1 entrance point is provided with level and is arranged on the belt pulley 5 in conveyer belt 2 outsides, upset belt 4 one end are enclosed within on this belt pulley 5, conveyer belt 2 sides of frame 1 import department are provided with by level and curve vertical belt guide plate 6, upset belt 4 lower surfaces are fitted on belt guide plate 6, be provided with at upset belt guide plate 6 rears the vertically locating wheel 7 of location of upset belt 4, on locating wheel 7, have the locating slot 7-1 of clamping upset belt, the rear of locating wheel 7 is provided with one group of spaced taper cone pulley 8, conical surface top on taper cone pulley 8 is pressed in the outer surface of upset belt 4, the rear of taper cone pulley 8 is provided with upset belt 4 levels is pressed in to the horizontal pinch roller 9 directly over conveyer belt 2, the top of horizontal pinch roller 9 is provided with belt reversing wheel 10, conveyer belt 2 outlets connect the support belt 11 and the pressing conveyer belt 12 that are equipped with up and down, and support belt 11 connects row's backing roll 13, and backing roll 13 tops are provided with the pressure roller 14 of row's heating, outside backing roll 13 and pressure roller 14, be respectively equipped with conveyer belt 15, be provided with one group of guiding pinch roller 16 above the entrance point of backing roll 13, guiding pinch roller 16 is transmission with upset belt 4 and coordinates.
Although the utility model illustrates and describes by reference to preferred embodiment,, those skilled in the art should understand, and in the scope of claims, can do the various variation in form and details.
Claims (1)
1. the full-automatic paste box machine with laminating mechanism, comprise frame (1), it is characterized in that: described frame (1) is provided with conveyer belt (2), conveyer belt (2) top is provided with spacing thin slice (3), the left and right sides of conveyer belt (2) is respectively equipped with upset belt (4), the upper surface of upset belt (4) overturns 180 ° to conveyer belt (2) to the inside by the outer side edges that is horizontally set on conveyer belt (2), frame (1) entrance point is provided with level and is arranged on the belt pulley (5) in conveyer belt (2) outside, described upset belt (4) one end is enclosed within on this belt pulley (5), conveyer belt (2) side of frame (1) import department is provided with by level and curves vertical belt guide plate (6), upset belt (4) lower surface is fitted on belt guide plate (6), be provided with at upset belt guide plate (6) rear the vertically locating wheel (7) of location of upset belt (4), on locating wheel (7), have the locating slot (7-1) of clamping upset belt, the rear of locating wheel (7) is provided with one group of spaced taper cone pulley (8), conical surface top on taper cone pulley (8) is pressed in the outer surface of upset belt (4), the rear of taper cone pulley (8) is provided with upset belt (4) level is pressed in to the horizontal pinch roller (9) directly over conveyer belt (2), the top of horizontal pinch roller (9) is provided with belt reversing wheel (10), described conveyer belt (2) outlet connects the support belt (11) and the pressing conveyer belt (12) that are equipped with up and down, and support belt (11) connects row's backing roll (13), and backing roll (13) top is provided with the pressure roller (14) of row's heating, the outer conveyer belt (15) that is respectively equipped with of described backing roll (13) and pressure roller (14), is provided with one group of guiding pinch roller (16) in the entrance point top of backing roll (13), and guiding pinch roller (16) is transmission with upset belt (4) and coordinates.
