Abstract
The utility model discloses a multifunctional desk, which comprises a desk body and a multifunctional board, wherein the desk body is arranged on supporting legs; a cavity is formed at the inner part of the desk body and is used for accommodating school supplies; a lateral guide rail is arranged at the front side part of the desk body; a horizontal guide rail is arranged at the desktop part of the desk body; the multifunctional board can move along the lateral guide rail and the horizontal guide rail; when being positioned on the lateral guide rail, the multifunctional board can be arranged to be horizontal and vertical and when being positioned on the horizontal guide rail, the multifunctional board can be used for allowing a person to lie on the desk to take a nap and can also be used as a reading board. The multifunctional desk has a simple and practical structure; and through the arrangement of the multifunctional board, not only can the book accommodating space be enlarged, but also the multifunctional board can be used as a reading board, and can be used for nap, and enables the person to take a nap comfortably.
Description
Technical field
The utility model relates to a kind of improvement of desk, refers in particular to one by a multifunction board is set, and it can increase books placement space, also can do school board use, also can do lunch break use, and makes the more comfortable multifunctional desk of lunch break.
Background technology
Common desk, comprises a body, supporting leg; Described table body is arranged on supporting leg; In described table body, cavity is set, described cavity can be used for placing schooling apparatus; The desktop of described table body is used for learning, reading, write; Under normal circumstances, the volume of the cavity of desk is limited, and particularly, for the student of senior class, study and review are many with book, the problem into their headache of having put of books; Also have students during school, generally all will lie prone and take a nap on the surface of table body, because the surface of table body is harder, afternoon nap is not very comfortable, and rest effect is also bad.For this reason, we have developed a kind of by a multifunction board is set, and it can increase books placement space, also can do school board use, also can do lunch break use, and makes the more comfortable multifunctional desk of lunch break.
Utility model content
The utility model object is to provide a kind of by a multifunction board is set in order to overcome the deficiencies in the prior art, and it can increase books placement space, also can do school board use, also can do lunch break use, and makes the more comfortable multifunctional desk of lunch break.
For achieving the above object, the technical solution adopted in the utility model is: a kind of multifunctional desk, comprises a body, multifunction board; Described table body is arranged on supporting leg; Described table body inside is provided with cavity, is used for placing schooling apparatus; The front side portion of described table body is provided with side rail; The desktop portion of described table body is provided with horizontal guide rail; Described multifunction board can move along side rail, horizontal guide rail; When described multifunction board is during in side rail, can be arranged to horizontal and vertical shape; Described multifunction board in the time of horizontal guide rail, can lie prone lunch break thereon and do school board use.
Preferably, the two ends of described multifunction board are respectively arranged with rotating shaft; When described multifunction board is during in side rail; The rotating shaft at the two ends on described multifunction board top is connected with one end of the second connecting rod assembly that is arranged on side rail respectively; The rotating shaft at the two ends of described multifunction board bottom is connected with one end of the first connecting rod assembly that is arranged on side rail respectively; Regulate first connecting rod assembly and second connecting rod assembly can make multifunction board in horizontal or vertical shape.
Preferably, the back of described multifunction board is provided with sponge.
Preferably, when described multifunction board is during in horizontal guide rail, upset multifunction board, lunch break on the sponge that can lie prone on multifunction board.
Preferably, the rear portion of described desktop portion is provided with bracing or strutting arrangement; When described multifunction board is in horizontal guide rail, and while being positioned at its rear end, described bracing or strutting arrangement can be propped a side of multifunction board, and multifunction board is inclined on horizontal guide rail, does school board and uses.
Preferably, on described horizontal guide rail, be provided with notch part, so that a side of multifunction board can be from horizontal guide rail out.
Preferably, described horizontal guide rail is arranged on the outside of the desktop of a body by support portion, greater than or equal to the height of the desktop of table body.
Preferably, described bracing or strutting arrangement, comprises support bar, guider, rotating disk, slide bar; On described rotating disk, be provided with and ship and resell on another market, during described jack rod sleeve is arranged on and ships and resell on another market, described support bar is connected with slide bar through guider; In the time of dial rotation, described support bar can do straight reciprocating motion along guider; The upper end of described support bar is used for supporting multifunction board.
Due to the utilization of technique scheme, the utility model compared with prior art has following advantages:
A kind of multifunctional desk of the utility model scheme is provided with a multifunction board, when it can be positioned at side rail, when it is during in level, can increase books placement space, when it is during in vertical state, can be used for closing the cavity of a body; When it is during in horizontal guide rail, upset multifunction board, exposes sponge, can climb on sponge and sleep, and can make lunch break more comfortable, and in the time of the rear end of multifunction board in horizontal guide rail, bracing or strutting arrangement supports a side of multifunction board, can do school board and use; The utility model is simple in structure, practical, by a multifunction board is set, can increases books placement space, also can do school board use, also can do lunch break use, and make lunch break more comfortable.
Accompanying drawing explanation
Below in conjunction with accompanying drawing, technical solutions of the utility model are described further:
Left view when first of the multifunction board that accompanying drawing 1 is multifunctional desk described in the utility model uses state;
Front view when second of the multifunction board that accompanying drawing 2 is multifunctional desk described in the utility model uses state;
Top view when the 3rd of the multifunction board that accompanying drawing 3 is multifunctional desk described in the utility model uses state;
Left view when the 4th of the multifunction board that accompanying drawing 4 is multifunctional desk described in the utility model uses state;

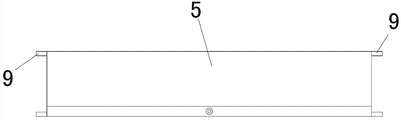

The front view of the multifunction board that accompanying drawing 5 is multifunctional desk described in the utility model;
The schematic diagram when multifunction board that accompanying drawing 6 is multifunctional desk described in the utility model converts the second duty to by the first use state;
The schematic diagram of the bracing or strutting arrangement that accompanying drawing 7 is multifunctional desk described in the utility model;
Wherein: 1, supporting leg; 2, table body; 3, side rail; 4, horizontal guide rail; 5, multifunction board; 6, support bar; 7, first connecting rod assembly; 8, second connecting rod assembly; 9, rotating shaft; 10, sponge; 11, notch part; 12, support portion; 13, guider; 14, rotating disk; 15, slide bar.
The specific embodiment
Below in conjunction with drawings and the specific embodiments, the utility model is described in further detail.
Accompanying drawing 1-7 is a kind of multifunctional desk described in the utility model, comprises a body 2, multifunction board 5; Described table body 2 is arranged on supporting leg 1; Described table body 2 inside are provided with cavity (not marking), are used for placing schooling apparatus; The front side portion of described table body 2 is provided with side rail 3; The desktop portion of described table body 2 is provided with horizontal guide rail 4; Described multifunction board 5 can move along side rail 3, horizontal guide rail 4; When described multifunction board 5 is during in side rail 3, can be arranged to horizontal and vertical shape; Described multifunction board 5 in the time of horizontal guide rail 4, can lie prone lunch break thereon and do school board use; The two ends of described multifunction board 5 are respectively arranged with rotating shaft 9; When described multifunction board 5 is during in side rail 3; The rotating shaft 9 at the two ends on described multifunction board 5 tops is connected with one end of the second connecting rod assembly 8 that is arranged on side rail 3 respectively; The rotating shaft 9 at the two ends of described multifunction board 5 bottoms is connected with one end of the first connecting rod assembly 7 that is arranged on side rail 3 respectively; Regulate first connecting rod assembly 7 and second connecting rod assembly 8 can make multifunction board 5 in horizontal or vertical shape; The back of described multifunction board 5 is provided with sponge 10; When described multifunction board 5 is during in horizontal guide rail 4, upset multifunction board 5, lunch break on the sponge 10 that can lie prone on multifunction board 5; The rear portion of described desktop portion is provided with bracing or strutting arrangement; When described multifunction board 5 is in horizontal guide rail 4, and while being positioned at its rear end, described bracing or strutting arrangement can be propped a side of multifunction board 5, and multifunction board 5 is inclined on horizontal guide rail, does school board and uses; On described horizontal guide rail 4, be provided with notch part 11, so that a side of multifunction board 5 can be from horizontal guide rail 4 out; In the present embodiment, described horizontal guide rail 4 is arranged on the outside of the desktop of a body 2 by support portion 12, greater than or equal to the height of the desktop of table body 2; Described bracing or strutting arrangement, comprises support bar 6, guider 13, rotating disk 14, slide bar 15; On described rotating disk 14, be provided with ship and resell on another market (not marking), during described slide bar 15 is set on and ships and resell on another market, described support bar 6 is connected with slide bar 15 through guider 13; In the time that rotating disk 14 rotates, described support bar 6 can do straight reciprocating motion along guider 13; The upper end of described support bar 6 is used for supporting multifunction board 5, thereby reaches the lifting of a side of controlling multifunction board 5.
When use, in the time that multifunction board 5 can be positioned at side rail 3, and when it is during in level, books placement space can be increased, when it is during in vertical state, the cavity of a body 2 can be used for closing; When it is during in horizontal guide rail, upset multifunction board 5, exposes sponge 10, can climb sleep on sponge 10, can make lunch break more comfortable, and in the time of the rear end of multifunction board 5 in horizontal guide rail, bracing or strutting arrangement supports a side of multifunction board, can do school board and use; The utility model is simple in structure, practical, by a multifunction board is set, can increases books placement space, also can do school board use, also can do lunch break use, and make lunch break more comfortable.
Below be only concrete exemplary applications of the present utility model, protection domain of the present utility model is not constituted any limitation.All employing equivalents or equivalence are replaced and the technical scheme of formation, within all dropping on the utility model rights protection scope.
Claims (4)
1. a multifunctional desk, comprises a body, multifunction board; Described table body is arranged on supporting leg; Described table body inside is provided with cavity, is used for placing schooling apparatus; The front side portion of described table body is provided with side rail; The desktop portion of described table body is provided with horizontal guide rail; Described multifunction board can move along side rail, horizontal guide rail; The two ends of described multifunction board are respectively arranged with rotating shaft; When described multifunction board is during in side rail; The rotating shaft at the two ends on described multifunction board top is connected with one end of the second connecting rod assembly that is arranged on side rail respectively; The rotating shaft at the two ends of described multifunction board bottom is connected with one end of the first connecting rod assembly that is arranged on side rail respectively; Regulate first connecting rod assembly and second connecting rod assembly can make multifunction board in horizontal or vertical shape; The back of described multifunction board is provided with sponge; When described multifunction board is during in horizontal guide rail, upset multifunction board, lunch break on the sponge that can lie prone on multifunction board; The rear portion of described desktop portion is provided with bracing or strutting arrangement; When described multifunction board is in horizontal guide rail, and while being positioned at its rear end, described bracing or strutting arrangement can be propped a side of multifunction board, and multifunction board is inclined on horizontal guide rail, does school board and uses.
2. multifunctional desk according to claim 1, is characterized in that: on described horizontal guide rail, be provided with notch part, so that a side of multifunction board can be from horizontal guide rail out.
3. multifunctional desk according to claim 1, is characterized in that: described horizontal guide rail is arranged on the outside of the desktop of a body by support portion, greater than or equal to the height of the desktop of table body.
4. multifunctional desk according to claim 1, is characterized in that: described bracing or strutting arrangement, comprises support bar, guider, rotating disk, slide bar; On described rotating disk, be provided with and ship and resell on another market, during described jack rod sleeve is arranged on and ships and resell on another market, described support bar is connected with slide bar through guider; In the time of dial rotation, described support bar can do straight reciprocating motion along guider; The upper end of described support bar is used for supporting multifunction board.
