Abstract

The utility model relates to a novel socket, and belongs to the technical field of novel sockets. The novel socket includes a socket housing, rotating clamping slots, a socket body and rotating clamping slot receiving grooves; two rotating clamping slots are respectively disposed on two sides of the upper part of the socket housing, a pull-assisting button is disposed in the center of the upper part of the socket body, the rotating clamping slot receiving grooves are disposed at a side of the rotating clamping slots, and the rotating clamping slots can be rotated into the rotating clamping slot receiving grooves. According to the utility model, the novel socket can facilitate fixing of an unplugged electrical power cord, can also assist in pulling a plug out, and is convenient in operation, simple in structure and easy in actual promotion.

Description

A new type of socket

technical field

The utility model relates to a novel socket, which belongs to the technical field of household electrical appliances.

Background technique

The socket is one of the most common items in daily life. There are two main types of common sockets, one is the socket fixed inside the wall, and the other is the movable socket. There are two main types of sockets for daily use. The problem makes daily use inconvenient. First, there is no place to fix the power cord on the socket, especially for fixed sockets. When the power cord of the electrical appliance is unplugged, the plugs are often misplaced by people, causing certain safety hazards; It is relatively laborious to pull out some plugs from the socket, especially for movable sockets. When the plug is inserted too tightly, people usually need to press the socket with one hand and pull out the plug with the other hand. Both laborious and very unsafe. the

Contents of the invention

The utility model provides a new type of socket, which is used to overcome the disadvantages that the existing socket cannot fix the electrical power line and the plug is difficult to pull out.

The technical scheme of the utility model is: a new type of socket, including a socket shell 1, a rotating card slot 2, a socket main body 5, and a rotating card slot receiving groove 13; wherein the two rotating card slots 2 are respectively located on both sides of the upper part of the socket shell 1 The pull-out button 3 is located at the center of the upper part of the socket main body 5, and the rotating card slot receiving groove 13 is located on one side of the rotating card slot 2, and the rotating card slot 2 can be rotated into the rotating card slot receiving groove 13.

Also includes pull-out button 3, upper push rod 4, lower push rod 6, pull-out button reset spring 7, pull-out lever 8, support rod 9, pull-out push rod 10, upper push rod reset spring 11, lower push rod reset Spring 12; Wherein the upper push rod 4 and the lower push rod 6 are respectively arranged at the center of the jack on the socket main body 5, and one end of the pull-out button 3 is connected with the pull-out lever 8 inside the socket, and the other end of the pull-out lever 8 is connected with the socket. The pull-out push rod 10 is connected to each other, and the center of the pull-out lever 8 is provided with a support rod 9, and the pull-out button reset spring 7, the upper push rod reset spring 11, and the lower push rod reset spring 12 are placed on the pull-out button 3 and the upper push rod respectively. 4, the bottom of the lower push rod 6.

Two-pin jacks and three-pin jacks are provided below the pull-out button 3; wherein the number of two-pin jacks and three-pin jacks is one or more respectively.

The sum of the numbers of the two-pin sockets and the three-pin sockets is equal to the sum of the numbers of the upper push rod 4 and the lower push rod 6 .

When in use, when the power cord of the electrical appliance is unplugged, the power cord can be fixed in the circular slot of the rotating slot 2 (as shown in Figure 2, the rotating slot 2-1 is the working state of the rotating slot); When not rotating the card slot 2 to fix the electrical power cord, the rotating card slot 2 can be transferred to the rotating card slot receiving groove 13 (as shown in Figure 2, the rotating card slot 2-2 is the non-working state of the rotating card slot).

In addition, a set of auxiliary plug-out device is added on the existing socket. This set of devices utilizes the principle of leverage to add a pull-out button 3 on the socket main body 5 of the socket. One end of the pull-out button 3 is connected with the pull-out lever 8 inside the socket. The other end of the pull-out lever 8 is connected with the pull-out push rod 10 .

Apply pressure on the pull-out button 3, and under the action of the pull-out lever 8, the pressure is converted into an upward thrust on the pull-out push rod 10 at the other end of the pull-out lever 8, thereby pushing the upper and lower ejector rods to move outward, and push the plug out socket. After the plug is pulled out, the pull-out button 3, the upper push rod 4, and the lower push rod 6 are reset under the spring force effect of the pull-out button reset spring 7, the upper push rod reset spring 11, and the lower push rod reset spring 12 respectively.

The beneficial effect of the utility model is: it can conveniently fix the unplugged electrical power cord, and can also assist in pulling out the plug, which is convenient for operation, simple in structure, and convenient for practical popularization.

Description of drawings

Fig. 1 is the structural representation of the utility model;

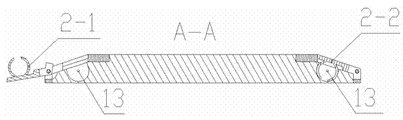

Fig. 2 is the A-A sectional view of the utility model;

Fig. 3 is the B-B sectional view of the utility model;

Each label in the figure: 1 is the socket shell, 2 is the rotating card slot, 3 is the pull-out button, 4 is the upper ejector rod, 5 is the main body of the socket, 6 is the lower ejector rod, 7 is the return spring of the assist button, 8 is the auxiliary button Pull lever, 9 is a support rod, 10 is a pull-out push rod, 11 is an upper push rod return spring, 12 is a lower push rod return spring, and 13 is a rotating draw-in slot accommodation groove.

Detailed ways

Below in conjunction with accompanying drawing and embodiment, the utility model will be further described, but the content of the utility model is not limited to said range.

Embodiment 1: As shown in Figures 1-3, a new type of socket includes a socket housing 1, a rotating card slot 2, a socket body 5, and a rotating card slot receiving slot 13; two rotating card slots 2 are respectively located in the socket housing 1 On both sides of the upper part, the pull-out button 3 is located at the center of the socket main body 5 top, and the rotating card slot receiving groove 13 is located at one side of the rotating card slot 2, and the rotating card slot 2 can be rotated into the rotating card slot receiving groove 13.

Also includes pull-out button 3, upper push rod 4, lower push rod 6, pull-out button reset spring 7, pull-out lever 8, support rod 9, pull-out push rod 10, upper push rod reset spring 11, lower push rod reset Spring 12; Wherein the upper push rod 4 and the lower push rod 6 are respectively arranged at the center of the jack on the socket main body 5, and one end of the pull-out button 3 is connected with the pull-out lever 8 inside the socket, and the other end of the pull-out lever 8 is connected with the socket. The pull-out push rod 10 is connected to each other, and the center of the pull-out lever 8 is provided with a support rod 9, and the pull-out button reset spring 7, the upper push rod reset spring 11, and the lower push rod reset spring 12 are placed on the pull-out button 3 and the upper push rod respectively. 4, the bottom of the lower push rod 6.

A two-pin jack and a three-pin jack are arranged below the extraction-assisting button 3; wherein the number of the two-pin jack and the three-pin jack is one respectively.

The sum of the numbers of the two-pin jacks and the three-pin jacks is equal to the sum of the numbers of the upper mandrel 4 and the lower mandrel 6 (that is, the sum of the number of the upper mandrel 4 and the lower mandrel 6 is two ).

Embodiment 2: As shown in Figure 1-3, a new type of socket includes a socket housing 1, a rotating card slot 2, a socket body 5, and a rotating card slot receiving slot 13; two rotating card slots 2 are respectively located in the socket housing 1 On both sides of the upper part, the pull-out button 3 is located at the center of the socket main body 5 top, and the rotating card slot receiving groove 13 is located at one side of the rotating card slot 2, and the rotating card slot 2 can be rotated into the rotating card slot receiving groove 13.

Also includes pull-out button 3, upper push rod 4, lower push rod 6, pull-out button reset spring 7, pull-out lever 8, support rod 9, pull-out push rod 10, upper push rod reset spring 11, lower push rod reset Spring 12; Wherein the upper push rod 4 and the lower push rod 6 are respectively arranged at the center of the jack on the socket main body 5, and one end of the pull-out button 3 is connected with the pull-out lever 8 inside the socket, and the other end of the pull-out lever 8 is connected with the socket. The pull-out push rod 10 is connected to each other, and the center of the pull-out lever 8 is provided with a support rod 9, and the pull-out button reset spring 7, the upper push rod reset spring 11, and the lower push rod reset spring 12 are placed on the pull-out button 3 and the upper push rod respectively. 4, the bottom of the lower push rod 6.

A two-pin jack and a three-pin jack are provided below the pull-out button 3; wherein the number of the two-pin jack and the three-pin jack is two respectively.

The sum of the numbers of the two-pin jacks and the three-pin jacks is equal to the sum of the numbers of the upper mandrel 4 and the lower mandrel 6 (that is, the sum of the number of the upper mandrel 4 and the lower mandrel 6 is set to be four ).

Embodiment 3: As shown in Figure 1-3, a new type of socket includes a socket housing 1, a rotating card slot 2, a socket body 5, and a rotating card slot receiving slot 13; two rotating card slots 2 are respectively located in the socket housing 1 On both sides of the upper part, the pull-out button 3 is located at the center of the socket main body 5 top, and the rotating card slot receiving groove 13 is located at one side of the rotating card slot 2, and the rotating card slot 2 can be rotated into the rotating card slot receiving groove 13.

A two-pin jack is provided below the pull-out button 3; the number of the two-pin jack is one.

Embodiment 4: As shown in Figure 1-3, a new type of socket includes a socket housing 1, a rotating card slot 2, a socket body 5, and a rotating card slot receiving slot 13; two rotating card slots 2 are respectively located in the socket housing 1 On both sides of the upper part, the pull-out button 3 is located at the center of the socket main body 5 top, and the rotating card slot receiving groove 13 is located at one side of the rotating card slot 2, and the rotating card slot 2 can be rotated into the rotating card slot receiving groove 13.

The bottom of the extraction button 3 is provided with three-pin jacks; wherein the number of three-pin jacks is one.

Claims (4)

1. a Novel socket, is characterized in that: comprise jack housing (1), rotation draw-in groove (2), socket main body (5), rotation draw-in groove accepting groove (13); Wherein two rotation draw-in grooves (2) lay respectively at the both sides on jack housing (1) top, help and pull out the central authorities that button (3) is positioned at socket main body (5) top, rotation draw-in groove accepting groove (13) is positioned at a side of rotation draw-in groove (2), and rotation draw-in groove (2) can rotate to rotating in draw-in groove accepting groove (13).

2. Novel socket according to claim 1, is characterized in that: also comprise helping and pull out button (3), upper ejector pin (4), lower push rod (6), help and pull out push-button reset spring (7), help and pull out lever (8), support bar (9), help and pull out push rod (10), upper ejector pin back-moving spring (11), lower push rod back-moving spring (12); Wherein upper ejector pin (4) and lower push rod (6) are separately positioned on the central authorities of the jack on socket main body (5), helping the one end of pulling out button (3) to pull out lever (8) with helping of socket inside is connected, help the other end that pulls out lever (8) to pull out push rod (10) and be connected with helping, help the centre of pulling out lever (8) to be provided with support bar (9), help and pull out push-button reset spring (7), upper ejector pin back-moving spring (11), lower push rod back-moving spring (12) and be placed in respectively and help the bottom of pulling out button (3), upper ejector pin (4), lower push rod (6).

3. Novel socket according to claim 1 and 2, is characterized in that: described in help the below of pulling out button (3) to be provided with bipod jack, tripod jack; Wherein the number of bipod jack, tripod jack is respectively one or more.

4. Novel socket according to claim 3, is characterized in that: the number sum of described bipod jack and tripod jack equals the number sum of upper ejector pin (4) and lower push rod (6).
