本实用新型涉及一种前保险杠侧边导向件的注塑模具，其包括定模和动模，定模包括定模座板和定模板，动模包括动模座板、动模板、两个支撑板和推板，定模板固定在定模座板上，两个支撑板的一端固定于动模座板上，并间隔预定距离，动模板与两个支撑板的另一端固定连接，推板可移动地设置在动模座板、动模板及两个支撑板之间，推板上设置有多个顶杆，定模板上形成有向下凹陷的模腔，模腔中具有向上凸起的第一弧形曲面，动模板上设置有向上凸起并与模腔形状相配合的模芯，模芯上形成有向下凹陷且与第一弧形曲面相配合的第二弧形曲面。本实用新型提供的前保险杠侧边导向件的注塑模具的结构比较简单，而且成本较低。
The utility model relates to an injection mold for the side guide of the front bumper. The fixed template is fixed on the fixed mold base plate, and one end of the two support plates is fixed on the movable mold base plate with a predetermined distance apart. The movable template is fixedly connected to the other end of the two support plates, and the push plate can be It is movably arranged between the movable die base plate, the movable die plate and two supporting plates. There are a plurality of ejector pins on the push plate, and a downwardly recessed die cavity is formed on the fixed die plate. An arc-shaped curved surface, a mold core that protrudes upwards and matches the shape of the mold cavity is provided on the movable template, and a second arc-shaped curved surface that is concave downwards and matched with the first arc-shaped curved surface is formed on the mold core. The structure of the injection mold of the side guide of the front bumper provided by the utility model is relatively simple, and the cost is low.
Description
Technical field
The utility model relates to injection molding apparatus field, especially relates to a kind of injection mold of front bumper side guide.
Background technology
Along with China's economy and social develop rapidly, automobile has become the important vehicles of one of people's life gradually, and people are also more and more higher to the requirement of automobile, and not only needing has good serviceability, and also needing has appearance attractive in appearance.On automobile, having many parts is all working of plastics, and it is generally to form by the mode manufacture of injection mo(u)lding.Take front bumper side guide as example, it is to form by the mode manufacture of injection mo(u)lding.But generally more complicated all of the structure of the injection mold of existing front bumper side guide is not easy to operate, and cost is higher, to automobile manufacturing company, brings certain frustration.Therefore, be necessary to develop the injection mold of a simple in structure, front bumper side guide that cost is low.
Utility model content
The purpose of this utility model is for the problems referred to above, and a kind of injection mold of simple in structure, front bumper side guide that cost is low is provided, and has solved the existing technical problem of prior art.
For achieving the above object, the utility model has adopted following technical proposal: a kind of injection mold of front bumper side guide, it comprises fixed half and moving half, described cover half comprises top clamping plate and solid plate, described dynamic model comprises Bottom clamp plate, moving platen, two gripper shoes and push pedal, described solid plate is fixed on described top clamping plate, one end of described two gripper shoes is fixed on described Bottom clamp plate, and interval preset distance, described moving platen is fixedly connected with the other end of described two gripper shoes, described push pedal is arranged on described Bottom clamp plate movably, between moving platen and two gripper shoes, in described push pedal, be provided with multiple push rods, on described solid plate, be formed with the die cavity to lower recess, in described die cavity, there is the first arc-shaped curved surface raising up, on described moving platen, be provided with the core rod that raises up and match with described die cavity shape, on described core rod, be formed with the second arc-shaped curved surface matching to lower recess and with described the first arc-shaped curved surface.
In the injection mold of above-mentioned front bumper side guide, preferably, on described solid plate, offer the cover half water channel around described die cavity, on described moving platen, offer the dynamic model water channel around described core rod.
In the injection mold of above-mentioned front bumper side guide, preferably, on described solid plate, offer multiple locating holes, described moving platen is protruding with the alignment pin that multiple and described multiple locating holes match.
In the injection mold of above-mentioned front bumper side guide, preferably, on described solid plate, be provided with guide pillar, on described moving platen, offer the pilot hole matching with described guide pillar.
The injection mold of the front bumper side guide that the utility model provides relatively simple for structure, and cost is lower.
Accompanying drawing explanation
Fig. 1 is the structural representation of the injection mold of the front bumper side guide that provides of the utility model embodiment.

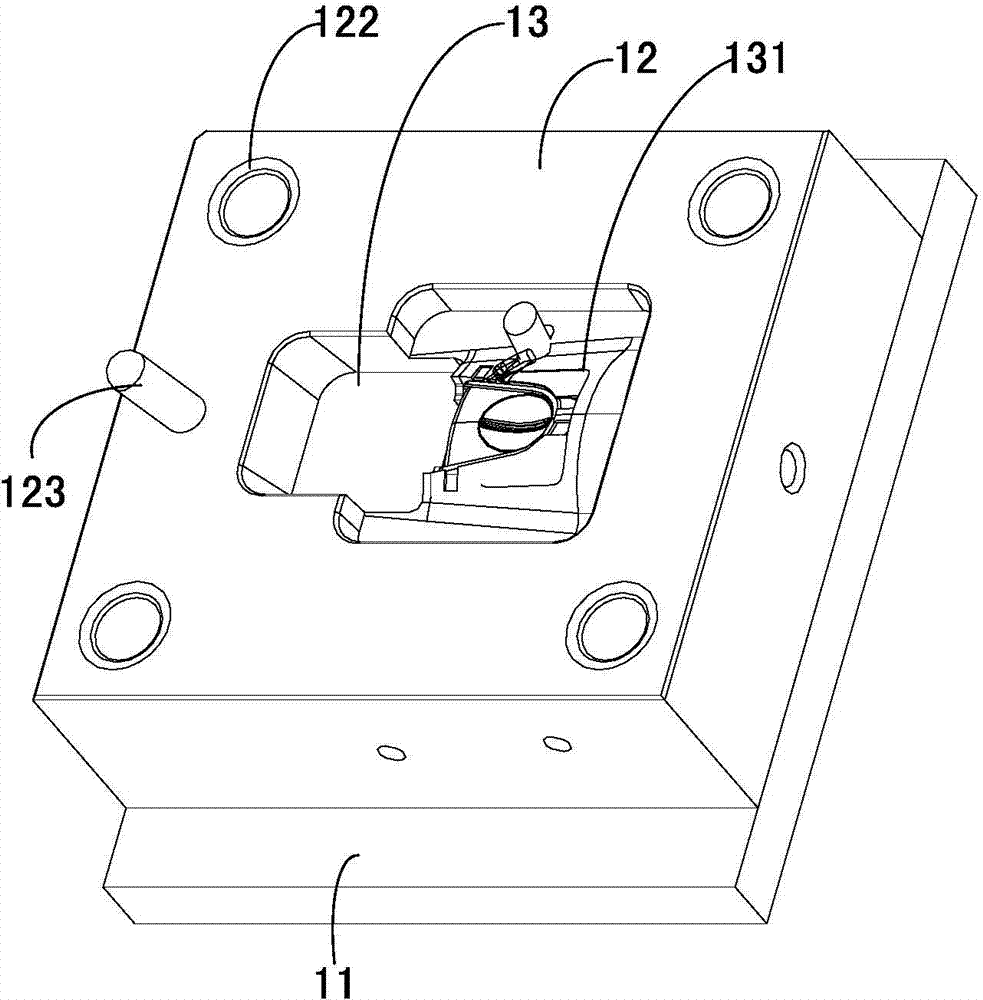

Fig. 2 is the structural representation of the cover half of the injection mold of the front bumper side guide in Fig. 1.
Fig. 3 is the structural representation of the dynamic model of the injection mold of the front bumper side guide in Fig. 1.
The specific embodiment
Please refer to Fig. 1 to Fig. 3, the injection mold of a kind of front bumper side guide that the utility model embodiment provides, the dynamic model that it comprises cover half and matches with cover half.
Please refer to Fig. 2, cover half comprises top clamping plate 11 and solid plate 12.Top clamping plate 11, solid plate 12 are all roughly square platy structure.Solid plate 12 is fixed on top clamping plate 11.
Please refer to Fig. 3, dynamic model comprises Bottom clamp plate 14, moving platen 16, two gripper shoes 15 and push pedals 17.Bottom clamp plate 14, moving platen 16 and push pedal 17 are square plate structure.One end of two gripper shoes 15 is fixed on Bottom clamp plate 14, and interval preset distance.Moving platen 16 is fixedly connected with the other end of two gripper shoes 15.Push pedal 17 is arranged between Bottom clamp plate 14, moving platen 16 and two gripper shoes 15 movably, is provided with multiple push rod (not shown) towards moving platen 16 in push pedal 17, for the front bumper side guide after moulding is ejected.
On solid plate 12, be formed with the die cavity 13 to lower recess, in die cavity 13, there is the first arc-shaped curved surface 131 raising up, on moving platen 16, be provided with the core rod 19 that raises up and match with die cavity 13 shapes, on core rod 19, be formed with the second arc-shaped curved surface 191 matching to lower recess and with the first arc-shaped curved surface 131.During matched moulds, die cavity 13 matches with core rod 19, is formed for the cavity of moulding front bumper side guide.
In a preferred embodiment, on solid plate 12, offer the cover half water channel 121 around die cavity 13, on moving platen 16, offer the dynamic model water channel 161 around core rod 19, cover half water channel 121 is connected with cooling water pipe respectively with dynamic model water channel 161, for cooling die cavity 13 and core rod core 19, so that the flow-like plastic shaping in die cavity 13.
In a preferred embodiment, on solid plate 12, offer multiple locating holes 122, moving platen 16 is protruding with the alignment pin 162 that multiple and multiple locating holes 122 match, when fixed half and moving half closes, alignment pin 162 inserts in locating hole 122, makes fixed half and moving half location.
In a preferred embodiment, on solid plate 12, be provided with guide pillar 123, on moving platen 16, offer the pilot hole 163 matching with guide pillar 123.
The injection mold structure of the front bumper side guide that the utility model provides is fairly simple, and cost is lower.
Specific embodiment described herein is only to the explanation for example of the utility model spirit.The utility model person of ordinary skill in the field can make various modifications or supplements or adopt similar mode to substitute described specific embodiment, but can't depart from spirit of the present utility model or surmount the defined scope of appended claims.
Although more used the terms such as dynamic model, moving platen, cover half, solid plate, die cavity, core rod herein, do not got rid of the possibility of using other term.Use these terms to be only used to describe more easily and explain essence of the present utility model; They are construed to any additional restriction is all contrary with the utility model spirit.
Claims (4)
1. the injection mold of a front bumper side guide, it is characterized in that, comprise fixed half and moving half, described cover half comprises top clamping plate and solid plate, described dynamic model comprises Bottom clamp plate, moving platen, two gripper shoes and push pedal, described solid plate is fixed on described top clamping plate, one end of described two gripper shoes is fixed on described Bottom clamp plate, and interval preset distance, described moving platen is fixedly connected with the other end of described two gripper shoes, described push pedal is arranged on described Bottom clamp plate movably, between moving platen and two gripper shoes, in described push pedal, be provided with multiple push rods, on described solid plate, be formed with the die cavity to lower recess, in described die cavity, there is the first arc-shaped curved surface raising up, on described moving platen, be provided with the core rod that raises up and match with described die cavity shape, on described core rod, be formed with the second arc-shaped curved surface matching to lower recess and with described the first arc-shaped curved surface.
2. the injection mold of front bumper side guide according to claim 1, is characterized in that, offers the cover half water channel around described die cavity on described solid plate, offers the dynamic model water channel around described core rod on described moving platen.
3. the injection mold of front bumper side guide according to claim 1, is characterized in that, offers multiple locating holes on described solid plate, and described moving platen is protruding with the alignment pin that multiple and described multiple locating holes match.
4. the injection mold of front bumper side guide according to claim 1, is characterized in that, on described solid plate, is provided with guide pillar, offers the pilot hole matching with described guide pillar on described moving platen.
