CN203564764U - Self-generating cockhorse - Google Patents
Self-generating cockhorse Download PDFInfo
- Publication number
- CN203564764U CN203564764U CN201320752228.7U CN201320752228U CN203564764U CN 203564764 U CN203564764 U CN 203564764U CN 201320752228 U CN201320752228 U CN 201320752228U CN 203564764 U CN203564764 U CN 203564764U
- Authority
- CN
- China
- Prior art keywords
- fan
- wooden horse
- shaped
- generator
- light
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- ZXQYGBMAQZUVMI-GCMPRSNUSA-N gamma-cyhalothrin Chemical compound CC1(C)[C@@H](\C=C(/Cl)C(F)(F)F)[C@H]1C(=O)O[C@H](C#N)C1=CC=CC(OC=2C=CC=CC=2)=C1 ZXQYGBMAQZUVMI-GCMPRSNUSA-N 0.000 claims abstract 5
- WHXSMMKQMYFTQS-UHFFFAOYSA-N Lithium Chemical compound [Li] WHXSMMKQMYFTQS-UHFFFAOYSA-N 0.000 claims description 3
- 239000003086 colorant Substances 0.000 claims description 3
- 229910052744 lithium Inorganic materials 0.000 claims description 3
- 229910052751 metal Inorganic materials 0.000 claims description 3
- 239000002184 metal Substances 0.000 claims description 3
- 230000000694 effects Effects 0.000 abstract description 5
- 238000005096 rolling process Methods 0.000 abstract description 5
- 230000005611 electricity Effects 0.000 abstract 1
- 238000004088 simulation Methods 0.000 abstract 1
- 238000010248 power generation Methods 0.000 description 7
- 230000009286 beneficial effect Effects 0.000 description 3
- 238000007373 indentation Methods 0.000 description 2
- 240000006313 Alternanthera bettzickiana Species 0.000 description 1
- 235000014138 Caesalpinia decapetala Nutrition 0.000 description 1
- 230000007812 deficiency Effects 0.000 description 1
- 238000004134 energy conservation Methods 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 239000011435 rock Substances 0.000 description 1
Images
Landscapes
- Toys (AREA)
Abstract
自发电木马玩具包括木马本体、扇形摆动件、齿轮、发电机、可充电蓄电池、设有控制电路的电路板、扬声器、发光模组和壳体；扇形摆动件、齿轮、发电机、可充电蓄电池、电路板和扬声器均安装于壳体内，壳体安装于木马本体，发光模组安装在木马本体的鬃毛位置；扇形摆动件的弧形端呈锯齿状，扇形摆动件远离弧形端的顶端枢接于壳体上，该扇形摆动件的弧形端与齿轮啮合连接，齿轮连接该发电机的转轴，发电机的输出端通过控制电路电性连接可充电蓄电池，扬声器和发光模组均电性连接控制电路。上述实用新型可随着木马本体的摇动自发电，并可发出相应急缓程度的马蹄声，该发光模组发出相应急缓程度的闪烁滚动灯光，仿真效果佳且节能环保。
The self-generating wooden horse toy includes a wooden horse body, fan-shaped swinging parts, gears, generators, rechargeable batteries, circuit boards with control circuits, speakers, light-emitting modules and casings; fan-shaped swinging parts, gears, generators, and rechargeable batteries , the circuit board and the loudspeaker are all installed in the casing, the casing is installed on the Trojan horse body, and the light-emitting module is installed on the mane position of the Trojan horse body; Connected to the shell, the arc-shaped end of the fan-shaped swinging member is meshed with the gear, the gear is connected to the shaft of the generator, the output end of the generator is electrically connected to the rechargeable battery through the control circuit, and the speaker and the light-emitting module are electrically balanced. Connect the control circuit. The above-mentioned utility model can generate electricity automatically with the shaking of the Trojan horse body, and can emit horseshoe sounds of corresponding urgency, and the light-emitting module emits flickering and rolling lights of corresponding urgency, which has good simulation effect and is energy-saving and environmentally friendly.
Description
Technical field
The utility model relates to a kind of self power generation wooden horse toy.
Background technology
Many families can purchase wooden horse to children, and traditional wooden horse only shakes function, not interesting, impermanent to baby's attraction.After existing wooden horse hand-car energising, can rock back and forth, send various children's song music luminous simultaneously, yet, this kind of wooden horse hand-car needs mains-supplied, is unfavorable for energy-conservationly, and equipment is huge, involve great expense, generally by supermarket, purchase and be put in doorway and use with compensation, and inapplicable family is used.
Utility model content
For the deficiencies in the prior art, the purpose of this utility model is intended to provide a kind of energy-conservation and interesting high self power generation wooden horse toy that is beneficial to.
For achieving the above object, the utility model adopts following technical scheme:
A self power generation wooden horse toy, it comprises wooden horse body, fan-shaped swing component, gear, generator, chargeable storage, the circuit board that is provided with control circuit, loudspeaker, illuminating module and housing; This fan-shaped swing component, gear, generator, chargeable storage, circuit board and loudspeaker are all installed in this housing, and this housing is installed on this wooden horse body, and this illuminating module is arranged on the mane position of wooden horse body; The arc tips indentation of this fan-shaped swing component, this fan-shaped swing component is articulated on this housing away from the top of arc tips, the arc tips of this fan-shaped swing component and this gear are connected with a joggle, this gear connects the rotating shaft of this generator, the output of this generator is electrically connected this chargeable storage by this control circuit, and this loudspeaker and this illuminating module are all electrically connected this control circuit.
Further, this fan-shaped swing component is the fan-shaped swing component of metal.
Further, this illuminating module comprises the LED of some different colours.
Further, this chargeable storage is chargeable lithium cell.
The beneficial effects of the utility model are as follows:
Above-mentioned utility model can be along with the self power generation of shaking of wooden horse body, and can send the hoofbeat of emergent slow degree mutually, this illuminating module is sent the flicker rolling light of emergent slow degree mutually, it is faster that wooden horse body shakes speed, and the hoofbeat that this loudspeaker sends will be more rapid, and the illuminating module of roller can be simulated the effect of mane rolling, when wooden horse body stops, this loudspeaker can send the long whinny sound of horse, thereby makes wooden horse simulated effect better, and is beneficial to energy-conserving and environment-protective.
Accompanying drawing explanation

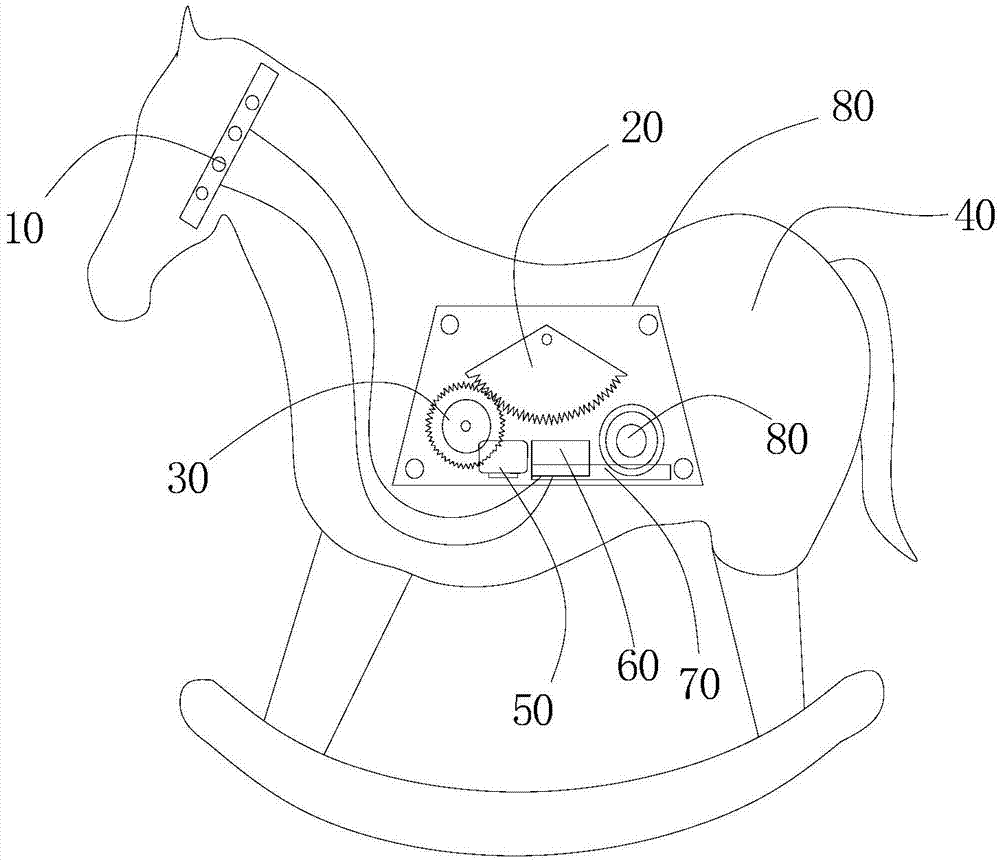

Fig. 1 is the structural representation of the better embodiment of the utility model self power generation wooden horse toy.
The specific embodiment
Below in conjunction with accompanying drawing and the specific embodiment, the utility model is described further:
Refer to Fig. 1, the utility model relates to a kind of self power generation wooden horse toy, and its better embodiment comprises wooden horse body 40, fan-shaped swing component 20, gear 30, generator 50, chargeable storage 70, the circuit board 60 that is provided with control circuit, loudspeaker 80, illuminating module 10 and housing 80.
This fan-shaped swing component 20, gear 30, generator 50, chargeable storage 70, circuit board 60 and loudspeaker 80 are all installed in this housing 80.This housing 80 is installed on this wooden horse body 40.This illuminating module 10 is arranged on the mane position of wooden horse body 40.
The arc tips indentation of this fan-shaped swing component 20, this fan-shaped swing component 20 is articulated on this housing 80 away from the top of arc tips, the arc tips of this fan-shaped swing component 20 and this gear 30 are connected with a joggle, this gear 30 connects the rotating shaft of this generator 50, the output of this generator 50 is electrically connected this chargeable storage 70 by this control circuit, and this loudspeaker 80 and this illuminating module 10 are all electrically connected this control circuit.
When children's shoofly body 40, this fan-shaped swing component 20 is along with swing, and then driven gear 30 rotates, thereby drive generator 50 generatings, the power storage that this control circuit produces generator 50 is in this chargeable storage 70, and electric energy is supplied with to this illuminating module 10, simultaneously, this control circuit sends the hoofbeat of emergent slow degree mutually according to corresponding this loudspeaker 80 that drives of size of current, and drive this illuminating module to send the flicker rolling light of emergent slow degree mutually, for example, it is faster that wooden horse body shakes speed, the hoofbeat that this loudspeaker 80 sends will be more rapid, the illuminating module of roller can be simulated the effect of mane rolling, thereby make wooden horse simulated effect better.When wooden horse body 40 stops waving, this control circuit drives this loudspeaker 80 to send the long whinny sound of horse.
In the present embodiment, this fan-shaped swing component 20 is the fan-shaped swing component of metal.This chargeable storage 70 is chargeable lithium cell.This illuminating module 10 comprises the LED of some different colours, and this control circuit rolls luminous according to shaking the some LED of the corresponding frequency drives of speed with wooden horse body.
For a person skilled in the art, can make other various corresponding changes and distortion according to technical scheme described above and design, and these all changes and distortion all should belong to the protection domain of the utility model claim within.
