CN203562701U - Supporting frame for cable maintenance - Google Patents

Abstract

The utility model discloses a support frame for cable maintenance, which comprises two installation sticks parallel to each other, a support stick is arranged between the installation sticks, the two ends of the support sticks are vertically connected with one of the installation sticks, and There is a curved positioning rod between them, the two ends of the positioning rod are vertically connected with one of the installation rods, and a mounting plate is vertically arranged on the top of the two mounting rods, the mounting plate is connected with a mounting strip, and the mounting strip is close to it Rollers are arranged between the mounting rods, and the rollers are connected to the corresponding mounting bars and the corresponding mounting rods at the same time, and the rollers can rotate around their own axes. The structure of the support frame is simple, the maintenance personnel drill into the support frame, and use the rolling of the rollers to enable the maintenance personnel to move along the cable to the place that needs maintenance, and the device in the support frame can provide protection for the maintenance personnel and prevent maintenance Personnel shake or even fall from a high place, ensuring the safety of maintenance personnel.

Description

A support frame for cable maintenance

technical field

The utility model relates to a support frame, in particular to a support frame for cable maintenance, which belongs to the maintenance equipment of electric facilities.

Background technique

Cable is a general term for items such as optical cables and cables. There are many uses of cables, mainly used for multiple functions such as control installation, connection equipment, power transmission, etc. It is a common and indispensable thing in daily life. Since the cables are live, installation requires special care. Power cables are extruded (winded) around the conductor with an insulating layer, such as overhead insulated cables, or twisted with several cores (corresponding to the phase wire, neutral wire and ground wire of the power system), such as overhead insulated cables with more than two cores, or additional Sheath layer, such as plastic/rubber sheathed wire and cable. Main technology has drawing, stranded, insulation extruded (wrapped), stranding, armouring, sheath to extrude etc., and the different process combination of various products has certain difference. Since power cables are generally erected in the air for power transmission, under the long-term effects of the natural environment, etc., local cracks or pollution of the cables will occur, which will affect the power transmission. In this case, maintenance is required. In some places, the roads are inconvenient, large-scale lifting equipment cannot enter, and maintenance personnel can only enter the site with their own tools. The cable is erected in the air and is set between two cables. Go to the pole or tower and then move along the cable to the position that needs maintenance. Some individual cables are suspended in the air and have a small diameter. The maintenance personnel cannot step on the cable to operate, which makes it very troublesome for the maintenance personnel to reach the maintenance personnel, and there is a big problem for the maintenance personnel. security risks.

Utility model content

The purpose of this utility model is to overcome the problem that the maintenance personnel are inconvenient to reach the maintenance place during the maintenance of the existing suspended cables, and a support frame for cable maintenance is designed. place for maintenance.

The purpose of this utility model is achieved through the following technical solutions: a support frame for cable maintenance, including two parallel installation sticks, support sticks are arranged between the installation sticks, and the two ends of the support sticks are respectively installed with one of them. The sticks are vertically connected, and there are curved positioning sticks between the installation sticks. The two ends of the positioning sticks are connected vertically with one of the installation sticks respectively. A mounting plate is provided, and the mounting plates are connected with mounting strips. The mounting strips are parallel to the mounting rods. At the same time, it is connected with the corresponding installation bar and the corresponding installation rod, and the roller can rotate around its own axis. The maintenance personnel step on the support rod, and the body is in the arc area of the positioning rod, so that the maintenance personnel can enter the inside of the support frame, and the support frame has the function of supporting and fixing the maintenance personnel, while the roller is pressed on the cable , the maintenance personnel pull on the cable by hand, so that the rollers rotate, the support frame moves along the cable, and finally drives the maintenance personnel to the place that needs maintenance. the

The inside of the roller is provided with a roller, and the two ends of the roller pass through the roller and pass through the corresponding installation bar and the corresponding installation stick respectively. The axis of the roller coincides with the axis of the roller, and the roller can rotate around the roller . By passing the roller through the roller and then through the corresponding installation bar and installation stick, the roller can move along the cable under the pull of the maintenance personnel to reach the place that needs maintenance.

A locking plate is arranged between the installation rod and the adjacent installation bar, and the two ends of the locking plate are respectively connected with the corresponding installation stick and the installation bar, and the locking plate is arranged under the roller. There is a gap between the locking plate and the roller. This gap is larger than the diameter of the cable. The cable is stuck under the roller and is in contact with the wheel surface. The locking plate prevents the cable from detaching from the roller due to accidents. Finally, the situation that causes the entire support frame and the cable to be out of contact occurs.

The mounting rods are provided with fixed sleeves 1, which are respectively fitted on the outer walls of the mounting rods. The fixed sleeves 1 are arranged above the positioning rods, and the connecting rods that are curved and arc-shaped are arranged between the fixed sleeves 1. , the two ends of the connecting rods are respectively connected with the corresponding fixing sleeves, and both ends of the connecting rods are parallel to the installation rods, and the connecting rods are arranged between the installation rods.

The fixing sleeves are all provided with tension chains, the two ends of the tension chains are respectively connected with the positioning sticks and the corresponding fixing sleeves, and the tension chains are arranged on the outside of the two installation sticks. The tightening chain is used as a pull on the positioning stick to avoid the deformation of the positioning stick under the pressure of the maintenance personnel's body, and the position of the positioning stick is always fixed by utilizing the tightening of the tensioning chain.

The outer wall of the installation rod is fitted with two fixed sleeves, the two ends of the positioning rod are respectively connected with the corresponding fixed sleeve two, and the fixed sleeve two is arranged directly below the fixed sleeve one; There is a fixed sleeve three, and the two ends of the support rod are respectively connected with the corresponding fixed sleeve three, and the fixed sleeve three is arranged directly below the fixed sleeve two. The fixing sleeve is used to connect the components with the mounting rod, so that the overall structural stability of the entire support frame is higher.

To sum up, the beneficial effect of the utility model is: the structure of the support frame is simple, the maintenance personnel drill into the support frame, and use the rolling of the rollers, so that the maintenance personnel can move along the cable to the place that needs maintenance, and support The device in the rack can provide protection for the maintenance personnel, prevent the maintenance personnel from shaking or even fall from a high place, and ensure the safety of the maintenance personnel.

Description of drawings

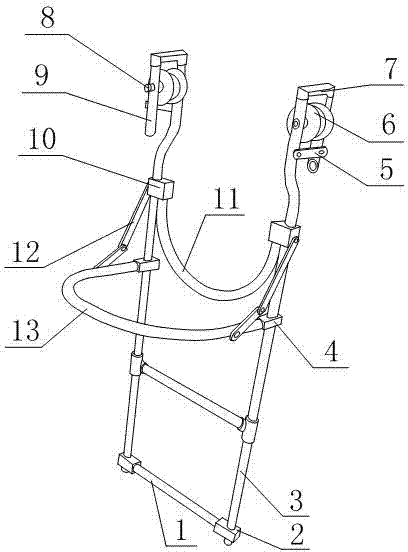

Fig. 1 is the structural representation of the utility model.

The marks in the drawings and the names of corresponding parts: 1—support rod; 2—fixed sleeve three; 3—installation rod; 4—fixed sleeve two; 5—locking plate; Roller shaft; 9—installation strip; 10—fixed sleeve one; 11—connecting stick; 12—tension chain; 13—positioning stick.

Detailed ways

The utility model will be further described in detail below in conjunction with the embodiments and accompanying drawings, but the implementation of the utility model is not limited thereto.

Example 1:

As shown in Figure 1, a support frame for cable maintenance includes two parallel installation rods 3, a support rod 1 is arranged between the installation rods 3, and the two ends of the support rods 1 are connected to one of the installation rods 3 respectively. Vertical connection, between the installation rods 3 is provided with curved positioning rods 13, the two ends of the positioning rods 13 are vertically connected with one of the installation rods 3 respectively, the positioning rods 13 are arranged on the top of the support rod 1, installed on the two The tops of the sticks 3 are all vertically provided with a mounting plate 7, and the mounting plates 7 are connected with a mounting bar 9, the mounting bar 9 is parallel to the mounting bar 3, and the other end of the mounting bar 9 is facing the same direction as the end of the mounting bar 3 away from the mounting plate 7, A roller 6 is arranged between the installation strip 9 and the adjacent installation stick 3, and the roller 6 is connected with the corresponding installation strip 9 and the corresponding installation stick 3 at the same time, and the roller 6 can rotate around its own axis. In order to ensure that the roller 6 can have a certain angle with the installation roller 3, the part of the installation roller 3 arranged between the installation plate and the fixed sleeve 10 is bent in an S shape. This structure can set the center of the roller 6 at the bottom of the installation roller 3. In the center, the center of gravity can be stabilized when installing with the cable. At the same time, the installation plate 7 connected to the two installation sticks 3 is in a symmetrical direction. When the cable passes between the two rollers 6 and the locking plate 5, a staggered structure is formed. , reducing the shaking situation and increasing its stability.

Example 2:

The inside of the roller 6 is provided with a roller 8, and the two ends of the roller 8 pass through the roller 8 and respectively pass through the corresponding installation bar 9 and the corresponding installation stick 3, the axis of the roller 8 coincides with the axis of the roller 6, And the roller 6 can rotate around the roller shaft 8; a locking plate 5 is arranged between the installation stick 3 and the adjacent installation bar 9, and the two ends of the locking plate 5 are respectively connected with the corresponding installation stick 3 and the installation bar 9 , and the locking plate 5 is arranged below the roller 6 . The number of rollers is generally two, which are set at the same height to ensure that the maintenance personnel can maintain the level when moving, and the locking plate is used as a protection mechanism to prevent the cables from being accidentally detached from the rollers, and the cables are always in the support frame within the contact range to prevent safety accidents.

The mounting sticks 3 are provided with fixing sleeves 10, and the fixing sleeves 10 are respectively fitted on the outer walls of the mounting sticks 3. The fixing sleeves 10 are arranged above the positioning sticks 13. The connecting rod 11 is curved in an arc shape, and the two ends of the connecting rod 11 are respectively connected with the corresponding fixing sleeve 10, and both ends of the connecting rod 11 are parallel to the installation rods 3, and the connecting rod 11 is arranged between the installation rods 3. The connecting rods 11 are used to increase the structural stability between the mounting rods 3 and prevent them from falling apart during use.

The fixing sleeve 10 is provided with a tension chain 12, the two ends of the tension chain 12 are respectively connected with the positioning rod 13 and the corresponding fixing sleeve 10, and the tension chain 12 is arranged on the outside of the two installation rods 3. The tension chain 12 is used as a device to ensure the position of the positioning rod 13. Since the maintenance personnel have a tendency to lean backward during maintenance, the positioning rod 13 bears a relatively large force. In the long run, it will cause deformation of the positioning rod 13 or even Come off from the fixed cover two 4, and set the tension chain 12 to effectively fix the positioning stick 13, share the power that a part of the positioning stick 13 is subjected to, prolong the service life, and improve the safety.

The outer wall of the installation stick 3 is fitted with two fixed sleeves 4, the two ends of the positioning stick 13 are respectively connected with the corresponding fixed sleeve two 4, and the two fixed sleeves 4 are arranged directly below the fixed sleeve one 10; The outer wall of the rod 3 is fitted with three fixed sleeves 2, and the two ends of the support rod 1 are respectively connected with the corresponding fixed sleeve three 2, and the fixed sleeve three 2 is arranged directly below the fixed sleeve two 4. The role of the fixing sleeve is to connect the corresponding parts with the installation stick 3, so that the whole support frame can form a whole, with high stability, and can bear the weight of the maintenance personnel and the tools carried by them. Since the maintenance personnel have different heights, a plurality of parallel support rods 1 should be provided to meet maintenance personnel of different heights.

The above is only a preferred embodiment of the utility model, and does not limit the utility model in any form. Any simple modification or equivalent change made to the above embodiments in essence according to the technology and method of the utility model, All fall within the protection scope of the present utility model.

Claims (7)

1. the bracing frame while keeping in repair cable, it is characterized in that: comprise two installation rods (3) that are parallel to each other, install between rod (3) and be provided with supporting stick (1), the two ends of supporting stick (1) respectively with wherein one install vertical connection of rod (3), between installation rod (3), be provided with bending curved location rod (13), location rod (13) two ends respectively with wherein one install vertical connection of rod (3), location rod (13) is arranged on the top of supporting stick (1), on two tops that rod (3) is installed, be all vertically installed with mounting panel (7), mounting panel (7) is all connected with mounting bar (9), mounting bar (9) is parallel with installation rod (3), the other end of mounting bar (9) with install rod (3) away from one end of mounting panel (7) towards identical, between mounting bar (9) and its close installation rod (3), be provided with roller (6), roller (6) while and corresponding mounting bar (9) and corresponding installation rod (3) connection, and roller (6) can rotate around the axis of himself.

2. a kind of bracing frame while keeping in repair cable according to claim 1, it is characterized in that: the inside of described roller (6) is provided with roller bearing (8), the two ends of roller bearing (8) are through passing respectively corresponding mounting bar (9) and corresponding installation rod (3) after roller (8), the dead in line of the axis of roller bearing (8) and roller (6), and roller (6) can rotate around roller bearing (8).

3. a kind of bracing frame while keeping in repair cable according to claim 2, it is characterized in that: between described installation rod (3) and close mounting bar (9), be provided with latch (5), the two ends of latch (5) connect with corresponding installation rod (3) and mounting bar (9) respectively, and latch (5) is arranged on the below of roller (6).

4. a kind of bracing frame while keeping in repair cable according to claim 1, it is characterized in that: on described installation rod (3), be provided with fixed cover one (10), fixed cover one (10) is linked in respectively on the outer wall that rod (3) is installed, fixed cover one (10) is arranged on the top of location rod (13), between fixed cover one (10), be provided with and be bending curved connection rod (11), the two ends that connect rod (11) connect with corresponding fixed cover one (10) respectively, and the two ends that connect rod (11) are all parallel with installation rod (3), connecting rod (11) is arranged between installation rod (3).

5. a kind of bracing frame while keeping in repair cable according to claim 4, it is characterized in that: on described fixed cover one (10), be provided with tensioning chain (12), the two ends of tensioning chain (12) connect with location rod (13) and corresponding fixed cover one (10) respectively, and tensioning chain (12) is arranged on the outsides of two installation rods (3).

6. a kind of bracing frame while keeping in repair cable according to claim 5, it is characterized in that: on the outer wall of described installation rod (3), be all sheathed with fixed cover two (4), the two ends of location rod (13) connect with corresponding fixed cover two (4) respectively, fixed cover two (4) be arranged on fixed cover one (10) under.

7. a kind of bracing frame while keeping in repair cable according to claim 6, it is characterized in that: on the outer wall of described installation rod (3), be all sheathed with fixed cover three (2), the two ends of supporting stick (1) connect with corresponding fixed cover three (2) respectively, fixed cover three (2) be arranged on fixed cover two (4) under.
