CN203533403U - Solar LED (Light Emitting Diode) advertisement lighting and monitoring system - Google Patents
Solar LED (Light Emitting Diode) advertisement lighting and monitoring system Download PDFInfo
- Publication number
- CN203533403U CN203533403U CN201320682365.8U CN201320682365U CN203533403U CN 203533403 U CN203533403 U CN 203533403U CN 201320682365 U CN201320682365 U CN 201320682365U CN 203533403 U CN203533403 U CN 203533403U
- Authority
- CN
- China
- Prior art keywords
- monitoring system
- solar
- module
- led
- lighting
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Illuminated Signs And Luminous Advertising (AREA)
Abstract
The utility model relates to a solar LED (Light Emitting Diode) advertisement lighting and monitoring system. The solar LED advertisement lighting and monitoring system is characterized by comprising plural lighting sub-systems, wherein each lighting sub-system comprises plural LED advertisement lighting lamps which are connected with a solar controller; the solar controller is also connected with a photovoltaic power generation module and a storage battery module; the LED advertisement lighting lamps and the photovoltaic power generation module are arranged on an upper end of an advertising board. The solar LED advertisement lighting and monitoring system is low in energy consumption, long in service life and uniform in incident lights, and provides good guarantee for the normal operation of the lighting lamps as a double-drive mode is adopted; in addition, a user can monitor by using a mobile phone or a computer in real time at any time and at any place through a global eye monitoring device, so that the solar LED advertisement lighting and monitoring system is conductive to safety management.
Description
Technical field
The utility model relates to a kind of solar LED advertising lighting and monitoring system.
Background technology
Development along with LED technology, also have in the market for part large-scale outdoor signboard LED projecting lamp, LED Tunnel Lamp, LED floodlight as lighting source, although this class light fixture can overcome, traditional Flood lamps and lanterns power consumption is large, the life-span is short, can not be by the deficiency such as solar powered, but because of its light source, making dot matrix arranges, light is more concentrated, and do not do special optical treatment, thereby the projection on photographed object is unsatisfactory, fail effectively to overcome illumination and the poor problem of the uniformity.
In addition, what generally adopt due to existing LED light fixture is the combination of aluminum alloy lamp strip and plastics side cover, because the coefficient of expansion of aluminium alloy and plastics is different, can be because the effect of expanding with heat and contract with cold produce gap in summer or winter, thereby do not reach desirable water resistance.On the other hand, due to existing LED light fixture employing is all single drive pattern, all LED module adopts series system to connect, in order to reach higher efficiency, employing be the voltage higher than 36 volts, there is potential safety hazard, and when drive circuit breaks down or when wherein a LEDs module damages, LED light fixture just cannot normally be used, and needs on-call maintenance, has caused some unnecessary troubles.
Utility model content
In view of this, the purpose of this utility model is to provide a kind of solar LED advertising lighting and monitoring system.
The utility model adopts following scheme to realize: a kind of solar LED advertising lighting and monitoring system, it is characterized in that: comprise a plurality of illumination subsystems, described illumination subsystems comprises a plurality of LED advertisement lighting lamps, described LED advertisement lighting lamp connects a controller for solar, described controller for solar also connects a photovoltaic generating module and a battery module, and described LED advertisement lighting lamp and described photovoltaic generating module are arranged at a billboard upper end.
In the utility model one embodiment, described LED advertisement lighting lamp comprises that a lamp bar and is arranged at the lampshade of described lamp bar top, described lamp bar top is also provided with one first illuminating module and one second illuminating module, described the first illuminating module is connected with a controller by one first driver module, described the second illuminating module is connected with described controller by one second driver module, described controller is connected with described battery module, described lamp bar below is provided with a fin, and described lamp bar both sides are respectively equipped with a side cover.
In the utility model one embodiment, with bolts between described lamp bar and described side cover, and in described bolt hole, be also provided with one for sealing the rubber stopper of bolt.
In the utility model one embodiment, described the first illuminating module and described the second illuminating module are comprised of four LEDs modules.
In the utility model one embodiment, described LED module comprises a fixed block and a LED lamp, and described fixed block is connected with described lamp strip adoption bolt.
In the utility model one embodiment, described lamp bar, described fin and described side cover adopt alloy material.
In the utility model one embodiment, also comprise that one for monitoring the global eyes supervising device of described billboard and described LED advertisement lighting lamp.
In the utility model one embodiment, also comprise a handheld terminal that carries out communication with described global eyes supervising device.
In the utility model one embodiment, described global eyes supervising device is connected with described billboard by a support.
In the utility model one embodiment, also comprise a guard against theft and alarm system.
The utility model power consumption less, long service life, projection light be even, and adopt Dual Drive pattern, for the normal work of illuminating lamp provides good guarantee; And by global eyes supervising device, user can monitor by mobile phone or computer whenever and wherever possible in real time, is conducive to safety management.
For making the purpose of this utility model, technical scheme and advantage clearer, below will, by specific embodiment and relevant drawings, the utility model be described in further detail.
Accompanying drawing explanation
Fig. 1 is the utility model system architecture schematic diagram.

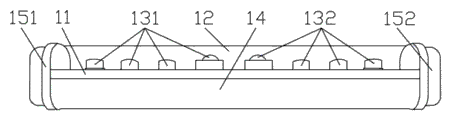

Fig. 2 is the structural representation of the utility model LED advertisement lighting lamp.
Fig. 3 is the utility model schematic block circuit diagram.
Fig. 4 is the utility model driving circuit principle figure.
Illustrate: 1-LED advertisement lighting lamp, 2-photovoltaic generating module, 3-billboard, 11-lamp bar, 12-lampshade, 131-the first illuminating module, 132-the second illuminating module, 14-fin, 151-left cap, 152-right cap.
The specific embodiment
As shown in Figure 1, the utility model provides a kind of solar LED advertising lighting and monitoring system, comprise a plurality of illumination subsystems, described illumination subsystems comprises a plurality of LED advertisement lighting lamps 1, described LED advertisement lighting lamp 1 connects a controller for solar, described controller for solar also connects a photovoltaic generating module 2 and a battery module, and described LED advertisement lighting lamp 1 and described photovoltaic generating module 2 are arranged at billboard 3 upper ends.
As shown in Figures 2 and 3, described LED advertisement lighting lamp comprises that a lamp bar 11 and is arranged at the lampshade 12 of described lamp bar 11 tops, described lamp bar 11 tops are also provided with one first illuminating module 131 and one second illuminating module 132, described the first illuminating module 131 is connected with a controller by one first driver module, described the second illuminating module 132 is connected with described controller by one second driver module, described controller is connected with described battery module, described lamp bar 11 belows are provided with a fin 14, described lamp bar 11 both sides are respectively equipped with a side cover (left cap 151 and right cap 152).
As shown in Figure 4, driver module of the present utility model is depressured to external voltage for after the comparatively safe low pressure of human body, and system is powered, and ensures and uses safety, for example, can adopt LM3404 to drive chip.
Can be with bolts between described lamp bar and described side cover, in order to improve the water resistance of illuminating lamp integral body, in described bolt hole, can also be provided with one for sealing the rubber stopper of bolt.
Take into full account energy-conservation and result of use, described the first illuminating module and described the second illuminating module can be (preferred by many, can select four) LED module composition, described LED module comprises a fixed block and a LED lamp, described fixed block is the cushion block structure of multi-angle, be beneficial to form the different setting angle of LED lamp, make LED lamp form on photographed object surface the effect evenly illuminating, described fixed block and described lamp bar can be with bolts, in order to install simple and to enhance productivity, described fixed block and described lamp bar can also be integrated.
In order to allow whole illuminating lamp more effectively reach waterproof effect, described lamp bar, described fin and described side cover adopt alloy material, especially can adopt aluminum alloy materials.In addition, between described lamp bar and lampshade and between lamp bar and side cover, can adopt rubber seal mode to seal, again improve classification of waterproof.In order to allow lamp bar better be hung on billboard, described lamp bar front end is also provided with a grooved hanging body for being connected with billboard.
For user can be monitored in real time by handheld terminal (mobile phone, flat board or computer etc.) whenever and wherever possible, also comprise that one for monitoring the global eyes supervising device of described billboard and described LED advertisement lighting lamp, described global eyes supervising device is connected with described billboard by a support, and being beneficial to global eyes supervising device can better monitor billboard and LED advertisement lighting lamp.
In order to improve the degree of protection of whole system, can also comprise a guard against theft and alarm system, this guard against theft and alarm system can send note to user's mobile phone or dial subscriber phone, also can be directly and the security department such as police office network, to facilitate monitoring and management.
Above-listed preferred embodiment; the purpose of this utility model, technical scheme and advantage are further described; institute is understood that; the foregoing is only preferred embodiment of the present utility model; not in order to limit the utility model; all within spirit of the present utility model and principle, any modification of doing, be equal to replacement, improvement etc., within all should being included in protection domain of the present utility model.
Claims (10)
1. a solar LED advertising lighting and monitoring system, it is characterized in that: comprise a plurality of illumination subsystems, described illumination subsystems comprises a plurality of LED advertisement lighting lamps, described LED advertisement lighting lamp connects a controller for solar, described controller for solar also connects a photovoltaic generating module and a battery module, and described LED advertisement lighting lamp and described photovoltaic generating module are arranged at a billboard upper end.
2. a kind of solar LED advertising lighting according to claim 1 and monitoring system, it is characterized in that: described LED advertisement lighting lamp comprises that a lamp bar and is arranged at the lampshade of described lamp bar top, described lamp bar top is also provided with one first illuminating module and one second illuminating module, described the first illuminating module is connected with a controller by one first driver module, described the second illuminating module is connected with described controller by one second driver module, described controller is connected with described battery module, described lamp bar below is provided with a fin, described lamp bar both sides are respectively equipped with a side cover.
3. a kind of solar LED advertising lighting according to claim 2 and monitoring system, is characterized in that: with bolts between described lamp bar and described side cover, and in described bolt hole, be also provided with one for sealing the rubber stopper of bolt.
4. a kind of solar LED advertising lighting according to claim 2 and monitoring system, is characterized in that: described the first illuminating module and described the second illuminating module are comprised of four LEDs modules.
5. a kind of solar LED advertising lighting according to claim 2 and monitoring system, is characterized in that: described LED module comprises a fixed block and a LED lamp, and described fixed block is connected with described lamp strip adoption bolt.
6. a kind of solar LED advertising lighting according to claim 2 and monitoring system, is characterized in that: described lamp bar, described fin and described side cover adopt alloy material.
7. a kind of solar LED advertising lighting according to claim 1 and monitoring system, is characterized in that: also comprise that one for monitoring the global eyes supervising device of described billboard and described LED advertisement lighting lamp.
8. a kind of solar LED advertising lighting according to claim 7 and monitoring system, is characterized in that: also comprise a handheld terminal that carries out communication with described global eyes supervising device.
9. a kind of solar LED advertising lighting according to claim 7 and monitoring system, is characterized in that: described global eyes supervising device is connected with described billboard by a support.
10. a kind of solar LED advertising lighting according to claim 1 and monitoring system, is characterized in that: also comprise a guard against theft and alarm system.
