CN203529036U - Turnover box convenient to lift - Google Patents

Abstract

The utility model relates to a turnover box for easy extraction, which comprises a box body, the box body is arranged as a cuboid structure, and its four corners are set as rounded corners; the box body is respectively provided with The protrusion is arranged in the middle of the side wall where it is located; the lower surface of the protrusion is also provided with a through groove near the position where the box body is located. The utility model can use the bump as a handle in the process of extracting the turnover box, which facilitates the extraction of the turnover box, and when the mass of the used turnover box is large, the single handle can When it is difficult to extract, the thin rod can be placed in the groove for extraction or the action arm of mechanical structure can be placed on the lower surface of the bump for extraction; it is not only convenient for the handling of the turnover box, but also the turnover box The utility model has the advantages of simple structure and convenient use.

Description

A turnover box for easy extraction

technical field

The utility model relates to a turnover box, in particular to a turnover box which is convenient for extraction.

Background technique

Turnover boxes, also known as logistics boxes, are widely used in machinery, automobiles, home appliances, light industry, electronics and other industries. They are resistant to acid, alkali, oil, non-toxic and tasteless. They can be used to hold food, etc. They are easy to clean and the turnover of parts is convenient. Stacks neatly for easy management. When extracting the turnover box, it generally acts on the outer edge of the opening of the turnover box, but because the width of the outer edge of the opening of the turnover box is narrow, it is inconvenient to extract, and when the weight of the object contained in the turnover box When larger, this brings greater difficulty to people's extraction.

Contents of the invention

The purpose of the utility model is to provide a turnover box which is convenient for extraction in order to overcome the deficiencies of the prior art. the

In order to achieve the above purpose, the technical solution adopted by the utility model is: a turnover box that is easy to extract, including a box body, the box body is set as a cuboid structure, and its four corners are set as rounded corners; the box body Protruding blocks are respectively provided on the four outer side walls thereof, and the protruding blocks are arranged in the middle of the side walls where they are located; the lower surface of the protruding blocks is also provided with a through groove near the position where the box body is located.

Further, the bump is arranged in a rectangular parallelepiped structure.

Further, the through groove is also arranged in a cuboid structure.

Due to the application of the above-mentioned technical solution, the utility model has the following advantages compared with the prior art:

The easy-to-extract turnover box described in the utility model is provided with protrusions respectively on the four side walls of the box body, and the protrusions are arranged in the middle of the side walls where they are located; The bump can be used as a handle, which facilitates the extraction of the turnover box, and when the mass of the turnover box used is large and it is difficult to extract it through a single handle, the thin rod can be placed Extraction is carried out in the groove or placed on the lower surface of the bump with a mechanically structured action arm; it not only facilitates the handling of the turnover box, but also the turnover box itself has a simple structure and is easy to use.

Description of drawings

Below in conjunction with accompanying drawing, technical scheme of the utility model is further described:

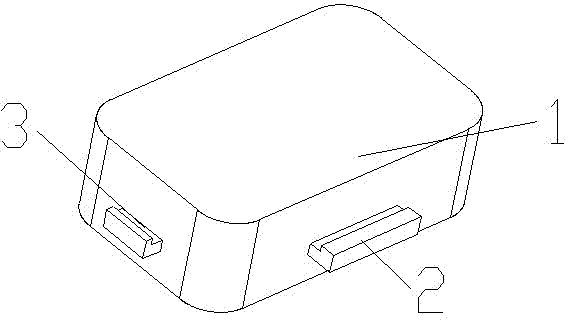

Accompanying drawing 1 is the structural representation of the turnover box that is convenient to extract described in the utility model;

Among them: 1. Box body; 2. Protrusion; 3. Through groove. the

Detailed ways

Below in conjunction with accompanying drawing and specific embodiment the utility model is described in further detail.

Accompanying drawing 1 is a kind of turnover box that is convenient to extract described in the utility model, comprises box body 1, and described box body 1 is arranged as cuboid structure, and its four corners are set as rounded corners; Described box body 1 is in Protrusions 2 are respectively provided on the four outer walls, and the protrusions 2 are arranged in the middle of the side walls where they are located; the lower surface of the protrusions 2 is also provided with a through groove near the position where the box body 1 is located. 3.

Wherein the bump 2 and the through groove 3 are both arranged in a rectangular parallelepiped structure.

The turnover box that is convenient to extract described in the utility model, owing to be respectively provided with lug 2 on the four side walls of box body 1, and described lug 2 is arranged on the middle part of its place side wall; When using the bump 2 as a handle, it is convenient to extract the turnover box, and when the mass of the turnover box used is relatively large, and it is difficult to extract it through a single handle, the thin The rod is placed in the groove for extraction or the action arm of mechanical structure is placed on the lower surface of the bump 2 for extraction, so that it is easy to extract the turnover box carrying heavy objects; it not only facilitates the handling of the turnover box Function, and the turnover box itself has a simple structure and is easy to use.

The above are only specific application examples of the utility model, and do not constitute any limitation to the protection scope of the utility model. All technical solutions formed by equivalent transformation or equivalent replacement fall within the protection scope of the utility model.

Claims (3)

1. be convenient to the Turnover Box extracting, comprise casing, described casing is set to rectangular structure, and its four corners are arranged to fillet; It is characterized in that: described casing is respectively arranged with projection on its four lateral walls, and described projection is arranged on the middle part of its place sidewall; The lower surface of described projection is also provided with groove in the position near casing place.

2. the Turnover Box of being convenient to extraction according to claim 1, is characterized in that: described projection is arranged to rectangular structure.

3. the Turnover Box of being convenient to extraction according to claim 1, is characterized in that: described groove is also arranged to rectangular structure.
