Abstract

The utility model discloses a tool rest mechanism of a machine tool, which comprises a tool rest, a tool and a drill chuck. The tool rest mechanism of the machine tool also includes a connecting plate and a movable tool arranged on the connecting plate, wherein: There is an arc-shaped groove, and the center of the arc-shaped groove is provided with a rod; the cutter includes 4 pieces, and the cutter and the drill chuck are arranged along the periphery of the arc-shaped groove; the connecting plate is fixed on the tool holder, At least two movable knives are arranged on the connecting plate. The utility model solves the technical defect that the tool holder of the CNC machine tool in the prior art can only install a fixed number of knives by improving the existing tool holder, and flexibly increases the number of knives through the connecting block, and also increases the processing angle , which reduces the difficulty of processing complex parts and improves work efficiency.

Description

A machine tool holder mechanism

technical field

The utility model relates to machine tool equipment, in particular to a machine tool tool rest mechanism capable of adjusting the number of tools.

Background technique

The tool holder is a very important part of the CNC lathe. According to its function, the number of tools that can be installed on the tool holder of the CNC lathe is generally 4, 6, 8, 10, 12, 20, and 24. The structure of the tool holder is generally a rotary type, and the tool is installed on the tool holder along the circumferential direction, and radial turning tools, axial turning tools, drills, and boring tools can be installed. Turning machining centers can also be equipped with axial milling cutters and radial milling cutters.

The number of knives that can be installed in a traditional tool holder has been determined at the time of delivery. A tool holder can only adapt to a single processing method, and it is not flexible to use in the actual production process, often resulting in low production efficiency and high production costs.

Utility model content

The technical problem to be solved by the utility model is to provide a machine tool holder mechanism which can adjust the number of knives, adapt to processing parts with complex structures, and has high working efficiency in view of the shortcomings of the above-mentioned prior art.

The technical scheme adopted by the utility model is as follows: a machine tool holder mechanism, including a tool holder, a cutting tool and a drill chuck, the machine tool holder mechanism also includes a connecting plate and a movable tool arranged on the connecting plate, wherein: the knife The lower part of the frame has an arc-shaped groove, and the center of the arc-shaped groove is provided with a rod; the cutter includes 4 pieces, and the cutter and the drill chuck are arranged along the periphery of the arc-shaped groove; the connecting plate is fixed on At least two movable knives are arranged on the connecting plate on the knife holder.

Further, the tool post is arranged on the left side of the machine tool spindle.

Further, a pushing device is provided on the right side of the main shaft of the machine tool.

Further, the right side of the tool holder is provided with a back shaft, and the material rod is inserted into the pushing device, the main shaft of the machine tool and the back shaft, and the tool and the movable tool move radially to process the material rod.

Further, the lower part of the back shaft is provided with a receiving box.

Further, the connecting plate is fixed on the tool holder by screws.

The beneficial effects of the utility model are:

The utility model solves the technical defect that the tool holder of the CNC machine tool in the prior art can only be equipped with a fixed number of knives by improving the existing tool holder, flexibly increases the number of knives through the connecting block, and also increases the processing angle , which reduces the difficulty of processing complex parts and improves work efficiency.

Description of drawings

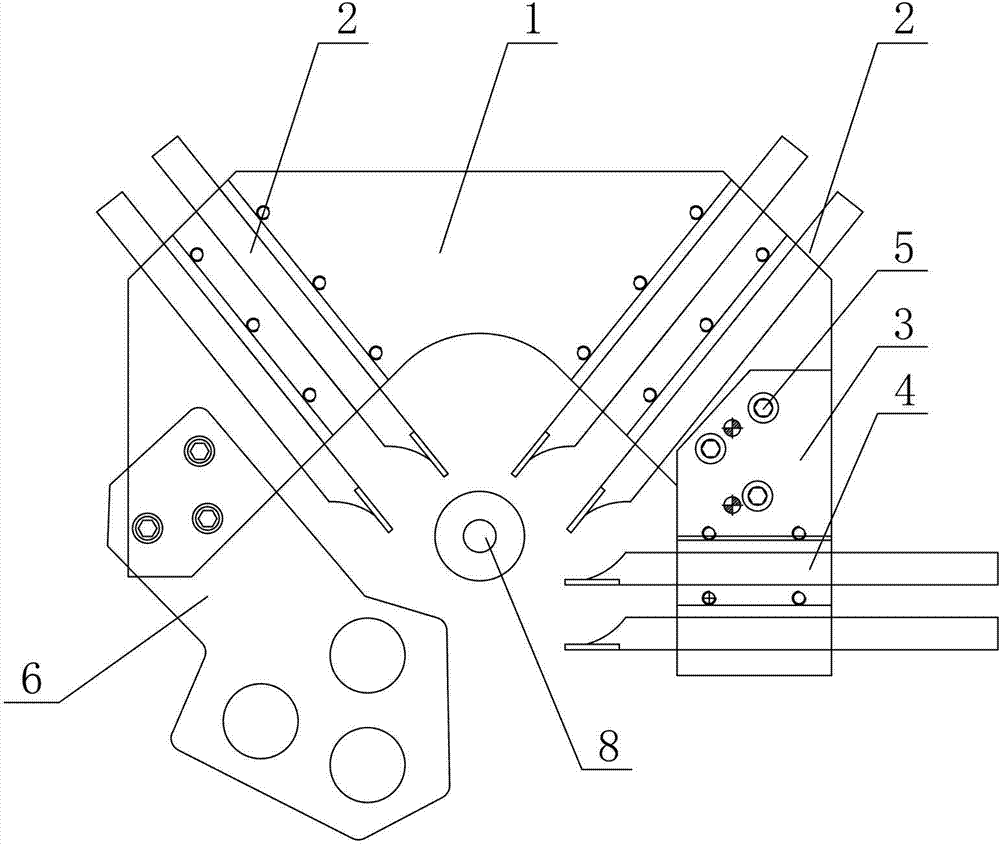

Fig. 1 is a structural schematic diagram of a preferred tool holder of the present invention.

Fig. 2 is a schematic diagram of assembly of the utility model.

Fig. 3 is a schematic diagram of the second structure type of the knife holder.

Fig. 4 is a schematic diagram of the third structure type of the knife holder.

Detailed ways

The utility model will be further described below in conjunction with accompanying drawing:

Example 1

As shown in Figures 1 to 2, a machine tool rest mechanism includes a tool rest 1, a tool 2 and a drill chuck 6, and the machine tool rest mechanism also includes a connecting plate 3 and a movable tool 4 arranged on the connecting plate 3 , wherein: the lower part of the tool holder 1 has an arc-shaped groove, and the center of the arc-shaped groove is provided with a rod 8; the cutter 2 includes 4 pieces, and the cutter 4 and the drill chuck 6 are arranged The peripheral edge is set; the connecting plate 3 is fixed on the knife holder 1, and the connecting plate 3 is provided with at least two movable knives 4.

Further, the tool post 1 is arranged on the left side of the machine tool spindle 9 .

Further, a pushing device 7 is provided on the right side of the machine tool spindle 9 .

Further, the right side of the tool holder 1 is provided with a back shaft 10, the material rod 8 is inserted through the pushing device 7, the machine tool spindle 9 and the back shaft 11, and the tool 2 and the movable tool 4 perform radial movement to process the material rod 8.

Further, the lower part of the back shaft 10 is provided with a receiving box 11 .

Further, the connecting plate 3 is fixed on the lower part of the knife holder 1 by screws 5 .

Example 2

As shown in Figures 2 and 3, a machine tool rest mechanism includes a tool rest 1, a cutter 2 and a drill chuck 6, and the machine tool rest mechanism also includes a connecting plate 3 and a movable tool 4 arranged on the connecting plate 3 , wherein: the lower part of the tool holder 1 has an arc-shaped groove, and the center of the arc-shaped groove is provided with a rod 8; the cutter 2 includes 4 pieces, and the cutter 4 and the drill chuck 6 are arranged The peripheral edge is set; the connecting plate 3 is fixed on the knife holder 1, and the connecting plate 3 is provided with at least two movable knives 4.

Further, the tool post 1 is arranged on the left side of the machine tool spindle 9 .

Further, a pushing device 7 is provided on the right side of the machine tool spindle 9 .

Further, the right side of the tool holder 1 is provided with a back shaft 10, the material rod 8 is inserted through the pushing device 7, the machine tool spindle 9 and the back shaft 11, and the tool 2 and the movable tool 4 perform radial movement to process the material rod 8.

Further, the lower part of the back shaft 10 is provided with a receiving box 11 .

Further, the connecting plate 3 is fixed on the upper part of the tool holder 1 by screws 5 .

Example 3

As shown in Figures 2 and 4, a machine tool rest mechanism includes a tool rest 1, a cutter 2 and a drill chuck 6, and the machine tool rest mechanism also includes a connecting plate 3 and a movable tool 4 arranged on the connecting plate 3 , wherein: the lower part of the tool holder 1 has an arc-shaped groove, and the center of the arc-shaped groove is provided with a rod 8; the cutter 2 includes 4 pieces, and the cutter 4 and the drill chuck 6 are arranged The peripheral edge is set; the connecting plate 3 is fixed on the knife holder 1, and the connecting plate 3 is provided with at least two movable knives 4.

Further, the tool post 1 is arranged on the left side of the machine tool spindle 9 .

Further, a pushing device 7 is provided on the right side of the machine tool spindle 9 .

Further, the right side of the tool holder 1 is provided with a back shaft 10, the material rod 8 is inserted through the pushing device 7, the machine tool spindle 9 and the back shaft 11, and the tool 2 and the movable tool 4 perform radial movement to process the material rod 8.

Further, the lower part of the back shaft 10 is provided with a receiving box 11 .

Further, the connecting plate 3 includes two, and the two connecting plates 3 are respectively fixed on the lower part and the upper part of the knife holder 1 by screws 5 .

The embodiment of the utility model is only to introduce its specific implementation, not to limit its protection scope. Those skilled in the industry can make some modifications under the inspiration of this embodiment, so all equivalent changes or modifications made according to the patent scope of the utility model all belong to the scope of the patent claims of the utility model.

Claims (6)

1. A machine tool holder mechanism, including a tool holder (1), a tool (2) and a drill chuck (6), characterized in that: the machine tool holder mechanism also includes a connecting plate (3) and is arranged on the connecting plate ( 3) The movable tool (4) on the top, wherein: the lower part of the knife holder (1) has an arc-shaped groove, and the center of the arc-shaped groove is provided with a rod (8); the tool (2) includes 4, the tool (4) and the drill chuck (6) are arranged along the periphery of the arc groove; the connecting plate (3) is fixed on the tool holder (1), and there are at least two active knives (4). 2. A machine tool holder mechanism according to claim 1, characterized in that: said tool holder (1) is arranged on the left side of the machine tool spindle (9). 3. A machine tool holder mechanism according to claim 2, characterized in that: a pushing device (7) is provided on the right side of the machine tool spindle (9). 4. A machine tool holder mechanism according to claim 3, characterized in that: the right side of the tool holder (1) is provided with a back shaft (10), and the material rod (8) is inserted through the pushing device ( 7) In the main shaft (9) and the back shaft (11) of the machine tool, the tool (2) and the movable tool (4) move radially to process the material rod (8). 5. A machine tool holder mechanism according to claim 4, characterized in that: the lower part of the back shaft (10) is provided with a receiving box (11). 6. A machine tool holder mechanism according to claim 5, characterized in that: the connecting plate (3) is fixed on the lower part of the tool holder (1) by screws (5).
