CN203517998U - A fixing device for a wall-mounted electric fireplace

Info

Publication number: CN203517998U
Application number: CN201320516092.XU
Authority: CN
Inventors: 何建民
Original assignee: Individual
Current assignee: Individual
Priority date: 2013-08-14
Filing date: 2013-08-14
Publication date: 2014-04-02
Anticipated expiration: 2023-08-14

Abstract

The utility model relates to a fixing device, in particular to a fixing device for a wall-mounted electric fireplace, comprising a wall-mounted fixing component, a table-top fixing component matched with the wall-mounted fixing component, and a control decorative ventilation component fixed with the wall-mounted fixing component and the table-top fixing component for covering the electric fireplace, wherein the wall-mounted fixing component comprises a hook plate, and the table-top fixing component comprises a reverse hook plate matched with the hook plate. Therefore, the utility model has the following advantages: 1. Reasonable design, simple structure and complete practicality; 2. Solve the problem of difficulty in wall-mounted electric fireplace installation, making installation convenient; solve the problem of the host front tilt in the past, solve the problem of small dynamic flame window in the past, and make the dynamic flame window proportionally coordinated.

Description

A kind of fixture for wall-hung type electricity fireplace

Technical field

The utility model relates to a kind of fixture, especially relates to a kind of fixture for wall-hung type electricity fireplace.

Background technology

Wall-hung type electricity fireplace is as a kind of Domestic electric heater tool, has appreciation effect, safe and reliable, handling are convenient, utilization rate of electrical high, hangs wall mounting bracket scheme, solved wall-hung type electricity fireplace, installs and hang wall difficult problem, and it is convenient to make to install.Table top mounting bracket scheme: solved main frame top rake problem in the past.Main frame type integral structure layout scheme: solve the young problem of flame dynamic window in the past, also made dynamic flame window surrounding eurythmy,

Utility model content

Above-mentioned technical problem of the present utility model is mainly solved by following technical proposals:

A kind of fixture for wall-hung type electricity fireplace, it is characterized in that, comprise an extension wall fixation kit, the table top fixation kit coordinating with extension wall fixation kit and the control decoration ventilation assembly that is simultaneously fixed for covering electric fireplace with extension wall fixation kit and table top fixation kit, described extension wall fixation kit comprises a hanger plate, and described table top fixation kit comprises a reverse hanger plate coordinating with hanger plate.

As preferably, described extension wall fixation kit comprises at least two wallboards that be arranged in parallel, i.e. the first wallboard and the second wallboard, between described the first wallboard and the second wallboard, be fixed with at least one vertical wallboard, described vertical wallboard is simultaneously vertical with the second wallboard fixing with the first wallboard, and these vertical wallboard two ends are welded and fixed with the first wallboard and the second wallboard respectively.

As preferably, described hanger plate is fixed on the second wallboard, and one end of hanger plate and the second wallboard bottom be welded and fixed, and the hook of described hanger plate tilts to extend upward.

As preferably, table top fixation kit comprises being fixed on hangs wall fixation kit below base plate and for the casing bracing frame of a support wall fixation kit; Described base plate bottom is also fixed with the base bracing frame that is fixed for support machine casing bracing frame with casing bracing frame; Described base plate top is fixed with panel; Described casing bracing frame outside is provided with front panel; Described front panel bottom is provided with the wind deflector for wind-guiding.

As preferably, the frame that ventilation assembly comprises a rectangle is decorated in described control, described frame rear end opening, and front end is dynamic flame decorative panel assembly, frame rear end is fixed with the first wallboard and the second wallboard respectively; The mainboard that frame rear end side is fixed with keypad and is connected with keypad; Frame bottom is provided with a decorating unit, and described decorating unit is electrically connected to keypad, and decorating unit below is positioned at frame side and is also provided with a fan unit.

As preferably, described decorating unit comprises that two ends are erected at the reflective shafts of frame bottom by bearing assembly, and described reflective shafts below is provided with the end lamp box of placing some flame lamps; One end of reflective shafts drives by motor, and described motor is fixed in frame by motor pressing plate; Described motor output shaft connects by one end of silicone tube and reflective shafts, and described reflective shafts two ends are also arranged with rubber ring.

As preferably, described dynamic flame decorative panel assembly comprises a translucent frosted plate, and described translucent frosted plate two ends are fixed by copper post and end lamp box; Described flame lamp rear is provided with some false bavin lamp plates that are fixed on end lamp box.

As preferably, described fan unit comprises the fan supporter being fixed on base plate, on described fan supporter, is fixed with blower fan, fan supporter be provided with air outlet fixed head and with the fixing deep bead of air outlet fixed head.

Therefore, the utlity model has following advantage: 1. reasonable in design, simple in structure and completely practical; 2. solved wall-hung type electricity fireplace, installed and hang wall difficult problem, it is convenient to make to install; Solve main frame top rake problem in the past, solved the young problem of flame dynamic window in the past, also made dynamic flame window surrounding eurythmy.

Accompanying drawing explanation

Accompanying drawing 1 is the main TV structure schematic diagram of hanging wall fixation kit in the utility model.

Accompanying drawing 2 is that TV structure schematic diagram is looked on a left side of Fig. 1.

Accompanying drawing 3 is the structure for amplifying schematic diagrames at the A place of Fig. 2.

Accompanying drawing 4 is main TV structure schematic diagrames of table top fixation kit in the utility model.

Accompanying drawing 5 is the structure for amplifying schematic diagrames at the A place of Fig. 4.

Accompanying drawing 6 is the structure for amplifying schematic diagrames at the B place of Fig. 4.

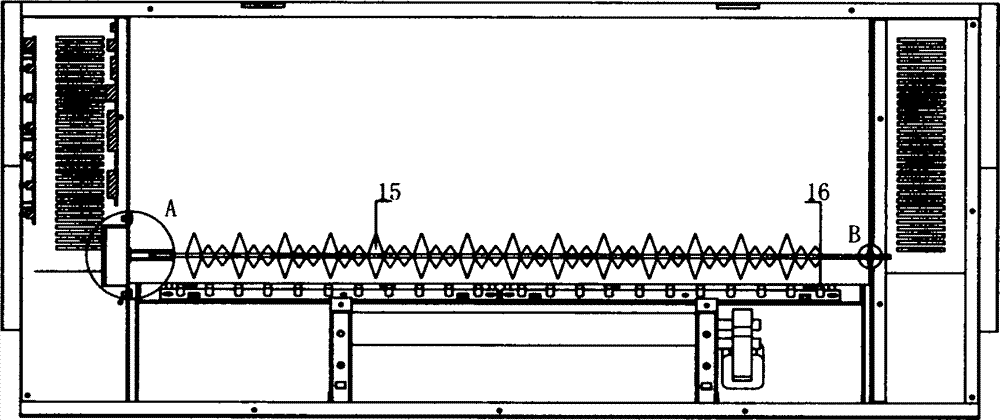

Accompanying drawing 7 is in the utility model, to control the structural representation of decorating ventilation assembly.

Accompanying drawing 8 is structural representations of the backsight of Fig. 7.

Accompanying drawing 9 is the structure for amplifying schematic diagrames at the A place of Fig. 8.

Accompanying drawing 10 is the structure for amplifying schematic diagrames at the B place of Fig. 8.

Accompanying drawing 11 is left TV structure schematic diagrames of Fig. 7.

Accompanying drawing 12 is in the utility model, to control the sectional structure schematic diagram of decorating ventilation assembly.

Accompanying drawing 13 is the structure for amplifying schematic diagrames at the A place of Figure 12.

The specific embodiment

Below by embodiment, and by reference to the accompanying drawings, the technical solution of the utility model is described in further detail.In figure, hanger plate 1, reverse hanger plate 2, the first wallboard 3, the second wallboard 4, vertical wallboard 5, base plate 6, casing bracing frame 7, base bracing frame 8, panel 9, front panel 10, wind deflector 11, frame 12, keypad 13, mainboard 14, reflective shafts 15, flame lamp 16, end lamp box 17, motor 18, motor pressing plate 19, silicone tube 20, rubber ring 21, translucent frosted plate 22, copper post 23, false bavin lamp plate 24, fan supporter 25, blower fan 26, air outlet fixed head 27, deep bead 28.

Embodiment:

The control decoration ventilation assembly that the present invention includes an extension wall fixation kit, the table top fixation kit coordinating with extension wall fixation kit and be fixed for covering electric fireplace simultaneously with extension wall fixation kit and table top fixation kit, described extension wall fixation kit comprises a hanger plate 1, and described table top fixation kit comprises a reverse hanger plate 2 coordinating with hanger plate 1.

Hang wall fixation kit and comprise two wallboards that be arranged in parallel, i.e. the first wallboard 3 and the second wallboard 4, between the first wallboard 3 and the second wallboard 4, be fixed with a vertical wallboard 5, vertical wallboard 5 is simultaneously vertical with the second wallboard 4 fixing with the first wallboard 3, and these vertical wallboard 5 two ends are welded and fixed with the first wallboard 3 and the second wallboard 4 respectively; Hanger plate 1 is fixed on the second wallboard 4, and one end of hanger plate 1 and the second wallboard 4 bottoms are welded and fixed, and the hook of described hanger plate 1 tilts to extend upward.

Table top fixation kit comprises being fixed on hangs wall fixation kit below base plate 6 and for the casing bracing frame 7 of a support wall fixation kit; Base plate 6 bottoms are also fixed with the base bracing frame 8 that is fixed for support machine casing bracing frame 7 with casing bracing frame 7; Base plate 6 tops are fixed with panel 9; Described casing bracing frame 7 outsides are provided with front panel 10; Described front panel 10 bottoms are provided with the wind deflector 11 for wind-guiding.

Control and decorate the frame 12 that ventilation assembly comprises a rectangle, frame 12 open rearward end, front end is dynamic flame decorative panel assembly, frame 12 rear ends are fixing with the first wallboard 3 and the second wallboard 4 respectively; The mainboard 14 that frame 12 sides, rear end are fixed with keypad 13 and are connected with keypad 13; Frame 12 bottoms are provided with a decorating unit, and decorating unit is electrically connected to keypad 13, and decorating unit below is positioned at frame 12 sides and is also provided with a fan unit.

Decorating unit comprises that two ends are erected at the reflective shafts 15 of frame 12 bottoms by bearing assembly, and described reflective shafts 15 belows are provided with the end lamp box 17 of placing some flame lamps 16; One end of reflective shafts 15 drives by motor 18, and described motor 18 is fixed in frame 12 by motor pressing plate 19; Described motor 18 output shafts connect by silicone tube 20 and one end of reflective shafts 15, and described reflective shafts 15 two ends are also arranged with rubber ring 21; Dynamic flame decorative panel assembly comprises a translucent frosted plate 22, and described translucent frosted plate 22 two ends are fixing with end lamp box 17 by copper post 23; Flame lamp 16 rears are provided with some false bavin lamp plates 24 that are fixed on end lamp box 17.

Fan unit comprises the fan supporter 25 being fixed on base plate 6, is fixed with blower fan 26 on fan supporter 25, fan supporter 25 be provided with air outlet fixed head 27 and with the fixing deep bead 28 of air outlet fixed head 27.

Specific embodiment described herein is only to the explanation for example of the utility model spirit.The utility model person of ordinary skill in the field can make various modifications or supplements or adopt similar mode to substitute described specific embodiment, but can't depart from spirit of the present utility model or surmount the defined scope of appended claims.

Claims

1. A fixing device for a wall-mounted electric fireplace, characterized in that it comprises a wall-mounted fixing assembly, a tabletop fixing assembly matched with the wall-mounting fixing assembly, and a wall-mounting fixing assembly and a tabletop fixing assembly simultaneously. For a control decoration ventilation assembly covering an electric fireplace, the wall-mounted fixing assembly includes a hook plate (1), and the countertop fixing assembly includes a reverse hook plate (2) matched with the hook plate (1).
