Abstract

The utility model discloses a portable storage rack, comprising a first frame and a second frame, the first frame and the second frame being symmetrical to each other, a telescopic mechanism being arranged between the first frame and the second frame, the telescopic mechanism controlling the first frame and the second frame to move closer to or apart from each other; one or more platforms being movably connected to the first frame, the end of the platform away from the first frame being mounted on the second frame. The device can realize folding the storage rack when carrying it by arranging a telescopic mechanism between the first frame and the second frame, the telescopic mechanism controlling the first frame and the second frame to move closer to or apart from each other, and the platform movably connected to the first frame, so as to save time and effort and achieve high efficiency.

Description

Portable Storage Rack

technical field

The utility model relates to a storage rack, in particular to a portable storage rack.

Background technique

The traditional storage rack is generally a fixed structure. Due to the large volume of the storage rack, it is time-consuming, laborious and inefficient to carry.

Utility model content

Based on this, it is necessary to provide a portable storage rack that is easy to carry in view of the problems in the prior art.

In order to solve the problems in the prior art, the utility model discloses a portable storage rack, which includes a first rack body and a second rack body, the first rack body and the second rack body are symmetrical to each other, and the first rack body There is a telescopic mechanism between the second frame and the telescopic mechanism to control the first frame and the second frame to move closer or apart; the first frame is movably connected with one or more platforms, so The end of the platform away from the first frame is erected on the second frame.

Further, the telescoping mechanism includes two symmetrical square frames, the middle parts of the two square frames are pivotally connected to each other as a central rotating shaft, and the two square frames rotate around the central rotating shaft.

Further, the first frame body and the second frame body are respectively provided with limit frames, and the limit frames cover the corners of the square frame.

Further, a rotating rod is provided on one side of the platform, and the rotating rod is movably connected to the first frame body, and the platform rotates around the rotating rod.

Further, the platform is provided with a handle on one side of the first frame.

Further, a fixing plate is provided on the top of the first frame body and the second frame body, and the fixing plate is fixedly connected to the first frame body and the second frame body.

Further, the bottoms of the first frame body and the second frame body are respectively provided with wheels.

Further, drawers are placed on the platform

To sum up, the device is provided with a telescopic mechanism between the first frame body and the second frame body, and the telescopic mechanism controls the first frame body and the second frame body to move closer to or separate from each other, and is movably connected to the first frame body. The upper platform, when carrying the storage rack, can realize the folding storage rack, saving time and effort, and high efficiency.

Description of drawings

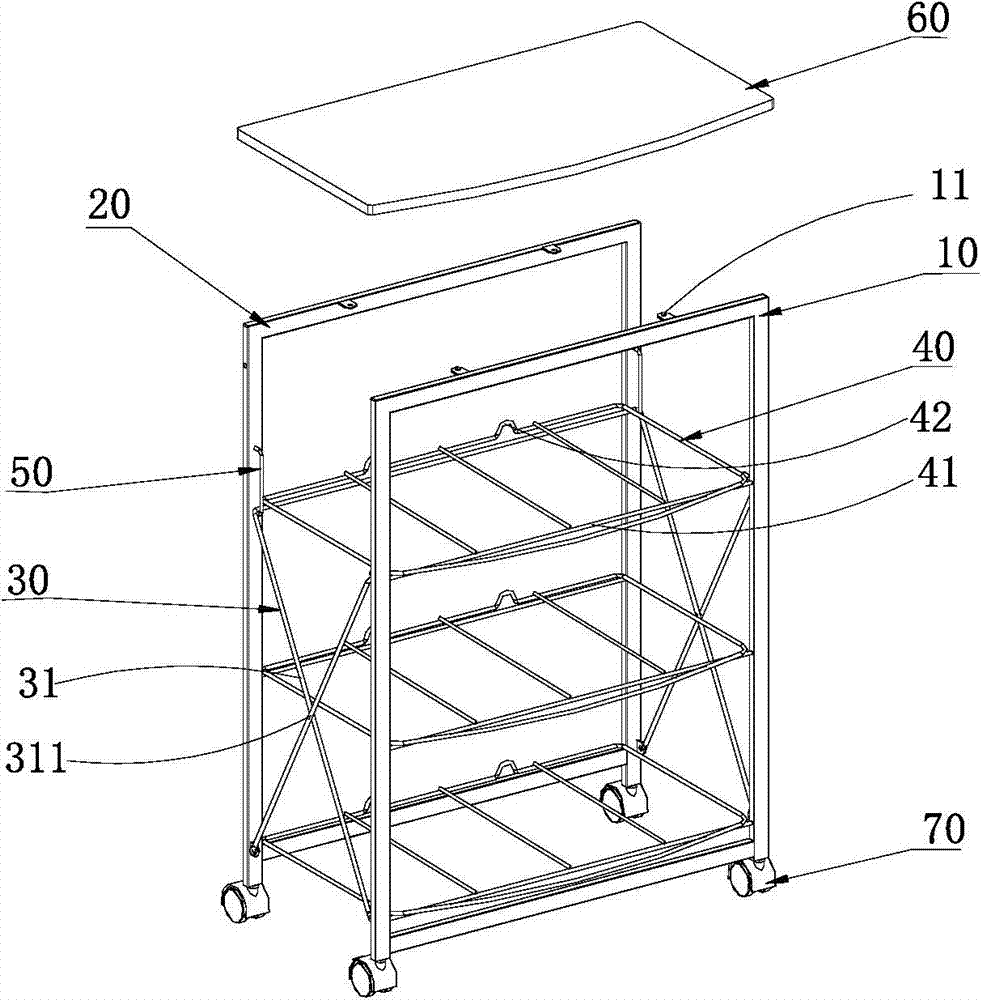

Fig. 1 is the three-dimensional structure schematic diagram of the utility model portable storage rack;

Fig. 2 is a structural schematic diagram of the portable storage rack of the present invention after the drawer is mounted on it;

Fig. 3 is the working schematic diagram of the utility model portable storage rack;

The reference signs are explained as follows:

10, the first frame body 11, buckle; 20, the second frame body; 30, the telescopic mechanism, 31, the square frame, 311, the central rotating shaft; 40, the platform, 41, the rotating rod, 42, the handle; 50, Limiting frame; 60, fixed plate; 70, wheels; 80, drawer.

Detailed ways

In order to further understand the features, technical means, and specific objectives and functions of the utility model, the utility model will be further described in detail below in conjunction with the accompanying drawings and specific embodiments.

Referring to FIG. 1 , the utility model discloses a portable storage rack, which includes a first rack body 10 and a second rack body 20 , and the first rack body 10 and the second rack body 20 are symmetrical to each other. A telescopic mechanism 30 is provided between the first frame body 10 and the second frame body 20, and the telescopic mechanism 30 controls the first frame body 10 and the second frame body 20 to move closer to or separate from each other; One or more platforms 40 are movably connected to the body 10 , and the end of the platforms 40 away from the first frame body 10 is erected on the second frame body 20 .

In other embodiments, the telescoping mechanism 30 includes two symmetrical square frames 31, the middle parts of the two square frames 31 are pivotally connected to each other as the central rotating shaft 311, and the two square frames 31 form a fork when viewed from the side. shape, the two square frames 31 rotate around the central rotating shaft 311 . Through the action of the square frame 31 rotating around the central rotating shaft 311 , the action of folding or opening the storage rack is realized.

The first frame body 10 and the second frame body 20 are respectively provided with a limit frame 50, and the limit frame 50 is surrounded by the first frame body 10 and the second frame body 20 to form an activity space for moving up and down. The position frame 50 covers the corners of the square frame 31 , and the square frame 31 can move within the activity space of the limit frame 50 . When the storage rack needs to be folded, the square frame 31 moves upward in the activity space of the limit frame 50 ; when the storage rack needs to be opened, the square frame 31 moves downward in the activity space of the limit frame 50 .

In other embodiments, a rotating rod 41 is provided on one side of the platform 40 , and the rotating rod 41 is movably connected to the first frame body 10 . Both ends of the rotating rod 41 are inserted into the first frame body 10 , and the platform 40 rotates around the rotating rod 41 .

In other embodiments, the platform 40 is provided with a handle 42 on one side of the first frame body 10 , so that people can pull up and fold the platform 40 through the handle 42 when folding the storage rack.

In other embodiments, a fixing plate 60 is provided on the top of the first frame body 10 and the second frame body 20 , and the fixing plate 60 is fixedly connected to the first frame body 10 and the second frame body 20 . Buckles 11 are respectively provided on the first frame body 10 and the second frame body 20 , and the buckles 11 are connected to the fixing plate 60 . When the storage rack is opened, the fixing plate 60 is fixedly connected with the first rack body 10 and the second rack body 20 through the buckle 11, so that the storage rack is fixed in shape.

In other embodiments, the bottoms of the first frame body 10 and the second frame body 20 are respectively provided with wheels 70 , which is beneficial to make the transportation easier by virtue of the role of the wheels 70 during transportation.

In other embodiments, a drawer 80 is placed on the platform 40 for storing various items.

In summary, the device is provided with a telescopic mechanism 30 between the first frame body 10 and the second frame body 20, and the telescopic mechanism 30 controls the first frame body 10 and the second frame body 20 to move closer or apart, and move The platform 40 connected to the first frame body 10 can realize the folding of the storage rack when carrying the storage rack, which saves time and labor and has high efficiency.

The above-mentioned embodiments only express several implementation modes of the present utility model, and the description thereof is relatively specific and detailed, but it should not be construed as limiting the patent scope of the present utility model. It should be noted that those skilled in the art can make several modifications and improvements without departing from the concept of the utility model, and these all belong to the protection scope of the utility model. Therefore, the scope of protection of the utility model patent should be based on the appended claims.

Claims (8)

1. A portable storage rack, characterized in that: it includes a first frame body and a second frame body, the first frame body and the second frame body are symmetrical to each other, and the first frame body and the second frame body are symmetrical to each other. There is a telescopic mechanism between them, and the telescopic mechanism controls the first frame body and the second frame body to move closer or apart; the first frame body is movably connected with one or more platforms, and the platforms are far away from the first frame body. One end of the body is erected on the second frame body. 2. The portable storage rack according to claim 1, characterized in that: the telescopic mechanism comprises two symmetrical square frames, the middle parts of the two square frames are pivotally connected to each other as the central rotating shaft, and the two square frames are The frame rotates about the central axis of rotation. 3. The portable storage rack according to claim 2, characterized in that: the first frame body and the second frame body are respectively provided with limit frames, and the limit frames enclose the corners of the square frame. 4. The portable storage rack according to claim 1, characterized in that: one side of the platform is provided with a rotating rod, the rotating rod is movably connected to the first frame body, and the platform rotates around the rotating rod . 5. The portable storage rack according to claim 1, characterized in that: said platform is provided with a handle on one side of the first rack body. 6. The portable storage rack according to claim 1, characterized in that: the top of the first frame body and the second frame body is provided with a fixing plate, and the fixing plate is fixedly connected to the first frame body and the second frame body body. 7. The portable storage rack according to claim 1, characterized in that: the bottoms of the first rack body and the second rack body are respectively provided with wheels. 8. The portable storage rack according to claim 1, wherein a drawer is placed on the platform.
