本实用新型提供一种香糖料液输送装置，包括储存桶，还包括输料桶，所述输料桶设有上盖，所述上盖与输料桶之间密封连接，所述输料桶的底部设有出料口，出料口与储存桶之间连接有输料管道，所述上盖上设有一压缩空气管接头，所述压缩空气管接头与输料桶的内腔相连通。优选的，所述压缩空气管接头还与一阀门相连接。本装置利用压缩空气的压力作用将香糖料液从低处压向高处，设备清洁卫生，管道输送顺畅，节省了人力并且避免了工作人员的登高作业，安全可靠。
The utility model provides a flavoring sugar material liquid conveying device, which includes a storage barrel and a feeding barrel. The feeding barrel is provided with an upper cover, and the upper cover and the feeding barrel are sealed and connected. The bottom of the barrel is provided with a discharge port, and a delivery pipe is connected between the discharge port and the storage tank, and a compressed air pipe joint is provided on the upper cover, and the compressed air pipe joint communicates with the inner cavity of the delivery tank . Preferably, the compressed air pipe joint is also connected with a valve. The device uses the pressure of compressed air to press the flavoring sugar liquid from a low place to a high place. The equipment is clean and hygienic, and the pipeline transportation is smooth, which saves manpower and avoids the climbing operation of the staff, and is safe and reliable.
Description
Technical field
The utility model relates to a kind of liquid transporting apparatus, relates in particular to a kind of device that the sugared feed liquid of perfume (or spice) is carried to a high position by low level.
Background technology
In pipe tobacco during Primary Processing, there are many procedures, comprising adding fragrant sugar material, perfume (or spice) sugar feed liquid to be added is contained in storage barrel in order to using.The charge door Li Di Mian≤2m of existing storage barrel, in regular job process, operating personnel need to raise the transferring barrel that fragrant sugar material is housed, and move to storage barrel charge door place and just the perfume (or spice) sugar material in transferring barrel can be shifted and pour in storage barrel in order to using, but there are some problems in operation like this: the about 70kg/ bucket of transferring barrel of fragrant sugar material is housed, and staff's lifting difficulty is large, labour intensity is large; Manually toppling over fragrant sugar material easily splashes perfume sugar material to cause waste; In operation, need the operation of ascending a height, staff's safety can not get good guarantee.
Utility model content
The technical problems to be solved in the utility model is to provide a kind of liquid transporting apparatus that fragrant sugar material is wasted, workman's working strength is little and production efficiency is high that can not cause, to overcome the above-mentioned defect of prior art.
In order to solve the problems of the technologies described above, the utility model adopts following technical scheme: the sugared feed liquid conveying device of a kind of perfume (or spice), comprise storage barrel, also comprise conveying bucket, described conveying bucket is provided with upper cover, between described upper cover and conveying bucket, is tightly connected, the bottom of described conveying bucket is provided with discharging opening, between discharging opening and storage barrel, be connected with feeding pipe, cover on described and be provided with a compressed air pipe joint, the intracavity inter-connection of described compressed air pipe joint and conveying bucket.
Preferably, described compressed air pipe joint is also connected with a valve.
Further, the bottom of described conveying bucket is back taper, and described discharging opening is positioned at the minimum point of back taper.
Further, described conveying bucket is provided with below bracing frame.
Further, described feeding pipe is rubber tube.
As mentioned above, the sugared feed liquid conveying device of perfume (or spice) of the present utility model, there is following beneficial effect: this device utilizes compressed-air actuated pressure-acting that the sugared feed liquid of perfume (or spice) is pressed to eminence from lower, simple to operate, equipment cleaning health, it is smooth and easy that pipeline is carried, and saved manpower and avoided staff's ascend operation, safe and reliable.
Accompanying drawing explanation

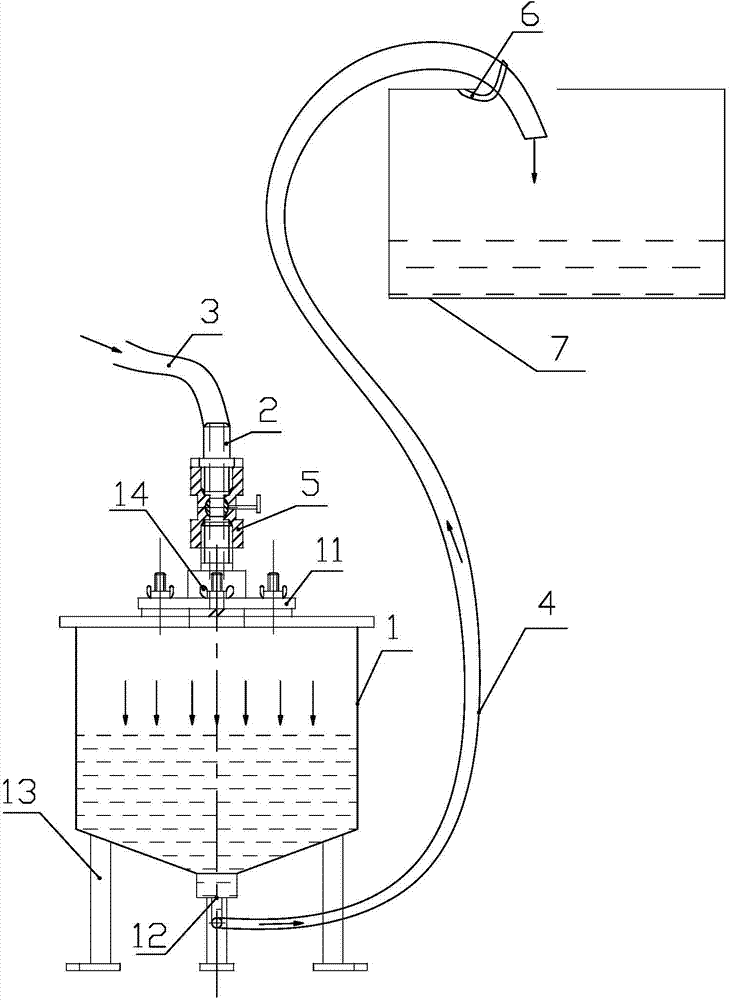

Fig. 1 is fundamental diagram of the present utility model.
Fig. 2 is STRUCTURE DECOMPOSITION schematic diagram of the present utility model.
In figure: 1 conveying bucket
11 upper covers
12 discharging openings
13 bracing frames
14 butterfly nuts
2 reducer unions
3 compressed air pipe joints
4 feeding pipes
5 valves
6 hooks
7 storage barrels
The specific embodiment
The structure that Figure of description illustrates, ratio, size etc., equal contents in order to coordinate description to disclose only, for person skilled in the art scholar, understand and read, not in order to limit the enforceable qualifications of the utility model, therefore the technical essential meaning of tool not, the adjustment of the modification of any structure, the change of proportionate relationship or size, do not affecting under the effect that the utility model can produce and the object that can reach, all should still drop in the scope that technology contents that the utility model discloses can contain.Simultaneously, in this description, quote as " on ", the term such as D score, 'fornt', 'back', " centre ", also only for ease of understanding of narrating, but not in order to limit the enforceable scope of the utility model, the change of its relativeness or adjustment, under without essence change technology contents, when being also considered as the enforceable category of the utility model.
The sugared feed liquid conveying device of a kind of perfume (or spice) as depicted in figs. 1 and 2, comprise storage barrel 7, also comprise conveying bucket 1, described conveying bucket 1 is provided with upper cover 11, between described upper cover 11 and conveying bucket 1, be tightly connected, the bottom of described conveying bucket 1 is provided with discharging opening 12, between discharging opening 12 and storage barrel 7, be connected with feeding pipe 4, described upper cover 11 is provided with a compressed air pipe joint 3, the intracavity inter-connection of described compressed air pipe joint 3 and conveying bucket 1, control for the ease of this device is convenient, described compressed air pipe joint 3 is also connected with a valve 5, described valve 5 can be magnetic valve, control ball valve etc., the present embodiment preferably selects control ball valve to control compressed-air actuated pressure, when practical operation, for fear of having different sizes to affect the air-tightness of device because of compressed air pipe joint 3, this device can also couple together compressed air pipe joint 3 and valve 5 by a reducer union 2, there will not be like this phenomenons such as gas leakage during device busy.
During the work of this device, first discharging opening 12 is connected with feeding pipe 4 phase lines, and check connection, guarantee without leakage point, then pour the sugared feed liquid of perfume (or spice) into conveying bucket 1, upper cover 11 is closed, with butterfly nut 14 fixtures such as grade, be fixedly connected with upper cover 11 and conveying bucket 1, simultaneously in order to guarantee air-tightness, between upper cover 11 and conveying bucket 1, be also provided with gasket seal, connecting rear device starts, open and control ball valve, compressed air enters in conveying bucket 1 along compressed air hose, because the fragrant sugared feed liquid of pressure-acting can be extruded from the discharging opening 12 of conveying bucket 1, fragrant sugared feed liquid enters storage barrel 7 through feeding pipe 4 again, in order to facilitate installation and the placement of feeding pipe 4, described feeding pipe 4 is rubber tubes, this rubber tube requires high pressure resistant, because rubber tube is softer, so be also provided with a hook 6 on storage barrel, be used for fixing rubber tube.This bottom of installing described conveying bucket 1 is back taper, and described discharging opening 12 is positioned at the minimum point of back taper, and design can, so that the conveying of the sugar of the perfume (or spice) in conveying bucket 1 feed liquid is more thorough, avoid waste like this.Preferably, what this installed described conveying bucket 1 is below provided with bracing frame 13, and support frame as described above 13 is provided with three strong points, thereby conveying bucket 1 is supported and is difficult for rocking by three strong points, guarantees that transportation work is stable to carry out.When end-of-job, closing control ball valve, stops compressed-air actuated supply, if need to shift more fragrant sugared feed liquid, repeats above-mentioned action.
In sum, the sugared feed liquid conveying device of perfume (or spice) of the present utility model, can solve fragrant sugared feed liquid from the hoist problem of difficulty of transportation of lower.So, thereby the utility model has effectively overcome practical problems more of the prior art, aspect the production of tobacco, having corresponding value and using meaning.
Above-mentioned embodiment is illustrative principle of the present utility model and effect thereof only, but not for limiting the utility model.The utility model also many aspects can also improve under the prerequisite without prejudice to overall thought, such as material of feeding pipe etc.Therefore, for person skilled in the art scholar, all can, under spirit of the present utility model and category, can above-described embodiment be modified or be changed.Therefore, have in technical field under such as and conventionally know that the knowledgeable modifies or changes not departing from all equivalences that complete under spirit that the utility model discloses and technological thought, must be contained by claim of the present utility model.
Claims (5)
1. the sugared feed liquid conveying device of perfume (or spice), comprise storage barrel (7), it is characterized in that: also comprise conveying bucket (1), described conveying bucket (1) is provided with upper cover (11), between described upper cover (11) and conveying bucket (1), be tightly connected, the bottom of described conveying bucket (1) is provided with discharging opening (12), between discharging opening (12) and storage barrel (7), be connected with feeding pipe (4), described upper cover (11) is provided with a compressed air pipe joint (3), the intracavity inter-connection of described compressed air pipe joint (3) and conveying bucket (1).
2. the sugared feed liquid conveying device of perfume (or spice) according to claim 1, is characterized in that: described compressed air pipe joint (3) is also connected with a valve (5).
3. the sugared feed liquid conveying device of perfume (or spice) according to claim 1, is characterized in that: the bottom of described conveying bucket (1) is back taper, and described discharging opening (12) is positioned at the minimum point of back taper.
4. the sugared feed liquid conveying device of perfume (or spice) according to claim 1, is characterized in that: below described conveying bucket (1), be provided with bracing frame (13).
5. the sugared feed liquid conveying device of perfume (or spice) according to claim 1, is characterized in that: described feeding pipe (4) is rubber tube.
