The utility model relates to the field of building materials, in particular to a heating plate. The heating plate comprises a plate body and an electric heating wire penetrating the plate body. Connection plug-ins connected with a power supply or an electric heating wire of another heating plate are arranged at two ends of the electric heating wire. The plate body is a pottery plate body or a porcelain plate body. The heating plate has a floor decoration function of a traditional floor, and further has a conductive heat conduction function, so that the heating plate can serve as a floor heating device while being used for decorating the floor, laying of additional water pipes is not required, indoor floor thickness is reduced, and space is increased.
Description
Technical field
The utility model relates to building material field, in particular to a kind of heating board.
Background technology
In correlation technique, the mode of ground heating (being floor heating) is normally laid water pipe under floor, and it is to utilize the principle that the hot water in water pipe conducts heat to floor to reach heating object.But lay water pipe under floor, can increase the thickness of bottom surface within doors, thereby reduce space within doors.
Utility model content
The purpose of this utility model is to provide a kind of heating board, to solve the above problems.
A kind of heating board is provided in embodiment of the present utility model, has comprised:
Plate body;
Heating wire through described plate body;
The two ends of described heating wire are provided with and power supply or the connection plug-in unit that is connected with the heating wire of other described heating board;
Described plate body is pottery plate body or porcelain plate body.
The heating board of the utility model above-described embodiment not only has the function of traditional floor decorative ground, but also have energising heat conduction function, thereby also can be used as floor heating when this heating board decorative ground, without re-laying other water pipe, thereby reduced the thickness on ground within doors, increased space, its specific works principle is:
Take electricity as thermal medium, the intrinsic heating wire of plate is connected by connecting the heating wire of plug-in unit and power supply or other heating board, form closed circuit, by heating wire liberated heat, plate body is heated, and then the mode of plate body by radiant heat transfer heats room air, indoor temperature is raise, the final object that realizes heating.
Accompanying drawing explanation

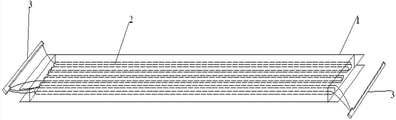

Fig. 1 shows the structural representation of a kind of heating board that embodiment of the present utility model provides;
Fig. 2 shows the structural representation of the connection plug-in unit that embodiment of the present utility model provides.
The specific embodiment
Below by specific embodiment, also by reference to the accompanying drawings the utility model is described in further detail.
As shown in Figure 1-2, this embodiment of the present utility model provides a kind of heating board, comprising:
Plate body 1, and the heating wire 2 that passes plate body 1;
The two ends of heating wire 2 are provided with and power supply or the connection plug-in unit 4 that is connected with the heating wire 2 of other heating board;
Described plate body is pottery plate body or porcelain plate body.
Above-mentioned heating board not only has the function of traditional floor decorative ground, but also there is the function of energising heat conduction, thereby also can be used as floor heating when this heating board decorative ground, without re-laying other water pipe, thereby reduced the thickness on ground within doors, increased space.Its specific works principle is:
Take electricity as thermal medium, heating wire 2 in plate body 1 is connected by connecting the heating wire of plug-in unit 4 and power supply or other heating board, form closed circuit, by heating wire 2 liberated heats, plate body 1 is heated, and then the mode of plate body 1 by radiant heat transfer heats room air, indoor temperature is raise, the final object that realizes heating.
In addition, the heating board that this embodiment provides also can be used for heating or the heating of alternate manner, for example, this heating board can be laid on metope, with warm as wall, can also modify metope simultaneously.
In addition, above-mentioned plate body can be pottery plate body or porcelain plate body, and the heating board that both form all tool has the following advantages:
Good heat conduction effect: heat transfer coefficient is high, thereby make the heat-conducting effect of heating board better, heat transfer efficiency is high.
Take up room little: for example, traditional ground heating mode is to take the hot-water heating that water is thermal medium, i.e. water floor heating, water floor heating need to take the floor height of 5-7cm conventionally, and the thickness of the plate body that the utility model adopts is conventionally at 18-22mm.
Safety and environmental protection: compare with the compoiste wood floor that traditional floor heating adopts, the material that this heating board adopts is containing harmful chemical reagent composition, thereby for interior decoration, more safety and environmental protection.
Radiant heat transfer is favourable to health: both have all utilized radiation heat-conducting mode, it can produce far infrared in radiation conduction process, and far infrared can produce optical wave physical therapy to human body, dispels channels and collaterals cold air, especially to diseases such as arthritis, there is obvious physiotheraping effect.
Exempt to clean: compare with hot water line's heating, heating board of the present utility model can not produce the spots such as incrustation scale, thereby saved the trouble of cleaning pipeline.
Long service life: the utility model has adopted porcelain plate or pottery plate material, and both stable chemical natures, are difficult for destroyed or decompose, thereby this heating board long service life, life-span is generally greater than 100,000 hours, and average family can be used 50 years, without aging phenomenon.
The heating board of above-described embodiment can also carry out following improvement, to reach more beneficial effect:
Preferably, heating wire 2 is provided with a plurality of bends in the inside of heating board plate body 1.By a plurality of bends are set, can increase the heat-conducting area of the interior heating wire 2 of plate body 1, thereby improve the efficiency of heating board.For making this effect more obvious, can also further preferably adopt following design: a plurality of bends are uniformly distributed.
Preferably, the two ends of heating wire 2 are separately positioned on the relative both sides of plate body 1.Such structural design, two terminations that can make heating wire 2 distance relatively far apart, is used thereby be difficult for occurring being wound around mutually impact.
Preferably, the relative both sides of described plate body 1 are respectively equipped with groove, and described groove is equipped with waterproof insulation plug 3; The two ends of described heating wire 2 are respectively through two described waterproof insulation plugs 3.The accidents such as electric leakage that occur when waterproof insulation head can avoid the termination of heating wire 2 to contact water are set.
Preferably, also comprise power switch; Power switch is connected with heating wire 2.Such structural design can realize the control one to one to heating board, thereby user can select to heat pointedly, if in the time of for example only need heating a certain region, only need open the power switch of the heating board in a certain region, heat, avoid energy waste, realize energy-efficient object.
Preferably, also comprise temperature controller; Temperature controller is connected with plate body 1, power switch respectively, and temperature controller is used for: when plate body 1 reaches the temperature of setting, control power switch and close.Add temperature controller, both can be in real time accurate monitoring temperature, can realize automation mechanized operation again, increase user's service experience.For example, required temperature is set in temperature controller, when plate body 1 reaches this temperature, temperature controller controls power switch and cuts out, and stops the heating to heating board, thereby stops the heating to environment.Wherein, preferably, temperature controller is pressure type temp. controller or electronic temperature controller.The accuracy of this two classes temperature controller is all higher, and technology is mature and stable, can improve accuracy and stability that heating board adds thermal control.
Preferably, the outer surface of plate body 1 is provided with printed layers.In printed layers, multiple patterns or shape can be set, or various safety instruction, can meet the demand of more users, can show more intuitive prompting to user simultaneously.
Preferably, heating wire 2 is aluminium heating wire.The thermal conductivity of aluminium heating wire is 237W/ (mK), higher than the thermal conductivity of other common metal, thereby adopts aluminium heating wire, and heat transfer efficiency is high.Or heating wire adopts carbon trichite hot line, its resistivity is low, good heat conductivity.
The foregoing is only preferred embodiment of the present utility model, be not limited to the utility model, for a person skilled in the art, the utility model can have various modifications and variations.All within spirit of the present utility model and principle, any modification of doing, be equal to replacement, improvement etc., within all should being included in protection domain of the present utility model.
Claims (10)
1. a heating board, is characterized in that, comprising:
Plate body;
Heating wire through described plate body;
The two ends of described heating wire are provided with and power supply or the connection plug-in unit that is connected with the heating wire of other described heating board;
Described plate body is pottery plate body or porcelain plate body.
2. heating board according to claim 1, is characterized in that, described heating wire is provided with a plurality of bends in the inside of described plate body.
3. heating board according to claim 1, is characterized in that, the two ends of described heating wire are separately positioned on the relative both sides of described plate body.
4. heating board according to claim 1, is characterized in that, the relative both sides of described plate body are respectively equipped with groove, and described groove is equipped with waterproof insulation plug; The two ends of described heating wire are respectively through two described waterproof insulation plugs.
5. heating board according to claim 2, is characterized in that, a plurality of described bends are uniformly distributed.
6. heating board according to claim 1, is characterized in that, also comprises power switch;
Described power switch is connected with described heating wire.
7. heating board according to claim 6, is characterized in that, also comprises temperature controller;
Described temperature controller is connected with described plate body, described power switch respectively, and described temperature controller is used for:
When described plate body reaches the temperature of setting, control described power switch and close.
8. heating board according to claim 7, is characterized in that, described temperature controller is pressure type temp. controller or electronic temperature controller.
9. heating board according to claim 1, is characterized in that, the outer surface of described plate body is provided with printed layers.
10. heating board according to claim 1, is characterized in that, described heating wire is aluminium heating wire or carbon trichite hot line.
