Processing thin-walled special fixture of a kind of CNC
Technical field
The utility model relates to processing thin-walled special fixture of a kind of CNC.
Background technology
Fixture pattern early, mainly by movable clamp port with determine jaw and form, pattern is simpler and easy.The defect that this type exists is: easily cause workpiece deformation, dimensional discrepancy is larger, and depth of parallelism size is very unstable, affects machining accuracy.
Utility model content
The technical problems to be solved in the utility model is to provide a kind of morphotropism of workpiece, processing thin-walled special fixture of CNC of enhancing productivity controlled.
For addressing the above problem, the utility model adopts following technical scheme, and processing thin-walled special fixture of a kind of CNC, comprising: fixture mainboard, and the middle part of described fixture mainboard is provided with lug boss upwards; Briquetting, several described briquettings are located at the both sides of lug boss, and briquetting is connected by fixture respectively with the lug boss of fixture mainboard with fixture mainboard; Datum hole, described datum hole is located on the lug boss of fixture mainboard, runs through up and down fixture mainboard; Positioner, described positioner is located on the lug boss of fixture mainboard, and fixture mainboard is run through in front and back.
As preferably, the both sides of fixture mainboard lug boss are respectively provided with 5 briquettings.
As preferably, described briquetting is symmetrical arranged.
As preferably, described briquetting and fixture mainboard link together by M10 screw, and briquetting is fixedly connected with by M12 screw with fixture mainboard lug boss.
As preferably, between two briquettings of the same side, be provided with M20 screw, M20 screw runs through fixture mainboard.
As preferably, described positioner is alignment pin.
The utility model has been adjusted installation way and positioning datum, has controlled the morphotropism of workpiece, and not only easily clamping has also been guaranteed Product Precision, has greatly improved efficiency and the stability of product processing.
Accompanying drawing explanation

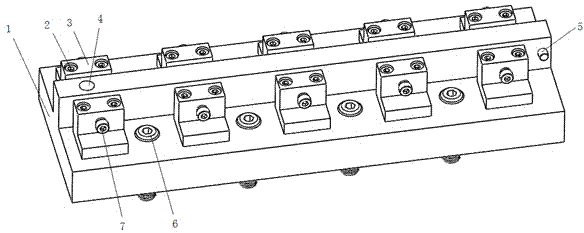

Fig. 1 is structural representation of the present utility model.
In figure: 1, fixture mainboard; 2, M10 screw; 3, briquetting; 4, datum hole; 5, alignment pin; 6, M20 screw; 7, M12 screw.
The specific embodiment
Describe embodiment of the present utility model below in detail, the example of described embodiment is shown in the drawings, and wherein same or similar label represents same or similar element or has the element of identical or similar functions from start to finish.Below by the embodiment being described with reference to the drawings, be exemplary, only for explaining the utility model, and can not be interpreted as restriction of the present utility model.
Shown in Figure 1, processing thin-walled special fixture of a kind of CNC, comprising: fixture mainboard 1, and the middle part of described fixture mainboard 1 is provided with lug boss upwards; Briquetting 3, the both sides of fixture mainboard 1 lug boss are respectively provided with 5 briquettings 3, and described briquetting 3 is symmetrical arranged, and briquetting 3 is fixedly connected with M12 screw 7 by M10 screw 2 respectively with the lug boss of fixture mainboard 1 and fixture mainboard 1; Datum hole 4, described datum hole 4 is located on the lug boss of fixture mainboard 1, runs through up and down fixture mainboard 1; Positioner, described positioner is alignment pin 5, is located on the lug boss of fixture mainboard 1, fixture mainboard 1 is run through in front and back.
As preferably, between two briquettings 3 of the same side, be provided with M20 screw 6, M20 screw 6 runs through fixture mainboard 1.
The utility model has been adjusted installation way and positioning datum, has controlled the morphotropism of workpiece, and not only easily clamping has also been guaranteed Product Precision, has greatly improved efficiency and the stability of product processing.
In the description of this description, the description of reference term " embodiment ", " some embodiment ", " example ", " concrete example " or " some examples " etc. means to be contained at least one embodiment of the present utility model or example in conjunction with specific features, structure, material or the feature of this embodiment or example description.In this manual, the schematic statement of above-mentioned term is not necessarily referred to identical embodiment or example.And the specific features of description, structure, material or feature can be with suitable mode combinations in any one or more embodiment or example.
Although illustrated and described embodiment of the present utility model, those having ordinary skill in the art will appreciate that: in the situation that not departing from principle of the present utility model and aim, can carry out multiple variation, modification, replacement and modification to these embodiment, scope of the present utility model is limited by claim and equivalent thereof.

Claims (6)

1. processing thin-walled special fixture of CNC, is characterized in that, comprising:
Fixture mainboard, the middle part of described fixture mainboard is provided with lug boss upwards;
Briquetting, several described briquettings are located at the both sides of lug boss, and briquetting is connected by fixture respectively with the lug boss of fixture mainboard with fixture mainboard;
Datum hole, described datum hole is located on the lug boss of fixture mainboard, runs through up and down fixture mainboard;
Positioner, described positioner is located on the lug boss of fixture mainboard, and fixture mainboard is run through in front and back.
2. fixture according to claim 1, is characterized in that, the both sides of fixture mainboard lug boss are respectively provided with 5 briquettings.
3. fixture according to claim 2, is characterized in that, described briquetting is symmetrical arranged.
4. fixture according to claim 1, is characterized in that, described briquetting and fixture mainboard link together by M10 screw, and briquetting is fixedly connected with by M12 screw with fixture mainboard lug boss.
5. fixture according to claim 2, is characterized in that, between two briquettings of the same side, is provided with M20 screw, and M20 screw runs through fixture mainboard.
6. fixture according to claim 1, is characterized in that, described positioner is alignment pin.
