Abstract
本实用新型公开了一种手术用上肢固定器，包括弧形固定板，弧形固定板的内侧粘结有保护垫，保护垫的厚度为1cm～2cm，保护垫上沿长度方向开有供输液管穿出的输液管穿出槽，弧形固定板的底部设置有上端与其固定连接的插杆，插杆的下部设置有与手术床床板侧部连接的连接部分，连接部分包括与手术床床板侧部的固定板相配合且能够沿着固定板滑动的滑块，滑块设置在插杆的下部，滑块的顶部开有供插杆下端穿过的通孔，滑块的外侧设置有用于将插杆锁紧的锁紧螺栓。本实用新型能有解决采用托手板固定患者上肢会造成患者臂丛神经拉伤以及采用固定带固定患者上肢固定不牢靠的问题，同时使用安全可靠，不会对患者造成危险，适用于不同胖瘦的患者。
The utility model discloses an upper limb fixer for surgery, which comprises an arc-shaped fixing plate, a protective pad is bonded on the inner side of the arc-shaped fixing plate, the thickness of the protective pad is 1cm-2cm, and an infusion tube is opened on the protective pad along the length direction. The infusion tube passing through the groove, the bottom of the arc-shaped fixing plate is provided with an insertion rod whose upper end is fixedly connected with it, and the lower part of the insertion rod is provided with a connecting part connected with the side of the operating bed board, and the connecting part includes a connecting part with the side of the operating bed board. The slider is matched with the fixed plate on the upper part and can slide along the fixed plate. The slider is arranged at the lower part of the insertion rod. The top of the slider has a through hole for the lower end of the insertion rod to pass through. The outer side of the slider is provided with a Locking bolt for plunger locking. The utility model can solve the problem of brachial plexus strain caused by fixing the patient's upper limbs with the hand rest and the unreliable fixation of the patient's upper limbs with the fixing belt. At the same time, the utility model is safe and reliable, and will not cause danger to the patient. It is suitable for different fat and thin patients. of patients.
Description
Technical field
This utility model relates to a kind of medical apparatus and instruments, especially relates to a kind of operation upper limbs holder.
Background technology
Because current operation table is relatively narrow, so patient lies on a bed in operation process, upper limb can be suspended in the both sides of operation table, can cause damage to patient's upper limb like this.Some operation table arranges hand-rest plate in head both sides, for patient's upper limb, place fixing, but owing to needing a plurality of operative doctors to operate in whole operation process, and the placement of hand-rest plate can affect the working place of operative doctor, and operative doctor can unconsciously be pushed into inclination by hand-rest plate sometimes, can cause patient's brachial plexus nerve to pull.Now when operation technique, conventionally patient's upper limb is fixed on to patient side, concrete is operating as: before patient lies on operation table, on operation table, lay upper limb fixing strap (cloth list), when patient lies on operation table, by the two ends of fixing band, respectively patient's two upper limb are wrapped up and are fixed on to the both sides of bed.Fixing so not firm, patient's upper limb easily drops, if also have parcel not firm, patient's upper limb may touch the operation bedstead of metal, and electric knife can produce burn to contact site.In addition, increasing of obese patient, is difficult to its upper limb to be fixed on operation table both sides, and operates extremely inconvenient especially now.
Utility model content
The purpose of this utility model is to overcome above-mentioned deficiency of the prior art, a kind of operation upper limbs holder is provided, it is simple in structure, reasonable in design and use easy to operate, can have to solve adopts hand-rest plate immobilized patients upper limb can cause patient's brachial plexus nerve to pull and adopt fixing band immobilized patients upper limb to fix illusive problem, simultaneously safe and reliable, can not cause danger to patient, be applicable to different fat or thin patients.
For achieving the above object, the technical solution adopted in the utility model is: a kind of operation upper limbs holder, it is characterized in that: comprise arc fixed plate, the inner side of described arc fixed plate is bonded with neonychium, the thickness of described neonychium is 1cm～2cm, on described neonychium, have along its length the tube for transfusion passing for tube for transfusion and pass groove, the bottom of described arc fixed plate is provided with the inserted link that upper end is fixedly connected with it, the bottom of described inserted link is provided with the coupling part being connected with operation table bed board sidepiece, described coupling part comprises the slide block that matches with the fixing head of operation table bed board sidepiece and can slide along fixing head, described slide block is arranged on the bottom of inserted link, the top of described slide block has the through hole passing for inserted link lower end, the arranged outside of described slide block is useful on the clamping screw of inserted link locking.
Above-mentioned operation upper limbs holder, is characterized in that: described neonychium is bonded in the inner side of arc fixed plate by velcro.
Above-mentioned operation upper limbs holder, is characterized in that: U font is inverted in being shaped as of described slide block.
Above-mentioned operation upper limbs holder, is characterized in that: described neonychium is silicagel pad.
Above-mentioned operation upper limbs holder, is characterized in that: described tube for transfusion passes groove and opens the middle part at neonychium.
Above-mentioned operation upper limbs holder, is characterized in that: the upper end of described inserted link is fixedly connected with the bottom centre of arc fixed plate.
Above-mentioned operation upper limbs holder, is characterized in that: the thickness of described neonychium is 1.5cm.
This utility model compared with prior art has the following advantages:
1, this utility model is simple in structure, reasonable in design and use easy to operate.
2, this utility model can have the employing of solution hand-rest plate immobilized patients upper limb can cause patient's brachial plexus nerve to pull and adopt fixing band immobilized patients upper limb to fix illusive problem, simultaneously safe and reliable, can not cause danger to patient.
3, this utility model is opened tube for transfusion and is passed groove on neonychium, and the tube for transfusion of being convenient to supply with patient's transfusion passes, and prevents that tube for transfusion is squeezed and causes infusing obstructed, causes danger to patient's life.
4, protection of the present utility model paves and prevents that patient's upper limb from directly directly contacting and causing pressurized damage with arc fixed plate; because neonychium is bonded on arc fixed plate by velcro; so not only easy to connect, and when neonychium is made dirty, be convenient to disassemble cleaning.
5, this utility model can just regulate arc fixed plate to insert the degree of depth of through hole according to patient's upper limb, therefore applicable to the fat or thin patient of difference, uses.
6, this utility model is convenient and practical, easily manufactured, and low cost of manufacture is suitable for promoting the use of.
Below by drawings and Examples, this utility model is described in further detail.
Accompanying drawing explanation

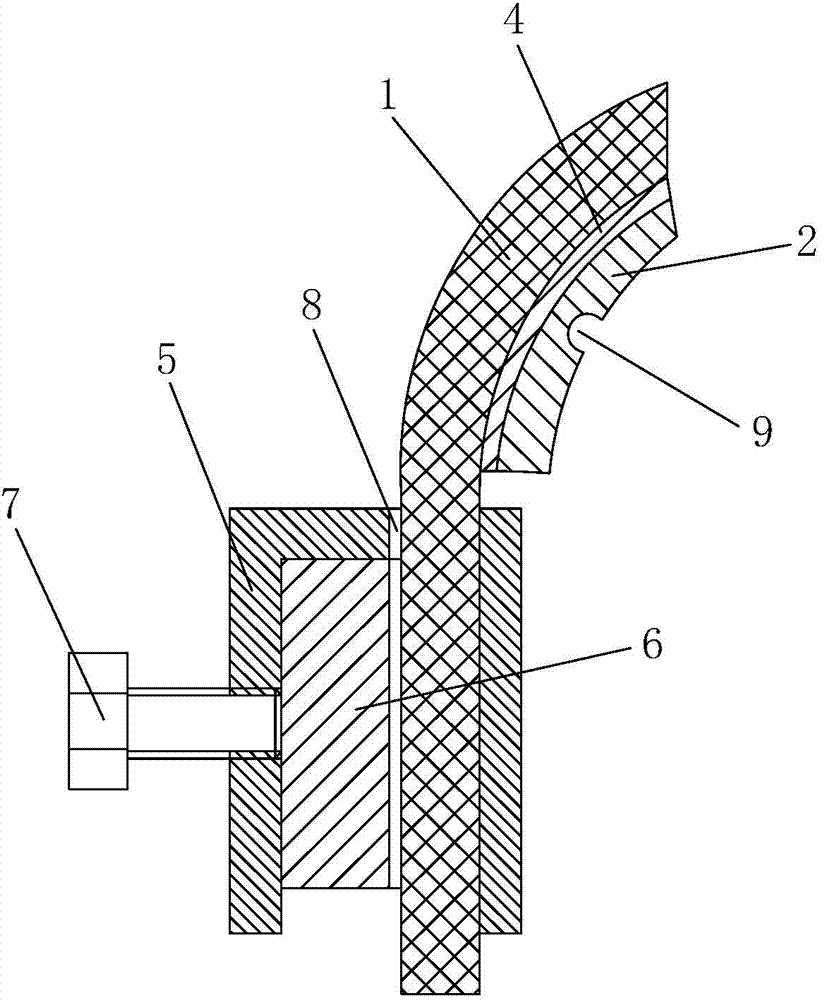

Fig. 1 is the annexation schematic diagram of this utility model and fixing head.
Fig. 2 is using state figure of the present utility model.
Fig. 3 is the A place enlarged drawing of Fig. 2.
Description of reference numerals:
1-arc fixed plate; 2-neonychium; 3-operation table bed board;
4-velcro; 5-slide block; 6-fixing head;
7-clamping screw; 8-through hole; 9-tube for transfusion passes groove;
10-inserted link.
The specific embodiment
As shown in Figure 1 to Figure 3, this utility model comprises arc fixed plate 1, the inner side of described arc fixed plate 1 is bonded with neonychium 2, the thickness of described neonychium 2 is 1cm～2cm, on described neonychium 2, have along its length the tube for transfusion passing for tube for transfusion and pass groove 9, the bottom of described arc fixed plate 1 is provided with the inserted link 10 that upper end is fixedly connected with it, the bottom of described inserted link 10 is provided with the coupling part being connected with operation table bed board 3 sidepieces, described coupling part comprises the slide block 5 that matches with the fixing head 6 of operation table bed board 3 sidepieces and can slide along fixing head 6, described slide block 5 is arranged on the bottom of inserted link 10, the top of described slide block 5 has the through hole 8 passing for inserted link 10 lower ends, the arranged outside of described slide block 5 is useful on the clamping screw 7 of inserted link 10 lockings.
As shown in Figure 1 to Figure 3, described neonychium 2 is bonded in the inner side of arc fixed plate 1 by velcro 4, not only easy to connect, and when neonychium 2 is made dirty, is convenient to disassemble cleaning.
As shown in Figure 1 to Figure 3, U font is inverted in being shaped as of described slide block 5, is convenient to be enclosed within on fixing head 6.
In the present embodiment, described neonychium 2 is silicagel pad, soft flexible, tasteless, easy to clean.
As shown in Figure 1 to Figure 3, described tube for transfusion passes groove 9 and opens at the middle part of neonychium 2, and the tube for transfusion of being convenient to supply with patient's transfusion passes, and prevents that tube for transfusion is squeezed and causes infusing obstructed, causes danger to patient's life.
As shown in Figure 1 to Figure 3, the upper end of described inserted link 10 is fixedly connected with the bottom centre of arc fixed plate 1, good stability.
In the present embodiment, the thickness of described neonychium 2 is 1.5cm.
In conjunction with Fig. 2, during use, when patient lies on operation table bed board 3, according to the position of patient's upper limb, slide block 5 of the present utility model is enclosed within on the fixing head 6 of operation table bed board 3 one of them sidepiece, then the lower end of inserted link 10 is inserted in the through hole 8 at slide block 5 tops, and regulate arc fixed plate 1 to insert through hole 8 to appropriate depth according to the height of patient's upper limb, then by clamping screw 7, inserted link 10 is locked on fixing head 6; At operation table bed board 3 another sidepieces, a this utility model is installed according to the method described above, so that patient's upper limb is all fixing.In operation, patient is infused, tube for transfusion can be passed to groove 9 through tube for transfusion and pass, to prevent tube for transfusion to be squeezed, cause infusing obstructed.Neonychium of the present utility model 2 is main to be risen and prevents that patient's upper limb from directly contacting with arc fixed plate 1 and cause pressurized to damage, and when neonychium 2 is made dirty, detachably gets off and cleans, and after cleaning, can reuse.
The above; it is only preferred embodiment of the present utility model; not this utility model is imposed any restrictions; every any simple modification, change and equivalent structure transformation of above embodiment being done according to this utility model technical spirit, all still belongs in the protection domain of technical solutions of the utility model.
