Abstract

The utility model discloses a device for fixing a line of an electric transmission and distribution circuit, and the device comprises a fixing plate. The fixing plate comprises an upper fixing plate and a lower fixing plate. The lower end of the upper fixing plate is provided with an upper groove. The upper end of the lower fixing plate is provided with a lower groove. The central position of the lower fixing plate is provided with a central screw hole which passes through the lower fixing plate. The interior of the central screw hole is provided with a screw rod. The upper end of the screw rod is provided with a wire pressing block. The lower end of the screw rod passes through the central screw hole and then is fixed together with the lower fixing plate. Four corners of the fixing plate are respectively provided with a bolt hole. The fixing plate is fixed together with a wall through expansion bolts which respectively pass through the bolt holes. The device provided by the utility model is simple in structure, is convenient to install, can enable the wire pressing block to move up and down through the screw rod, is convenient to clamp or remove a household wire, is time-saving and labor-saving, is low in production cost, and is good in practical value and prospect of market popularization.

Description

Power transmission and transformation line apparatus for fixing cord
Technical field:
The utility model relates to a kind of fixture, particularly relates to a kind of power transmission and transformation line apparatus for fixing cord, belongs to electric power system electrical network electric wire service equipment technical field.
Background technology:
At present, power network line house lead in is long, and under the effect of gravity, house lead in can produce sagging, brings unsafe factor, also affects the normal operation of circuit.Generally adopt at present four-core strain clamp frame to set up many house lead in, but due to four-core strain clamp shelf structure more complicated, inconvenience is installed, safeguard that replacing is more difficult, and cost is higher.
Utility model content:
Technical problem to be solved in the utility model is: overcome the deficiencies in the prior art, a kind of power transmission and transformation line apparatus for fixing cord is provided, it is simple in structure, easy for installation, and production cost is lower.
The utility model is that the technical scheme that technical solution problem is taked is:
A power transmission and transformation line apparatus for fixing cord, comprises fixed head, and described fixed head comprises upper mounted plate and bottom plate, and fixed plate lower end is provided with upper groove, and described bottom plate upper end is provided with low groove; In the center of described bottom plate, be provided with the center screw that runs through bottom plate, be provided with leading screw in center screw, described leading screw upper end is provided with electric wire briquetting, and described leading screw lower end is fixed together by nut and bottom plate through center screw.
Described electric wire briquetting upper surface is arc groove, and this arc groove and upper groove match.
Four jiaos of described fixed head are provided with bolt hole, and described fixed head is fixed together by expansion bolt and the wall through bolt hole.
Positive beneficial effect of the present utility model is as follows:
1, the utility model is because the center at bottom plate is provided with the center screw that runs through bottom plate, in center screw, be provided with leading screw, leading screw upper end is provided with electric wire briquetting, pass through rotating threaded shaft, electric wire briquetting can be moved up and down, be convenient to clamping or remove house lead in electric wire, easy for installation, time saving and energy saving.
2, the utility model is by leading screw upper end, electric wire briquetting being set, and the upper groove of the arc groove of electric wire briquetting and upper mounted plate lower end matches, and wire is more firmly pressed in groove, prevents from moving or coming off.
3, the utility model is provided with bolt hole at fixed head four jiaos, and fixed head is fixed together by expansion bolt and the wall through bolt hole, economical and practical effective.
4, the utility model is simple in structure, easy for installation, and production cost is lower, has practical value and marketing prospect.
Embodiment:

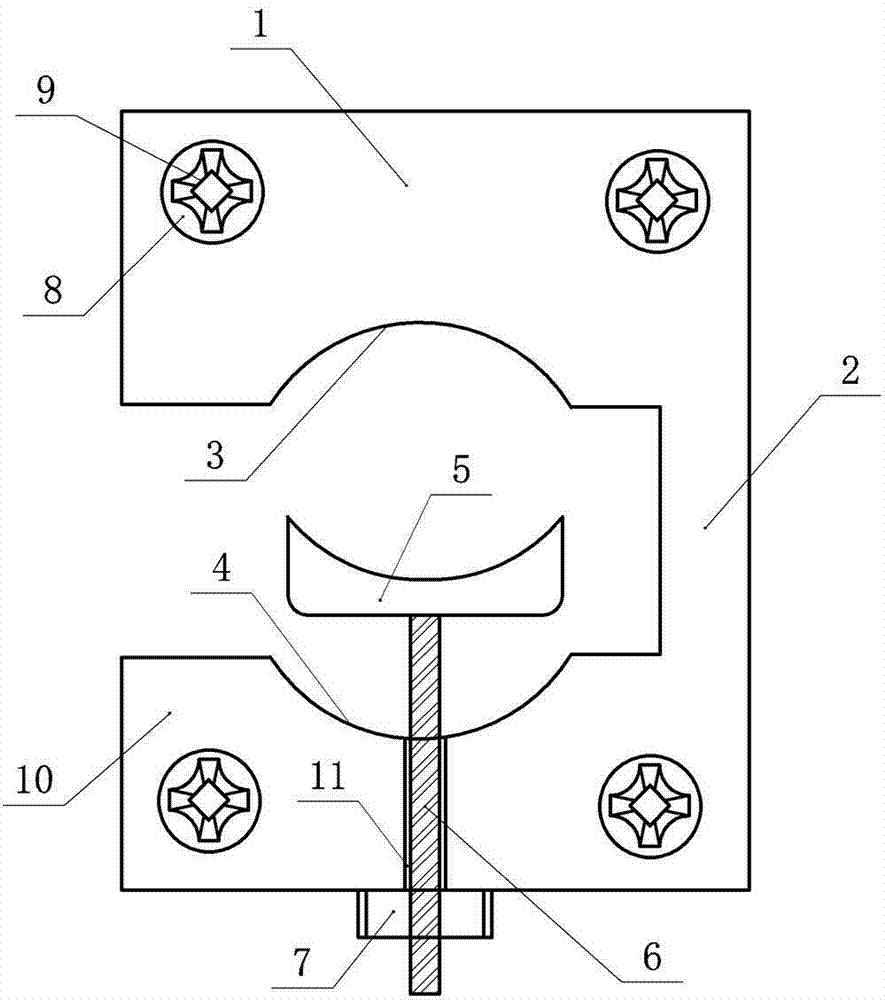

Fig. 1 is structural representation of the present utility model.
Embodiment:
Below in conjunction with accompanying drawing, the utility model is further explained and explanation:
Referring to Fig. 1, a kind of power transmission and transformation line apparatus for fixing cord, comprise fixed head 2, fixed head 2 comprises upper mounted plate 1 and bottom plate 10, in upper mounted plate 1 lower end, be provided with upper groove 3, in bottom plate 10 upper ends, be provided with low groove 4, in the center of bottom plate 10, be provided with the center screw 11 that runs through bottom plate 10, in center screw 11, be provided with leading screw 6, in leading screw 6 upper ends, be provided with electric wire briquetting 5, electric wire briquetting 5 upper surfaces are arc groove, and this arc groove and upper groove 3 match; Leading screw 6 lower ends are fixed together by nut 7 and bottom plate 10 through center screw 11; Four jiaos at fixed head 2 are provided with bolt hole 8, and fixed head 2 is fixed together with wall by the expansion bolt 9 through bolt hole 8.
The utility model runs through the center screw 11 of bottom plate because the center at bottom plate 10 is provided with, in center screw 11, be provided with leading screw 6, leading screw 6 upper ends are provided with electric wire briquetting 5, by rotating threaded shaft 6, electric wire briquetting 5 can be moved up and down, be convenient to clamping or remove house lead in electric wire, easy for installation, time saving and energy saving.

Claims (3)

1. a power transmission and transformation line apparatus for fixing cord, comprise fixed head (2), it is characterized in that: described fixed head (2) comprises upper mounted plate (1) and bottom plate (10), fixed plate (1) lower end is provided with upper groove (3), and described bottom plate (10) upper end is provided with low groove (4); In the center of described bottom plate (10), be provided with the center screw (11) that runs through bottom plate (10), in center screw (11), be provided with leading screw (6), described leading screw (6) upper end is provided with electric wire briquetting (5), and described leading screw (6) lower end is fixed together by nut (7) and bottom plate (10) through center screw (11).
2. power transmission and transformation line apparatus for fixing cord according to claim 1, is characterized in that: described electric wire briquetting (5) upper surface is arc groove, and this arc groove and upper groove (3) match.
3. power transmission and transformation line apparatus for fixing cord according to claim 2, it is characterized in that: four jiaos of described fixed head (2) are provided with bolt hole (8), described fixed head (2) is fixed together by the expansion bolt through bolt hole (8) (9) and wall.
