Abstract

The utility model discloses a ring-shaped fishing device, which comprises a fishing rod and a fishing main line. The end of the fishing main line is connected with a ring frame through an umbrella-shaped knot, and evenly distributed fishhook connecting lines are connected at the bottom of the ring frame. The bottom of the connecting line is connected with a fishing hook, and the top of the ring frame is provided with symmetrically distributed fish floats. The utility model uses the combined structure of the umbrella-shaped knot and the ring frame to evenly distribute several fishing hooks connected by the hook connecting line on the ring frame, so as to increase the coverage area of the fishing hook during fishing and increase the The quantity of fishing is increased, the probability of successful fishing is increased, and the phenomenon that a single hook sometimes needs to be repeatedly put in bait is also avoided.

Description

Ring Fisher

technical field

The utility model relates to a fishing gear, in particular to an annular fishing gear.

Background technique

Fishing activities are not only cultural entertainment, but also comprehensive physical exercise activities, which can cultivate temperament and improve physical and mental health. In addition, the tool is simple, suitable for all ages, and is loved by people. Along with social progress, economic development, continuous improvement of people's living standards, fishing activities have a tendency to flourish. It is estimated that more than 100 million people like fishing in my country. In 1983, the National Sports Commission officially listed fishing as a sports event; in 1994, the country proposed a 365-item "National Fitness Program", and fishing was one of them. At present, the common fishing device on the market is single-hook method. This method has some disadvantages. Rebait. In addition, this method has a small coverage area and is often not easy to catch fish.

Contents of the invention

The purpose of this utility model is to provide a ring-shaped fishing device, which can avoid the phenomenon that several fish compete for food, and the bait is repeatedly put on the bait. To overcome the deficiencies in the prior art.

The utility model is realized in the following way: the ring-shaped fishing device includes a fishing rod and a fishing main line. The end of the fishing main line is connected with a ring frame through an umbrella-shaped knot, and the bottom of the ring frame is connected with evenly distributed hook connecting lines. The bottom of the hook connecting line is connected with a fishing hook, and the top of the ring frame is provided with symmetrically distributed fish floats.

There are more than 4 fish floats. The even distribution of multiple fish floats can more accurately judge the biting situation of fish.

Due to the adoption of the above-mentioned technical scheme, compared with the prior art, the utility model uses the combined structure of the umbrella-shaped knot and the ring frame to distribute evenly distributed several fishing hooks connected by the fishing hook connecting line on the ring frame, so that This increases the coverage area of the fishing hook when fishing, increases the number of fishing, increases the probability of successful fishing, and also avoids the phenomenon that a single fishhook needs to be repeatedly put on bait sometimes. The utility model has the advantages of exquisite design, simple operation, practicality, low cost and good use effect.

Description of drawings

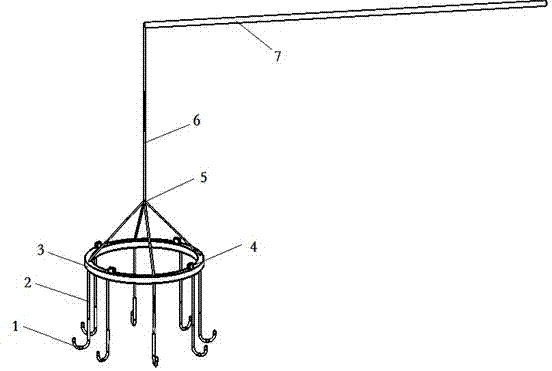

Accompanying drawing 1 is the structural representation of the utility model.

Detailed ways

Embodiment of the present utility model: the structure of the ring-shaped fishing device is as shown in Figure 1, including fishing rod 7, fishing main line 6, the end of fishing main line 6 is connected with ring frame 3 by umbrella-shaped knot 5, at the bottom of ring frame 3 8 evenly distributed fishhook connecting lines 2 are connected, a fishing hook 1 is connected to the bottom of each fishhook connecting line 2 , and 4 symmetrically distributed fish floats 4 are arranged on the top of the ring frame 3 .

Claims (2)

1. A ring-shaped fishing device, comprising a fishing rod (7) and a main fishing line (6), characterized in that: the end of the main fishing line (6) is connected with a ring frame (3) through an umbrella-shaped knot (5). The bottom of the frame (3) is connected with evenly distributed fishhook connecting lines (2), the bottom of the fishhook connecting line (2) is connected with fishing hooks (1), and the top of the ring frame (3) is provided with symmetrically distributed Fish Float (4). 2. The circular fishing device according to claim 1, characterized in that there are more than four fish floats (4).
