CN203452162U - A boosting and flow increase flushing system for closestools - Google Patents

Abstract

The utility model discloses a pressurized and flow-increased flushing system for a toilet, which comprises a toilet shell, a washing water pipeline, and a jet flushing water pipeline. A water volume multiplier is provided, one end of the water volume multiplier is connected to the washing water pipe, and the other end is connected to the tap water inlet valve, and a drain valve is also arranged in the plastic water tank, and the drain valve is connected to the jet flushing water pipeline. This utility model. Simultaneous cleaning and flushing are realized, water consumption is saved, and the flushing effect is good, energy saving, environmental protection, and low cost.

Description

A pressurized and increased flow flushing system for a toilet

technical field

The utility model relates to a pressurized and flow-increased flushing system for a toilet.

Background technique

Most of the flushing methods of the traditional ceramic water tank toilets on the market are drained by the drain valve in the ceramic water tank. Part of the water in the water tank is used to wash the ceramics, and the rest is used to wash the ceramics. Insufficient washing results in unclean washing.

Another kind of flushing mode is the flushing without water tank on the market, adopts tap water to scrub, and tap water flushes, but because the water yield of tap water is very limited, can not scrub and flush simultaneously, can only operate separately. First wash, then flush, and then wash and replenish water. Such a flushing system requires high pressure and flow of tap water, and it cannot be washed and rinsed at the same time. It is difficult to clean the ceramics.

The above defects are worth improving.

Utility model content

The purpose of this utility model is to solve the above-mentioned deficiencies and provide a toilet pressurized and flow-increased flushing system. A plastic water tank is arranged inside the toilet shell, and a water volume multiplier is arranged in the plastic water tank. One end of the water volume multiplier It is connected to the scrubbing water pipeline, and the other end is connected to the tap water inlet valve. The plastic water tank is also provided with a drain valve, and the drain valve is connected to the jet flushing water pipeline to realize scrubbing and flushing at the same time, saving water consumption. And the flushing effect is good, energy saving and environmental protection, and low cost.

The technical scheme of the utility model is as follows:

A toilet pressurized and flow-increased flushing system, including a toilet shell, a washing water pipeline, and a jet flushing water pipeline, characterized in that: a plastic water tank is arranged inside the toilet shell, and a water volume multiplier is arranged in the plastic water tank. One end of the water volume multiplier is connected to the washing water pipeline, and the other end is connected to the tap water inlet valve. A drain valve is also arranged in the plastic water tank, and the drain valve is connected to the spray washing water pipeline.

The technical solution to realize the utility model further includes a driving circuit board, and the driving circuit board is connected to the tap water inlet valve.

To further realize the technical solution of the utility model, an impeller booster pump is installed on the jet flushing water pipeline.

According to the utility model with the above-mentioned structure, its beneficial effect is: build a plastic water tank on the vacancy of the original ceramic water tank, use the pressure potential energy of the tap water itself, and take away part of the water from the water tank through the water volume multiplier, so as to enlarge the water volume of the tap water , to meet the amount of washing water, the other part of the water in the plastic water tank, through the impeller booster pump installed on the jet flushing pipeline connected to the lower end of the drain valve, plays the role of pumping booster to meet the amount of washing water, so that in When using a low tank, you can still get a better rinse than a high tank. In addition, accurate control of water consumption is achieved by controlling the switching time of the drive circuit board. Simultaneous cleaning and rinsing are realized, water consumption is saved, the rinsing effect is good, energy saving and environmental protection are achieved, and the cost is low.

Description of drawings

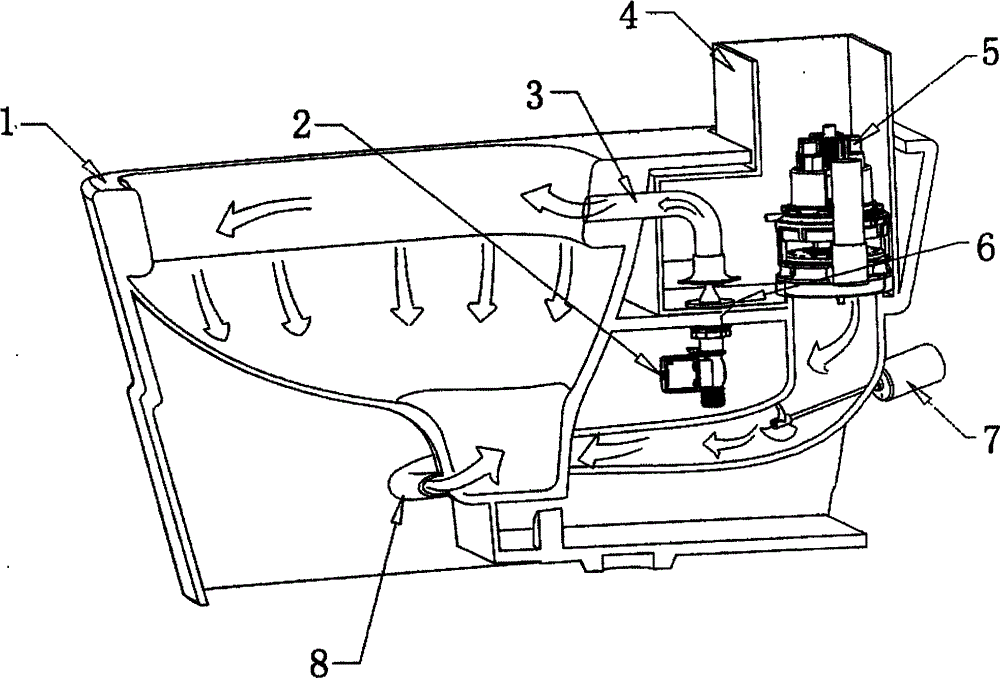

Fig. 1 is the structural representation of the utility model;

In the figure, 1. Toilet shell; 2. Tap water inlet valve; 3. Washing water pipe; 4. Plastic water tank; 5. Drain valve; 6. Water volume multiplier; 7. Impeller booster pump; 8. Jet flushing water pipes.

Detailed ways

Below in conjunction with accompanying drawing and embodiment the utility model is further described:

As shown in Figure 1, a toilet pressurized and increased flow flushing system includes a toilet shell 1, a washing water pipeline 3, and a spray flushing water pipeline 8, and is characterized in that a plastic water tank 4 is arranged inside the toilet shell 1 , the plastic water tank 4 is provided with a water volume multiplier 6, one end of the water volume multiplier 6 is connected to the washing water pipeline 3, and the other end is connected to the tap water inlet valve 2, and the plastic water tank 4 is also provided with a drainage Valve 5, the drain valve 5 is connected to the jet flushing water pipeline 8, and the impeller booster pump 7 is installed on the jet flushing water pipeline 8.

When the tap water inlet valve 2 is opened, the tap water flows into the plastic water tank 4, part of the stored water is amplified and pressurized by the water volume multiplier 6, and then the toilet is washed through the washing water pipeline 3, and the other part of the stored water is obtained by the water volume multiplier 6. The drain valve 5 at the lower end of the plastic water tank 4 is controlled, and the drain valve 5 flushes the toilet through the jet flushing water pipeline 8 . An impeller booster pump 7 is installed on the jet flushing water pipeline 8, and the impeller is driven by a motor to achieve supercharging and flow increasing effects.

Although the utility model is described with reference to the above-mentioned embodiments, those of ordinary skill in the art can clearly realize that the above embodiments are only used to illustrate the utility model, and various changes and modifications can be made therein. In a broad sense, it does not break away from the utility model, so it is not as a limitation to the utility model, as long as it is within the spirit of the utility model, changes to the above-mentioned embodiments will fall into the scope of protection required by the utility model within.

Claims (3)

1. A toilet pressurized and flow-increasing flushing system, comprising a toilet shell, a washing water pipeline, and a jet flushing water pipeline, characterized in that: a plastic water tank is provided inside the toilet shell, and a plastic water tank is arranged in the plastic water tank A water volume multiplier, one end of the water volume multiplier is connected to the washing water pipeline, and the other end is connected to a tap water inlet valve, and a drain valve is also arranged in the plastic water tank, and the drain valve is connected to the jet flushing water pipeline. 2 . The pressurized and flow-increased toilet flushing system according to claim 1 , further comprising a drive circuit board connected to the tap water inlet valve. 3 . 3 . The pressurized and increased flow flushing system for toilet according to claim 1 , wherein an impeller booster pump is installed on the spray flushing water pipeline. 4 .
