Abstract

A packaging bag, comprising: a bag body for holding articles; a sealing portion for sealing the opening of the packaging bag, wherein a pre-cut line is provided between the bag body and the sealing portion. The packaging bag of the utility model integrates the functions of logistics packaging and ordinary shopping bags, is tear-resistant, and thus can be used for logistics packaging, and can also be used as a portable shopping bag for a second time after physical packaging is used. It not only reduces the logistics cost, but also improves the efficiency of packing operation.

Description

packing bag

technical field

The utility model relates to a packaging bag.

Background technique

At present, online shopping has increasingly become the shopping habit of most people, and major logistics companies frequently burst their warehouses. For self-operated e-commerce enterprises, their logistics and packaging operations are also faced with great work intensity. At the same time, packaging as materials has also become an important cost of e-commerce enterprises. The existing commonly used packaging materials include two parts, opaque plastic bags and transparent plastic bags. In an opaque plastic bag to place: merchandise, invoices, shopping lists, etc. The opaque plastic bag is thicker and is used to protect the goods from being worn or soiled, and at the same time protect the user's privacy. Generally, the opaque plastic bag has a handle and can be used as a handbag. The transparent plastic bag is used for delivery by logistics companies, and the customer's form is placed inside. Then put a package label on the outside of the transparent plastic bag, and the package label is used for the express delivery management of the physical company. Because it is transparent, the courier can see the customer form inside, conveniently reach the delivery location and deliver the recipient. At the same time, it also serves the functions of protecting the customer's face sheet and double protecting the goods during the logistics and transportation process.

The existing shopping logistics packaging method and steps are as follows: 1) put the goods, invoices, shopping lists, etc. Put the good opaque plastic bag and customer receipt into a transparent plastic bag, seal the transparent plastic bag, and use a heat sealing machine for plastic sealing; 3) After plastic sealing, paste the package label on the transparent plastic bag to complete the packaging of the shopping logistics, The packaged express mail is shown in Figure 2.

The existing online shopping logistics packaging has the following disadvantages: 1) the existing packaging materials are composed of opaque plastic bags and transparent plastic bags, and the cost is relatively high; 2) the existing packaging methods need to operate two plastic bags, and the overall Packing operations are less efficient.

Utility model content

In order to meet the needs of e-commerce logistics packaging operations, reduce the packaging cost of e-commerce shopping logistics, and improve the efficiency of packaging operations, the utility model proposes a packaging bag, including: a bag body for holding items; The sealing part of the opening, wherein a pre-cut line is provided between the bag body and the sealing part.

Advantageously, the bag has pre-cut handles.

Advantageously, said pre-cut handle is close to said closure portion side.

Advantageously, said closure portion comprises a seal for closing the opening of the packaging bag.

Advantageously, the seal is a flap on which an adhesive tape is arranged.

Advantageously, said pre-cut line protrudes towards said closure portion to form a protrusion on which said pre-cut handle is located.

Advantageously, the pre-cutting line is recessed toward the bag bottom of the bag body to form a recessed portion, and the pre-cutting line handle is located on the bag body on the side of the recessed portion close to the bag bottom.

Advantageously, the pre-cut of said pre-cut handle forms an ellipse.

Advantageously, said packaging bag has a slit located on said pre-cut line.

Advantageously, the cutout is in the shape of a letter V.

The packaging bag of the utility model integrates the functions of logistics packaging and ordinary shopping bags, is tear-resistant, and thus can be used for logistics packaging, and can also be used as a portable shopping bag for a second time after physical packaging is used. It not only reduces the logistics cost, but also improves the efficiency of packing operation.

Description of drawings

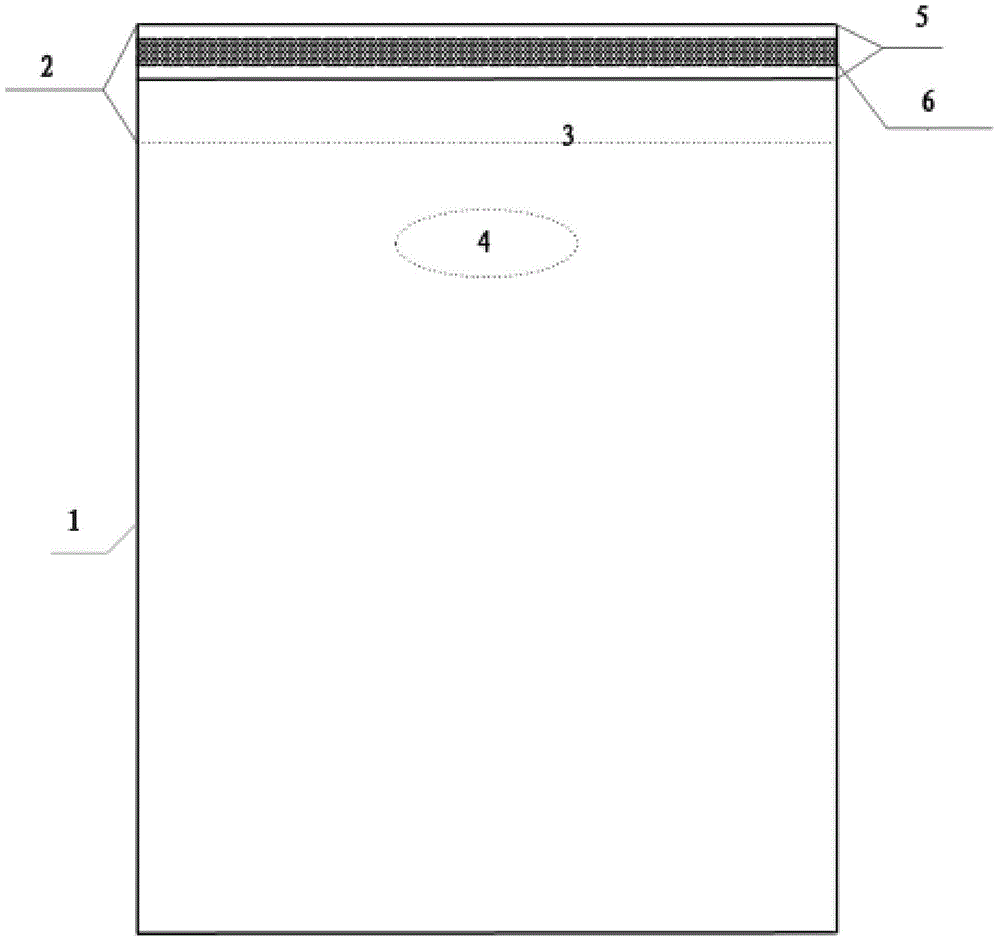

Fig. 1 is the front view of the first embodiment of the packaging bag of the present utility model;

Figure 2A is a side view of the packaging bag shown in Figure 1;

Figure 2B is a side view of a variant of the packaging bag shown in Figure 1;

Fig. 2C is a bottom view of the packaging bag shown in Fig. 2A;

Fig. 3 is the front view of the second embodiment of the packaging bag of the present utility model;

Fig. 4 is the front view of the third embodiment of the packaging bag of the present utility model;

Fig. 5 is a front view of the fourth embodiment of the packaging bag of the present invention.

Detailed ways

As shown in FIG. 1 , the packaging bag of the present invention includes a bag body 1 and a sealing part 2 . The bag body 1 is used for containing articles, and the bag body 1 can be made of materials such as plastics, paper, and chemical fibers. The packaging bag of the utility model is transparent or translucent or opaque. When no articles are contained, the bottom material of the bag body 1 can be tightly fitted, as shown in FIG. 2A . It may also have a certain space, as shown in Fig. 2B. The bag body shown in FIG. 2A is more portable, and the bag body shown in FIG. 2B can hold more articles.

Figure 2C shows a bottom view of the bag bottom of the bag shown in Figure 2A. The shape shown is the shape of the bottom of the bag after it has been unfolded. This design increases the volume of the bag compared with the bottom of the ordinary envelope in a line.

Looking at Fig. 1 again, the bag body 1 and the sealing part 2 are provided with a pre-cut line 3, the pre-cut line 3 can be formed by a cutter, and punch, cut or roll at a certain distance on the bag body, and the punching and cutting can form through holes, It is also possible to form a semi-permeable hole through only a part of the thickness of the bag material. Rolling may be through only a portion of the thickness of the bag material. The larger the spacing between the through holes or the semi-through holes, or the deeper the inclination, the easier it is for the pre-cutting line 3 to tear, but on the other hand it may also be easily damaged. After the pre-cut line 3 is formed, the sealing part can be easily torn off from the bag body 1 along the pre-cut line 3 . The part of the bag body 1 close to the pre-cutting line 3 is provided with a pre-cutting line handle 4 , and the forming principle of the pre-cutting line handle 4 is the same as that of the pre-cutting line 3 . Preferably, the pre-cut handle 4 is located in the middle of the bag body and is oval.

The closure part 2 has a seal 5 for closing the packaging bag. The sealing member 5 can be a sealing tongue, and the structure of the sealing tongue is that at the opening of the packaging bag, half of the material protrudes, and the length of the protruding part can cover the opening of the packaging bag. For the structure of the tongue seal, please refer to the national standard "GBT16606.3-2009 Express Packaging Products Part 3: Packaging Bags". Further, an adhesive tape 6 is provided on the sealing tongue. One side of adhesive tape 6 is adhered on the sealing tongue, and the other side is covered with a protective film, and under the protective film is an adhesive layer. When the protective film is removed, the adhesive layer is exposed, so that the sealing tongue can be adhered to when the packaging bag is sealed. on the bag. Adhesive tape 6 has the function of anti-tear and anti-destructive, once it is torn, it cannot be restored to its original state.

The sealing member 5 can also be a snap-fit part, for example, on the inner side of the opening of the packaging bag, a protruding part is provided on one side, and a groove for engaging the protruding part is provided on the other side. When sealing the packaging bag, the protruding part and the groove are pressed against each other under force, and the protruding part snaps into the groove, thereby sealing the packaging bag.

The sealing member 5 can also be a drawstring type, and a drawstring is arranged along the opening of the packaging bag, and the opening of the packaging bag can be closed by tightening the drawstring.

The structure and function of each part of the packaging bag will be further described below through the use method of the packaging bag. At the beginning, the staff opens the sealing part 2, and puts the article into the bag body 1 through the sealing part 2. Seal the packaging bag with a seal 5 to prevent the packaging bag from being opened. If the sealing member 5 is a flap, the protective film on the tape 6 is peeled off and the flap is adhered to the packaging bag. Closed and packaged items are sent to their destinations.

The process for the addressee to open the packaging bag is: tear off the sealing part 2 along the pre-cut line 3, then the bag body 1 opens, and the article is taken out from the opening. At the same time, if desired, the pre-cut handles can be torn off to form the handles of the bag, thus becoming a tote bag with handles.

Fig. 3 shows a front view of another embodiment of the present invention. The difference from the first embodiment shown in FIG. 1 is that the pre-tangent line 3 is no longer a straight line, but a curved line, such as a wave. The pre-cut line may not be parallel to the bag opening, but may be oblique, etc. In FIG. 3 , the pre-cutting line 3 protrudes toward the sealing part 2 to form a protrusion, that is, the bag body 1 has a protrusion, and the sealing part 2 has a recess correspondingly. The protrusion is preferably formed in the middle part of the pre-cut line. A pre-cut handle 4 is provided on this protrusion. This modification makes the setting position of the handle more ergonomic and more convenient to use. This modification is especially suitable for the case where the bag body 1 is made of hard material.

Fig. 4 shows a front view of another embodiment of the present invention. In contrast to the second embodiment shown in FIG. 3 , the precut line 3 protrudes towards the bag 1 , so that the bag 1 has a recess. Preferably, the recess is formed in the middle of the precut 3 . The pre-cut handle 4 is arranged on the bag body 1 near the bottom side of the recess. This modification makes the setting position of the handle more ergonomic and more convenient to use. This modification is especially suitable for the case where the bag body 1 is made of hard material.

Fig. 5 shows a front view of another embodiment of the present invention. The difference from the embodiment shown in FIG. 2 is that a cut 7 is formed on the side of the bag body 1 on the precut line 3 . The so-called side of the bag body 1 means that, relative to the shape of the bag body in normal use, the two sides of the bag body 1 are the sides of the bag body 1 when viewed from the front view of the bag body. The precut 3 can be torn more easily due to the inward cut, which is preferably V-shaped. The slit 7 can be provided only on one side of the bag body 1, or both sides.

The above embodiments can be combined arbitrarily, and the structure of the combined utility model is also within the protection scope of the utility model.

The utility model combines two kinds of packaging materials in the prior art into one, which reduces the cost of the packaging materials. At the same time, the packaging process is simplified and the efficiency of packaging operations is improved. Moreover, after the packaging bag of the utility model is opened from the pre-cutting line and the handle of the pre-cutting line, it has the function of a portable shopping bag and can be reused, saving environmental resources.

The above-mentioned embodiments are typical implementations of the present invention, but the utility model is not limited by the above-mentioned embodiments, and any other changes, modifications, substitutions, combinations, and simplifications that do not deviate from the spirit and principles of the present invention, All should be equivalent replacement methods, and all are included in the protection scope of the present invention.

Claims (10)

1. A packaging bag, characterized in that, comprising: Bags for holding items; a sealing portion for sealing the opening of the packaging bag, Wherein a pre-cut line is provided between the bag body and the sealing part. 2. The packaging bag according to claim 1, wherein the bag body has a pre-cut handle. 3. The packaging bag according to claim 2, wherein the pre-cut handle is close to the side of the sealing part. 4. The packaging bag according to claim 1, wherein the sealing portion comprises a sealing member for closing the opening of the packaging bag. 5. The packaging bag according to claim 4, characterized in that, the sealing member is a sealing tongue, and an adhesive tape is arranged on the sealing tongue. 6. The packaging bag of claim 2, wherein the pre-cut line protrudes toward the closure portion to form a protrusion, and the pre-cut line handle is located on the protrusion portion. 7. The packaging bag according to claim 2, wherein the pre-cut line is recessed toward the bottom of the bag body to form a recess, and the handle of the pre-cut line is located near the bottom of the recess on one side of the bag. 8 . The packaging bag according to claim 2 , wherein the pre-cut line of the pre-cut handle forms an ellipse. 9. The packaging bag of claim 1, wherein the packaging bag has a cutout located on the pre-cut line. 10. The packaging bag according to claim 9, wherein the cutout is in the shape of a letter V.
