Abstract

The utility model discloses an assembling and welding tool for an internal and an external support arms. The assembling and welding tool comprises a base plate. Positioning and clamping assemblies are arranged on the base plate; the positioning and clamping assemblies comprise two opposite arranged positioning plates on the middle part of the base plate; the lower part of the front end of each positioning plate is provided with a lower positioning connecting shaft; the upper part of the rear end of the each positioning plate is provided with an upper positioning connecting hole; the lower positioning connecting shaft passes through the two positioning plates; two ends of the base plate are respectively provided with a group of shaft end positioning plates; a position adjusting mechanism is arranged on the base plate; lower parts of the positioning plates and the lower parts of the shaft end positioning plates are connected with a fastening assembly; the fastening assembly is in a cooperative connection with the position adjusting mechanism; and a dust cover plate is arranged on the position adjusting mechanism. The assembling and welding tool for internal and external support arms has compact structure and easy operation. Functions of the assembling and welding tool can be achieved via cooperation between the base plate and the positioning plates; an assembling and welding tool for the internal support arm and an assembling and welding tool for the external support arm can be co-used, so cost and labor are reduced; and the assembling and welding tools for the internal and the external support arm can be uniformed, thereby facilitating unified management for the tools.

Description

A kind of inside and outside support arm assembly welding frock
Technical field
The utility model relates to a kind of assembly welding frock, especially relates to a kind of inside and outside support arm assembly welding frock, belongs to field of welding devices.
Background technology
In the manufacturing process of scissors car lift, all include the welding of interior support arm and the welding sequence of outer support arm.In the prior art, normally outer support arm assembly welding welding tooling is for assembly welding and the welding of outer support arm, and the assembly welding welding tooling of interior support arm is for assembly welding and the welding of interior support arm.Due to can not both are general, thereby cause the waste of material and artificial waste, but also be not easy to the unified management of frock.Be not applicable at present interior support arm and the unified frock that shares of outer support arm assembly welding welding of shearing type lifter.
Utility model content
The deficiency existing for prior art, technical problem to be solved in the utility model is, a kind of inside and outside support arm assembly welding frock is provided, can be for welding multiple parts, rational in infrastructure, reduced cost.
For solving the problems of the technologies described above, the utility model is achieved through the following technical solutions: a kind of inside and outside support arm assembly welding frock, comprise base plate, be provided with location clamp assembly on base plate, its location clamp assembly comprises two opposed location-plates that are arranged at base plate middle part; The front end bottom of described location-plate is provided with down the axle that is located by connecting, and the upper rear end of location-plate is provided with the hole that is located by connecting; The axle that is located by connecting under described is through two location-plates; The two ends of described base plate are respectively arranged with one group of axle head location-plate; On described base plate, be provided with position adjusting mechanism, the bottom of location-plate and axle head location-plate is connected with fastening assembly, and fastening assembly and position adjusting mechanism are connected, and are provided with dust cover on position adjusting mechanism.
Optimize, above-mentioned inside and outside support arm assembly welding frock, between its two groups of axle head location-plates, the both sides of base plate are respectively arranged with some baffle plates and binding clasp, baffle plate and binding clasp are opposed; Between described two groups of axle head location-plates, the middle part of base plate is provided with the suitable wide baffle plate in some middle parts; Described baffle plate and binding clasp are by fastening assembly link position guiding mechanism.
Optimize, above-mentioned inside and outside support arm assembly welding frock, its position adjusting mechanism comprises some translot and pods that are arranged on base plate, translot is vertical with pod, between translot and between pod, be arranged in parallel; The junction of described translot and pod is provided with annular adjustment tank.
Optimize, above-mentioned inside and outside support arm assembly welding frock, its fastening assembly comprises an anchorage bar, and on anchorage bar, cover has some pads, and the lower end of anchorage bar is provided with adjusting nut, and adjusting nut is threaded with anchorage bar.
Optimize, above-mentioned inside and outside support arm assembly welding frock, the suitable wide baffle plate in its middle part comprises a square connecting cylinder, and the middle part of connecting cylinder is provided with adjusting lever, and the two ends of adjusting lever are provided with adjustment plate, adjust between plate and connecting cylinder and are provided with adjusting nut.
Optimize, above-mentioned inside and outside support arm assembly welding frock, is connected with cushion block on its baffle plate.
Optimize, above-mentioned inside and outside support arm assembly welding frock, the two ends of its base plate are provided with lengthened plate, and lengthened plate and base plate are pegged graft fixing, are provided with some slots on lengthened plate, are provided with inserting column on slot.
The beneficial effects of the utility model are:
Compact conformation, simple to operation.Only base plate coordinates location-plate to realize; Can realize the general of interior support arm assembly welding frock and outer support arm assembly welding frock, save cost, also save artificial; Outer support arm and interior support arm assembly welding frock are unified, are convenient to the unified management of frock.
Accompanying drawing explanation
Fig. 1 is the side-looking structural representation of the utility model embodiment 1;
Fig. 2 is the plan structure schematic diagram of the utility model embodiment 1;
Fig. 3 is the overall structure schematic diagram of the utility model embodiment 1;
Plan structure schematic diagram when Fig. 4 is the outer support arm assembly welding frock work of the utility model embodiment 1;
Overall structure schematic diagram when Fig. 5 is the outer support arm assembly welding frock work of the utility model embodiment 1;
Side-looking structural representation when Fig. 6 is the interior support arm assembly welding frock work of the utility model embodiment 2;
Plan structure schematic diagram when Fig. 7 is the interior support arm assembly welding frock work of the utility model embodiment 2;
Overall structure schematic diagram when Fig. 8 is the interior support arm assembly welding frock work of the utility model embodiment 2;

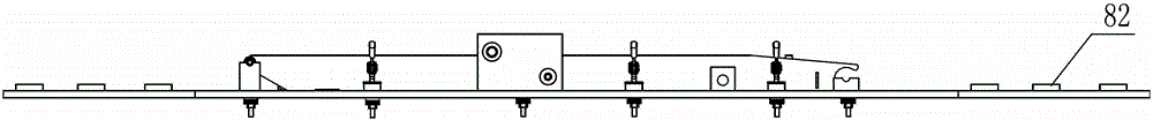

Fig. 9 is the side-looking structural representation of the utility model embodiment 3;
Figure 10 is the plan structure schematic diagram of the utility model embodiment 3;
Figure 11 is the overall structure schematic diagram of the utility model embodiment 3.
The specific embodiment
Below in conjunction with accompanying drawing and specific embodiment, further set forth technical characterstic of the present utility model.
Embodiment 1:
As shown in Figures 1 to 4, the utility model is a kind of inside and outside support arm assembly welding frock, comprises base plate 1, is provided with location clamp assembly on base plate 1, and its location clamp assembly comprises two opposed location-plates 2 that are arranged at base plate 1 middle part; The front end bottom of described location-plate 2 is provided with down the axle 21 that is located by connecting, and the upper rear end of location-plate 2 is provided with the hole 22 that is located by connecting; Under described, be located by connecting axle 21 through two location-plates 2; The two ends of described base plate 1 are respectively arranged with one group of axle head location-plate 3; On described base plate 1, be provided with position adjusting mechanism, the bottom of location-plate 2 and axle head location-plate 3 is connected with fastening assembly, and fastening assembly and position adjusting mechanism are connected, and are provided with dust cover 4 on position adjusting mechanism.
Between its two groups of axle head location-plates 4, the both sides of base plate 1 are respectively arranged with some baffle plates 5 and binding clasp 6, baffle plate 5 and binding clasp 6 are opposed; Between described two groups of axle head location-plates 3, the middle part of base plate 1 is provided with the suitable wide baffle plate 7 in some middle parts; Described baffle plate 5 and binding clasp 6 are by fastening assembly link position guiding mechanism.
Its position adjusting mechanism comprises some translot 11 and pods 12 that are arranged on base plate 1, and translot 11 is vertical with pod 12, between translot 11 and between pod 12, be arranged in parallel; The junction of described translot 11 and pod 12 is provided with annular adjustment tank 13.
Its fastening assembly comprises an anchorage bar 14, and on anchorage bar 14, cover has some pads 15, and the lower end of anchorage bar 14 is provided with adjusting nut 16, and adjusting nut 16 is threaded with anchorage bar 14.
The suitable wide baffle plate 7 in its middle part comprises a square connecting cylinder 71, and the middle part of connecting cylinder 71 is provided with adjusting lever 72, and the two ends of adjusting lever 72 are provided with adjusts plate 73, adjusts between plate 73 and connecting cylinder and is provided with adjusting nut.
Embodiment 2
As shown in Figure 6 to 8, the difference of the present embodiment and embodiment 1 is: on its baffle plate 5, be connected with cushion block 51.
Embodiment 3
As shown in Figures 9 to 11, the difference of the present embodiment and embodiment 1 is: the suitable wide baffle plate 5 in its middle part is the square tube of a regular length, the two ends of its base plate 1 are provided with lengthened plate 8, lengthened plate 8 is pegged graft fixing with base plate 1, on lengthened plate 8, be provided with some slots 81, on slot 81, be provided with inserting column 82.
In use, workpiece be take bottom surface as benchmark, each parts are placed on base plate 1, each baffle plate machine block of right side of take is again benchmark, place each part, on part with holes with axle the hole through location-plate in the hole on support arm and frock, the middle width with being applicable to this outer support arm welding of baffle plate 6 location of width, finally with binding clasp, clamp the support arm plate in left side, realize the outer support arm assembly welding function of this frock.
In using, on baffle plate, pad cushion block during support arm, just interior support arm can be clamped on base plate.
Being equipped with of fastening assembly and position adjusting mechanism, makes all parts on base plate need to adjust position according to processing, has improved the applicability of frock, has reduced the expense of purchasing frock.
The utility model compact conformation, simple to operation.Only base plate coordinates location-plate to realize; Can realize the general of interior support arm assembly welding frock and outer support arm assembly welding frock, save cost, also save artificial; Outer support arm and interior support arm assembly welding frock are unified, are convenient to the unified management of frock.
More than show and described basic principle of the present utility model and principal character and advantage thereof.The technology personage of the industry should understand; the utility model is not subject to the restriction of above-mentioned implementing regulations; what in above-mentioned implementing regulations and description, describe is for principle of the present utility model is described; do not departing under the prerequisite of the utility model principle and scope; the utility model also can have various changes and modifications, and these changes and improvements all belong within the scope of claimed the utility model.
The claimed scope of the utility model defines with appending claims and other equivalent.

Claims (7)

1. inside and outside, a support arm assembly welding frock, comprises base plate, is provided with location clamp assembly on base plate, it is characterized in that: described location clamp assembly comprises two opposed location-plates that are arranged at base plate middle part; The front end bottom of described location-plate is provided with down the axle that is located by connecting, and the upper rear end of location-plate is provided with the hole that is located by connecting; The axle that is located by connecting under described is through two location-plates; The two ends of described base plate are respectively arranged with one group of axle head location-plate; On described base plate, be provided with position adjusting mechanism, the bottom of location-plate and axle head location-plate is connected with fastening assembly, and fastening assembly and position adjusting mechanism are connected, and are provided with dust cover on position adjusting mechanism.
2. inside and outside support arm assembly welding frock according to claim 1, is characterized in that: between described two groups of axle head location-plates, the both sides of base plate are respectively arranged with some baffle plates and binding clasp, baffle plate and binding clasp are opposed; Between described two groups of axle head location-plates, the middle part of base plate is provided with the suitable wide baffle plate in some middle parts; Described baffle plate and binding clasp are by fastening assembly link position guiding mechanism.
3. inside and outside support arm assembly welding frock according to claim 2, is characterized in that: described position adjusting mechanism comprises some translot and pods that are arranged on base plate, and translot is vertical with pod, between translot and between pod, be arranged in parallel; The junction of described translot and pod is provided with annular adjustment tank.
4. inside and outside support arm assembly welding frock according to claim 3, is characterized in that: described fastening assembly comprises an anchorage bar, and on anchorage bar, cover has some pads, and the lower end of anchorage bar is provided with adjusting nut, and adjusting nut is threaded with anchorage bar.
5. inside and outside support arm assembly welding frock according to claim 4, it is characterized in that: the suitable wide baffle plate in described middle part comprises a square connecting cylinder, the middle part of connecting cylinder is provided with adjusting lever, and the two ends of adjusting lever are provided with adjustment plate, adjusts between plate and connecting cylinder and is provided with adjusting nut.
6. inside and outside support arm assembly welding frock according to claim 5, is characterized in that: on described baffle plate, be connected with cushion block.
7. according to the inside and outside support arm assembly welding frock described in claim 5 or 6, it is characterized in that: the two ends of described base plate are provided with lengthened plate, lengthened plate and base plate are pegged graft fixing, are provided with some slots on lengthened plate, are provided with inserting column on slot.
