The utility model discloses a sun hat, and belongs to the field of clothes. The sun hat comprises a main body, a main hat brim and a fixed cloth material. The main body is provided with the main hat brim which comprises an inner brim body and an outer brim body, the fixed cloth material is connected with the main hat brim, the fixed cloth material and the main hat brim form a cavity, and the hat brim is arranged in the cavity. The sun hat comprises the main body, the main hat brim and the fixed cloth material, and the fixed cloth material fixes the main hat brim on the main body. The main hat brim can not easily fall down, is convenient to use and manufacture.
Description
Technical field
The utility model relates to dress ornament field, in particular to a kind of sunbonnet.
Background technology
Cap has sunshade, decorate, heat and the effect such as protection, and kind is a lot.During the broiling summer, the topmost function of cap is sunshade, and the common cap the brim of a hat is less, and shaded effects are undesirable.Have now a kind of sunbonnet, comprise cap main part and the main the brim of a hat, the two can be separated, the main the brim of a hat is hard material, and mid portion is the cavity adapting with cap main part, during sunshade, the main the brim of a hat is placed in cap main part, can plays the effect of sunshade.But, thering is the cap of this structure, cap main part can be separated with the main the brim of a hat, easily causes the main the brim of a hat to come off, and it is very inconvenient to use.
Utility model content
The utility model provides a kind of sunbonnet, is intended to solve that the main the brim of a hat of existing cap easily comes off, awkward problem.
The utility model is achieved in that
A sunbonnet, comprising: main part, the main the brim of a hat, fixing cloth, and described main part is with the brim of a hat, the described main the brim of a hat comprises interior eaves and outer eaves, described fixedly cloth is connected with the described main the brim of a hat, and described fixedly cloth and the described main the brim of a hat form cavity, and the described the brim of a hat is positioned at described cavity.
Sunbonnet is with main part and the main the brim of a hat, and by fixing cloth, the main the brim of a hat is fixed in main body, adopts this technical scheme can effectively solve that the main the brim of a hat easily comes off, awkward problem.
Further, described fixedly cloth is connected for making with the connected mode of the described main the brim of a hat.Sewing tech is fairly simple, can save material simultaneously.
Further, described fixedly cloth is divided into front fixedly cloth and rear fixedly cloth.Fixedly separately convenient making of cloth, need not be fixed with the whole the brim of a hat meanwhile, saves cloth.
On described rear fixedly cloth, be provided with elastic cord, the part that edge of described rear fixedly cloth is connected with the described main the brim of a hat is for connecting edge, and all the other are disconnected edge, and described elastic cord is arranged at disconnected edge.Elastic cord weight is lighter, not only easily the tightness of control connection but also bring burden can not to the weight of whole cap.
Further, also comprise sun-proof cloth, described sun-proof cloth is positioned at the latter half of the described main the brim of a hat, and described sun-proof cloth is connected with the outer eaves of the described main the brim of a hat.Sun-proof cloth can be protected neck.
Further, described sun-proof cloth is connected for making with the connected mode of the outer eaves of the described main the brim of a hat.Sewing tech is fairly simple, can save material simultaneously.
Further, described sun-proof cloth is that slide fastener is connected with the connected mode of the outer eaves of the described main the brim of a hat.Use slide fastener to connect sun-proof cloth and the main the brim of a hat, easy disassembly.
Further, described sun-proof cloth is divided into left sun-proof cloth and right sun-proof cloth, and the sun-proof cloth in a described left side adopts button to be connected with the sun-proof cloth in the described right side.The left sun-proof cloth of button independent replacing easy to connect and right sun-proof cloth.
In sum, sunbonnet is divided into main body, the main the brim of a hat, fixing cloth, and fixedly cloth is fixed on the main the brim of a hat in main body, and the beneficial effects of the utility model are, main the brim of a hat difficult drop-off, easy to use is meanwhile, easy to make.
Accompanying drawing explanation

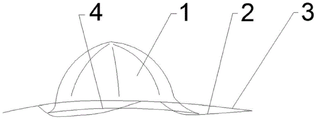

Fig. 1 shows the sunbonnet schematic diagram that the utility model the first embodiment provides;
Fig. 2 shows the main the brim of a hat after cloth that is connected and fixed that the utility model the first embodiment provides;
Fig. 3 shows the sunbonnet schematic diagram that the utility model the second embodiment provides;
Fig. 4 shows the main the brim of a hat after cloth that is connected and fixed that second, third embodiment of the utility model provides;
Fig. 5 shows the sunbonnet schematic diagram that the utility model the 3rd embodiment provides;
Fig. 6 shows the sunbonnet schematic diagram after sun-proof cloth that installs additional that the utility model the 3rd embodiment provides.
The specific embodiment
Below in conjunction with accompanying drawing, the utility model is described in detail.
Fig. 1, Fig. 2 show the sunbonnet that the utility model the first embodiment provides, comprise: main part 1, the main the brim of a hat 3 and fixedly cloth 2, main part 1 is with the brim of a hat 4, the main the brim of a hat 3 comprises interior eaves 7 and outer eaves 5, fixedly cloth 2 is made and is connected with the main the brim of a hat 3, coupling part is stationary cloth stockline 6, and fixedly cloth 2 forms cavity 8 with the main the brim of a hat 3, and the brim of a hat 4 is positioned at cavity 8.
Fig. 3, Fig. 4 show the sunbonnet that the utility model the second embodiment provides, comprise: main part 1, the main the brim of a hat 3, fixing cloth 2, main part 1 is with the brim of a hat 4, the main the brim of a hat 3 comprises interior eaves 7 and outer eaves 5, fixedly cloth 2 is made and is connected with the main the brim of a hat 3, coupling part is stationary cloth stockline 6, and fixedly cloth 2 forms cavity 8 with the main the brim of a hat 3, and the brim of a hat 4 is positioned at cavity 8.Fixedly cloth 2 is divided into front fixedly cloth and rear fixedly cloth, and the part that the edge of rear fixedly cloth is connected with the main the brim of a hat 3 is for connecting edge, and all the other are disconnected edge, and disconnected edge is provided with elastic cord 9.
Fig. 4, Fig. 5, Fig. 6 show the sunbonnet that the utility model the 3rd embodiment provides, comprise: main part 1, the main the brim of a hat 3, fixing cloth 2, main part 1 is with the brim of a hat 4, the main the brim of a hat 3 comprises interior eaves 7 and outer eaves 5, fixedly cloth 2 is made and is connected with the main the brim of a hat 3, coupling part is stationary cloth stockline 6, and fixedly cloth 2 forms cavity 8 with the main the brim of a hat 3, and the brim of a hat 4 is positioned at cavity 8.Fixedly cloth 2 is divided into front fixedly cloth and rear fixedly cloth, and the part that the edge of rear fixedly cloth is connected with the main the brim of a hat 3 is for connecting edge, and all the other are disconnected edge, and disconnected edge is provided with elastic cord 9.Also comprise sun-proof cloth 10, sun-proof cloth 10 is positioned at the latter half of the main the brim of a hat 3, and sun-proof cloth 10 is made and is connected with the outer eaves 5 of the main the brim of a hat 3.Sun-proof cloth 10 is divided into left sun-proof cloth and right sun-proof cloth, and left sun-proof cloth is used button 11 to be connected with right sun-proof cloth.
The foregoing is only preferred embodiment of the present utility model, be not limited to the utility model, for a person skilled in the art, the utility model can have various modifications and variations.All within spirit of the present utility model and principle, any modification of doing, be equal to replacement, improvement etc., within all should being included in protection domain of the present utility model.
Claims (7)
1. a sunbonnet, it is characterized in that, comprise: main part, the main the brim of a hat and fixedly cloth, described main part is with the brim of a hat, the described main the brim of a hat comprises interior eaves and outer eaves, described fixedly cloth is connected with the described main the brim of a hat, and described fixedly cloth and the described main the brim of a hat form cavity, and the described the brim of a hat is positioned at described cavity.
2. sunbonnet according to claim 1, is characterized in that, described fixedly cloth is connected for making with the connected mode of the described main the brim of a hat.
3. sunbonnet according to claim 2, is characterized in that, described fixedly cloth is divided into front fixedly cloth and rear fixedly cloth, on wherein said rear fixedly cloth, is also provided with elastic cord.
4. sunbonnet according to claim 1, is characterized in that, also comprises sun-proof cloth, and described sun-proof cloth is positioned at the latter half of the described main the brim of a hat, and described sun-proof cloth is connected with the outer eaves of the described main the brim of a hat.
5. sunbonnet according to claim 4, is characterized in that, described sun-proof cloth is connected for making with the connected mode of the outer eaves of the described main the brim of a hat.
6. sunbonnet according to claim 4, is characterized in that, described sun-proof cloth is that slide fastener is connected with the connected mode of the outer eaves of the described main the brim of a hat.
7. sunbonnet according to claim 4, is characterized in that, described sun-proof cloth is divided into left sun-proof cloth and right sun-proof cloth, and the sun-proof cloth in a described left side adopts button to be connected with the sun-proof cloth in the described right side.
