Abstract

The utility model discloses a novel convenient mobile microphone bracket, which comprises a microphone fixing clip, a handle decoration cover assembly, an eccentric pipe sleeve, a lifting lock assembly, a U-shaped ladder rail, a bracket rod assembly, and a base, and is characterized in that the The microphone fixing clip is fixed on the top of the bracket, and the handle decoration cover assembly is connected under the microphone fixing clip. The bracket rod constitutes the whole microphone bracket. There are three feet, all of which are equipped with universal wheels, and the lifting lock assembly is buckled with the U-shaped ladder rail and then inserted into the support rod. The shape of the base is not limited, and the lifting lock assembly is specifically a fish type fasteners. The utility model can adjust and fix the use height arbitrarily, can ensure that different users can adjust different heights, is convenient to use, has simple and elegant appearance, economical and reasonable price, and has certain application and promotion value.

Description

A new convenient mobile microphone stand

technical field

The utility model relates to the field of object brackets, in particular to a novel convenient mobile microphone bracket.

Background technique

In the prior art, the microphone bracket generally includes a machine base, a bracket tube and a telescopic tube. The general telescopic bracket is fixed in the rubber sleeve by the pressure spring bursting to determine the height, which is easy to cause instability, slippage, and misdirection due to repeated use. The other is that it is inconvenient to use by pressing the screw to fix the height. It may also be because the lifting handle of the general lifting microphone stand is installed above the telescopic tube, and it is easy to break and damage because it is zinc alloy. Accidentally falling to the ground will cause the entire microphone stand to be unusable, which will make the performance users feel embarrassed and unable to end.

Utility model content

The purpose of this utility model is to provide a new convenient mobile microphone stand to solve the above-mentioned shortcomings in the background technology.

In order to achieve the above purpose, the utility model adopts the following technical solutions to achieve: a new convenient mobile microphone bracket, including microphone fixing clips, handle decoration cover components, eccentric sleeves, lift lock components, U-shaped ladder rails, brackets Rod assembly and base, the microphone fixing clip is fixed on the top of the bracket, the handle decoration cover assembly is connected under the microphone fixing clip, the bracket rod constitutes the whole microphone bracket, an eccentric sleeve is installed at the middle splicing interface, and the base is installed at the bottom of the bracket rod , there are 3 feet under the base, and universal wheels are provided on the 3 feet. The lifting lock assembly is inserted into the bracket rod after buckling with the U-shaped ladder rail. The lifting lock assembly is a fish-shaped tight fasteners.

Further, the top decorative cover and the microphone clip form a 7-shape.

The utility model can adjust and fix the use height arbitrarily, can ensure that different users can adjust different heights, is convenient to use, has simple and elegant appearance, economical and reasonable price, and has certain application and promotion value.

Description of drawings

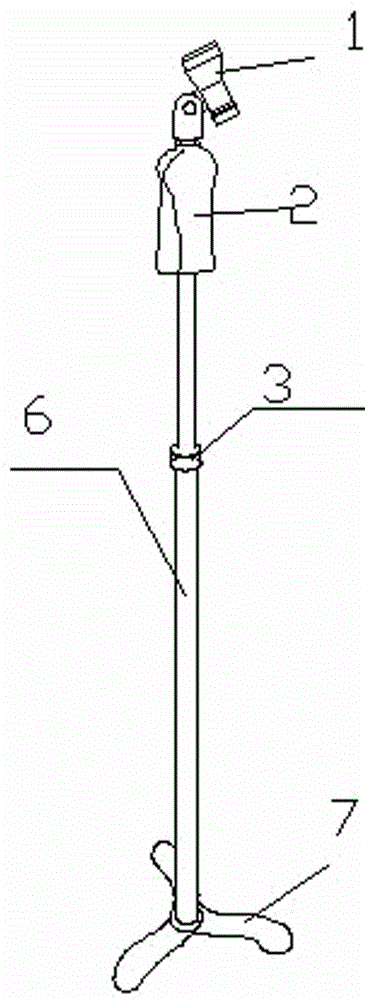

Fig. 1 is the utility model microphone support structural representation;

Fig. 2 is a cross-sectional view of the lifting connection of the microphone stand of the present invention.

Detailed ways

In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific illustrations.

As shown in Figures 1 and 2, a new type of convenient mobile microphone stand includes a microphone fixing clip 1, a handle decoration cover assembly 2, an eccentric sleeve 3, a lifting lock assembly 4, a U-shaped ladder rail 5, and a bracket Rod assembly 6, base 7, the microphone fixing clip 1 is fixed on the top of the bracket, the handle decoration cover assembly 2 is connected to the bottom of the microphone fixing clip 1, the bracket rod 6 constitutes the whole microphone bracket, and an eccentric sleeve 3 is installed at the middle joint , the base 7 is installed at the bottom of the bracket rod 6, and there are 3 feet below the base 7, and universal wheels are arranged on the 3 feet, and the lift lock assembly 4 is buckled with the U-shaped ladder rail 5 and then inserted into the bracket rod In 6, the lift lock is a fish-shaped fastener.

The above shows and describes the basic principles and main features of the present utility model and the advantages of the present utility model. Those skilled in the art should understand that the present utility model is not limited by the above-mentioned embodiments. What are described in the above-mentioned embodiments and description are only illustrations The principle of the utility model, under the premise of not departing from the spirit and scope of the utility model, the utility model also has various changes and improvements, and these changes and improvements all fall within the scope of the utility model claimed for protection. The desired protection is defined by the appended claims and their equivalents.

Claims (2)

1. the microphone holder that New-type instant moves, comprise microphone geometrical clamp, handle decorating cover assembly, eccentric pipe box, lock set rises and falls, U-shaped ladder type track, cradling piece assembly, base, it is characterized in that, described microphone geometrical clamp is fixed on cantilever tip, below microphone geometrical clamp, connect handle decorating cover assembly, it is whole that described cradling piece forms microphone holder, the middle interface of spelling is provided with eccentric pipe box, cradling piece bottom mounting seat, below base, be provided with 3 pin, on 3 pin, be equipped with universal wheel, after described rise and fall lock set and U-shaped ladder type track buckle, insert in cradling piece, the described lock set that rises and falls is a kind of fish type clasp.

2. the microphone holder that a kind of New-type instant according to claim 1 moves, is characterized in that, described top trim becomes 7 fonts with microphone clip.
