The utility model belongs to the field of cold stamping die machining, and particularly relates to an automatic stamping and feeding die. The automatic stamping and feeding die comprises a material plate and is characterized in that the automatic stamping and feeding die further comprises a feeding mechanism located on an end portion of the material plate, the feeding mechanism drives the material plate to move by a step each time, and a cutter which can move up and down is arranged on the upper portion of the material plate. The automatic stamping and feeding die allows automatic feeding to be achieved inside the die and allows a plurality of holes to be punched in different positions of a product, production efficiency is improved, and production cost is reduced.
Description
Technical field
The utility model belongs to cold-punching mold manufacture field, is specifically related to a kind of automatic press feeding mould.
Background technology
In normal condition counterdie, self-feeding will add automatic feed mechanism, and structure is comparatively complicated, and not for the application needs that need to rush at the diverse location of product a plurality of holes.Therefore be necessary to provide a kind of self-feeding and realize the automatic press feeding mould that rushes a plurality of holes at the diverse location of product in mould.
Utility model content
The purpose of this utility model is to overcome the problems referred to above, and a kind of self-feeding and realize the automatic press feeding mould that rushes a plurality of holes at the diverse location of product in mould is provided.
To achieve these goals, the technical scheme that the utility model adopts is: automatic press feeding mould, comprise material plate, it is characterized in that: also comprise the feed mechanism that is positioned at material plate end, feed mechanism drives the each mobile step pitch of material plate, and the top of material plate is provided with cutting knife moving up and down.
Aforesaid automatic press feeding mould, described cutting knife is connected with drift, and cutting knife vertically arranges.
Aforesaid automatic press feeding mould, the material plate of described cutting knife one-step punching one step pitch, forms a punching.
Aforesaid automatic stamping feeding mould, described material plate is provided with the location division that is independent of material plate, and the position of location division maintains static, and location division is used for locating cutting knife.
Aforesaid automatic stamping feeding mould, described feed mechanism drives material plate mobile 3 step pitches altogether.
Punch press of the present utility model is made a call to and can only be put product for three times one time, rushes the same hole of diverse location on product, and self-feeding in mould.Production technology is that pierce punch and cutter location are constant, and drift moves down to cutting knife impulse force, and what cutting knife was die-cut is a step pitch, location division is for the location of cutting knife, obtain first punching, after blank, on cutting knife, move for the first time, by feed mechanism, push step pitch of material plate, and then die-cut, at material plate diverse location, obtain the second hole, continuous three same operation, obtain 3 punchings, improve production efficiency, reduced production cost.
Accompanying drawing explanation

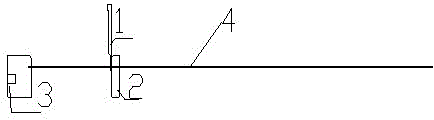

Fig. 1 is structure chart of the present utility model;
Wherein, 1 cutting knife, 2 location divisions, 3 feed mechanisms, 4 material plates.
The specific embodiment
Below in conjunction with the drawings and specific embodiments, the utility model is described in further detail.
According to Fig. 1, automatic press feeding mould, comprises material plate 4, it is characterized in that: also comprise the feed mechanism 3 that is positioned at material plate 4 ends, feed mechanism 3 drives the each mobile step pitch of material plate 4, and the top of material plate 4 is provided with cutting knife 1 moving up and down.Cutting knife 1 is connected with drift, and cutting knife 1 vertically arranges.The material plate 4 of cutting knife 1 one-step punching one step pitch, forms a punching.Material plate 4 is provided with the location division 2 that is independent of material plate 4, and the position of location division 2 maintains static, and location division 2 is for locating cutting knife 1.Feed mechanism 3 drives material plate 4 mobile 3 step pitches altogether.
Punch press of the present utility model is made a call to and can only be put product for three times one time, rushes the same hole of diverse location on product, and self-feeding in mould.Production technology is pierce punch and cutting knife 1 invariant position, drift moves down to cutting knife 1 impulse force, what cutting knife 1 was die-cut is a step pitch, and location division 2, for the location of cutting knife 1, obtains first punching, after blank, on cutting knife 1, move for the first time, by feed mechanism 3, push 4 one step pitches of material plate, and then die-cut, at material plate 4 diverse locations, obtain the second hole, continuous three same operation, obtain 3 punchings.
Above-described embodiment does not limit the utility model in any form, and all employings are equal to replaces or technical scheme that the mode of equivalent transformation obtains, all drops on protection domain of the present utility model.
