CN203415838U - Switch module and modularized box type transformer station using the switch module - Google Patents
Switch module and modularized box type transformer station using the switch module Download PDFInfo
- Publication number
- CN203415838U CN203415838U CN201320367280.0U CN201320367280U CN203415838U CN 203415838 U CN203415838 U CN 203415838U CN 201320367280 U CN201320367280 U CN 201320367280U CN 203415838 U CN203415838 U CN 203415838U
- Authority
- CN
- China
- Prior art keywords
- unit
- casing
- switch module
- box
- module
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Patch Boards (AREA)
Abstract
本实用新型公开了一种开关模块及使用该开关模块的模块化箱式变电站，开关模块中母线室单元、电缆室单元、断路器室单元、二次室单元两两之间通过螺栓过孔及其内穿设的螺栓可拆固连而形成装配在箱体内的电器模块，而电器模块的侧面通过螺栓连接可拆固连在箱体的箱壁上，从而省去了现有技术中箱体内用于固定电器元件位置的间隔框架，而将电器模块直接固定在箱体的箱壁上，在组装该箱式变电站时，箱体自身的制造和电器模块的组装可同时进行，再将组装好的箱体和电器模块组装在一起，从而将箱体自身和电器模块的组装时间叠加在一起而缩短了整个箱式变电站的组装时间，缩短了箱式变电站的组装周期，提高了组装效率。
The utility model discloses a switch module and a modular box-type substation using the switch module. In the switch module, a busbar room unit, a cable room unit, a circuit breaker room unit, and a secondary room unit are connected by bolt holes and The bolts pierced in it can be detachably connected to form an electrical module assembled in the box body, and the side of the electrical module can be detachably connected to the box wall of the box body through bolt connection, thus eliminating the need for the box body in the prior art. The spacer frame used to fix the position of electrical components, and the electrical module is directly fixed on the box wall of the box body. When assembling the box-type substation, the manufacture of the box itself and the assembly of the electrical module can be carried out at the same time, and then the assembled The box and the electrical module are assembled together, so that the assembly time of the box itself and the electrical module is superimposed to shorten the assembly time of the entire box-type substation, shorten the assembly cycle of the box-type substation, and improve assembly efficiency.
Description
Technical field
The utility model relates to a kind of switch module and uses the modularization box-type substation of this switch module.
Background technology
At present, terminal station in 110kV and following electric pressure, during switchyard or switching station are built, box-type substation is few with its floor space, save equipment investment, duration of building a station is short, cost performance advantages of higher is widely applied, and the domestic box-type substation generally using comprises casing, the bus-bar room unit assembling on the spacing frame being welded in casing and spacing frame, unit, cable vault, breaker chamber unit, secondary chamber unit, when this box-type substation of assembling, need first according to the volume of required electric elements, spacing frame is welded in casing, again each electric elements are packed into and in casing, be spaced apart in the electric apparatus room that framework is split to form, thereby the assembling that makes whole box-type substation must be in completing casing just can be carried out the assembling of electric elements after being welded of spacing frame, thereby extended the packaging efficiency of whole box-type substation, extended the production cycle.And can be fixed because of the position after being welded of the spacing frame in casing, so a certain electric elements break down when needing maintenance or changing in casing, the operation that spacing frame complete removal in casing just can need to be correlated with, makes troubles thereby produce Maintenance and Repair to striving of box-type substation.Because the layout of spacing frame in casing is that while using according to reality, required electric elements position and volume determined, so whole box-type substation does not have the sizing package assembly of standard, cannot carry out standardization assembling for box-type substation in enormous quantities in addition.
Utility model content
The purpose of this utility model is to provide the switch module that a kind of packaging efficiency is high, and the modularization box-type substation that uses this switch module is also provided simultaneously.
In order to realize above object, the technical scheme of switch module of the present utility model is as follows:
A kind of transformer station switch module, the bus-bar room unit that comprises casing and interior assembling thereof, unit, cable vault, breaker chamber unit, secondary chamber unit, the top of described bus-bar room unit in unit, cable vault, the rear of unit, cable vault in breaker chamber unit, the downside of breaker chamber unit in secondary chamber unit, and bus-bar room unit, unit, cable vault, breaker chamber unit, secondary chamber unit between any two by bolt through-hole and in removable being connected of bolt that wear form the electrical appliance module being assemblied in casing, the side of described electrical appliance module is bolted on the removable tank wall that is connected in casing.
In described casing, be provided with for assembling electric apparatus chamber and the operating corridor in electric apparatus chamber one side of described electrical appliance module.
Described tank wall comprises gusset, the base of top cover, surrounding, and the bottom of described side and base be removable to be connected, top and top cover is removable is connected.
Distance between described top cover and base equates with the height of electrical appliance module.
The top of described casing is provided with the roofing of slope type, and described roofing has the eaves that expose from the side face of casing.
The technical scheme of modularization box-type substation of the present utility model is as follows:
A kind of modularization box-type substation, comprise transformer station's switch module, described transformer station switch module, the bus-bar room unit with casing and interior assembling thereof, unit, cable vault, breaker chamber unit, secondary chamber unit, the top of described bus-bar room unit in unit, cable vault, the rear of unit, cable vault in breaker chamber unit, the downside of breaker chamber unit in secondary chamber unit, and bus-bar room unit, unit, cable vault, breaker chamber unit, secondary chamber unit between any two by bolt through-hole and in removable being connected of bolt that wear form the electrical appliance module being assemblied in casing, the side of described electrical appliance module is bolted on the removable tank wall that is connected in casing.
In described casing, be provided with for assembling electric apparatus chamber and the operating corridor in electric apparatus chamber one side of described electrical appliance module.
Described tank wall comprises gusset, the base of top cover, surrounding, and the bottom of described side and base be removable to be connected, top and top cover is removable is connected.
Distance between described top cover and base equates with the height of electrical appliance module.
Described switch module has at least two, and each switch module is arranged along left and right directions, and adjacent two electrical appliance modules are bolted removable being connected.
The utility model median generatrix chamber unit, unit, cable vault, breaker chamber unit, secondary chamber unit between any two by bolt through-hole and in removable being connected of bolt that wear form the electrical appliance module being assemblied in casing, and the side of electrical appliance module is bolted on the removable tank wall that is connected in casing, thereby saved in prior art in casing for the fixing spacing frame of electric elements position, and electrical appliance module is directly fixed on the tank wall of casing, when this box-type substation of assembling, the manufacture of casing self and the assembling of electrical appliance module can be carried out simultaneously, again the casing assembling and electrical appliance module are fitted together, thereby the built-up time of casing self and electrical appliance module is superimposed and has shortened the built-up time of whole box-type substation, shortened the assembling cycle of box-type substation, improved packaging efficiency.
Further, in casing, be provided with the operating corridor in electrical appliance module one side, so that staff can carry out the operation to electric elements in this operating corridor, thereby increased the space that in casing, electric elements operate, be convenient to staff electric elements are carried out to Maintenance and Repair.
Accompanying drawing explanation

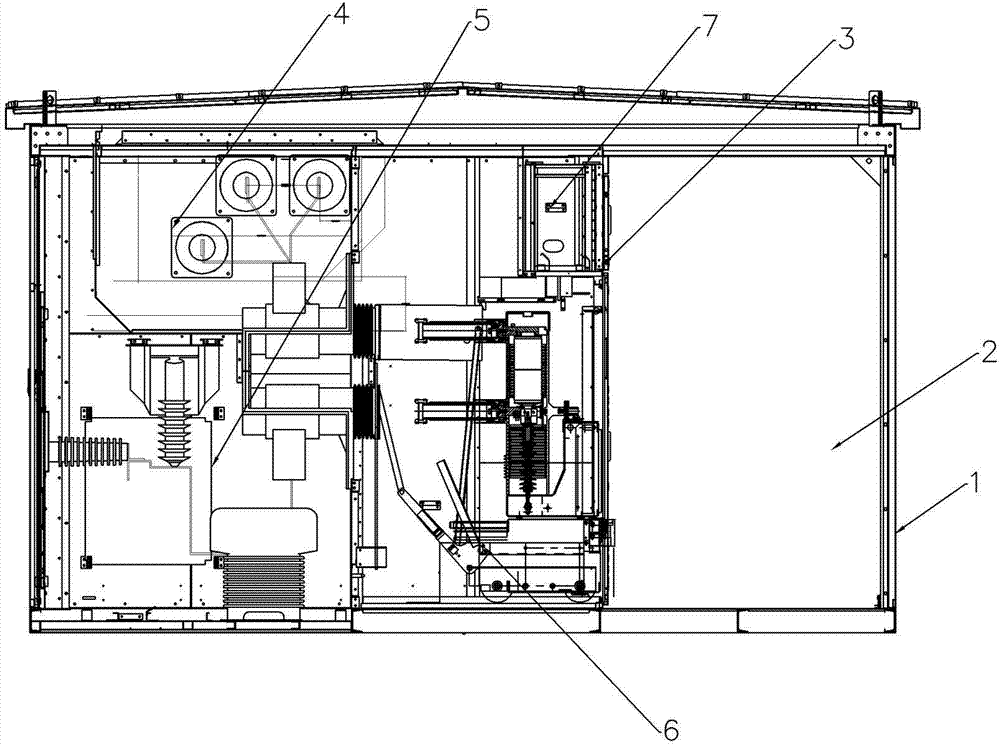

Fig. 1 is the structural representation of modularization box-type substation embodiment in the utility model;
Fig. 2 is the left view of Fig. 1;
Fig. 3 is the vertical view of Fig. 1.
Embodiment
The embodiment of modularization box-type substation of the present utility model: as shown in Figure 1 to Figure 3, this modularization box-type substation is formed by connecting by four switch module bolts, switch module comprises casing 1 and electrical appliance module 3, wherein electrical appliance module comprises bus-bar room unit 4, unit, cable vault 5, breaker chamber unit 6, secondary chamber unit 7, the top of Unit 5 in cable vault, bus-bar room unit 4, the rear of unit, cable vault 5 in breaker chamber unit 6, the downside of breaker chamber unit 6 in secondary chamber unit 7, between each chamber unit, be bolted and form electrical appliance module 3, electrical appliance module 3 is bolted on the removable tank wall being connected in casing 1 and forms transformer station's module.Electrical appliance module 3, in the reserved electric apparatus room of casing 1 rear side, and is provided with the operating corridor 2 in electric apparatus room right side in the front side of casing 1.
Casing 3 is assembled by base, gusset and top cover, and base adopts welding manner with proof strength, and top cover is the two slopes type roofing board being welded by roof boarding, and expose in the eaves of top cover part outside from the side; The body of wall gusset of four switch modules is with bolts and be fixed into the gusset of whole box-type substation, during production, in batches casing is decomposed to processing, after completing separately, carry out overall package, when shortening process time, also realized the streamlined of product and produced.
Electrical appliance module comprises the elements such as inlet wire cable, instrument transformer, earthed switch are installed as the unit, submodule ，Qi cable vault 5 of switch module; Bus-bar room unit 4 comprises the elements such as main bus bar and online detection module are installed; Breaker chamber unit 6 comprises the elements such as circuit breaker cart, PT handcart, transformer handcart are installed; Secondary chamber unit 7 comprises the elements such as protection device for installing, kilowatt-hour meter, monitoring device, binding post, secondary cable.The trailing flank of electrical appliance module 3 is close to the rear side gusset inner side of casing, the top of electrical appliance module 3 is close in the top cover of box unit, and be provided with pressure release passage on the top cover of casing, independent shell is not established at electrical appliance module 3 rear portions and top, rear portion and top are protected by the tank wall of casing, electrical appliance module 3 connects and composes a switch module with box unit, and a plurality of different switch modules mutually removable being connected form a complete box-type substation.
Switch module in the utility model, basic modular unit as a box-type substation, be applicable to modularization box-type substation, switchyard or the switching station construction of 110kV and following electric pressure, due to its electrical appliance module and casing one integrated mass, reduced to greatest extent floor space and cost; While using, take individual module as standard module unit, and a plurality of modules by bolt combination, form a complete box-type substation, switchyard, switching station mutually simultaneously; Because each interval function has interchangeability, by the composite assembly to various criterion module, can complete engineering application, engineering specification solution can be provided.
In the above-described embodiments, the top cover of casing is double-slope roof top cover, and in other embodiments, the top cover of casing can be also flat roof deck top cover.
In the above-described embodiments, the top cover of casing is close to the top of electrical appliance module, and the distance between top cover and base equates with the height of electrical appliance module, in other embodiments, at the top of casing, also can reserve corresponding space.
In the above-described embodiments, whole box-type substation is assembled by four removable being connected of switch module, and in other embodiments, the switch module quantity that whole box-type substation comprises also can be greater or less than four.
The technical scheme of switch module of the present utility model is as follows: in the present embodiment, the structure of switch module is identical with the structure of switch module in above-described embodiment, therefore repeats no more.
Claims (10)
1.Yi Zhong transformer station switch module, the bus-bar room unit that comprises casing and interior assembling thereof, unit, cable vault, breaker chamber unit, secondary chamber unit, it is characterized in that, the top of described bus-bar room unit in unit, cable vault, the rear of unit, cable vault in breaker chamber unit, the downside of breaker chamber unit in secondary chamber unit, and bus-bar room unit, unit, cable vault, breaker chamber unit, secondary chamber unit between any two by bolt through-hole and in removable being connected of bolt that wear form the electrical appliance module being assemblied in casing, the side of described electrical appliance module is bolted on the removable tank wall that is connected in casing.
2. transformer station according to claim 1 switch module, is characterized in that, is provided with for assembling electric apparatus chamber and the operating corridor in electric apparatus chamber one side of described electrical appliance module in described casing.
3. transformer station according to claim 1 switch module, is characterized in that, described tank wall comprises gusset, the base of top cover, surrounding, and the bottom of described side and base be removable to be connected, top and top cover is removable is connected.
4. transformer station according to claim 3 switch module, is characterized in that, the distance between described top cover and base equates with the height of electrical appliance module.
5. according to the transformer station's switch module described in any one in claim 1 to 4, it is characterized in that, the top of described casing is provided with the roofing of slope type, and described roofing has the eaves that expose from the side face of casing.
6. a modularization box-type substation, comprise transformer station's switch module, described transformer station switch module, the bus-bar room unit with casing and interior assembling thereof, unit, cable vault, breaker chamber unit, secondary chamber unit, it is characterized in that, the top of described bus-bar room unit in unit, cable vault, the rear of unit, cable vault in breaker chamber unit, the downside of breaker chamber unit in secondary chamber unit, and bus-bar room unit, unit, cable vault, breaker chamber unit, secondary chamber unit between any two by bolt through-hole and in removable being connected of bolt that wear form the electrical appliance module being assemblied in casing, the side of described electrical appliance module is bolted on the removable tank wall that is connected in casing.
7. modularization box-type substation according to claim 6, is characterized in that, is provided with for assembling electric apparatus chamber and the operating corridor in electric apparatus chamber one side of described electrical appliance module in described casing.
8. modularization box-type substation according to claim 6, is characterized in that, described tank wall comprises gusset, the base of top cover, surrounding, and the bottom of described side and base be removable to be connected, top and top cover is removable is connected.
9. modularization box-type substation according to claim 8, is characterized in that, the distance between described top cover and base equates with the height of electrical appliance module.
10. according to the modularization box-type substation described in any one in claim 6 to 9, it is characterized in that, described switch module has at least two, and each switch module is arranged along left and right directions, and adjacent two electrical appliance modules are bolted removable being connected.
