Abstract
本实用新型快速蒸汽消毒盒涉及蒸汽锅，尤其是电热蒸汽锅，特别是用于消毒的电热蒸汽锅。包括底座，该底座内有加热器和盛液盘，加热器位于盛液盘之下；在底座内还有接水盘，在所述接水盘上部固定有托盘，所述托盘有一个以上的滴水孔接入接水盘；所述托盘之上有盖体；所述加热器通过控制器与控制开关电连接并与电源连接。本快速蒸汽消毒盒采用上述技术方案，结构简单。盛液盘被加热后产生的蒸汽直接作用于托盘上的碗筷，消杀快速。采用电加热器，开关控制，使用方便。高温蒸汽消毒，定时控制，保证了消杀效果。
The utility model relates to a quick steam sterilizing box, particularly an electric steam sterilizing box, and particularly an electric steam sterilizing box used for sterilizing. The utility model comprises a base, wherein a heater and a liquid receiving tray are arranged in the base, and the heater is located under the liquid receiving tray; a water receiving tray is also arranged in the base, and a tray is fixed on the upper part of the water receiving tray, and the tray has more than one dripping hole connected to the water receiving tray; a cover is arranged on the tray; the heater is electrically connected to a control switch through a controller and is connected to a power supply. The quick steam sterilizing box adopts the above technical scheme and has a simple structure. The steam generated after the liquid receiving tray is heated directly acts on the dishes and chopsticks on the tray, and sterilization is rapid. An electric heater is adopted, and switch control is provided, which is convenient to use. High-temperature steam sterilization and timing control ensure sterilization effects.
Description
Technical field
This utility model Quick steam disinfection box relates to steam kettle, and electric heating steam cooker especially, especially for the electric heating steam cooker of sterilization.
Background technology
The bowls and chopsticks of high-grade restaurant be all generally by special cleaning and sterilizing company through cleaning, after sterilization, then with transporting to restaurant for a person sponging on an aristocrat after plastic film encapsulation.Because the work service quality of each dissipation company is different, or the problem of the secondary pollution that causes of process of encapsulation, often can cause bowls and chopsticks not wash clean clearly, the inadequate problem of sterilizing, causes a person sponging on an aristocrat's very large suggestion.Add the general guard psychology of people and mistrustful psychology and exist, therefore, can often see that a lot of persons sponging on an aristocrat can use the situation of tea cleaning dishes and chopsticks again.And in fact with tea, clean the effect also do not have disinfection, and just how much deflate the misgivings of people to bowls and chopsticks health.
Summary of the invention
This utility model Quick steam disinfection box provides an a kind of person sponging on an aristocrat visible, tangible quick sterilizer, and simple in structure, dissipation is quick, easy to use, remarkably productive.
The technical solution of the utility model is: Quick steam disinfection box, comprise base, and having heaters and drip pan in this base, heater is positioned under drip pan; In base, also have drip tray, on described drip tray top, be fixed with pallet, described pallet has more than one weeper access drip tray; On described pallet, there is lid; Described heater is electrically connected to and is connected with power supply with gauge tap by controller.
Above-mentioned Quick steam disinfection box, fluted on described pallet.
Above-mentioned Quick steam disinfection box, fan is hinged forms by left cover body and right cover body two for described lid.
This Quick steam disinfection box adopts technique scheme, simple in structure.The steam that drip pan is heated rear generation directly acts on the bowls and chopsticks on pallet, and dissipation is quick.Adopt electric heater, on-off control, easy to use.High-temperature steam sterilization, timing controlled, has guaranteed dissipation effect.
Accompanying drawing explanation

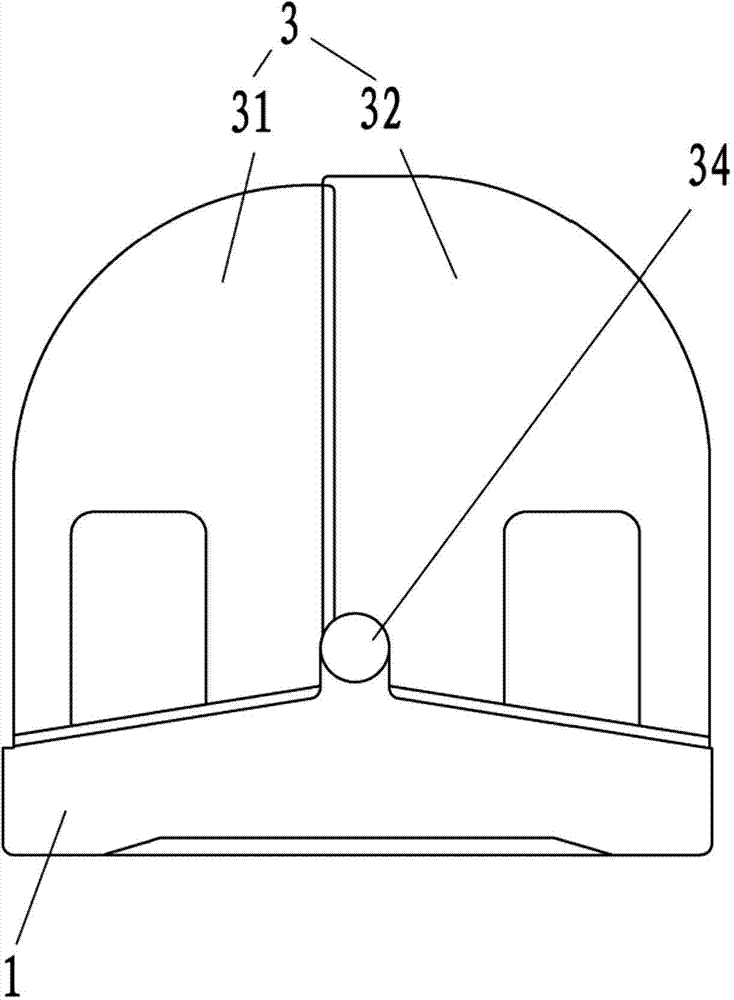

Fig. 1 is the schematic appearance of this utility model Quick steam disinfection box.
Fig. 2 is left view shown in Fig. 1.
Fig. 3 is A-A cutaway view shown in Fig. 1.
The specific embodiment
Below in conjunction with accompanying drawing, the utility model is described in further detail:
As shown in Figure 1, Figure 2, Figure 3 shows, this utility model Quick steam disinfection box, comprises base 1, the interior having heaters of this base 1 and drip pan (not shown), and heater is positioned under drip pan; In base 1, also have drip tray (not shown), on described drip tray top, be fixed with pallet 2, described pallet 2 has more than one numerous weeper 21, can holding cup 5 on described pallet 2, the tableware such as chopsticks 6; On described pallet 2, there is lid 3; Described heater is electrically connected to and is connected with power supply with gauge tap by controller.So, when drip pan is produced steam after heater heating, described steam fills the air rapidly in whole box, and this steam directly acts on cup 5 on pallet 2 and chopsticks 6 etc., and dissipation is quick, uses simply.The condensed water that after dissipation cooling, cup 5 and chopsticks 6 produce flows into drip tray by numerous weeper 21.The tableware fluted 22 on described pallet 2, holding chopsticks 6 grades are easily rolled better.Described lid 3 is crossed jointed shaft 34 by left cover body 31 and 32 liang of fan passes of right cover body and is formed.So, while fetching tableware, only need turn to lift one of left cover body 31 or right cover body 32, facilitate end user.
This Quick steam disinfection box, simple in structure.The steam that drip pan is heated rear generation directly acts on the bowls and chopsticks on support, and dissipation is quick.Adopt electric heater, on-off control, easy to use.High-temperature steam sterilization, timing controlled, has guaranteed dissipation effect.
