Abstract

The utility model discloses a wood, cardboard groover, which comprises a worktable, be equipped with the cylinder axle of fixed drum in the board, the one end of cylinder axle is equipped with first gear, the drum is equipped with third guiding axle and fourth guiding axle at the back, the board both sides are equipped with the carriage axle fixed block that is used for fixed regulation carriage axle, the epaxial knife rest radial fixing base that is equipped with a plurality of stationary knife rest radial arm that is equipped with of carriage, the one end of knife rest radial arm is equipped with the cutting knife rest of removable cutting knife, the pan feeding mouth both sides of board are equipped with longitudinal fixity board respectively, two longitudinal fixity board are connected through a diaphragm, both ends are equipped with the transmission shaft respectively around the diaphragm, the diaphragm left and right sides is equipped with the guide device respectively, the upper end middle part of two longitudinal fixity board is equipped with a fixed block respectively, two fixed blocks. The utility model discloses the structure is pleasing to the eye compact, and it is fast to form advance.

Description

A wood and cardboard slotting machine

technical field

The utility model relates to wood and cardboard processing machinery, in particular to a wood and cardboard slotting machine.

Background technique

At present, the cardboard used in the carton can only be used after being slotted, but the feeding device of the existing slotting machine is completed by manual operation. The operator puts the cardboards one by one into the feeding port of the slotting machine. Then push it to the conveyor belt by hand. This production operation method has very low production efficiency, and the operator is easily injured. During the process of putting in the cardboard, it is easy to place the cardboard crookedly, and finally the slot opened by the cardboard is unbalanced.

There is a utility model patent for an automatic feeding mechanism (patent number 201220501203.5) for wood and cardboard slotting machines, which solves the disadvantages of traditional manual feeding. But there are the following disadvantages: 1. The conveyor belt used for transportation adopts a whole large belt, which has a large swing force during the transmission process, which easily causes the cardboard to be skewed, and is squeezed by the cardboard at the same time, resulting in increased friction and affecting the transmission speed; 2. 3. The adjusting screw used for adjusting the belt is arranged at the front end of the feeding device, which brings inconvenience to the operator; 3. The shrapnel used for adjusting the cardboard is easy to loosen, and the effect of adjusting the cardboard is not good.

Utility model content

The purpose of this utility model is to provide a wood and cardboard slotting machine aiming at the above-mentioned defects of the prior art.

In order to solve the above-mentioned defects of the prior art, the technical solution to be solved by the utility model is: a kind of slotting machine for wood and cardboard, including a machine table, a cylinder shaft for fixing the cylinder, and one end of the cylinder shaft are arranged in the machine table. A first gear is provided, and the first gear is connected with the rotating shaft gear on the driving motor through a chain, and a first guide shaft, a second guide shaft and a fifth guide shaft are arranged in front of the cylinder, and one end of the second guide shaft is provided with There is a first sprocket, the other end of the second guide shaft is provided with a second sprocket, and a sixth guide shaft is provided below the second guide shaft, and the sixth guide shaft corresponds to the second sprocket One end of the first guide shaft is provided with a third sprocket, the second sprocket and the third sprocket are connected by a chain, one end of the first guide shaft is provided with a fourth sprocket and a second gear, and the fifth guide shaft One end of the shaft is provided with a third gear, the first sprocket and the fourth sprocket are connected by a chain, the second gear meshes with the third gear, and a third guide shaft and a third guide shaft are arranged behind the cylinder. The fourth guide shaft, the cylinder is sequentially connected with the second guide shaft, the third guide shaft and the fourth guide shaft through a plurality of conveyor belts. There are tool holder shaft fixing blocks for fixing and adjusting the tool holder shaft on both sides of the machine table. There are several knife holder arm fixing seats for fixing the knife holder arm on the knife holder shaft. One end of the knife holder swing arm is provided with a cutter holder with a replaceable cutting knife. The two sides of the feed port of the machine are respectively A longitudinal fixing plate is provided, and the two longitudinal fixing plates are connected by a horizontal plate. The front and rear ends of the horizontal plate are respectively provided with transmission shafts, and the left and right sides of the horizontal plate are respectively provided with guiding devices. The middle part of the upper end of the fixed plate is respectively provided with a fixed block, and the two fixed blocks are connected by a fixed rod, and a plurality of groups of paper pressing devices are arranged at intervals on the fixed rod, and spacers are respectively arranged on both sides of each group of paper pressing devices. One end of the partition is connected to the first adjusting rod through a bushing, the other end of the bushing is connected to the screw, one end of the screw is provided with a handle, and the middle parts of the lower ends of the two longitudinal fixing plates are respectively provided with There is an adjustment plate, the middle part of the adjustment plate is provided with a first through hole, a slide plate is arranged in the first through hole, the two slide plates are connected by a second adjustment rod, and multiple Two belt transmission shafts, the two transmission shafts and the belt transmission shaft are connected by a belt, and the lower end of the slide plate is provided with a first adjusting screw.

As an improvement of the wood and cardboard slotting machine of the utility model, two groups of paper pressing devices are arranged at intervals on the fixed rod, each group of paper pressing devices includes three paper pressing devices, and the paper pressing devices include the first A vertical plate, the lower end of the first vertical plate is provided with a bottom plate, the bottom plate is provided with a second vertical plate, the first vertical plate and the second vertical plate are connected by an intermediate plate, and the intermediate plate The middle part is provided with a second through hole, the upper end of the middle plate is provided with a second adjustment screw, the first vertical plate and the second vertical plate are respectively provided with two adjustment holes, and the bottom plate is provided with intervals There are a plurality of ball installation holes for installing balls, and one end of the bottom plate of one of the paper pressing devices is also provided with a guide wheel.

As an improvement of the wood and cardboard slotting machine of the present invention, the guiding device includes a fixed plate, and the fixed plate is provided with a plurality of third through holes for inserting connecting rods at intervals, and every two connecting rods are fixed An adjustment block, a spring is threaded on the connecting rod.

As an improvement of the wood and cardboard slotting machine of the utility model, a slope is provided at the lower end of one side of the first vertical board.

As an improvement of the wood and cardboard slotting machine of the utility model, a transverse guide rod is provided at the ends of the two longitudinal fixed plates, and a plurality of sliding blocks are interspersed on the transverse guide rods, and a plurality of sliding blocks are arranged on the sliding blocks. There is a plunger.

As an improvement of the wood and cardboard slotting machine of the utility model, two paper support shafts are provided at the paper input end of the partition.

Compared with the prior art, the utility model has the advantages that: the utility model uses a plurality of single belts to convey the cardboard, which greatly reduces the friction of the belts in the conveying process, and the adjusting device for adjusting the belts is arranged under the feeding device , reduce the floor area of the whole machine, make the overall structure of the whole machine compact and beautiful. The positive device corrects the skewing of wood and cardboard, avoiding the disadvantages of the existing guiding device. The two groups of paper pressing devices of the utility model can feed paper at the same time from left to right.

Description of drawings

Fig. 1 is a front view of the utility model.

Fig. 2 is a top view of the utility model.

Fig. 3 is a rear view of the utility model.

Fig. 4 is a side view of the utility model.

Fig. 5 is a structural diagram of the paper pressing device of the present invention.

Fig. 6 is a structural diagram of the guiding device of the present invention.

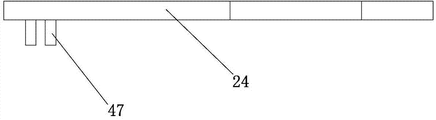

Fig. 7 is a schematic diagram of the top view structure of the separator.

Detailed ways

Below just will further describe the utility model according to accompanying drawing.

As shown in Fig. 1, Fig. 2, Fig. 3, Fig. 4 and Fig. 5, a wood and cardboard slotting machine includes a machine platform 1, a cylinder shaft 3 and a cylinder shaft for fixing the cylinder 2 are arranged in the machine platform. One end of 3 is provided with a first gear 4, and the first gear 4 is connected with the rotating shaft gear 5 on the driving motor through a chain, and a first guide shaft 6, a second guide shaft 7 and a fifth guide shaft are arranged in front of the cylinder 2. shaft 40, one end of the second guide shaft 7 is provided with a first sprocket 8, the other end of the second guide shaft 7 is provided with a second sprocket 44, and the second guide shaft 7 is provided with a sixth guide shaft 45, the end of the sixth guide shaft 45 corresponding to the second sprocket 44 is provided with a third sprocket 46, the second sprocket 44 and the third sprocket 46 are connected by a chain, the first One end of a guide shaft 6 is provided with a fourth sprocket 41 and a second gear 42, one end of the fifth guide shaft 40 is provided with a third gear 43, the first sprocket 8 and the fourth sprocket 41 Connected by a chain, the second gear 42 meshes with the third gear 43, and the third guide shaft 9 and the fourth guide shaft 10 are arranged behind the cylinder 2, and the cylinder 2 is connected to the second gear in turn through a plurality of conveyor belts 11. The guide shaft 7, the third guide shaft 9 and the fourth guide shaft 10 are connected, and a tool holder shaft fixing block 13 for fixing and adjusting the tool holder shaft 12 is provided on both sides of the machine table 1, and several The knife rest arm fixing base 15 of the fixed knife rest arm 14, one end of the knife rest arm 14 is provided with a cutter knife holder 17 with a replaceable cutting knife 16, and the both sides of the feeding port of the machine table 1 are respectively provided with longitudinal fixing plate 18, two longitudinal fixed plates 18 are connected by a horizontal plate 19, the front and rear ends of the horizontal plate 19 are respectively provided with transmission shafts 20, the left and right sides of the horizontal plate 19 are respectively provided with guiding devices 21, the upper ends of the two longitudinal fixed plates 18 The middle part is provided with a fixed block 22 respectively, and the two fixed blocks 22 are connected by a fixed rod 23. The fixed rod 23 is provided with multiple sets of paper pressing device groups at intervals, and the two sides of each group of paper pressing device groups are respectively provided with partitions 24. One end of the plate 24 is connected with the first adjusting rod 25 through a bushing, the other end of the bushing is connected with the screw rod 26, and one end of the screw rod 26 is provided with a handle 27, and the middle part of the lower end of the two longitudinal fixed plates 18 is respectively provided with an adjusting plate 28, The middle part of the adjustment plate 28 is provided with a first through hole 29, and a slide plate 30 is arranged in the first through hole 29, and the two slide plates 30 are connected by a second adjustment rod 31, and a plurality of belt drive shafts 33 are arranged at intervals on the second adjustment rod 31 , the two drive shafts 20 and the belt drive shaft 33 are connected by a belt 34, and the lower end of the slide plate 30 is provided with a first adjusting screw 35. The first adjusting screw 35 is used to adjust the tightness of the belt 34 .

Wherein, two sets of paper pressing device groups are arranged at intervals on the fixed rod 23, and each group of paper pressing device groups includes three paper pressing devices 36, and the paper pressing device 36 includes a first vertical plate 361, and a lower end of the first vertical plate 361 is provided with a Base plate 362, the base plate 362 is provided with the second vertical plate 363, the first vertical plate 361 and the second vertical plate 363 are connected by a middle plate 364, the middle part of the middle plate 364 is provided with the second through hole 365, the upper end of the middle plate 364 A second adjustment screw 366 is provided, two adjustment holes 367 are respectively provided on the first vertical plate 361 and the second vertical plate 363, and a plurality of ball mounting holes 369 for mounting balls 368 are provided at intervals on the bottom plate 362, one of which presses the paper One end of the bottom plate 362 of the device 36 is also provided with a guide wheel 360 .

The guiding device 21 as shown in Figure 6 includes a fixed plate 211, the third through hole 213 of a plurality of plug-in connecting rods 212 is arranged at intervals on the fixed plate 211, and every two connecting rods 212 are fixed with an adjusting block 214, connected A spring 215 passes through the rod 212 . In the process of conveying wood or cardboard, the adjustment block 214 is pressed by the wood or cardboard, and the spring 215 will automatically guide the skewed wood or cardboard to prevent the cardboard or cardboard from being skewed.

A lower end of one side of the first vertical plate 361 is provided with an inclined surface 37 . The wooden boards or cardboards are conveyed one by one by the belt 34 during the conveying process, and the setting of the inclined plane is convenient for the conveying of the wooden boards or cardboards.

The ends of the two longitudinal fixing plates 18 are provided with a transverse guide rod 38 , and a plurality of sliding blocks 39 are interspersed on the transverse guide rod 38 , and an insertion rod 32 is arranged on the sliding block 39 . When there are many wooden boards or cardboards put in at one time, the inserting rod 32 is moved to the discharging position of the wooden boards or cardboards, so as to reduce the friction between the wooden boards or cardboards and the horizontal boards, and improve the slotting quality of the wooden boards or cardboards.

As shown in FIG. 7 , two paper support shafts 47 are provided at the paper input end of the separator 24 . After the guiding device 21 guides the cardboard, the cardboard moves forward along the partition plate 24, and the paper support shaft 47 lifts the cardboard to facilitate the transportation of the cardboard.

The transmission process of the utility model is: the utility model drives the first gear 4 at one end of the cylinder shaft 3 through the rotating shaft gear 5 provided on the output shaft of the drive motor, thereby driving the cylinder 2, and the cylinder 2 drives the second gear 4 through the conveyor belt 11. Guide shaft 7, the first sprocket wheel 8 that one end of the second guide shaft 7 is connected drives the second sprocket wheel 41 on the first guide shaft 6 through the chain, because the second sprocket wheel 41 and the second gear 42 are coaxially arranged, The second gear 42 meshes with the third gear 43 again, thereby driving the fifth guide shaft 40 to feed, the second guide shaft 7 drives and conveys the cardboard or plank through the conveyor belt 11, and the second guide shaft 7 drives the second sprocket 44 and the first The three sprockets 46 make the sixth belt drive to the shaft 45 to convey the cardboard and output the paper.

According to the disclosure and teaching of the above specification, those skilled in the art to which the present utility model belongs can also make appropriate changes and modifications to the above embodiment. Therefore, the utility model is not limited to the specific implementation manners disclosed and described above, and some modifications and changes to the utility model should also fall within the scope of protection of the claims of the utility model. In addition, although some specific terms are used in this specification, these terms are only for convenience of description and do not constitute any limitation to the present utility model.

Claims (6)

1. a wood, paperboard groove cutting machine, comprise board (1), in board (1), be provided with the Cylindorical rod (3) of stationary cylinder (2), one end of Cylindorical rod (3) is provided with the first gear (4), described the first gear (4) is connected with the shaft gear (5) on drive motors by chain, at front first axis of guide (6) that is provided with of cylinder (2), second axis of guide (7) and the 5th axis of guide (40), one end of described second axis of guide (7) is provided with the first sprocket wheel (8), the other end of described second axis of guide (7) is provided with the second sprocket wheel (44), the below of described second axis of guide (7) is provided with the 6th axis of guide (45), one end of described corresponding described the second sprocket wheel of the 6th axis of guide (45) (44) is provided with the 3rd sprocket wheel (46), described the second sprocket wheel (44) is connected by chain with described the 3rd sprocket wheel (46), one end of described first axis of guide (6) is provided with the 4th sprocket wheel (41) and the second gear (42), one end of described the 5th axis of guide (40) is provided with the 3rd gear (43), described the first sprocket wheel (8) is connected by chain with described the 4th sprocket wheel (41), described the second gear (42) and described the 3rd gear (43) engagement, at cylinder (2), be provided with the 3rd axis of guide (9) and the 4th axis of guide (10) below, cylinder (2) by many conveyer belts (11) successively with second axis of guide (7), the 3rd axis of guide (9) is connected with the 4th axis of guide (10), in board (1) both sides, be provided with the tool axis fixed block (13) for secured adjusted tool axis (12), on tool axis (12), be provided with the knife rest spiral arm holder (15) of several immovable support spiral arms (14), one end of knife rest spiral arm (14) is provided with the cutter knife rest (17) of replaceable cutter (16), it is characterized in that, the feeding mouth both sides of described board (1) are respectively equipped with longitudinal fixed head (18), described two longitudinal fixed heads (18) connect by a transverse slat (19), the rear and front end of described transverse slat (19) is respectively equipped with power transmission shaft (20), described transverse slat (19) left and right sides is respectively equipped with guide device (21), the upper center of described two longitudinal fixed heads (18) is respectively equipped with a fixed block (22), described two fixed blocks (22) connect by a fixed bar (23), on described fixed bar (23), be interval with many group paper pressing device groups, the both sides of every group of paper pressing device group are respectively equipped with dividing plate (24), one end of described dividing plate (24) is connected with the first adjusting rod (25) by an axle sleeve, the other end of described axle sleeve is connected with screw rod (26), one end of described screw rod (26) is provided with leader (27), the middle part, lower end of described two longitudinal fixed heads (18) is respectively equipped with an adjustable plate (28), the middle part of described adjustable plate (28) is provided with the first through hole (29), in described the first through hole (29), be provided with a slide plate (30), described two slide plates (30) connect by the second adjusting rod (31), on described the second adjusting rod (31), be interval with a plurality of belt drive shafts (33), described two power transmission shafts (20) are connected by belt (34) with described belt drive shaft (33), described slide plate (30) lower end is provided with the first set screw (35).

2. wood according to claim 1, paperboard groove cutting machine, it is characterized in that, on described fixed bar (23), be interval with two groups of paper pressing device groups, every group of paper pressing device group comprises three paper pressing devices (36), described paper pressing device (36) comprises the first erect plate (361), the lower end of described the first erect plate (361) is provided with a base plate (362), described base plate (362) is provided with the second erect plate (363), described the first erect plate (361) is connected by an intermediate plate (364) with described the second erect plate (363), the middle part of described intermediate plate (364) is provided with the second through hole (365), the upper end of described intermediate plate (364) is provided with the second set screw (366), on described the first erect plate (361) and described the second erect plate (363), be respectively equipped with two adjustment holes (367), on described base plate (362), be interval with the ball installing hole (369) of a plurality of installation balls (368), base plate (362) one end of one of them paper pressing device (36) is also provided with a directive wheel (360).

3. wood according to claim 1, paperboard groove cutting machine, it is characterized in that, described guide device (21) comprises fixed head (211), on described fixed head (211), be interval with the third through-hole (213) of a plurality of plug-in mounting connecting rods (212), every two connecting rods (212) are fixed a regulating block (214), are equipped with a spring (215) on described connecting rod (212).

4. wood according to claim 2, paperboard groove cutting machine, is characterized in that, a side lower end of described the first erect plate (361) is provided with an inclined-plane (37).

5. wood according to claim 1, paperboard groove cutting machine, it is characterized in that, the end of described two longitudinal fixed heads (18) is provided with a horizontal guide rod (38), and the upper interval of described horizontal guide rod (38) is equipped with a plurality of sliding shoes (39), and described sliding shoe (39) is provided with an inserted link (32).

6. wood according to claim 1, paperboard groove cutting machine, is characterized in that, the paper end that enters of described dividing plate (24) is provided with two paper supporting shafts (47).
