CN203393979U

CN203393979U - Non-slip floor

Info

Publication number: CN203393979U
Application number: CN201320406409.4U
Authority: CN
Inventors: 陈本源
Original assignee: DONGGUAN MEIJER PLASTIC PRODUCTS CO LTD
Current assignee: DONGGUAN MEIJER PLASTIC PRODUCTS CO LTD
Priority date: 2013-07-10
Filing date: 2013-07-10
Publication date: 2014-01-15
Anticipated expiration: 2023-07-10
Also published as: TWM479336U; JP3189815U

Abstract

The utility model discloses a non-slip floor, which comprises a main body, wherein the bottom surface of the main body is compositely overlapped with an adhesive layer, the bottom surface of the adhesive layer, which is contacted with the ground, is convexly provided with a plurality of convex ribs, the plurality of convex ribs form a plurality of closed cavity type suckers in a surrounding manner, and the adhesive layer is made of pressure-sensitive type thermal sensitive adhesive materials; and the material formula of the sticking layer is as follows: comprises the following components in parts by weight: 35-55% of tackifying resin, 10-20% of softener, 2-5% of antioxidant, 10-20% of butyl rubber and 5-10% of naphthenic oil, wherein the sum of the total amount of the substances is 100%. Therefore, the utility model can be repeatedly used, is easy to install and convenient to disassemble by utilizing the characteristic that the pressure-sensitive type heat-sensitive adhesive can be repeatedly used; utilize to paste the layer and can make the utility model discloses paste subaerial well to promote greatly the utility model discloses a limited slip performance has autohension and adsorption effect well, and bottom limited slip coefficient can reach 1.7 ~ 2.0 to make the house mat formation can remove old person and children's safety concern.

Description

Non-skid floor

Technical field

The utility model relates to floor art, refers in particular to the good Non-skid floor of a kind of non-skid property.

Background technology

As everyone knows, take the made floor covering of macromolecular compound (resin is primary raw material) is called plastic floor.It has following characteristics: (1) price appropriateness and carpet, wood floors, and stone material is compared with ceramic earth material, and its price is relatively cheap.(2) good decorating effect: the variation of its kind, style, pattern, color, quality, shape, surface is high density special construction, can meet the needs of hobby and the various uses of different crowd, as lines such as Wood-grain-imitating/marble grain/carpet line/granite, imitate natural materials, be really true to life.(3) have several functions concurrently: foot sense is comfortable, have warm sense, can be heat insulation, sound insulation, damp proof insulation.(4) construction is laid conveniently, without cement sand, does not need Xing Mu to break ground, using special adhesive paving, fast and convenient; Customer more can participate in general idea, selection and laying in person.(5) construct lightweight, than after wood flooring construction lightweight 10 times, than after ceramic tile construction lightweight 20 times, than after stone material construction lightweight 25 times, the practicalities such as the most applicable three layers of above high constructure, office block, lower the supporting power in its building, safety is guaranteed, and convenient in carrying.(5) be easy to maintenance: easily wipe, easily wash, easily dry, abrasion resistance is good, long service life.As can be seen here, though plastic floor has various features and advantage, there are wide market prospects.

In plastic floor, non-skid property one value is constantly research and one of important topic of assaulting fortified position in the industry.Non-skid property refers to the skid resistance of plastic floor, and the size of on-slip coefficient is the important indicator of its non-skid property height.At present, once someone proposed to arrange on a kind of bottom surface contacting with ground at plastic floor the design of on-slip lines, and its on-slip lines is various, has regular hexagon, circle or waveform etc.But these lines designs are unreasonable with combination, cause the on-slip coefficient of plastic floor still lower, the on-slip coefficient of existing plastic floor can only reach 1.1, and cannot further promote, and becomes a plastic floor large bottleneck in the industry.For this reason, someone attempts to adopt the direct cementation in curing Jiao Jiang floor that viscosity is very strong on the ground, yet this kind of mode can make floor to reuse.

Utility model content

In view of this, the utility model is for the disappearance of prior art existence, and its main purpose is to provide a kind of Non-skid floor, and it is poor or adopt to solidify the problem that is adhesively fixed and causes floor to use that it can effectively solve existing floor non-skid property.

For achieving the above object, the utility model adopts following technical scheme:

, include main body, the compound folded adhered layer that is provided with in bottom surface of this main body, the bottom surface of this adhered layer Zhi Yu ground contact convexes with a plurality of fins, and the plurality of fin encloses and is configured to a plurality of sealing cavity formula suckers, and this adhered layer is pressure-sensitive type heat-sensitive glue material.

As a kind of preferred version, described fin is the non-equilateral hexagon fin of sealing.

As a kind of preferred version, described a plurality of fins are the flexible thermal embossing road that the hot pressing of main body bottom surface forms, and this hot pressing lines comprises the non-equilateral hexagon fin of a plurality of aforementioned sealing that repeats continuously connection.

As a kind of preferred version, described main body comprises from bottom to top the bed of material, PVC printed layers and PVC wearing layer in PVC initial bed that lamination hot pressing is successively combined with each other, PVC, and this adhered layer is compound to be stacked on the bottom surface of PVC initial bed.

As a kind of preferred version, described PVC wearing layer is environment friendly transparent PVC material.

The utility model compared with prior art has obvious advantage and beneficial effect, particularly, and as shown from the above technical solution:

By adopting pressure-sensitive type heat-sensitive glue to make adhered layer, and coordinate the bottom surface of adhered layer Zhi Yu ground contact to convex with a plurality of fins, so, on the one hand, the characteristic of utilizing pressure-sensitive type heat-sensitive glue to reuse, makes the utility model reusable, easily install, for convenience detach; On the other hand, utilize adhered layer can make the utility model paste on the ground well, thereby greatly promoted non-skid property of the present utility model, have tack and adsorption effect well, on-slip coefficient in bottom can reach 1.7～2.0; In addition, the utility model also has low phenol, low VOC, environment-protecting asepsis, good dimension stability, good, the submissive excellent feature of property of frost resistance, thereby household is mated formation, can remove the elderly and children's safety worries.

For more clearly setting forth architectural feature of the present utility model and effect, below in conjunction with accompanying drawing and specific embodiment, the utility model is elaborated.

Accompanying drawing explanation

Fig. 1 is the preferred embodiment cross section stereo schematic diagram of the utility model;

Fig. 2 is the enlarged diagram of A position in Fig. 1;

Fig. 3 is the enlarged diagram of the bottom surface of initial bed in the preferred embodiment of the utility model.

Accompanying drawing identifier declaration:

10, main body 11, PVC wearing layer

12, the bed of material 13, PVC printed layers in PVC

14, PVC wearing layer 20, adhered layer

201, fin.

The specific embodiment

Please refer to shown in Fig. 1 to Fig. 3, the concrete structure that it has demonstrated the preferred embodiment of the utility model, includes main body 10.

The compound folded adhered layer 20 that is provided with in this main body 10 bottom surface, the bottom surface of this adhered layer 20Zhi Yu ground contact convexes with a plurality of fins 201, and the plurality of fin 201 encloses and is configured to a plurality of sealing cavity formula suckers, and this adhered layer is pressure-sensitive type heat-sensitive glue material; And the material prescription of this adhered layer 20 is: by weight, comprise: tackifying resin 35%～55%, softening agent 10%～20%, antioxidant 2%～5%, butyl rubber 10%～20%, naphthenic oil 5%～10%, aforementioned substances total amount sum is 100%.In the present embodiment, this tackifying resin includes matrix resin (SBS) and mylar, and this matrix resin accounts for 25%～40% of aforementioned substances total amount sum, and this mylar accounts for 10%～20% of aforementioned substances total amount sum.The adhered layer 20 that adopts above-mentioned formula to make, it is applied in has very high on-slip coefficient on floor, when the on-slip coefficient on this floor of test, standard is tested routinely, for example: first, the sample of intercepting 120mm*240mm, sample bottom surface sticks on the platform of tester with double faced adhesive tape, then, the utility model sample of intercepting 51mm*51mm, sample bottom surface sticks on test iron block with double faced adhesive tape, then, start tester, the platform uniform motion of tester, read tensiometer maximum value, this value can obtain on-slip coefficient divided by the weight of iron block and sample.

This fin 201 is the non-equilateral hexagon fin of sealing, and the plurality of fin 201 is the flexible thermal embossing road that main body 10 bottom surface hot pressing form, and this hot pressing lines comprises the non-equilateral hexagon fin of a plurality of aforementioned sealing that repeats continuously connection.

In addition, this main body 10 comprises from bottom to top the bed of material 12, PVC printed layers 13 and PVC wearing layer 14 in PVC initial bed 11 that lamination hot pressing is successively combined with each other, PVC, this adhered layer 20 is compound to be stacked on PVC initial bed 11 bottom surface, and this PVC wearing layer 14 is environment friendly transparent PVC material.

The material prescription of above-mentioned adhered layer 20 is enumerated to 8 embodiment below, and pressure-sensitive type heat-sensitive glue material is enumerated to 3 comparative examples, their formula is as shown in table 1.

The formula of table 1 embodiment 1～8 and comparative example 1～3

Figure 2013204064094100002DEST_PATH_IMAGE001

To on the adhered layer on the formula application floor of above-described embodiment 1～8 and comparative example 1～3, carry out the detection of some key propertys, result is as shown in table 2:

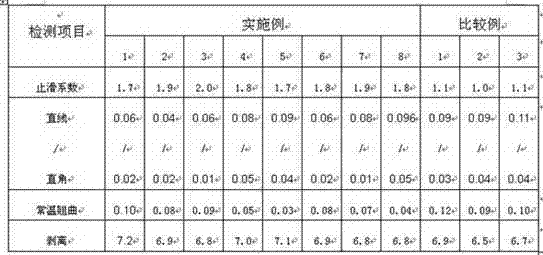

The key property of the adhered layer on table 2 floor

Test condition:

On-slip coefficient: test according to a conventional method under 23 ℃/50RH% condition.

Straight line right angle: under 23 ℃/50RH% condition, test according to EN427.

Normal temperature warpage: under 23 ℃/50RH% condition, test according to EN434.

Peel off: under 23 ℃/50RH% condition, according to EN431, test.

From test result: adopt the pressure-sensitive type heat-sensitive glue of formula making of utility model as the adhered layer on floor of the present utility model, and coordinate and on adhered layer, be provided with fin, make the utility model at straight line right angle, normal temperature warpage, the performance test aspect such as peel off and have excellent performance, especially more outstanding aspect non-skid property, there is good tack and adsorption effect, the on-slip coefficient on the floor of the utility model can reach 1.7～2.0, the on-slip coefficient 1.1 on more traditional floor has improved more than 63%, captured the bottleneck that plastic floor non-skid property in the industry promotes.

The above, it is only preferred embodiment of the present utility model, not technical scope of the present utility model is imposed any restrictions, therefore any trickle modification, equivalent variations and modification that every foundation technical spirit of the present utility model is done above embodiment, all still belong in the scope of technical solutions of the utility model.

Claims

1. An anti-skid floor, comprising a main body, is characterized in that: the bottom surface of the main body is laminated with an adhesive layer, and the bottom surface of the adhesive layer in contact with the ground is convexly provided with a plurality of convex ribs, and the plurality of convex ribs surround It is configured as a plurality of closed cavity suction cups, and the adhesive layer is made of pressure-sensitive heat-sensitive adhesive material.

2. The non-slip floor according to claim 1, characterized in that: the convex rib is a closed non-equilateral hexagonal rib.

3. The non-slip floor according to claim 2, characterized in that: the plurality of convex ribs are flexible hot-pressed lines formed by hot pressing on the bottom surface of the main body, and the hot-pressed lines include a plurality of the aforementioned closed non-uniform lines that are continuously and repeatedly connected. Side hexagonal ribs.

4. The non-slip floor according to claim 1, characterized in that: the main body comprises a PVC base material layer, a PVC middle material layer, a PVC printing layer and a PVC resistance The abrasive layer is laminated on the bottom surface of the PVC primer layer.

5. The non-slip floor according to claim 4, characterized in that: the PVC wear-resistant layer is made of environmentally friendly transparent PVC material.
